Machine
Auto Sisal & Cotton Buffs Polishing Machine
Machine Function

Combine ball valve outer diameter turning, two side chamfer and one side slitting in one machine.
Human-machine inter with touch panel.
Optimized for ball valve machining, dimensional tolerance up ±0.01mm
25.11.2016

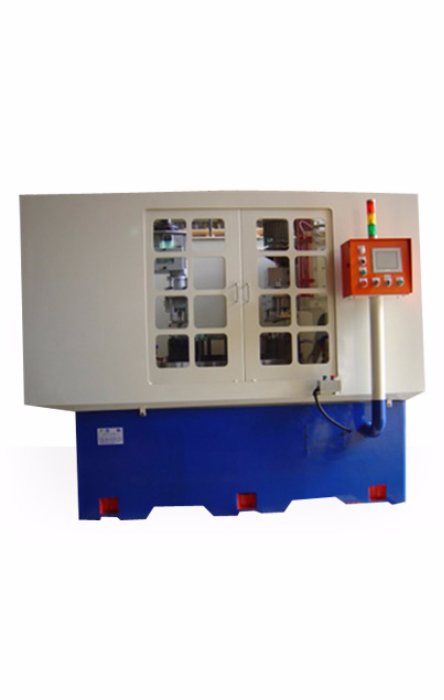

Ball Valve SPM Auto Sander
Machine Function

Combine ball valve outer diameter turning, two side chamfer and one side slitting in one machine.
Human-machine inter with touch panel.
Optimized for ball valve machining, dimensional tolerance up ±0.01mm
25.11.2016

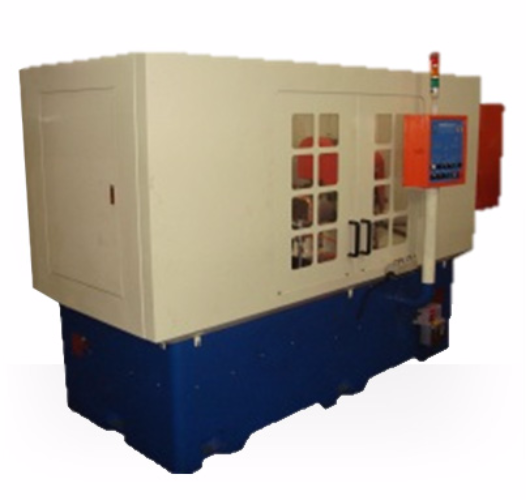

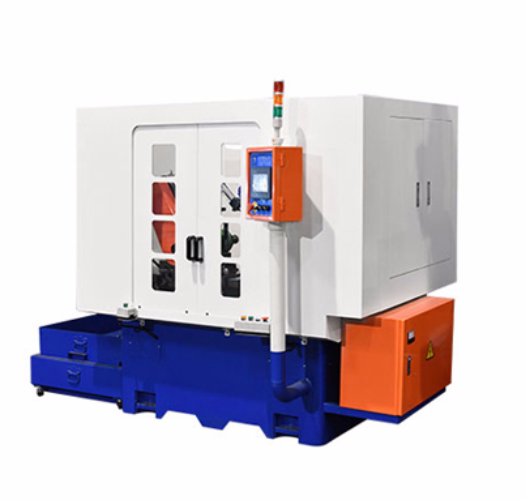

Ball Valve SPM NC 3 In 1 Ball Valve SPM
Machine Function

Combine ball valve outer diameter turning, two side chamfer and one side slitting in one machine.
Human-machine inter with touch panel.
Optimized for ball valve machining, dimensional tolerance up ±0.01mm
25.11.2016

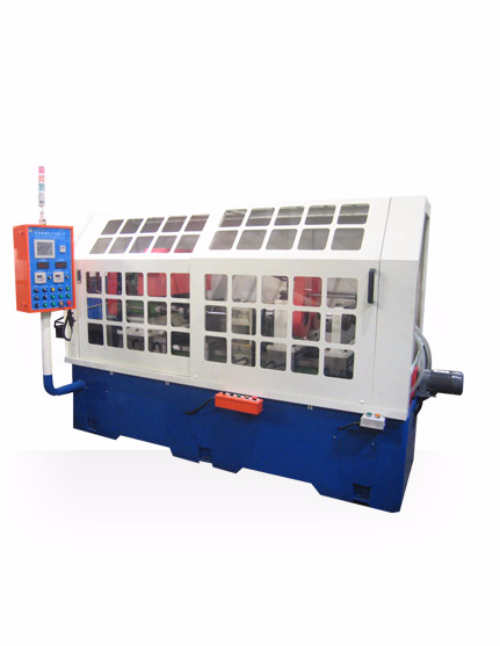

Horizontal Ball Valve Finishing Machine
Machine Function

Combine ball valve outer diameter turning, two side chamfer and one side slitting in one machine.
Human-machine inter with touch panel.
Optimized for ball valve machining, dimensional tolerance up ±0.01mm
25.11.2016

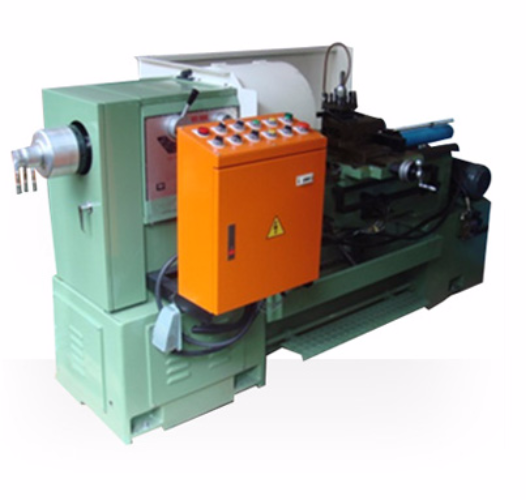

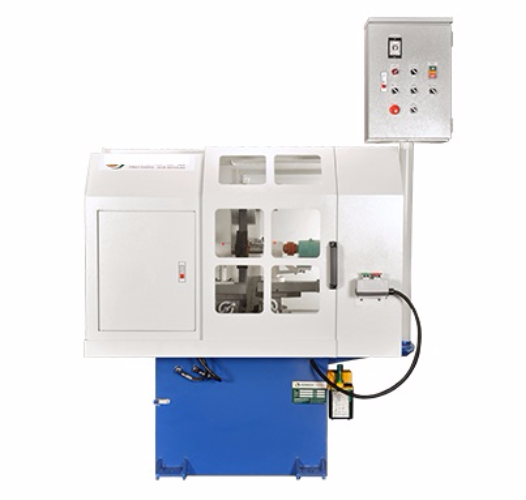

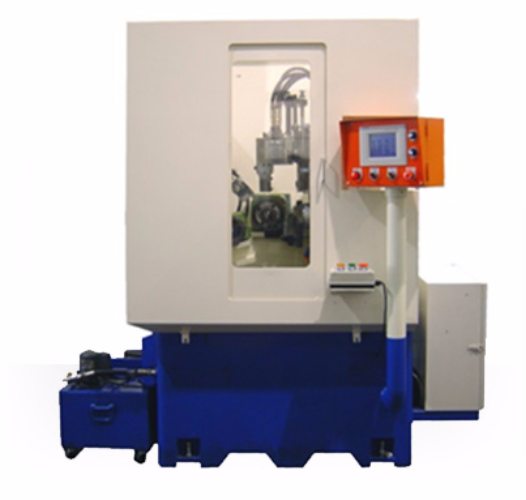

Ball Valve SPM Horizontal I.D. Turning SPM
Machine Function

The inner diameter turning SPM is used to do ball valve I.D. turning. Without any skills, operators can make perfect ball valve I.D. turning in a fast and accurate way, with stable production rate and great surface finish.
25.11.2016

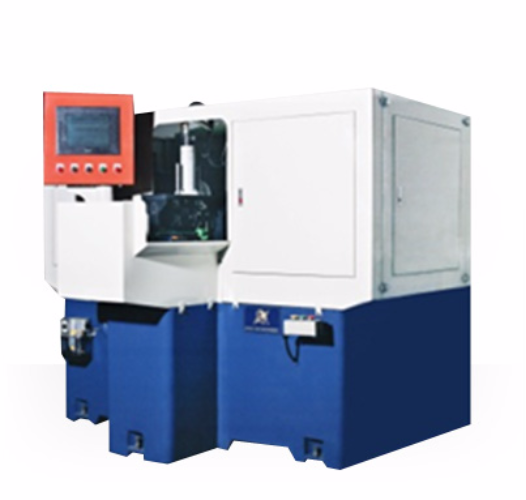

Ball Valve SPM Horizontal Grooving Machine
Machine Function

The ball valve grooving machine is used to do grooving on ball valve outer surface. Without any skills, operators can make perfect grooving in a fast and accurate way, with stable production rate and great surface finish.
25.11.2016
Ball Valve SPM Horizontal I.D. Turning SPM
Machine Function

The horizontal I.D. turning SPM is designed for fast and easy mass-production in ball valve I.D. turning. Rigid structure, very easy operation & maintenance brings stable quantity with precise dimensions & good surface finish.
25.11.2016

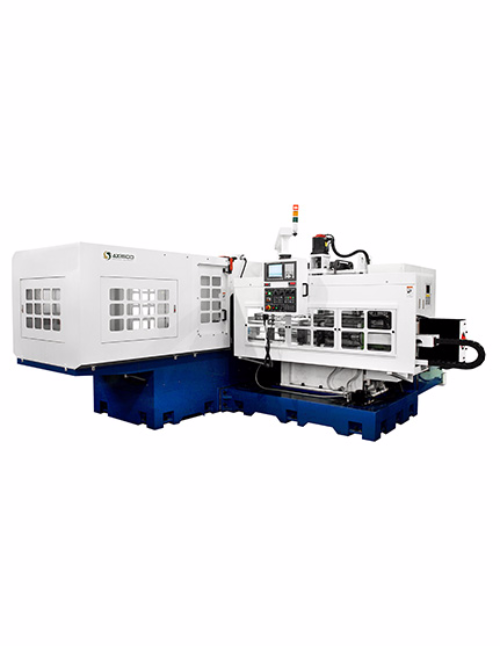

Vertical & Horizontal 3 in 1 Machining Center (O.D. Turning, Chamfering, & Grooving)
Machine Function

Outer dia. turning, double end chamfering, and grooving functions are integrated in this machine.
With one time clamping, all three process could be done one after another. Which results in excellent accuracy.
Different sizes of ball valves can be machined by changing fixtures and adjusting the spindle position and speed.
Cycle time is 65~150 seconds per piece (depends on component sizes)
25.11.2016

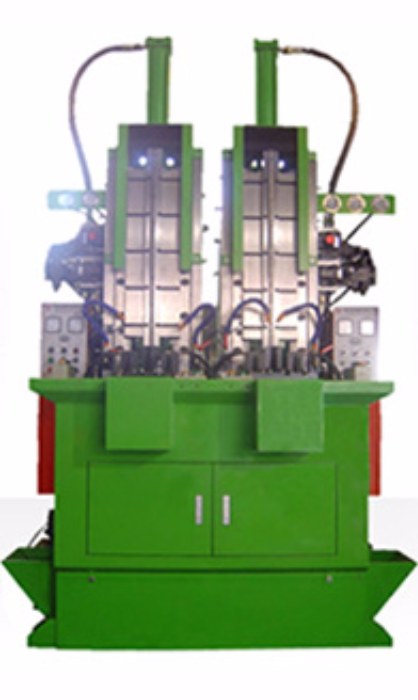

Punch Press-CNCPress(Servo Slide+Human-Machine Interface+Hydraulic Fixtures)
Machine Function

The machine is specially designed for blind hole shaping.
All machining parameter can be adjusted in numerical control system with human-machine interface.
Blind holes punching or shaping can be done precisely as per customer’s requirements.
25.11.2016

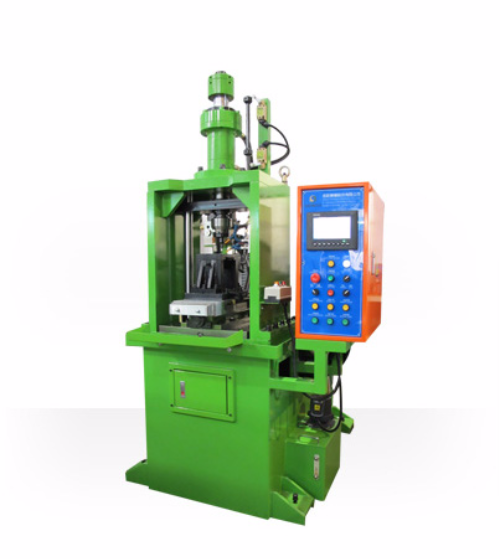

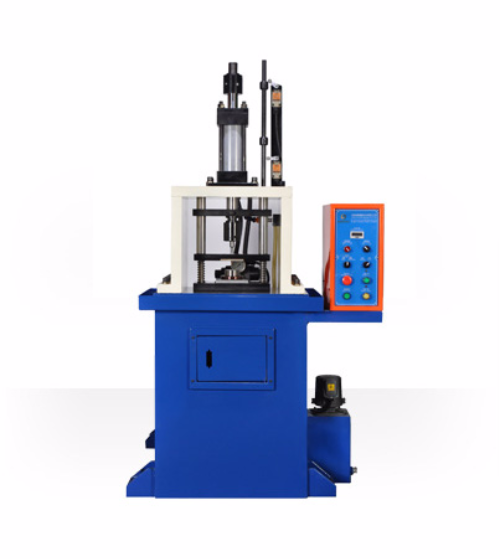

Punch Press-Single SpindlePress
Machine Function

The machine is specially designed for blind hole shaping.
All machining parameter can be adjusted in numerical control system with human-machine interface.
Blind holes punching or shaping can be done precisely as per customer’s requirements.
25.11.2016

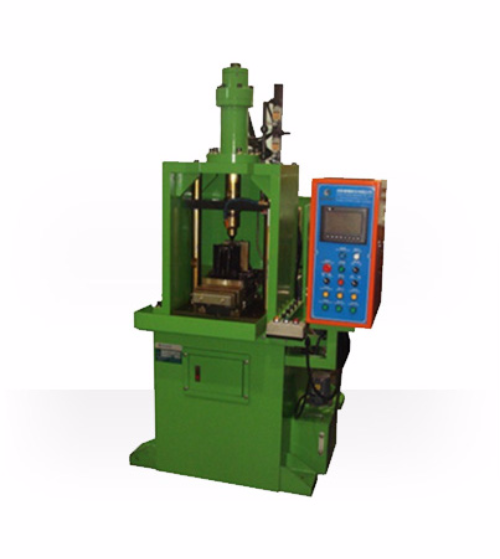

Punch Press-Auto Hydraulic Press with NC Servo System
Machine Function

The machine is specially designed for blind hole shaping.
All machining parameter can be adjusted in numerical control system with human-machine interface.
Blind holes punching or shaping can be done precisely as per customer’s requirements.
25.11.2016

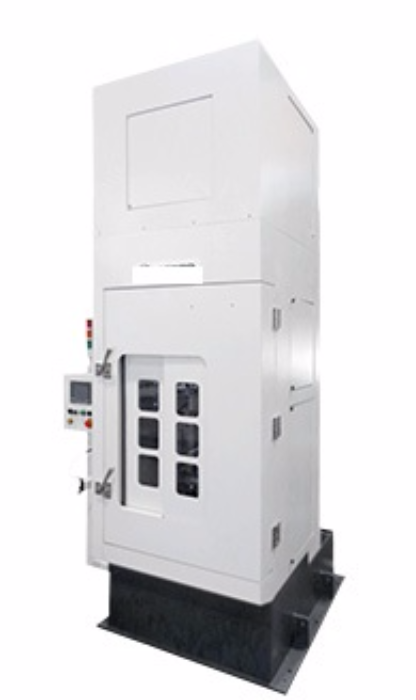

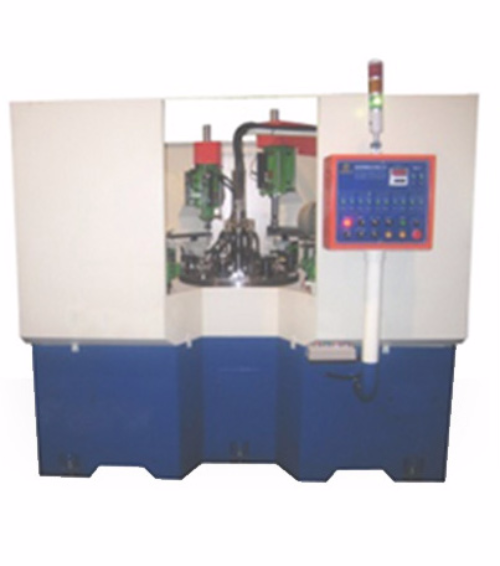

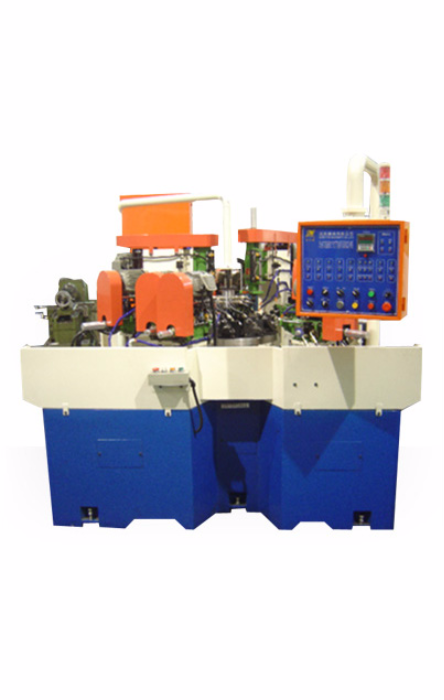

Vertical 4 Way Multi-drillling, Multi-tapping Rotary Machine with Human-machine interface
Machine Function

This machine is made for 2 directional multi-drilling (Ø1.2 -32 holes) and multi-tapping (M1.2 x 0.25P -32 holes). The machining parameters can be adjusted in PLC or NC control system to enable excellent machining efficacy.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 seconds per piece (depends on components) with accurate dimensions and great surface roughness. The production process is fast and stable.
25.11.2016
Horizontal 4 Way (2 Spindle Fine Boring, 2 Spindle Burnishing)
Integrates Multi-directional drilling, boring, tapping, tool detecting, in one machine. The machining parameters can be adjusted in PLC or NC control system to enable excellent machining efficacy.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 second per piece (depends on components). The production is stable and efficient with accurate dimensions and great surface roughness.
25.11.2016

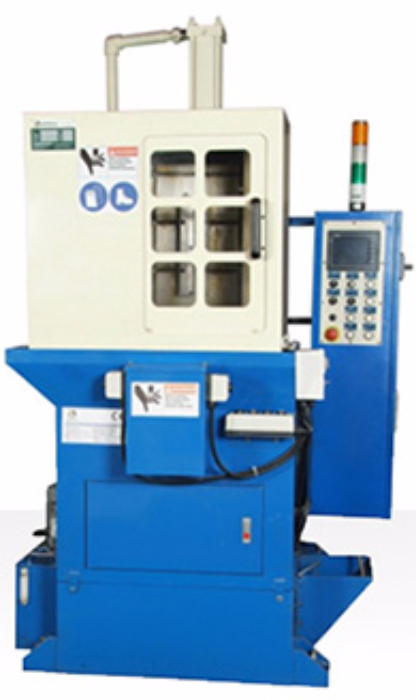

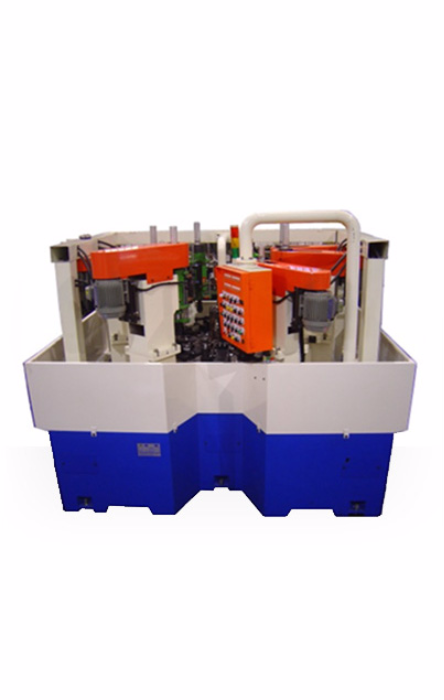

Vertical 8 Way (Drilling, Boring, Tapping, & Auto Unloading)
Many kinds of machining requirements can be fulfilled and integrated such as drilling, boring, tapping, milling, slide-facing, turning, grooving, chamfering, polishing, burnishing, etc.
For different requirements, the machines can be designed in numerical, hydraulic, or pneumatic systems with proper tooling and fixtures.
Most kind of material, whether it is soft or hard, metal or non-metal, can be effectively machined on our SPM. Auto loading & unloading is also possible when the shape of components is simple.

Machine Function

Multi-directional facing, drilling, boring, shift-facing can be done at the same time on this rotary machine.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 second per piece (depends on components). The production is stable and efficient with accurate dimensions and great surface roughness.
25.11.2016

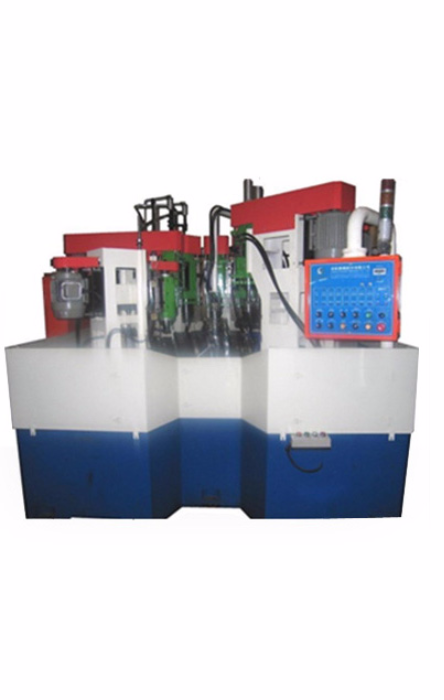

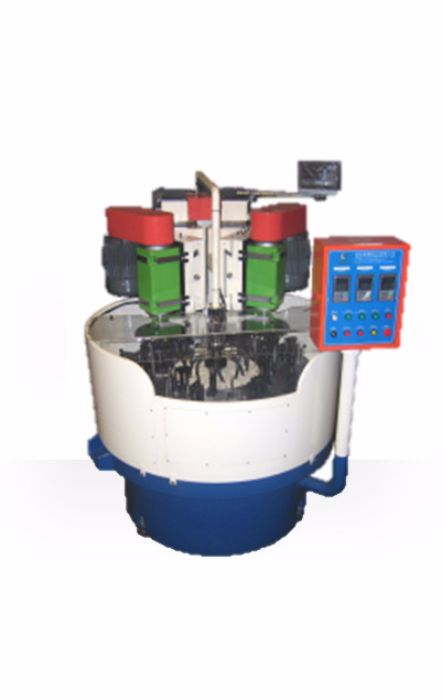

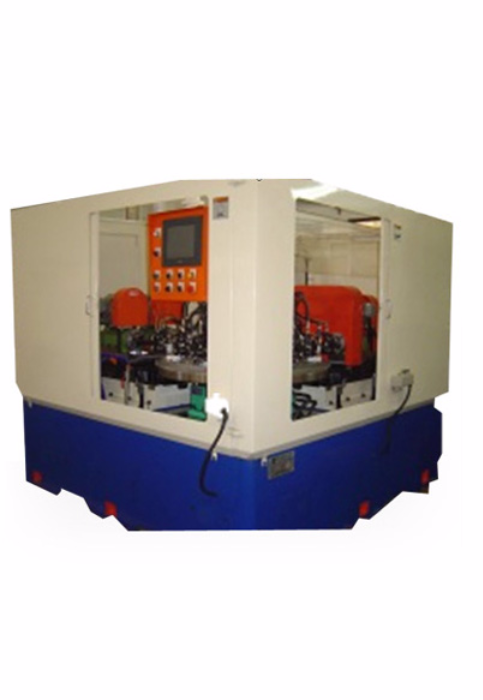

Vertical / Horizontal 10 Way (Drilling, Boring, & Tapping)
Machine Function

Multi-directional facing, drilling, boring, shift-facing can be done at the same time on this rotary machine.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 second per piece (depends on components). The production is stable and efficient with accurate dimensions and great surface roughness.
25.11.2016
Rotary tableVertical / Horizontal 8 Way (Drilling, Boring, & Tapping)
Machine Function

Multi-directional facing, drilling, boring, shift-facing can be done at the same time on this rotary machine.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 second per piece (depends on components). The production is stable and efficient with accurate dimensions and great surface roughness.
25.11.2016

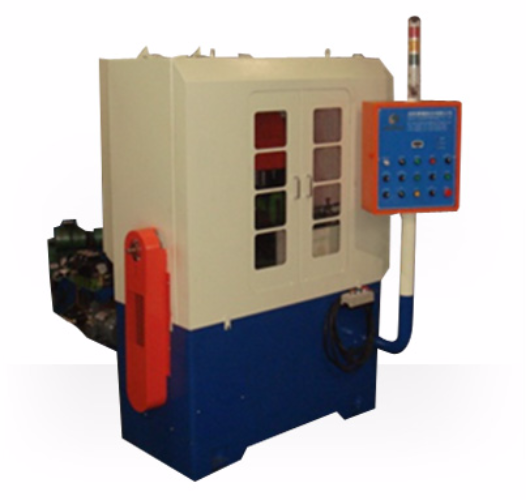

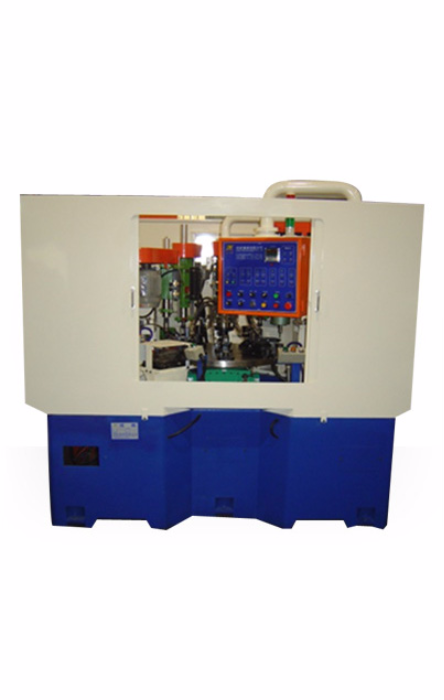

Vertical / Horizontal 8 Way
The machine combined vertical drilling, vertical tapping, horizontal drilling, horizontal tapping together.

Can be applied on different shapes for accurate, fast, stable, and low cost machining.

One time clamping ensure high accuracy. For different components, the height of work stations and feed of hydraulic cylinders can be adjusted.

Cycle time is about 30 seconds per piece including loading/unloading. With accurate dimensions and great surface roughness
25.11.2016
Vertical 8 Way (Milling, Drilling, Boring, & Slide-Facing)
Machine Function

Multi-directional facing, drilling, boring, shift-facing can be done at the same time on this rotary machine.
Machining parameter can be set on numerical or PLC control panel to ensure better machining efficacy.
Whatever size or shape the component is, this machine can do rough and fine facing in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 seconds per piece (depends on components) with accurate dimensions and great surface roughness. The production process is fast and stable.
25.11.2016

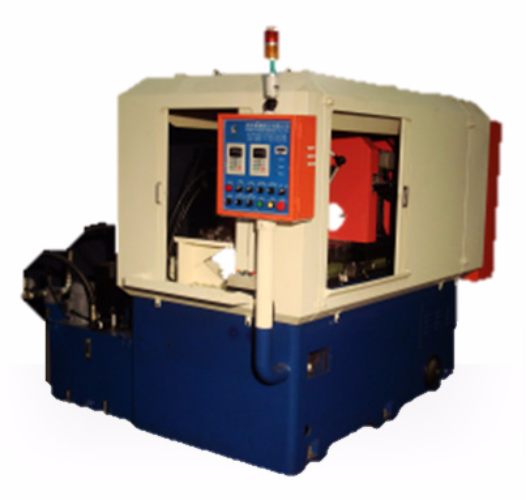

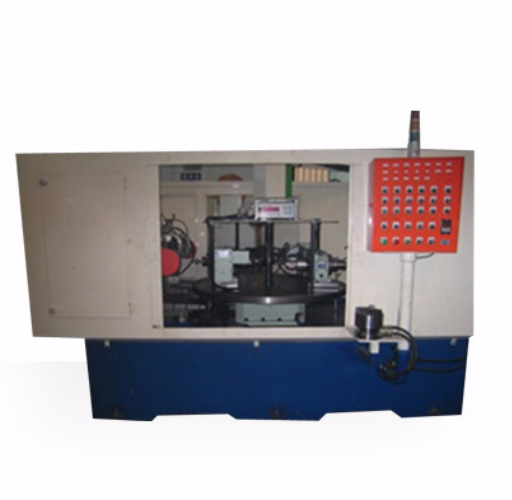

Rotary table Horizontal 4 Way (Gundrilling & Grooving)
Machine Function

This rotary machine combines two-way drilling, index slitting, and component shifting together. With Numerical control, parameters can be easily set on human-machine interface which enables better machining efficacy.
The machine is applied on motor rotor parts. The number of index slitting can be adjusted as per requirement, and the parallelism is under 0.03mm.
One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle position and speed are also adjustable.
Cycle time is 65~120 seconds per piece (depends on components), the production process is fast and stable.
25.11.2016

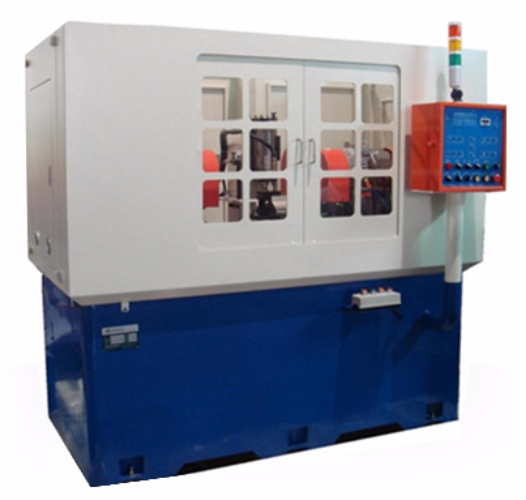

Rotary table Rough & Fine Facing
Machine Function

This machine runs non-stop with 2 spindles doing rough and fine facing at the same time. Cycle time is around 35~120 seconds per piece (depends on sizes and number of stations) with precise dimension and great surface roughness.
The speed of spindles and rotary table can be adjusted by invertor, and the machining size can be adjusted by optic scale, which enables excellent machining efficacy.
Whatever size or shape the component is, this machine can do rough and fine facing in a fast, precise, and low cost way.
25.11.2016

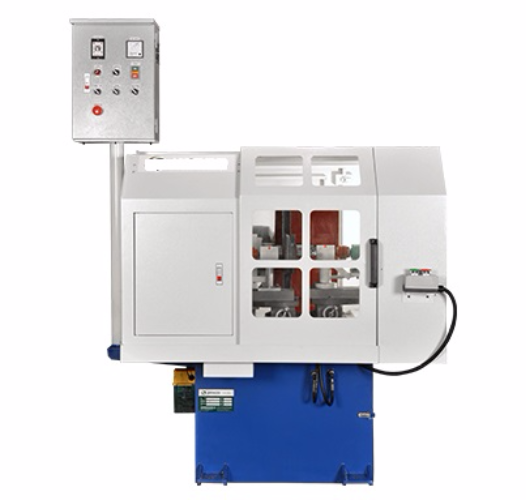

4 Spindle SPM-Horizontal Drilling, Boring, & Tapping Machine
Vertical drilling & tapping, horizontal drilling & tapping are integrated in this machine.

Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, work station position and hydraulic cyclinder feed are also adjustable.

Cycle time is 15~50 seconds per piece (depends on components) with accurate dimensions and great surface roughness. The production process is fast and stable.
25.11.2016

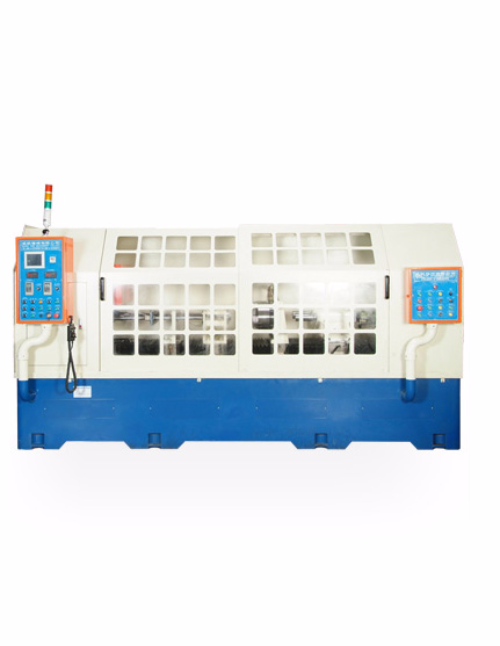

Two Spindle SPM-Horizontal One Way Boring Machine (Gundrilling type)
n this machine, we apply gundrilling process to do boring in the deep hole. The machining parameter is adjusted with PLC & invertor. With auto loading & unloading.

The advantage is very fast machining speed, high precision, and nice surface finish. Different-sized components can be designed to share common fixtures.
25.11.2016

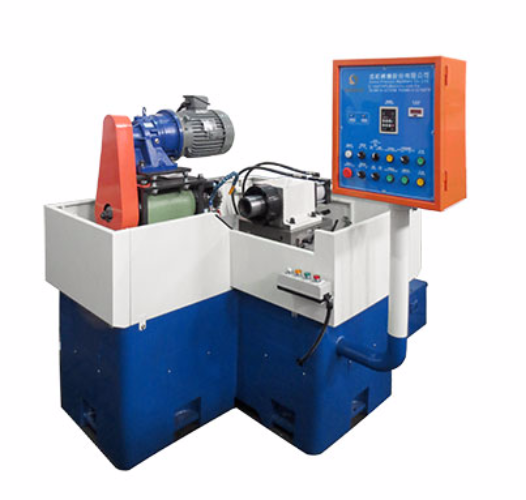

Single Spindle SPM-Auto Gap Turning Machine for Spider Crank
About Our Special Purpose Machines

It is always a lovely challenge to design a machine which brings customers huge production with high precision, easy operation, and low production costs.
Many kinds of machining requirements can be fulfilled and integrated such as drilling, boring, tapping, milling, slide-facing, turning, grooving, chamfering, polishing, burnishing, etc.
For different requirements, the machines can be designed in numerical, hydraulic, or pneumatic systems with proper tooling and fixtures.
Most kind of material, whether it is soft or hard, metal or non-metal, can be effectively machined on our SPM. Auto loading & unloading is also possible when the shape of components is simple.
25.11.2016
4 Spindle SPM-Horizontal Drilling, Boring, & Tapping Machine
Machine Function

Two directional drilling boring, chamfering, and component shifting are combined in this machine. Machining parameter can be set on PLC control panel to ensure better machining efficacy.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 40~65 seconds per piece (depends on components) with accurate dimensions and great surface roughness. The production process is fast and stable.
25.11.2016
3 Spindle SPM-Horizontal Drilling, Boring, & One Side Tapping Machine
Machine Function

The machine is designed for two directional drilling, boring, and tapping in both vertical and horizontal way. Machining parameters can be set in the numerical control system with human-machine interface to make machining efficacy better.
Can be applied on different shapes for accurate, fast, stable, and low cost machining. One time clamping ensure high accuracy. For different components, the positions of spindles can be adjusted and the fixtures are easy to change.
Cycle time is about 40~65 second per piece (depends on stations). With high accuracy and great surface roughness.
25.11.2016

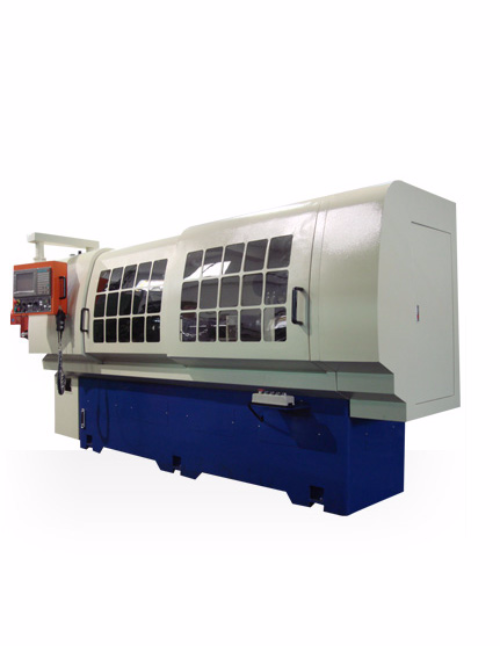

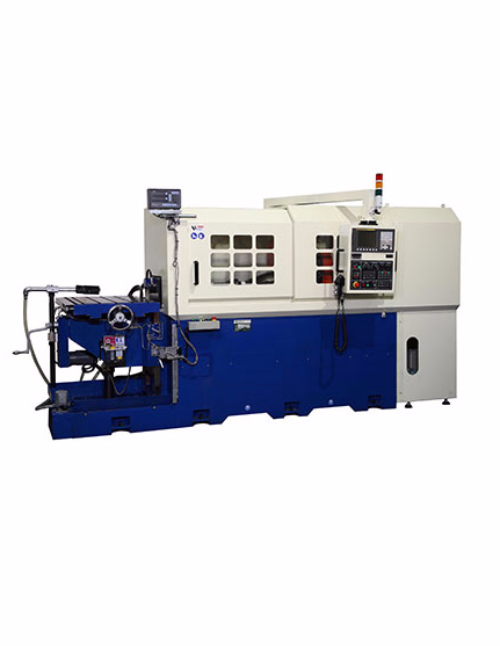

Drilling Machine Platform Type (Semi Auto) Horizontal Gundrilling Machine
Model no.	CYB-500	CYB-1200	CYB-1500
Drilling dia.	Ø3~Ø12,Ø10~Ø25mm(Optional)	Ø3~Ø12,Ø10~Ø25mm(Optional)	Ø3~Ø12,Ø10~Ø25mm(Optional)
Drilling length	500mm	1,200mm	1,500mm
Table space	600 x 1,000mm	1,000 x 1,300mm	1,000 x 1,500mm
T slot	16 x 125 x 5 mm	16 x 125 x 8 mm	16 x 125 x 8 mm
X axis stroke	600mm	1,200mm	1,200mm
Y axis stroke	380mm	380mm	380mm
Z axis stroke	500mm	1,200mm	1,500mm
Spindle rpm	1,200~6,000 / 400~2,500 rpm	1,200~6,000 / 400~2,500 rpm	1,200~6,000 / 400~2,500 rpm
Spindle power	3.75(5HP)	3.75(5HP)	3.75(5HP)
Hy. Pump pressure	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2
Hy. Pump fluid	30~60 L/min	30~60 L/min	30~60 L/min
Lube tark	600~900 L	600~900 L	800~1,200 L
Cooling power	5,000~6,000/7,500 Kcal/hr	5,000~6,000/7,500 Kcal/hr	5,000~6,000/7,500 Kcal/hr
Floor space(WxLxH)	3,000x3,500x2,200 mm	5,600x4,200x2,200 mm	5,600x4,500x2,200 mm
25.11.2016
Drilling Machine Platform Type Horizontal Gundrilling Machine
Model no.	CYB-500	CYB-1200	CYB-1500
Drilling dia.	Ø3~Ø12,Ø10~Ø25mm(Optional)	Ø3~Ø12,Ø10~Ø25mm(Optional)	Ø3~Ø12,Ø10~Ø25mm(Optional)
Drilling length	500mm	1,200mm	1,500mm
Table space	600 x 1,000mm	1,000 x 1,300mm	1,000 x 1,500mm
T slot	16 x 125 x 5 mm	16 x 125 x 8 mm	16 x 125 x 8 mm
X axis stroke	600mm	1,200mm	1,200mm
Y axis stroke	380mm	380mm	380mm
Z axis stroke	500mm	1,200mm	1,500mm
Spindle rpm	1,200~6,000 / 400~2,500 rpm	1,200~6,000 / 400~2,500 rpm	1,200~6,000 / 400~2,500 rpm
Spindle power	3.75(5HP)	3.75(5HP)	3.75(5HP)
Hy. Pump pressure	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2
Hy. Pump fluid	30~60 L/min	30~60 L/min	30~60 L/min
Lube tark	600~900 L	600~900 L	800~1,200 L
Cooling power	5,000~6,000/7,500 Kcal/hr	5,000~6,000/7,500 Kcal/hr	5,000~6,000/7,500 Kcal/hr
Floor space(WxLxH)	3,000x3,500x2,200 mm	5,600x4,200x2,200 mm	5,600x4,500x2,200 mm
25.11.2016
Deep Hole Drilling Machine For Round Bar Two Spindlex1000st
Model no.	CYS-500, CYD-500,
CYT-500, CYF-500	CYS-1000, CYD-1000,
CYT-1000, CYF-1000	CYS-1500, CYD-1500,
CYT-1500, CYF-1500
Drilling dia.	φ3~φ 12, φ10~φ25mm	φ3~φ 12, φ10~φ25mm	φ3~φ 12, φ10~φ25mm
Max. drilling length	500 mm	1000 mm	1500 mm
No. of spindle motor	1~4 spindles	1~4 spindles	1~4 spindles
Max. spindle rpm	6000 rpm	6000 rpm	6000 rpm
Controller	SYNTEC/FANUC/ MITSUBISHI	SYNTEC/FANUC/ MITSUBISHI	SYNTEC/FANUC/ MITSUBISHI
Main spindle motor	3~7.5 HP (with invertor)	3~7.5 HP (with invertor)	3~7.5 HP (with invertor)
Drill spindle feed (Z)	AC servo 1.5 kw ~ 3.5 kw	AC servo 1.5 kw ~ 3.5 kw	AC servo 1.5 kw ~ 3.5 kw
High pressure pump motor	3~7.5 HP	3~7.5 HP	3~7.5 HP (two sets)
Drilling speed	10~150 mm/min	10~150 mm/min	10~150 mm/min
Rapid feed	5000 mm/min	5000 mm/min	5000 mm/min
Pump output	30~80 L/min	30~80 L/min	30~80 L/min
Max pressure	140 kgs/cm2	140 kgs/cm2	140 kgs/cm2
Coolant sink	600~900 L	600~900 L	800~1200 L
Net weight	about 2500~3500 KG	about 3000~4000 KG	about 3500~4500 KG
Floor space	about 3000 x 3000/3300/4100 mm	about 3000 x 3000/3300/4100 mm	about 3400 x 3300/3400/4100 mm
25.11.2016
Deep Hole Drilling Machine For Round Bar
Model no.	CYS-500, CYD-500,
CYT-500, CYF-500	CYS-1000, CYD-1000,
CYT-1000, CYF-1000	CYS-1500, CYD-1500,
CYT-1500, CYF-1500
Drilling dia.	φ3~φ 12, φ10~φ25mm	φ3~φ 12, φ10~φ25mm	φ3~φ 12, φ10~φ25mm
Max. drilling length	500 mm	1000 mm	1500 mm
No. of spindle motor	1~4 spindles	1~4 spindles	1~4 spindles
Max. spindle rpm	6000 rpm	6000 rpm	6000 rpm
Controller	SYNTEC/FANUC/ MITSUBISHI	SYNTEC/FANUC/ MITSUBISHI	SYNTEC/FANUC/ MITSUBISHI
Main spindle motor	3~7.5 HP (with invertor)	3~7.5 HP (with invertor)	3~7.5 HP (with invertor)
Drill spindle feed (Z)	AC servo 1.5 kw ~ 3.5 kw	AC servo 1.5 kw ~ 3.5 kw	AC servo 1.5 kw ~ 3.5 kw
High pressure pump motor	3~7.5 HP	3~7.5 HP	3~7.5 HP (two sets)
Drilling speed	10~150 mm/min	10~150 mm/min	10~150 mm/min
Rapid feed	5000 mm/min	5000 mm/min	5000 mm/min
Pump output	30~80 L/min	30~80 L/min	30~80 L/min
Max pressure	140 kgs/cm2	140 kgs/cm2	140 kgs/cm2
Coolant sink	600~900 L	600~900 L	800~1200 L
Net weight	about 2500~3500 KG	about 3000~4000 KG	about 3500~4500 KG
Floor space	about 3000 x 3000/3300/4100 mm	about 3000 x 3000/3300/4100 mm	about 3400 x 3300/3400/4100 mm
25.11.2016
Single Spindlex500st (Standard Type)-(Open from Left)
Model no.	CYC-500	CYC-1000	CYC-1500
Hole Dia	Ø3~Ø12, Ø10~Ø25(Optional)	Ø3~Ø12, Ø10~Ø25(Optional)	Ø3~Ø12, Ø10~Ø25(Optional)
Max. Depth(Z)	500 mm	1000 mm	1500 mm
No. of Spindle	1~4 Spindle	1~4 Spindle	1~4 Spindle
Spindle Motor	2.25~5.63(3~7.5HP)
(with interver)	2.25~5.63(3~7.5HP)
(with interver)	2.25~5.63(3~7.5HP)
(with interver)
Drill Spindle Feed(Z)	Servo Motor 1.5~3.5	Servo Motor 1.5~3.5	Servo Motor 1.5~3.5
High Pressure Purrp Motor	2.25~5.63(3~7.5HP)	2.25~5.63(3~7.5HP)	2.25~5.63(3~7.5HP)
Max. Spindle Speed	6000 rpm	6000 rpm	6000 rpm
Drill Speed	10~150 mm/min	10~150 mm/min	10~150 mm/min
Rapid	5000 mm/min	5000 mm/min	5000 mm/min
Pump Output	30~80 L/min	30~80 L/min	30~80 L/min
Max Pressure	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2	30~100(140Max) kgs/cm2
Coolant Tank	600~900 L	600~900 L	800~1200 L
Machine Height	2000mm	2000mm	2000mm
Floor Space	3,500 x 2,500/2,500/2,500/2,800 mm	5,000 x 2,500/3,000/3,000/3,200 mm	6,500 x 2,500/3,000/3,000/3,200 mm
Cooling Power	5,000~6,000 or 7,500~9,000 kcal/hr	5,000~6,000 or 7,500~9,000 kcal/hr	5,000~6,000 or 7,500~9,000 kcal/hr
Net weight	2500~3500 kgs	3000~4000 kgs	3500~4500 kgs
25.11.2016
Two SpindleGundrilling Machine
Feature

The machine is suitable for car parts, round bars, tubes, and shafts.
Feed is controlled by servo motor with ball screw. Which enables easy setting and high precision.
Short loading/unloading time.
The machine can be designed into 1~4 spindles to increase production capacity.
SYNTEC CNC Controller (Can be changed as per customer’s requirement)
Auto lubrication system.
Special custom-made requirements are welcomed
Introduction of Gundrilling Machine

Gundrilling, also known as deep hole drilling, is a process that produces deep, straight holes in a variety of materials. Holes depth-to-diameter ratio deeper than 20:1 generally require a dedicated gundrilling machine to achieve highest productivity and process reliability. The size, concentricity, surface roughness can be maintained precisely.
25.11.2016

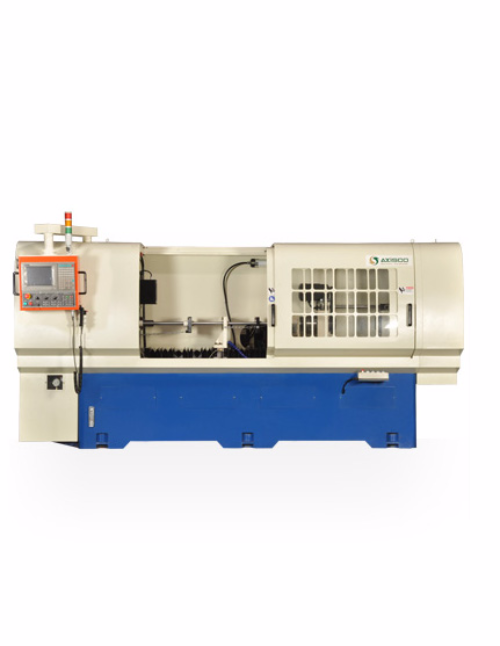

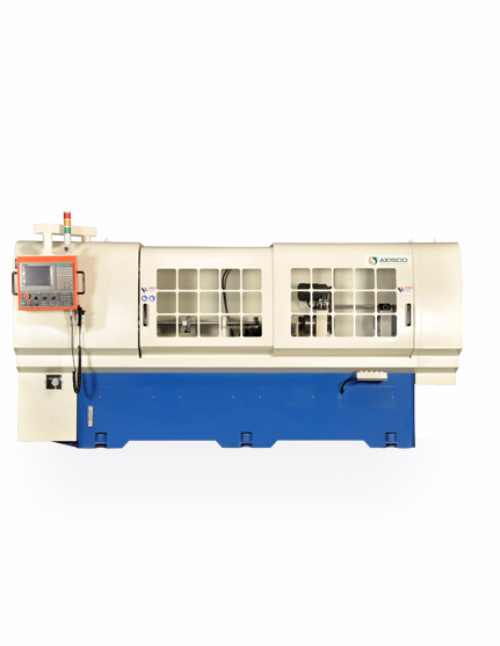

Single Spindle Gundrilling Machine
Feature

Deep hole machining for auto parts, various kinds of tube, stock bar, and small/medium shafts
Feed is very precise and easy to set by servo control.
Available for 1~4 spindles machining simultaneously.
High load box guides which gives stable performance.
CNC controller by FANUC or SYNTEC or HMI.
Auto lubrication system.
Auto chip filtration system.
Customized design is available.
Introduction of Gundrilling Machine

Gundrilling, also known as deep hole drilling, is a process that produces deep, straight holes in a variety of materials. Holes depth-to-diameter ratio deeper than 20:1 generally require a dedicated gundrilling machine to achieve highest productivity and process reliability. The size, concentricity, surface roughness can be maintained precisely.
25.11.2016
CNC-Helical Broaching Machine
Model	No. of Station	Broaching Force	Max. Stroke	Helical Degree	Cutting Speed	Return Speed	Max Workpiece Size	Table Height	Main Motor	CNC Controller	Machine Height	Floor Dimension
ton	mm	degree	m/min,60Hz	m/min,60Hz	mm	mm	kw		mm	mm
CHX-0308	1	3	800	0~30°	3~7.2	12.5	Ø240	850	3.8(5HP)	SYNTEC	2900	1500x2100
CHX-0510	1	5	1000	0~30°	3~7.2	12.5	Ø250	1000	5.6(7.5HP)	SYNTEC	3100	1500x2100
CHX-0813	1	8	1300	0~30°	3~7.2	12.5	Ø250	1050	7.5(10HP)	SYNTEC	3800	1550x2100
CHX-1013	1	10	1300	0~30°	3~7.2	12.5	Ø300	1050	11.25(15HP)	SYNTEC	3800	1650x2100
CHX-1516	1	15	1600	0~30°	3~7.2	12.5	Ø300	1100	18.75(25HP)	SYNTEC	4450	1800x2200
CHX-2016	1	20	1600	0~30°	3~7.2	12.5	Ø300	1300	30(40HP)	SYNTEC	4700	2100x2500
25.11.2016

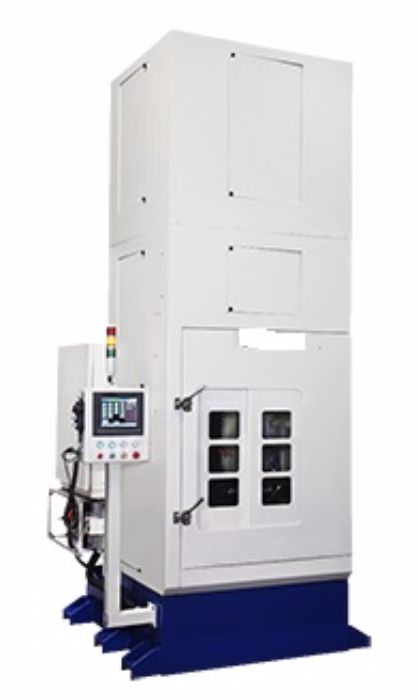

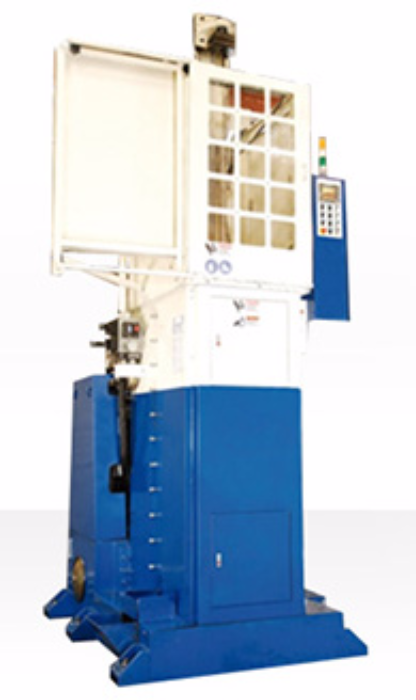

Broaching Machine CHU-0510 5 ton1000st Table-Up Type
Feature

Make keyway or complicated shape on inner hole.
Loading position at floor level, no need for stairs.
Ball screw with motor & gear box.
Electrically powered, environmental friendly.
Reduced machine size to save floor space.
Full sheet metal cover.
Single or double blade.
Application

Auto puller, Auto broach lifter, Auto broach cleaner, fixture, Coolant circulation system, Auto lubrication system, Human-machine interface, Auto chip conveyor, Work light, Tool kit, Leveling pads with screws.
25.11.2016

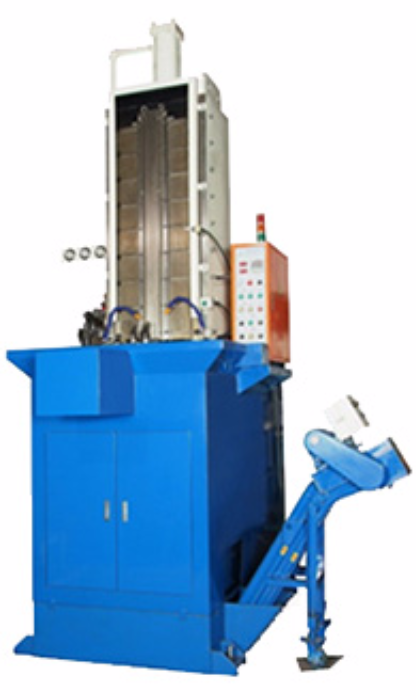

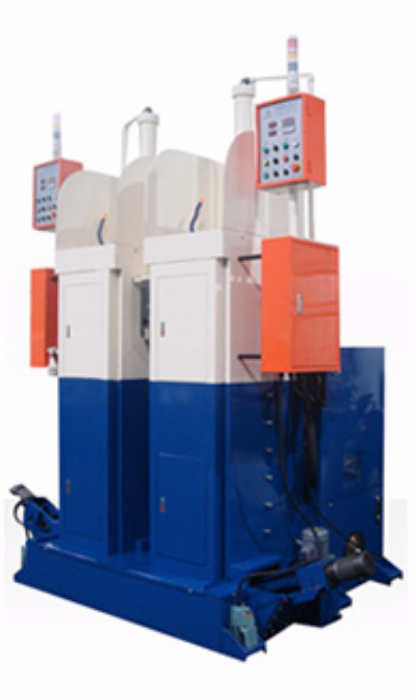

Broaching Machine Special Type 5 ton1000st(Two Spindles)
Model	Broaching Force	Max. Stroke	Broaching Speed	Return Speed	Main Hydraulic Motor	Working Table Height
kN	mm	m/min	m/min	kw	mm
CY-810	80 (8 ton)	1000	3~10	3~14	10HP	2200
CY-813	80 (8 ton)	1300	3~10	3~14	10HP	2200
CY-1010	100 (10 ton)	1300~1500	3~10	3~14	15HP	2200~2400
CY-1515	150 (15 ton)	1500~1650	3~10	3~14	25HP	2400~2550
CY-2018	200 (20 ton)	1800	3~8	3~10	30HP	2700~2900
CY-3018	300 (30 ton)	1800	3~8	3~10	40HP	2700~2900
25.11.2016

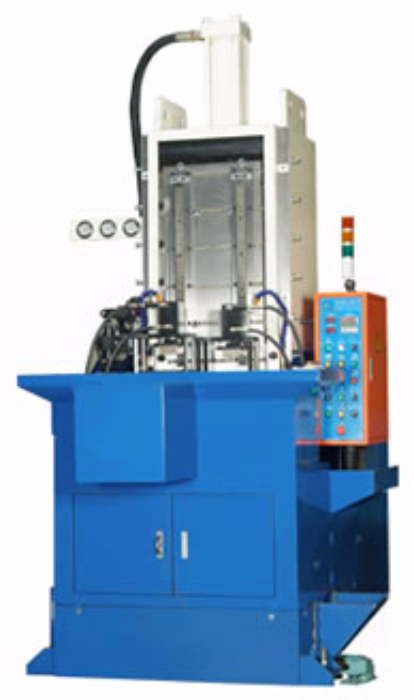

Broaching Machine Two Spindles (Simple Type)
Model	Broaching Force	Max. Stroke	Broaching Speed	Return Speed	Main Hydraulic Motor	Working Table Height
kN	mm	m/min	m/min	kw	mm
CY-810	80 (8 ton)	1000	3~10	3~14	10HP	2200
CY-813	80 (8 ton)	1300	3~10	3~14	10HP	2200
CY-1010	100 (10 ton)	1300~1500	3~10	3~14	15HP	2200~2400
25.11.2016

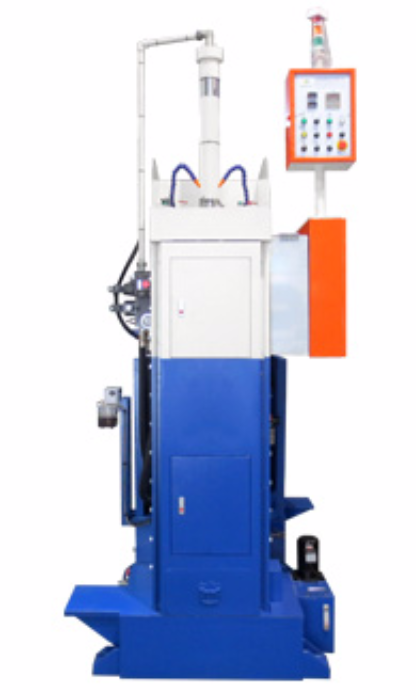

Universal Broaching Machine. Inner Dia
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
25.11.2016
CE Certified CHI-200F (with Auto Retrieval Device)
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Inner diameter, inner spline, keyway machining. Such as auto parts, motorcycle parts, bicycle parts, door closer, floor hinge, transmission shaft, hand tools, 3C electronic parts, etc
25.11.2016
Vertical inner diameter broaching machine
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Inner diameter, inner spline, keyway machining. Such as auto parts, motorcycle parts, bicycle parts, door closer, floor hinge, transmission shaft, hand tools, 3C electronic parts, etc
25.11.2016

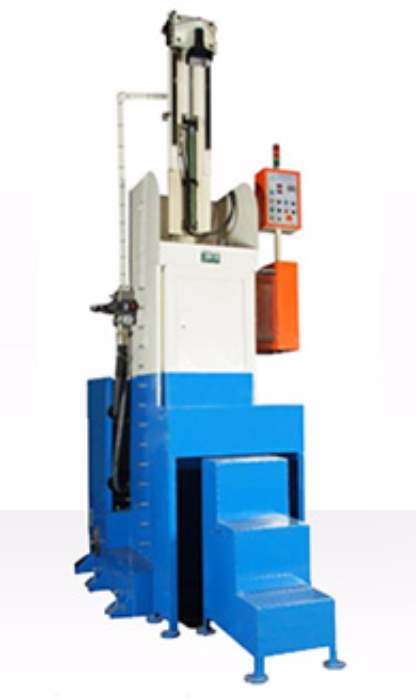

Broaching Machine Stadard 10ton1300st(with Auto Retrieval Device)(Simple Stairs)
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Inner diameter, inner spline, keyway machining. Such as auto parts, motorcycle parts, bicycle parts, door closer, floor hinge, transmission shaft, hand tools, 3C electronic parts, etc
25.11.2016

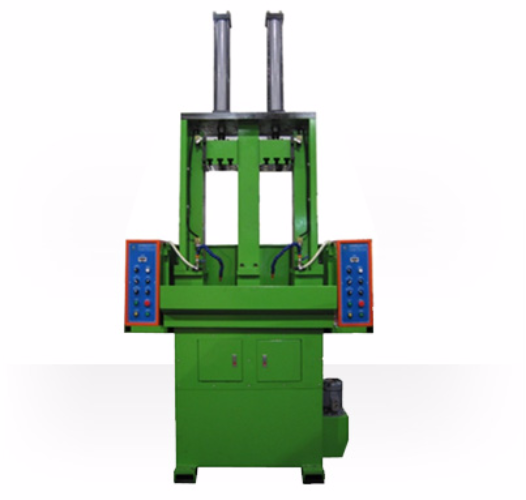

Two spindle outer diameter broaching machine
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Outer diameter, outer spline, or outer slot machining. Such as car parts, motorcycle parts, bicycle parts, door closer, floor hinge, spindle slot, hand tools, 3C electronic parts, linear guides, etc.
25.11.2016
Universal Broaching Machine
Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
25.11.2016

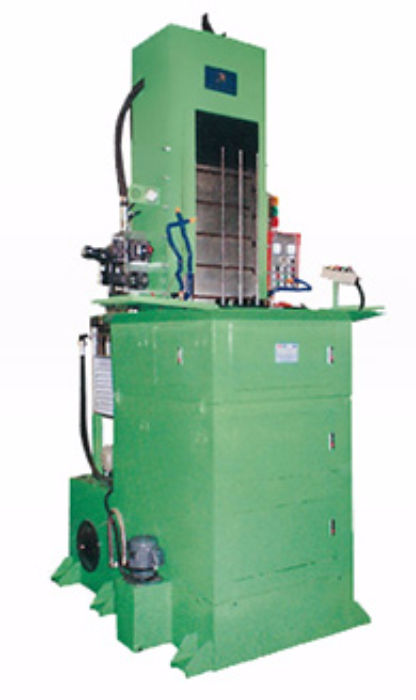

Outer Dia. Broaching Machine CE Certified YST-050B
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Outer diameter, outer spline, or outer slot machining. Such as car parts, motorcycle parts, bicycle parts, door closer, floor hinge, spindle slot, hand tools, 3C electronic parts, linear guides, etc.
24.11.2016

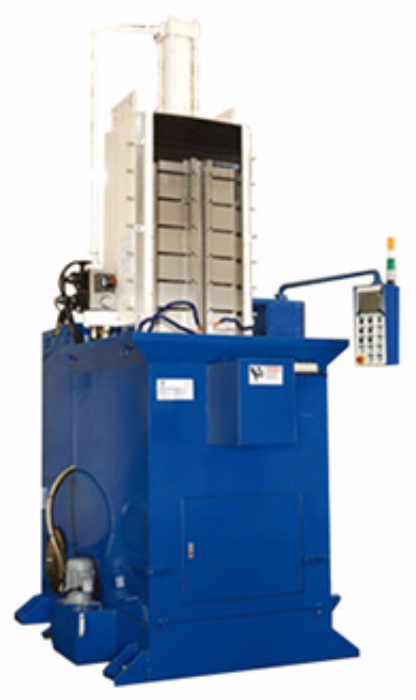

Outer Dia. Broaching Machine Stadard 15ton1500st (Stadard)
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Outer diameter, outer spline, or outer slot machining. Such as car parts, motorcycle parts, bicycle parts, door closer, floor hinge, spindle slot, hand tools, 3C electronic parts, linear guides, etc.
24.11.2016
Outer Dia. Broaching Machine Stadard 10ton1500st (with Chip Conveyor)
Feature

Make complicated surface profile in one pass.
Surface finish is similar as fine milling.
Almost no burr after broaching.
Very fast, very precise.
Customized design with 1~3 station or with rotary table is available.
Over 30 years of experience in broach & fixture design.
Application

Outer diameter, outer spline, or outer slot machining. Such as car parts, motorcycle parts, bicycle parts, door closer, floor hinge, spindle slot, hand tools, 3C electronic parts, linear guides, etc.
24.11.2016
Outer Dia. Broaching Machine Stadard 10ton1300st (Double Blades)
Model	Broaching Force	Max. Stroke	Broaching Speed	Return Speed	Max workpiece size	Working Table Height	Working Table Size	Main Hydraulic Motor	Machine Dimension (WxLxH)
kN	mm	m/min	m/min	mm	mm	mm	kN	mm
YST-0306	30 (3 ton)	600	3~8	2~17	Ø280	830	300x470	3.8 (5HP)	1150x1350 x2000
YST-0308	30 (3 ton)	800	3~8	2~17	Ø280	900	300x470	3.8 (5HP)	1150x1350 x2200
YST-0508	50 (5 ton)	800	3~8	2~17	Ø320	900	300x540	5.6(7.5HP)	1250x1550 x2250
YST-0510	50 (5 ton)	1000	3~8	2~17	Ø320	1050	300x540	5.6(7.5HP)	1250x1550 x2700
YST-0808	75 (7.5 ton)	800	3~8	2~14	Ø380	900	360x620	7.5(10HP)	1360x1700x2400
YST-0810	75 (7.5 ton)	1000	3~8	2~14	Ø380	1050	360x620	7.5(10HP)	1360x1700x2800
YST-1010	100 (10 ton)	1000	3~8	2~12	Ø480	1100	480x730	11.3(15HP)	1520x2000x3000
YST-1013	100 (10 ton)	1300	3~8	2~12	Ø480	1400	480x730	11.3(15HP)	1520x2000x3900
YST-1512	150 (15 ton)	1200	3~8	2~12	Ø520	1250	420x850	18.8(25HP)	1700x2100x3450
YST-1515	150 (15 ton)	1500	3~8	2~12	Ø520	1600	420x850	18.8(25HP)	1700x2100x4350
YST-1518	150 (15 ton)	1800	3~8	2~12	Ø520	1900	420x850	18.8(25HP)	1700x2100x5250
YST-2015	200 (20 ton)	1500	3~8	2~12	Ø520	1600	480x850	30(40HP)	1850x2200x4500
YST-2018	200 (20 ton)	1800	3~8	2~12	Ø520	1900	480x850	30(40HP)	1850x2200x4500
24.11.2016

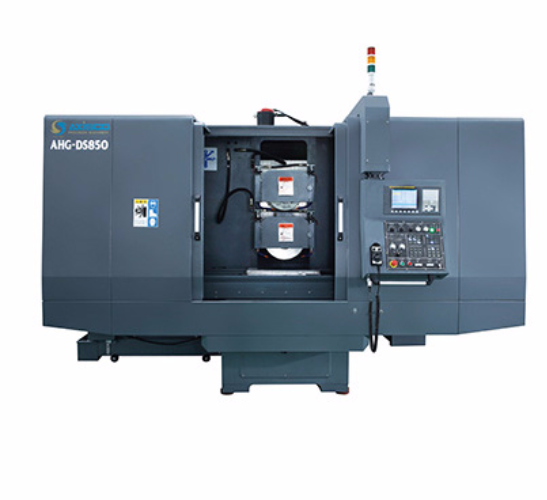

CNC 2 Spindle Rough and Fine Grinding Machine
Description	AHG-S600	AHG-DS600
Capacity	Table size	600 mm x 300 mm	600 mm x 300 mm
Max. grinding length	710 mm	710 mm
Max. grinding width	350 mm	350 mm
Distance between 2 spindle centers	Single spindle	350 mm
Max. distance from table surface to spindle center line	620 mm	550 mm
Max. load capacity (including magnetic chuck)	400 kg	400 kg
Work Table	T-slot size x number	14 mm x 1	14 mm x 1
Slide type	1V1Flat or 2V	1V1Flat or 2V
Table Speed, variable	5 m/min ~ 25 m/min	5 m/min ~ 25 m/min
Cross movement of table	Cross feed increment (3-sections electronic hand wheel control)	1 grid	0.001mm /0.01mm / 0.1mm	0.001mm /0.01mm / 0.1mm
1 circle	0.01mm / 0.01mm / 1mm	0.01mm / 0.01mm / 1mm
Max. cross movement	10 m/min	10 m/min
Spindle vertical increment	Spindle speed	50Hz	1450 rpm	1450 rpm
60Hz	1720 rpm	1720 rpm
Max vertical movement	10 m/min	10 m/min
Vertical feed increment (3-sections electronic hand wheel)	1 grid	0.001mm /0.01mm / 0.1mm	0.001mm /0.01mm / 0.1mm
1 circle	0.01mm / 0.01mm / 1mm	0.01mm / 0.01mm / 1mm
Minimun increment	0.001 mm	0.001 mm
Wheel	Wheel size	355mm x 50mm x 127mm	355mm x 50mm x 127mm
Motor	Fine grinding drive	7.5HP x 4P	3HP x 4P
Rough gringing drive	N/A	7.5HP x 4P
Elevating drive	1.8KW	2.5KW
Cross movement drive	1.8KW	1.8KW
Hydraulic drive	2HP x 6P	2HP x 6P
Lubricating drive	1/4 HP x 4P	1/4 HP x 4P
Total power	15HP(11.25kw)	18.5HP(13.86kw)
Weight & Size	Net weight	3790 kgs	4150 kgs
Gross weight	4390 kgs	4650 kgs
Machine dimension	2780mm x 2470mm x 2330mm	2780mm x 2470mm x 2330mm
24.11.2016
