Diesel engine driven multi-impeller waterwheel aerator is developed by Jinhulong Company for aquaculture in power-deficient areas.Impeller aerator. The machine uses a small diesel engine as the power source, and shifts through the gearbox to drive 10~16 sets of waterwheels.Splashing water, driving water to flow, dissolving oxygen, decomposing harmful substances, improving pond water quality, is aquaculture A good helper for the family.



The main power part of the diesel engine driven multi-impeller waterwheel aerator is placed on the pond base and powered by the universal joint. It is transmitted to the rotating shaft to drive the impeller. The working speed of the impeller is better at 100~130 rpm.



The diesel engine is selected from 8 to 12 mini-machines. The long arm aerators is light, practical, fuel-efficient, and has a strong water-drawing capacity.The effect is remarkable, especially suitable for farmers with a large pond area.

Blade-type water plowing aerator is our self-developed product as a new breakthrough in the family of water plowing aerators. It's composed of the motor, reducer, floating body, blades, waterproof cover and the like, with the advantages of energy saving (cost only 1.5 kWh for continuous 24-hour non-stop running), material saving (total weight less than 40kg), water purification and being environment-friendly, stable operation and easy for maintenance.

The aerator applies to farming of fish, shrimp, eel, sea cucumber, abalone and the like, and especially suitable for industrial aquaculture, aquaculture of special species, and culturing pond in the area without three-phase power.

Circumferential aeration aerator at pool's bottom transmits stainless blast pipe, by patented connection conical blades, to squeeze air into the aeration pipe and produce small bubbles, which are highly oxygen dissolved.

The transmission of the patented circumferential aerator plate drives air and water flow to stir the harmful substances at the bottom of pool.

Then, with the pool's continuous flow, they to the sewage draining exit to keep the bottom clean.

An Frequency Conversion Waterwheel with different voltage, frequency and
power can be manufactured according to customer requirements.

Jinhulong people will be devoted to supplying agricultural and aquacultural
machines featured by higher quality, higher efficiency, and being more
energy-saving and environmental-friendly. We will build up a global brand and
improve the development level of Chinese agricultural and aquaculture
equipment, thus making a contribution to the world.

Diesel engine driven multi-impeller waterwheel aerator is developed by Jinhulong Company for aquaculture in power-deficient areas.Impeller aerator. The machine uses a small diesel engine as the power source, and shifts through the gearbox to drive 10~16 sets of waterwheels.Splashing water, driving water to flow, dissolving oxygen, decomposing harmful substances, improving pond water quality, is aquaculture A good helper for the family.



The main power part of the diesel engine driven multi-impeller waterwheel aerator is placed on the pond base and powered by the universal joint. It is transmitted to the rotating shaft to drive the impeller. The working speed of the impeller is better at 100~130 rpm.



The diesel engine is selected from 8 to 12 mini-machines. The long arm aerators is light, practical, fuel-efficient, and has a strong water-drawing capacity.The effect is remarkable, especially suitable for farmers with a large pond area.

Taizhou Jinhu Mechanical & Electrical Co. LTD is located in Huangyan District, Taizhou, Zhejiang, the cradle of private enterprises in China and a city famous for its agricultural and aquacultural machinery industry. The company covers an area of 48,000 square meters and owns over 20 sets of advanced processing machines, mainly from Japan and Germany. We have the capacity of producing over 200,000 sets of agricultural and aquacultural machines every year.

Find out weakness, keep the eyes on the best company, and clear and definite the gap between the best and itself. Improve product and service quality continually by looking for product improvement and innovation, exceeding customer expectations, and adopting appropriate proofing means to improve product and service quality continually.

. It's made according to the updated enterprise standard.The major technological index for the enterprise standard is more higher than the industrial standard.

2. Integrated impeller, easy to disassemble, and common with ordinary water truck impeller, wide application range.

3. The impeller forms a spiral impeller, which makes the flow of flow formed by the push flow of the oxygen increasing machine, the proliferation of high water flow, and extensive water.

Technical parameter
Model	Power	Voltage V/50Hz	Power efficiency (kg/kW.h)  	DO (kg/hr)	AMP (A)	Weight (kg)	40 Container set
kW	HP
YC-0.75	0.75	1	220	≥1.25	≥1.6	1.25	80	185
YC-0.75	0.75	1	380	≥1.25	≥1.6	1.25	80	185
YC-0.75	0.75	1	380	≥1.25	2.3~2.6	1.60	80	185
YC-1.5	1.5	2	220	≥1.25	2.6~2.9	2.45	100	133
YC-1.5	1.5	2	380	≥1.25	2.8~3.1	2.45	100	133
YC-1.5	1.5	3	380	≥1.5	3.6~3.8	2.60	120	66
YC-2.2	2.2	3	380	≥1.5	4.0~4.3	2.80	125	63
YC-2.2	2.2	3	380	≥1.5	4.3~4.6	3.0	135	60

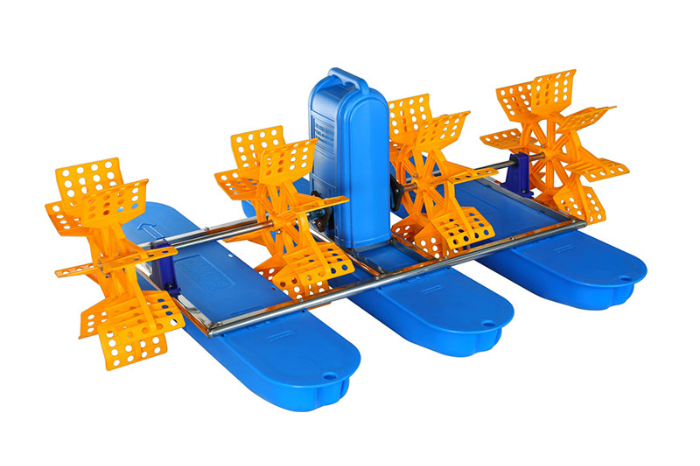

An Two-Impeller paddle wheel aerator with different voltage, frequency and power can be manufactured according to customer requirements.
