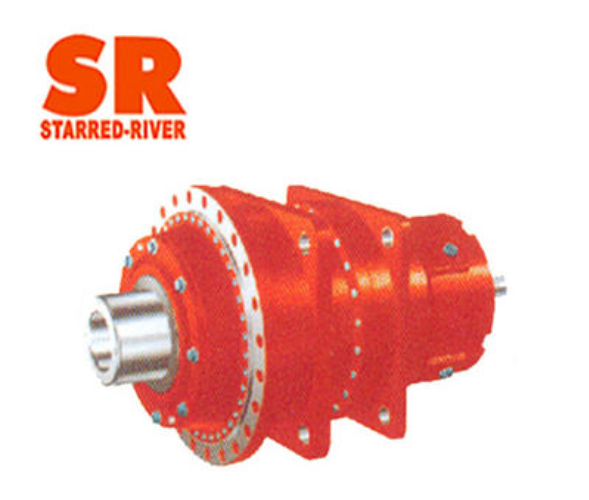

Technical parameters:
Nominal torque: 1400 N.m~2987000 N.m
Transmission rate: Single-stage: 4~18
Double-stage: 20~125
Three-stage: 112~1250

Effect:
The principle of a high torque planetary gear reducer is a power transmission mechanism that uses a gear speed converter to reduce the number of rotations of the motor to the desired number of rotations and obtain a larger torque.

Working conditions:
1).Max.speed of high-speed shaft shall not be more than 1500r/min.
2).Peripheral speed of gear shall not be more than 20m/s.

Assembly form:
Foot installment, flangeinstallment.
Can be equipped with high power to achieve high carrying capacity.

Technical parameters:
Transmission rate: 5~400
Torque: 1150~ 900000 N.m.
Power range: 2.8～3000kW

Features:
Compact mechanical structure, light volume, small size and high efficiency;
Good heat exchange performance and fast heat dissipation;
Simple installation, flexible and light, superior performance, easy maintenance and repair;
Large transmission speed ratio, large torque, and high ability to withstand overload;
Stable operation, low noise and durable;
Strong applicability and great safety and reliability.

Working conditiona:
1).The maximum speed of the high-speed shaft does not exceed 1500r/min
2).Peripheral speed of gear driving is not more than 10m/s
3).Working environmental temperature is -40~+45°C.
4).Can be used for run in both positive and negative direction.



Characteristics:
Small volume and light weight. Under the same conditions, it is 1/2 weight lighter than ordinary involute cylindrical gear reducer, and 1/2~1/3 smaller in volume. 
High transmission efficiency: single-stage planetary gear reducer reaches 97%-98%; two-stage planetary gear reducer reaches 94%-96%; three-stage planetary gear reducer 91%-94%. 
Large transmission power range: from less than 1KW to 1300KW, or even greater. 
Large transmission range: i=2.8～2000 
Strong adaptability and durability.

Compact mechanical structure, light volume, small size and high efficiency;
Good heat exchange performance and fast heat dissipation;
Simple installation, flexible and light, superior performance, easy maintenance and repair;
Large transmission speed ratio, large torque, and high ability to withstand overload;
Stable operation, low noise and durable;
Strong applicability and great safety and reliability.

Installation Notes :
--Assembly form: vertical installation, horizontal installation, torsion arm installation.
--Input mode: motor connection flange, shaft input.
--Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with expansion disc connection, hollow shaft with spline connection, solid shaft with spline connection, and solid shaft with flange connection.
--Can be equipped with backstop according to customer requirements. Combine with R and K series to get a bigger speed ratio.

1.Operating conditions of K+R series combined gear units: ambient temperature -40°C to 50°C (when starting below 0°C, the lubricating oil needs to be heated to above 0°C or antifreeze lubricating oil is used), the input speed is not more than 2800 rpm, Can be used for forward and reverse, no industry restrictions.

2.Performanceof K+R series combined gear units: This variable frequency reducer motor uses a serialized and modular design, with a wide range of transmission ratio, fine division, high transmission efficiency, low energy consumption, superior performance, and high-precision grinding of gears Gear grinding processing, stable transmission, low noise, large carrying capacity, long life, exquisite design, small size, easy installation, wide range of uses, diverse installation methods, suitable for all-round installation configuration, and can realize R series reducer double connection Body combination, suitable for special low-speed applications.

Features:

(1) Compact structure, large transmission power and high carrying capacity

(2) High transmission efficiency

(3) Large transmission ratio

(4) Various types of assembly, multi-faceted installation, wide applicability

(5) The material, gear precision and bearing capacity are at the advanced level among similar products.

Characteristics：

 1). Small size, beautiful appearance, high bearing capacity and high efficiency

 2). Long service life and easy installation

 3). The power range of the distribution motor is wide and the transmission ratio is fine.

 4)It can be widely used in various industries which need deceleration equipment.



Applicable conditions:

 1).Max.speed of high-speed shaft shall not be more than 1500r/min.

 2).Peripheral speed of gear shall not be more than 20m/s.

 3).Working environmental temperature is -40~+45°C.

 4).Can be used for run in both positive and negative direction.

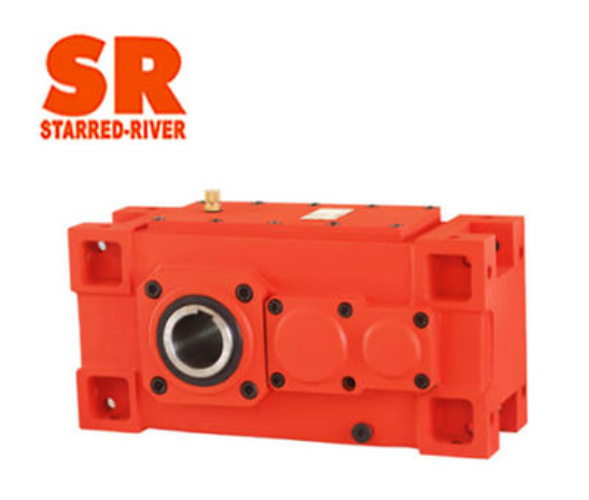

Technical parameter:
Ratio range: basic type 25～4000
Torque range: 2.6～900 kNm
Power range: 22～1920 kW

Input mode: concentric shaft input, helical gear input, bevel gear-helical gear input, bevel gear input.
Output mode: internal spline type, hollow shaft shrink disc type, external spline type, solid shaft flat key.
Installation form: horizontal installation, vertical installation, torque arm installation，flange installation.
Combine with R series and K series to get larger speed ratio.

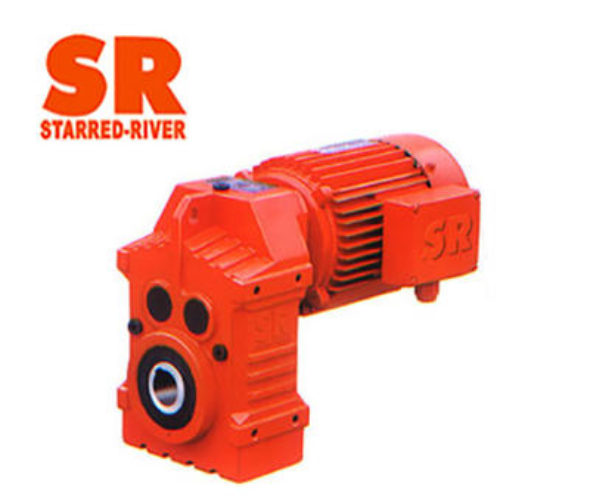

Technical parameters:

Power: 0.12KW~200KW

Torque: 200N∙m~18000N∙m

Transmission rate: 4~31500

Gear&Shaft Material: 20CrMnTi/40Cr

Hardness of Gear&Shaft: 58~62HRC/217~255HB

Color: Red or Customized

H.S. CODE: 8483409000

F series parallel shaft gearboxes is a fundamental component of the power transmission system of many types of agricultural machinery.And its output mode is parallel shaft.They are widely used in many industry areas,and there are four basic models of parallel shaft gear reducers, which are: F type, FF type, FAF type, and FA type. In terms of models, from F27 reducer to F157 reducer, the motors with different powers ranging from 0.12KW to 200KW can be matched,superior performance, efficiency up to 95% and more popular.
