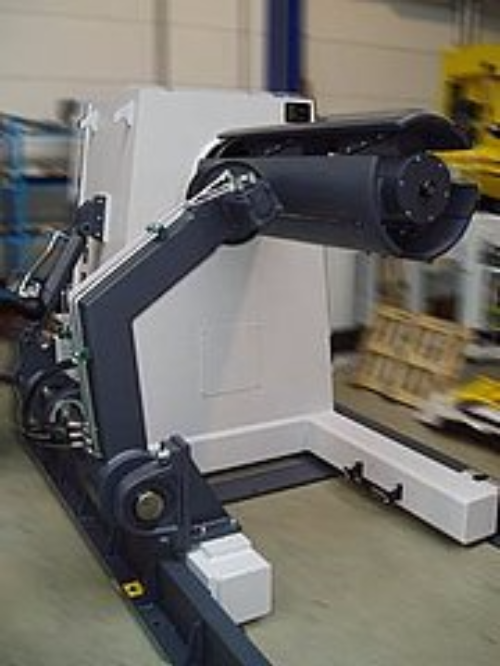

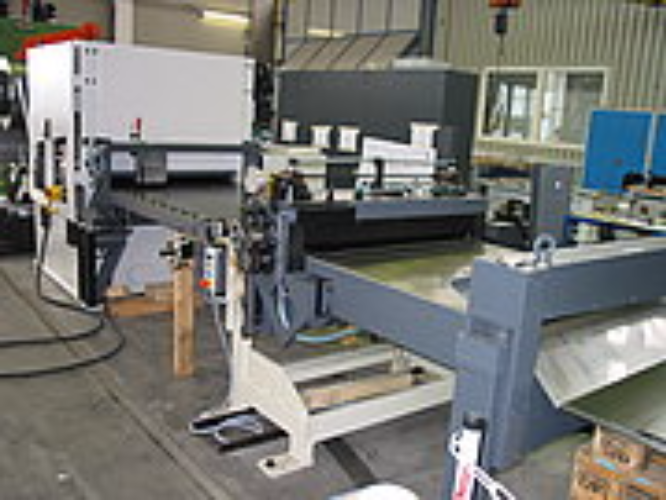

Reference no.	20088188
Year of construction/ rebuilt	2002/ 2013
Coil weight	max. 5,000 daN
Strip width	up to 1,000 mm
Coil OD	up to 1,500 mm
Material flow	left - right
Reference number	20088188

Reference no.	20158979
Year of construction/ rebuilt	2002
Passage width	1000 mm
Coil weight max.	5000 kg
Coil outer diameter	max. 1500 mm
Leveling direction	right - left
No. of leveling rollers	21

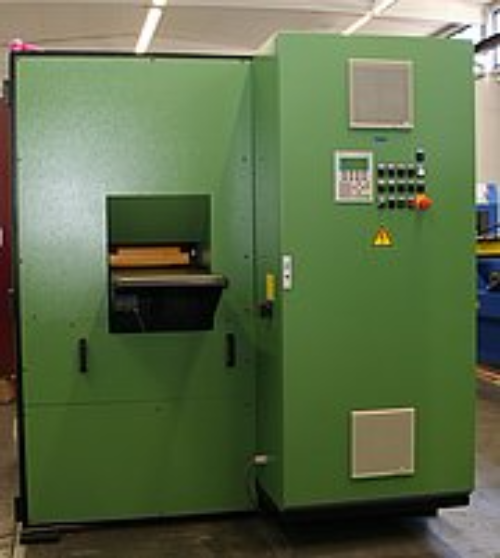

Reference no.	20108381
Year of construction/ rebuilt	1997/ 2011
Passage width	max. 250 mm
Material thickness	3 - 12 mm
Leveling roller diameter	80 mm
Leveling speed	10 m / min
Leveling direction	left - right
No. of leveling rollers	21

Reference no.	20088141
Year of construction/ rebuilt 	1989
Passage width	400 mm
Material thickness 	0.4 - 4 mm
Leveling roller diameter	30 mm
Leveling direction	right - left
No. of leveling rollers	21

Reference no.	20138738
Year of construction/ rebuilt	1993/ 2013
Passage wirdth	max. 250 mm
Material thickness	0.3 - 5 mm
Leveling roller diameter	30 mm
Leveling direction	right - left
No. of leveling rollers	11

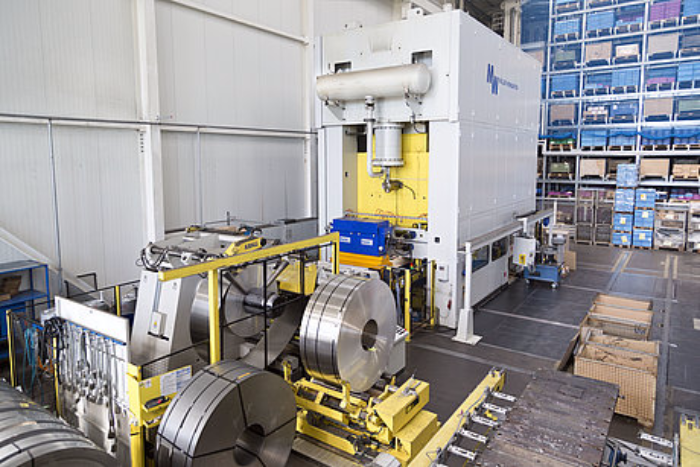

High-performance feeding lines

If you want to fully utilize your press' capabilities then you need a high-performance feeding line. ARKU manufactures press feeding lines which guarantee high profitability throughout their entire service life.

Economical feeding technology

Our years of experience with renowned sheet metal shaping companies have enabled us to develop successful feeding solutions such as the CompactFeed®, the ServoMaster® and the PowerMaster® feeding concepts, which have opened up new dimensions in press automation.

Integration made easy

ARKU feeding lines are used worldwide to supply presses and automated punching systems for a variety of different manufacturers. Effective interface management is an integral part of the ARKU project team's approach. Press automation solutions round out our portfolio.

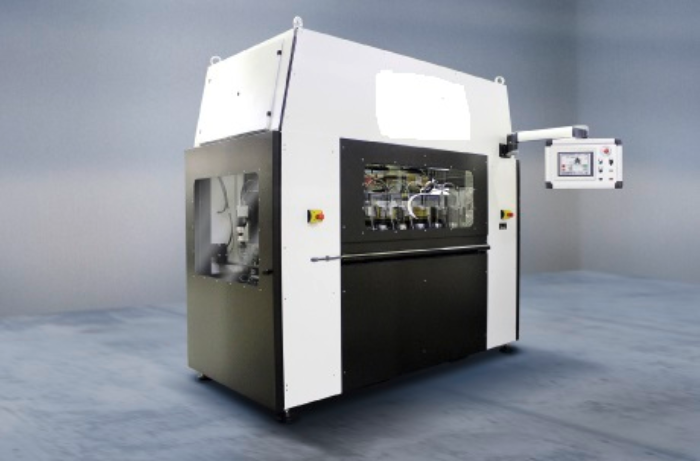

Perform single-sided edge rounding easily and efficiently with the EdgeRacer® series 1000 E / 1500 E and 2000 E. If your work is highly flexible and only requires single-sided processing, the EdgeRacer® E series is the right solution for you. The EdgeRacer® E easily processes deformed workpieces and various materials. The EdgeRacer® E-series of deburring machines functions fully automatically thanks to the intuitive control system.
Precise processing of the inner and outer contours
User-defined edge rounding
Reproducible results
High throughput (> 300 m²/h)
Gentle on the surface, also suitable for polished, brushed and film-coated panels
Oxide layer removal
Significantly reduces processing costs
Sanding heads can even be adjusted to below the conveyor level

High process reliability due to clean, smooth surfaces
The oscillation of the deburring roller creates even surfaces and removes any sanding residue from the sanding belts – delivering optimum deburring results. Other advantages of the EdgeBreaker®  deburring roller: the sanding paper can be changed quickly and easily; the system provides high abrasion and machinery performance
The sanding blocks have a long service life and can be quickly and easily replaced using the click system which has been registered for patenting
The optional calibration of the sanding tools measures and automatically compensates for the wear on the units
Automatic identification of saved part parameters: The EdgeBreaker® operates fully automatically after the initial configuration
Energy-saving operation

Special features:

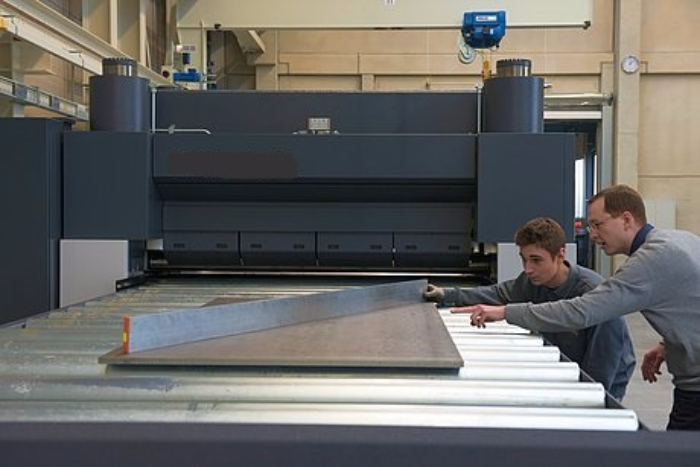

Especially for large sheet metals and plates

Robust and invulnerable to dirt

Effortless leveling of rusted and soiled parts

Easy and quick cleaning of the leveling unit

Consistently good leveling results due to servo-hydraulic leveling gap control
Hydraulic overload protection

For sheet metal parts with a thickness from 0.5 mm to 60 mm

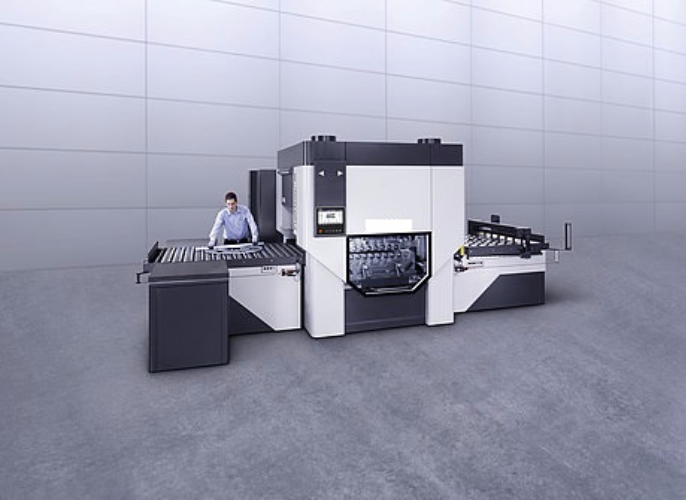

The FlatMaster® hydraulic precision leveler is the result of more than 40 years experience in building parts leveling machines.

Leveling with the FlatMaster® is a quick and simple process. Compared to other leveling methods, the FlatMaster® delivers leveled and nearly stress-free punched, laser-cut and flame-cut parts in only a matter of minutes. This makes subsequent processes such as welding, or bending faster and more reliable.

Special features

Leveling gap control
Provides consistently good leveling results even on parts with cut-outs. See our video clip for more information.

Leveling roller quick-change system
During day-to-day production, dirt and material residue can accumulate inside the leveler. The maintenance and thorough cleaning of the leveler can be performed quickly and easily.

Overload protection
The leveling process creates strong counteracting forces between the material and the leveling unit. Before an excessive level of force is reached, the machine will stop and raise the leveling unit.

Intuitive control
The easy to use digital control screen features a value database for saving individual job settings and even provides a recommended inlet/outlet values based on material thickness

For sheet metal parts with a thickness from 0.3 mm to 5 mm

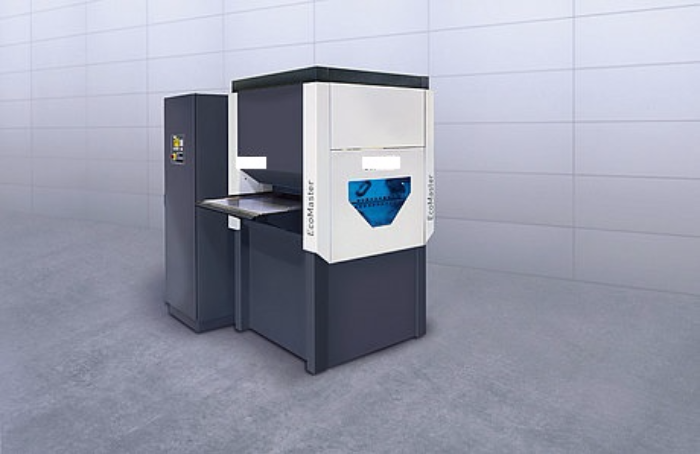

The precision levelers of the EcoMaster® series deliver consistently high-quality leveling results, especially when working with smaller, more delicate sheet metal parts. Achieve better results in subsequent processes with flat and stress free parts. The EcoMaster® is user friendly and easy to maintain, ensuring efficient operation.

Application in the aerospace industry

The ARKU EcoMaster® aerospace design was specifically developed  for leveling parts in the aerospace industry. The high-strength and light materials needs to be processed in a chilled state. Important machine components can corrode in levelers with a rudimentary design.

The affected  components in the EcoMaster® are protected against corrosion. This allows the machine to deliver consistently good and reliable leveling results.
