Main Features:
Extrusion Line is used to extrude PVC, PE,PU and other plastic.

Main Features:

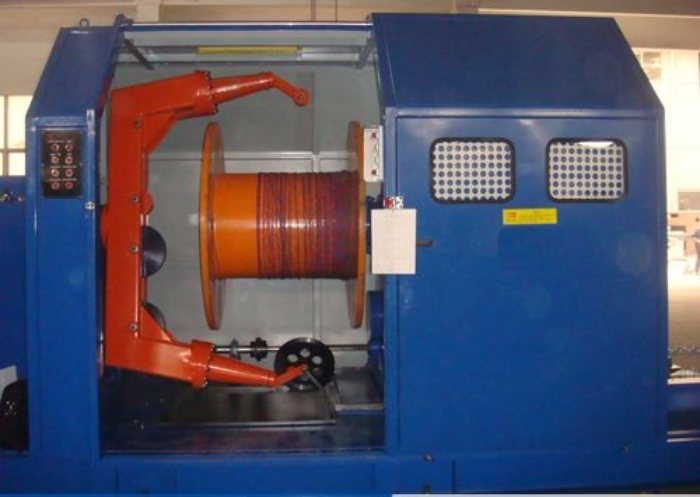

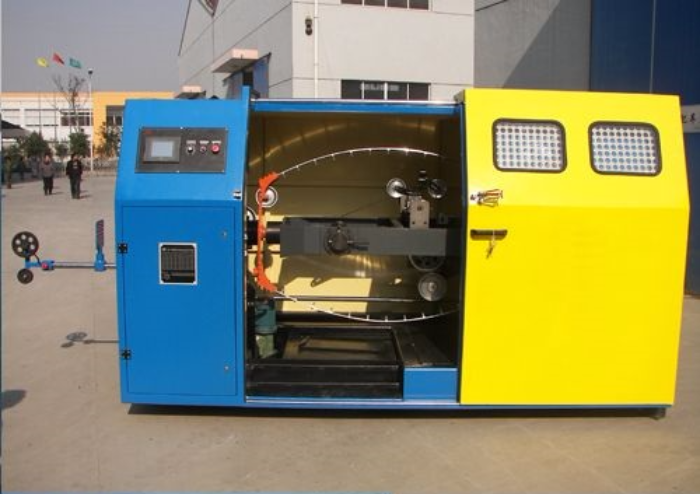

It’s suitable for power wire, CAT 5 and ultra CAT 5 and 6 data cable, communication cable and other special high speed twist, and also taping etc.

Main Features:
1.Cable coiling,packing successfully finished,production speed is quick
2.Automatically adjustment type hold line arm,no need manual adjustment by hand
3.Automatically labeling machine,noneed manual operation to label,it is safe and convenient
4.Can be equipped with automatic pile up system,or automatical wire plate pile up system
5.When there is question,it will automatically detect the error and give alarm to remind the operator
6.Save manpower,expand production capacity,promote industrial automation

Main Features:

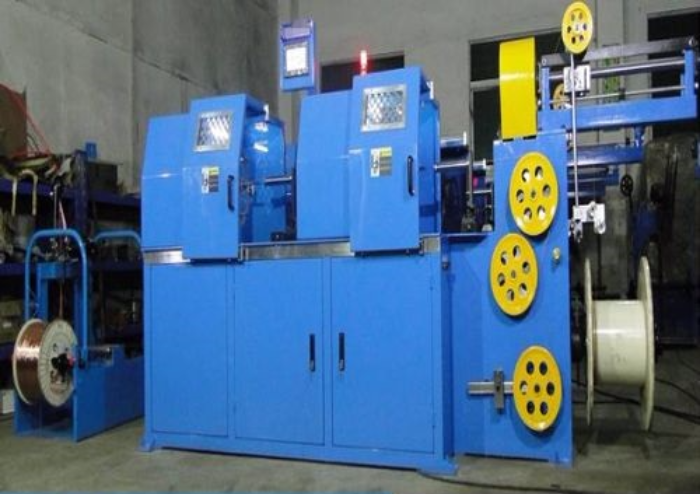

Continuously double layers taping line for wrapping core wire or conductor with polyester tape, BOPP tape, transparent tape, aluminum foil tape, mica tape, myra tape etc.

Main Features:

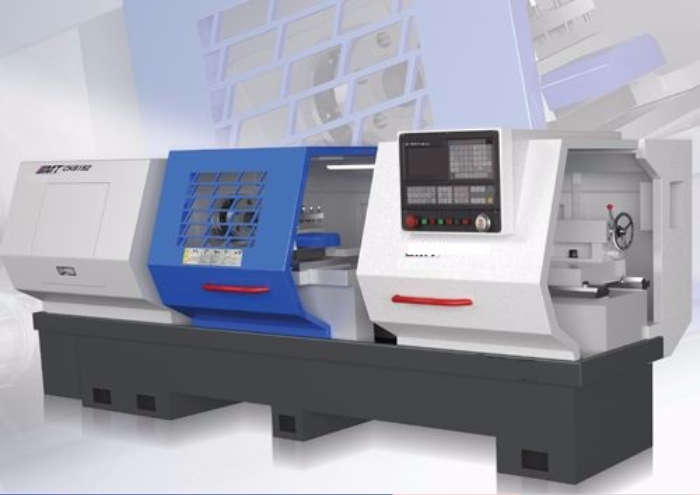

The lathe is suitable for turning all rotation surface and end such as cylindrical surface,conical surface,etc.It can also turn all inch metric straight spread and taper thread.Matched with suitable spare parts and tools,it can make drilling holes,boring and tapping.Lathe is integral type box structure,using high standard cast iron(HT300) to mold casting in one time,through second aging treatment,with good stability.Guide rail surface is dealt by high frequency hardening and precisely turned by guide rail grinding machine.This lathe has characteristics of long lifetime,high precision and reasonable price.

Main Features:

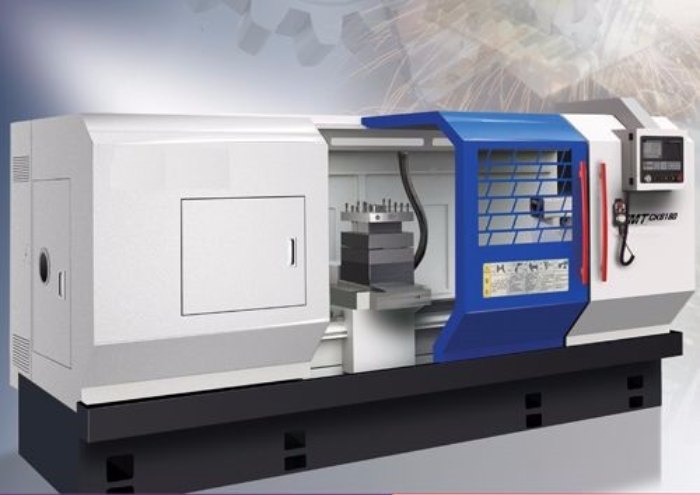

The lathe is integral type box structure,using high standard cast iron (HT300) to finish molding casting in one time,through second aging treatment,with good stability. With big guide rail distance,rigidity is good and anti vibration ability is strong.The guide rail surface is dealt by high frequency hardending,ground precisely by guide rail grinding machine,proving long lifetime,high precision and good consistency.The spindle box structure is of strong rigidity,inside the box using automatic circular lubrication,getting transmission system to operate flexibly and lower the temperature effectively.

Main Features:

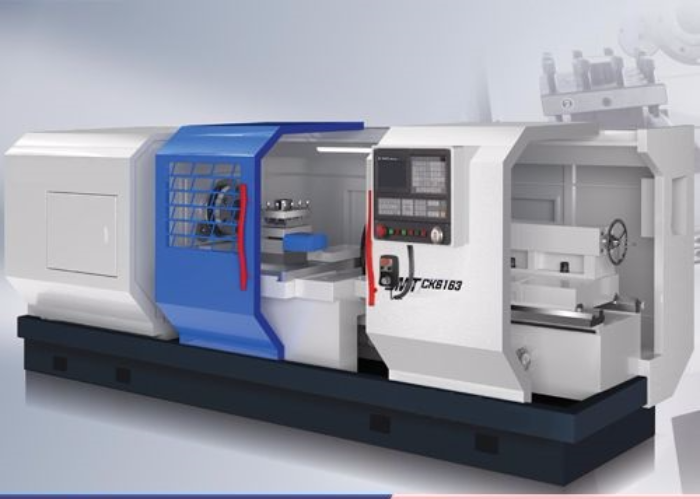

The lathe is integral type box structure,using high standard cast iron (HT300) to finish molding casting in one time,through second aging treatment,with good stability. With big guide rail distance,rigidity is good and anti vibration ability is strong.The guide rail surface is dealt by high frequency hardending,ground precisely by guide rail grinding machine,proving long lifetime,high precision and good consistency.The spindle box structure is of strong rigidity,inside the box using automatic circular lubrication,getting transmission system to operate flexibly and lower the temperature effectively.

Main Features:

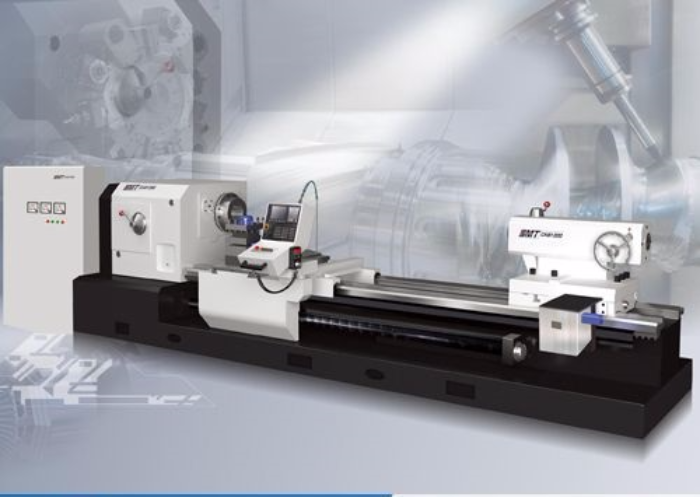

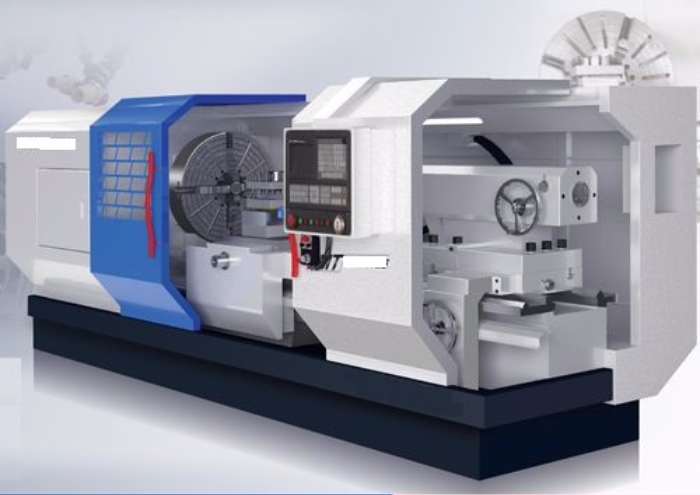

This is heavy type horizontal CNC lathe,which can load 16T,suitable for high speed steel and hard Alloy steel tooling for different material axis type spare parts,cylinder type and disk type spare parts,to turn outer circle,end surface,groove,cut,bore a hole,turn and bore inside and outside cone and many kinds of screw thread.This lathe is whole structure box type three rectangle guide rail structure,using high standard casting iron(HT300) to form and cast one time,through two time aging treatment,with good stability.Guide rail surface width (1600mm),good rigidity,strong anti vibration ability. Use steel guide rail and precisely turned by imported guide rail grinding machine,proving long lifetime,high precision and good preservation. Main transmission mechanism is driven by 75KW DC motor,using adjusting magnetic and pressure mixing speed regulating type,total speed ratio is 1:22.2 Mechanism speed regulating level is three level,mechanical and electrical comprehensive speed ratio is 1:200,making spindle get 0.8~160r/min stepless speed regulating range. Z feeding system uses imported precise gear and rack structure,X feeding system uses high precision ball screw,proving processing precision stability.

Main Features:
This lathe is a composite lathe having both functions of turning and grinding. With large spindle diameter,supported by precise heavy load bearing in three points,with steady rotation,it can make heavy cutting as well as precise turning.With strong adaptability and high processing efficiency,it can satisfy requirements for turning and grinding shaft type spare parts,lowering requirements for operator’s skill level.Finished products are of good consistency,processing precision of turning can be up to 6 level,surface roughness is not bigger than Ra2.5um;processing surface of grinding is not bigger than Ra0.8um.With easy operation,this lathe will be your ideal mechanical processing equipment.

Main Features:

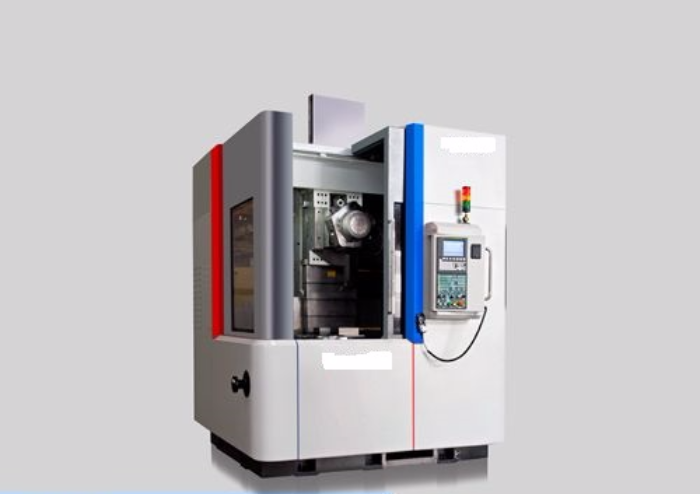

The spindle uses stubby structure,which is an international advanced and mature design.Spindle box and bottom seat are connected by holes,making spindle with high rigidity.This series of lathe can have optional C shaft,equipped with motive tool stand and tools,which can be combined to be a vertical turning center,having the functions of drilling,milling and tapping.X axis and Z axis are driven by servo motor,directly connected with ball screw through flexible coupling.Tool stand and tools have many options for customer’s choice.This lathe uses full protective, automatic protective door,easy for composing automatic production line.
