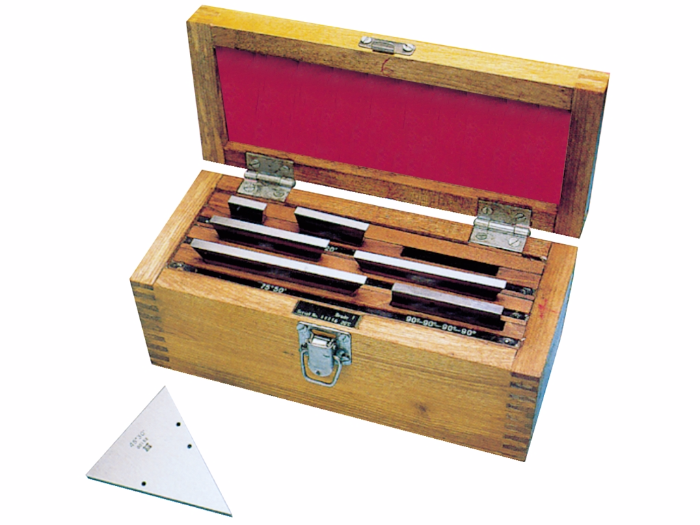

ANGLE GAUGE BLOCKS
According to DIN 861/1

Supplied in wooden box

Supplied in wooden case.
Precision 0,005 mm + 1%
Dimensions: Length base (150 ÷ 500) Width (45 ÷ 50)

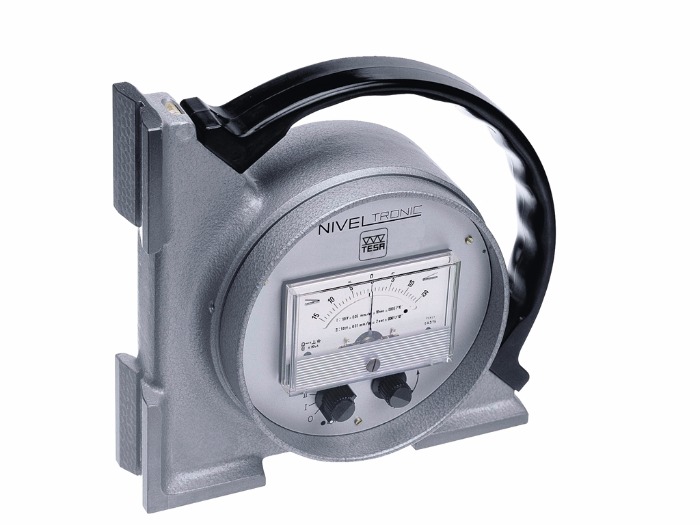

This electronic inclinometer is intended for checking small inclinations precisely, e.g. flatness
measurements on surface plates as well as measurements of geometrical features on machines -
Specially suited for use in rough environments. Battery1,5V LRC6 size AA.
Dimension 150 x 45 mm

Light weight structure, hardened stainless steel rotors, 3 movable supports for dial gauge, hand
wheel, plane strap transmission. Provided in ABD case. Dial gauges to be ordered separately

Resolution 0,001 - Patented TESA CAPA µ SYSTEM, measuring span 30 or 25 mm, tungsten
carbide tipped, 7 mm LCD display, stand-by after 10 minutes of inactivity. Ø spindle 6.5 mm, 8 mm
for measuring range > 100 mm. Available version: EASY - Simple electronic: only one function
key. IP54 - Protected against dust, water resistant IP54 RS - Protected against dust, water
resistant, opto-RS232 data output.

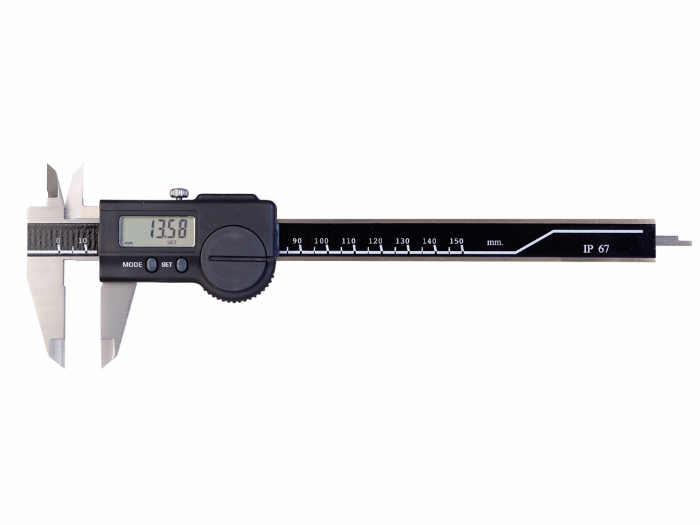

Resolution 0,01 - Digital caliper with swiss-made electronic, high protection against penetration of
dust and liquid. Cursor with locking screw, auto power on, switch off by button or automatic
stand-by after 20 min, incremental measuring and zero setting at any position, data output.
