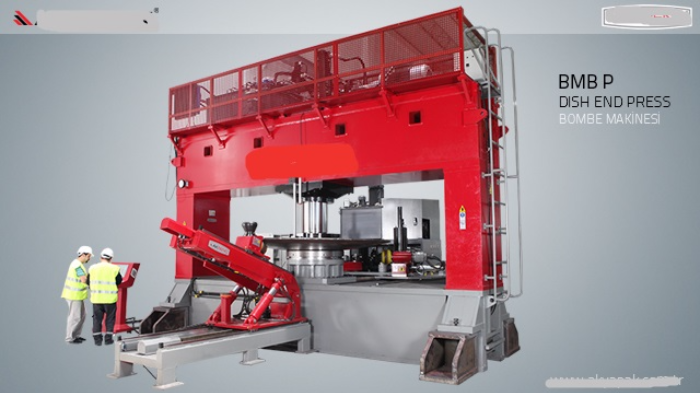

Standard Equipment:
• Max. plate thickness :25 mm
• Max. stainless steel plate thickness : 20 mm
• Min. Plate Thickness : 6 mm
• Max. plate diameter : Ø 4700 mm
• Min. plate diameter : Ø 1200 mm
• Min. plate diameter (with additional device): Ø 900 mm
• Max. knuckle radius : r 900 mm
• Max. head total depth : h 1250 mm
• Max. torispherical shape heads : Ø 4000 mm
• Min. torispherical shape heads : Ø 1000 mm
• Max. elliptical shape heads: Ø 3500
• Min. elliptical shape heads: Ø 1000
• Total installed power : 350 hp
• Weight : 30000 kg
• Lenght : 6000 mm
• Width : 1600 mm
• Height : 4300 mm

Standard Equipment:
• Max. plate thickness :25 mm
• Max. stainless steel plate thickness : 20 mm
• Min. Plate Thickness : 6 mm
• Max. plate diameter : Ø 4700 mm
• Min. plate diameter : Ø 1200 mm
• Min. plate diameter (with additional device): Ø 900 mm
• Max. knuckle radius : r 900 mm
• Max. head total depth : h 1250 mm
• Max. torispherical shape heads : Ø 4000 mm
• Min. torispherical shape heads : Ø 1000 mm
• Max. elliptical shape heads: Ø 3500
• Min. elliptical shape heads: Ø 1000
• Total installed power : 350 hp
• Weight : 30000 kg
• Lenght : 6000 mm
• Width : 1600 mm
• Height : 4300 mm

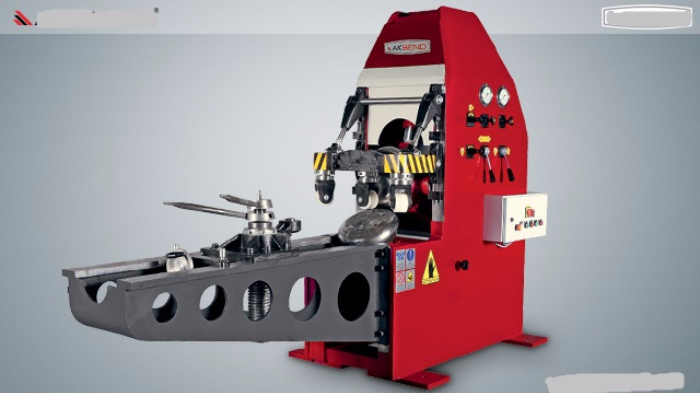

Technical Details:
Standard Motor: 3 Phase/50 Hz/400V
Plate Diameter (max.): 3000mm
Plate Diameter (min.): 800 mm
Flanging Diameter (Standard): R=50 mm
Plate Diameter (yield strenght 25 kg/mm2 ): T= 15mm
Plate Diameter (yield strengt 40 kg/mm2 ): T=10mm
Working Pressure: 180 BAR
Elektric Motor Power: 5,5 Kw
Lenght: 2885 mm
Height: 1990 mm
Width: 985 mm
Weight: 2250kg.

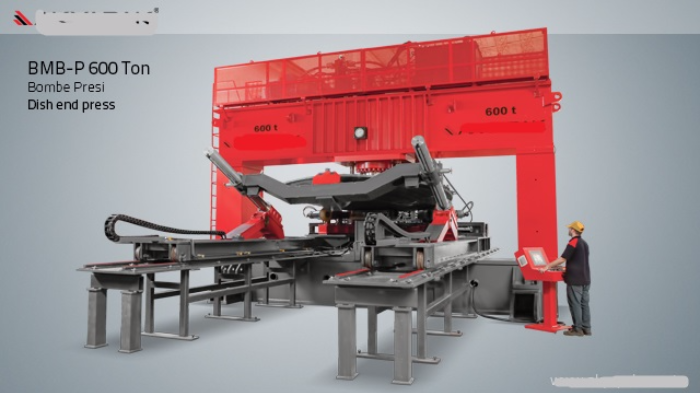

Standard Features:
• Working strok of the piston : 1000 mm
• Distance between the uprights : 5100 mm
• Fixed lower die holder dimensions : 1200 x 900 mm
• Fixed upper die holder dimensions: 1200 x 900 mm
• Max. distance between top and lower basement : 1150 mm
• Max. distance between top and lower moulds : 500 mm
• Max. distance between fixable moulds :1050 mm
• Max. working pressure : 250 kg / cm2
• Nominal power : 500 ton
• Fast descent speed of the piston : 8 m /min
• Total power : 75 kw
• Lengt : 6000 mm
• Width : 2500 mm
• Height : 4500 mm
• Weight: 25 ton

Standard Features:
• Working strok of the piston : 1000 mm
• Distance between the uprights : 5100 mm
• Fixed lower die holder dimensions : 1200 x 900 mm
• Fixed upper die holder dimensions: 1200 x 900 mm
• Max. distance between top and lower basement : 1150 mm
• Max. distance between top and lower moulds : 500 mm
• Max. distance between fixable moulds :1050 mm
• Max. working pressure : 250 kg / cm2
• Nominal power : 500 ton
• Fast descent speed of the piston : 8 m /min
• Total power : 75 kw
• Lengt : 6000 mm
• Width : 2500 mm
• Height : 4500 mm
• Weight: 25 ton

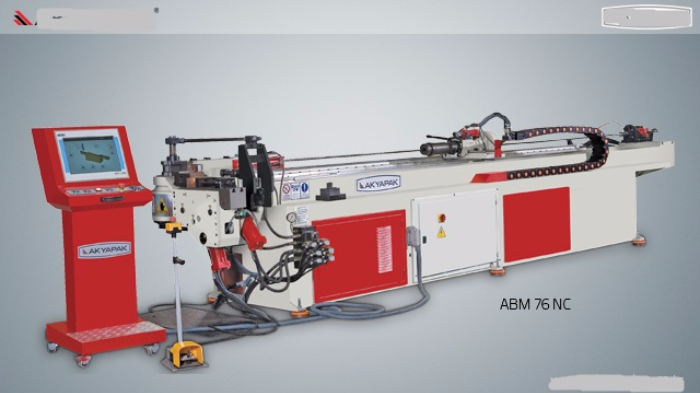

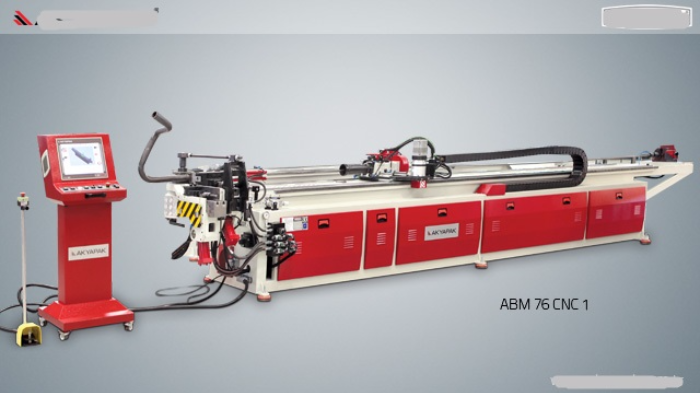

Technical Features:
• Bending, moving ahead, postponing and turning with servo control
• Controlling ability of servo axis speeds from control panel
• Hydraulic assistant axies
• Foot pedal control
• Step by step and full automatic working capability
• Three lines dies operational ability
• Dies can be supplied for any demanded size
• Operational ability with / without mandrel
• Simple or complex shaped bendings for steel, stainless steel,
aluminum and similar bendable materials
• Possibility of bending longer tubes than the machine ength. (it’s not for all diameters)
• Unlimited angle obtaining possibility with rolling system.
• Spiral bending (only on certain diameters)
• Tube punching system
• Auto-lubrication for mandrel
• Hydraulic oil cooler
• Practical interface program prepared in Akyapak
• Program making possibility in YBC mode.
• Tube length can be calculated according top art program
• 3D preview of writen program
• 15’’ color touchscreen PC
• Starting up serial production after short period training
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Technical Features:
• Bending, moving ahead, postponing and turning with servo control
• Controlling ability of servo axis speeds from control panel
• Hydraulic assistant axies
• Foot pedal control
• Step by step and full automatic working capability
• Three lines dies operational ability
• Dies can be supplied for any demanded size
• Operational ability with / without mandrel
• Simple or complex shaped bendings for steel, stainless steel, aluminum and similar bendable materials
• Possibility of bending longer tubes than the machine ength. (it’s not for all diameters)
• Unlimited angle obtaining possibility with rolling system.
• Spiral bending (only on certain diameters)
• Tube punching system
• Auto-lubrication for mandrel
• Hydraulic oil cooler
• Practical interface program prepared in Akyapak
• Program making possibility in YBC mode.
• Tube length can be calculated according top art program
• 3D preview of writen program
• 15’’ color touchscreen PC
• Starting up serial production after short period training
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

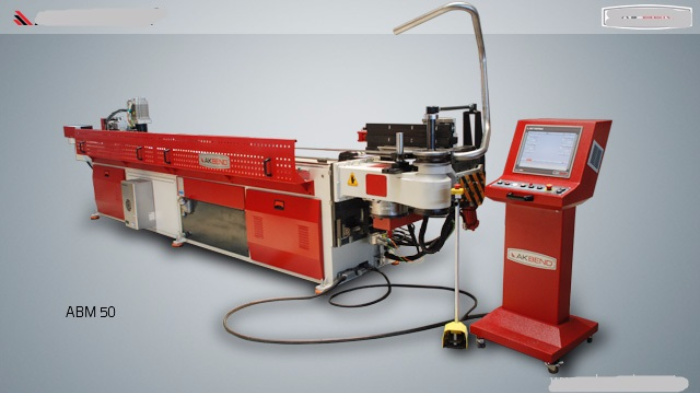

Technical Features
• High quality hydraulic bending system
• Hydraulic assistant axies
• Moving ahead is done manually
• Controlling ability of servo axis speeds from control panel
• Foot pedal control
• One line die operational ability
• Dies can be supplied for any demanded size
• Operational ability with / without mandrel
• Simple or complex shaped bendings for steel, stainless steel aluminum and similar bendable materials
• Decreases costs in serial productions for high quantities or in single operations
• Auto-lubrication for mandrel
• Hydraulic oil cooler
• Practical interface program prepared in Akyapak
• PLC based control system
• Tube length can be calculated according to part program
• 3D preview of writen program
• Programming ability in YBC mode
• 15’’ color touchscreen panel PC
• Starting up serial production after short period training
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM ertificates

Technical Features
• Bending, moving ahead, postponing and turning axies with
servo control
• Controlling ability of servo axis speeds from control panel
• Hydraulic assistant axies
• Foot pedal control
• Step by step and full automatic working capability
• Three lines dies operational ability
• Dies can be supplied for any demanded size
• Operational ability with / without mandrel.
• Simple or complex shaped bendings for steel, stainless steel,
aluminum and similar bendable materials
• Possibility of bending longer tubes than the machine length
(it’s not for all diameters)
• Unlimited angle obtaining possibility with rolling system
• Spiral bending (only on certain diameters)
• Hydraulic oil cooler
• Auto-lubrication for mandrel
• Practical interface program prepared in Akyapak
• Program making possibility in YBC mode
• Tube length can be calculated according top art program
• Motion controller system
• 3D preview of writen program
• 15’’ color touchscreen PC.
•Starting up serial production after short period training
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM
certificates

Technical Features
• High quality hydraulic bending system
• Hydraulic assistant axies
• Moving ahead and turning axis with servo control
• Controlling ability of servo axis speeds from control panel
• Foot pedal control
• Step by step and full automatic working capability
• One line die operational ability
• Die can be supplied for any demanded size
• Operational ability with / without mandrel.
• Simple or complex shaped bendings for steel, stainless steel,
aluminum and similar bendable materials
• Auto-lubrication for mandrel
• Hydraulic oil cooler
• Practical interface program prepared in Akyapak
• Program making possibility in YBC mode
• Tube length can be calculated according top art program
• 3D preview of writen program
• 15’’ color touchscreen PC
• Starting up serial production after short period training
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM
certificates

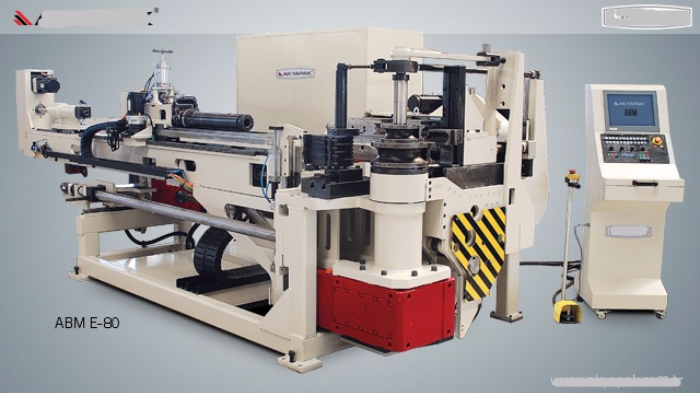

Technical Features:

• All axies with servo control
• Controlling ability of servo axis speeds from control
panel
• Footpedal control
• Step by step and full automatic working capability
• Four stacks operational ability (for certain diameter
sizes)
• Dies can be supplied for any demanded size
• Operational ability with/without mandrel.
• Simple or complex shaped bendings for steel, stainless
steel, aluminum and similar bendable materials
• Auto-lubrication for mandrel
• Practical interface program prepared in Akyapak
• Program making possibility in YBCmode
• Tube length can be calculated according top art program
• Motion controller system
• Online Modem Connection / CD-ROM Backup
• 3D preview ofwriten program
• 15” color touchscreen PC.
• Starting up serial production after short period training
• Suitable for CE,ISO9001-2008, TSEK and TURQUM
certificates

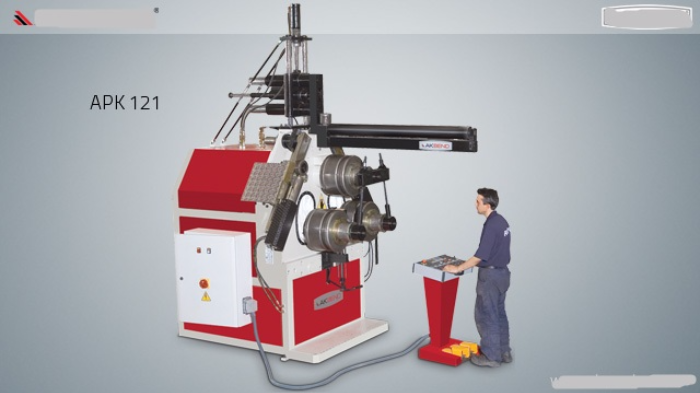

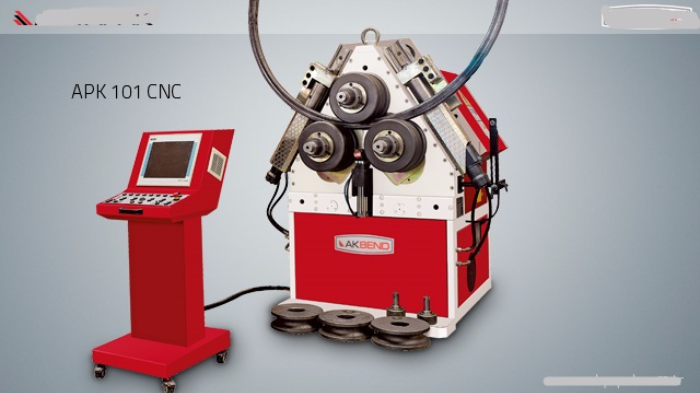

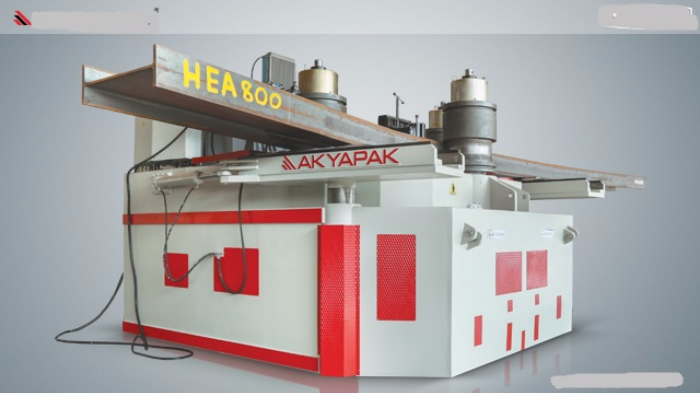

Standard Equipments

• Machine body is steel (ST-52) construction
• On APK 101, APK 121 and 150 rolls are driven by a hydraulic motor + planetry
gearbox and gears
• Shafts made of special steel, hardened and grounded
• On APK 101 guide rolls are in one direction manual adjustable
• APK 121 and 150 guide rolls are in two directions hydraulic adjustable
• One set standard rolls
• Manual lubrication
• Lower rolls hydraulic moveable up and down
• Digital display for lower rolls
• Separate and moveable control panel
• Horizontal & vertical working
• 400 Volt / 50 hz
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special mechanic guide Rolls for bending angles (for APK 101)
• Special tooling sysems for bending U,I,H profiles
• Spiral bending device
• Variable speed of rotation
• Hydraulic adjustable guide rolls in two directions (for APK 101)
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System

Standard Equipments

• Machine body is steel (ST-52) construction
• On APK 101, APK 121 and 150 rolls are driven by a hydraulic motor + planetry
gearbox and gears
• Shafts made of special steel, hardened and grounded
• On APK 101 guide rolls are in one direction manual adjustable
• APK 121 and 150 guide rolls are in two directions hydraulic adjustable
• One set standard rolls
• Manual lubrication
• Lower rolls hydraulic moveable up and down
• Digital display for lower rolls
• Separate and moveable control panel
• Horizontal & vertical working
• 400 Volt / 50 hz
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special mechanic guide Rolls for bending angles (for APK 101)
• Special tooling sysems for bending U,I,H profiles
• Spiral bending device
• Variable speed of rotation
• Hydraulic adjustable guide rolls in two directions (for APK 101)
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System

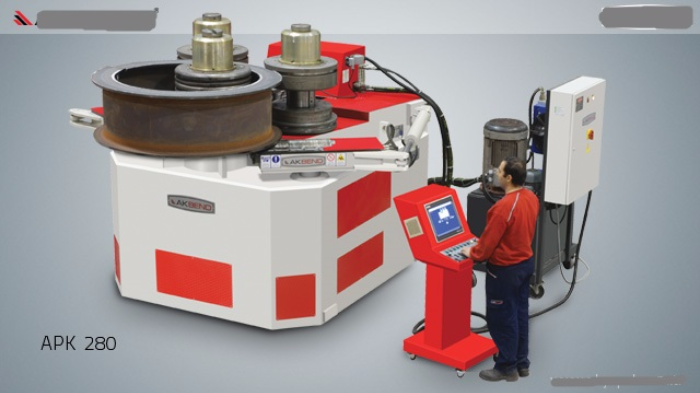

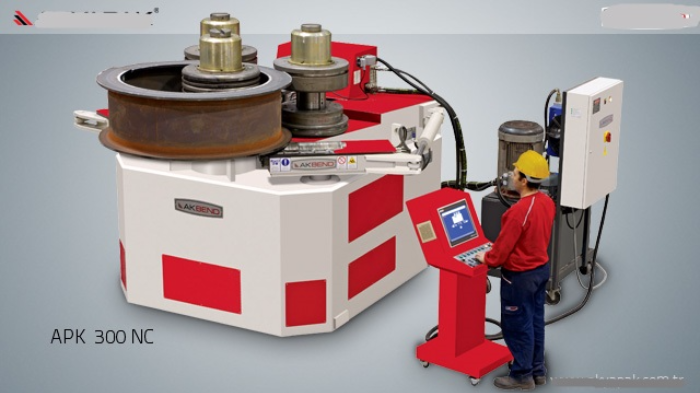

Standard Equipments

• Machine body is ST-52 steel construction

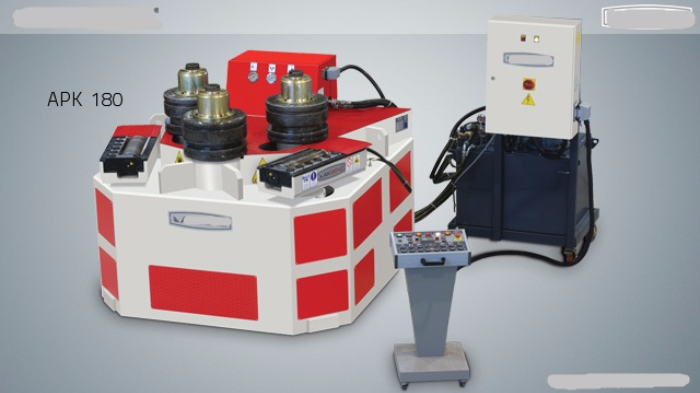

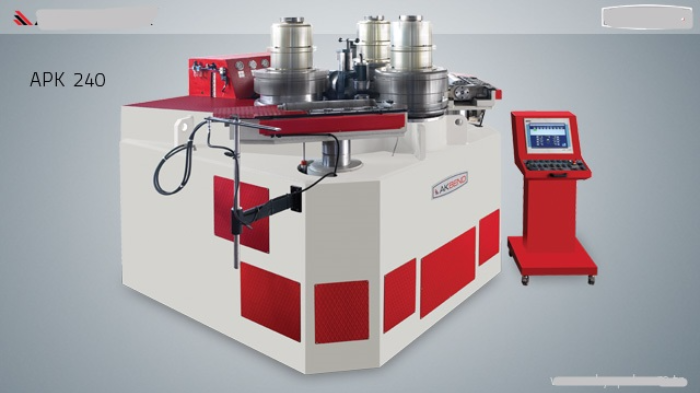

• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication

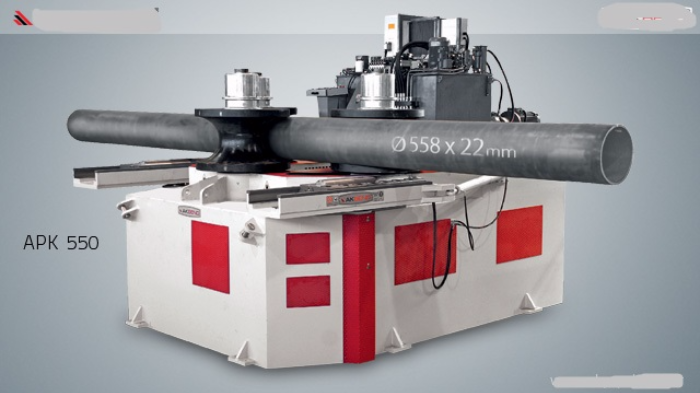

• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control

Standard Equipments

• Machine body is ST-52 steel construction
• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control

Standard Equipments

• Machine body is ST-52 steel construction
• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control

Standard Equipments

• Machine body is ST-52 steel construction
• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control

Standart Equipment

• Machine body is steel (St-52) construction.
• On APK 280 - 240 and APK 180 rolls are driven by hydraulic motor+planetry gearbox. On APK 550 rolls are driven via 3 seperat hydraulic motor. On APK 300 top and lower rolls are driven with two seperate planetry gearbox.
• Variable speed of rotation on APK180, 240, 280.
• Hardened rolls.
• Shafts made of special steel, hardened and grounded.
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable.
• Horizontal working.
• Lower rolls hydraulic moveable up and down.
• Digital display for lower rolls.
• Separate and moveable control panel.
• Electrical and hydraulic protection against overloads.
• Manual lubrication
• 400 Volt/50 hz
• Suitable for "CE"

Special Equipment

• Special rolls for tubes, profiles and angles.
• Digital display for hydraulic guide rolls.
• Variable speed of rotation on APK 300, 360, 550.
• Special tooling systems for bending U-l-H profiles.
• Extended shafts. (APK-360 except)
• NC Playback Control System.
• CNC Graphic Control System.

Standard Equipments

• Machine body is ST-52 steel construction
• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control

Standart features

Welded steel construction (St-52) body.
Rolls are driven by 3 separate hydraulic motors.
Infinitely variable speed of rotation
Special steel gears
Shafts are made of special steel, hardened and grinded.
Manual lubrication
Guide rolls are hydraulically adjustable.
Lower rolls are hydraulically moveable up and down.
Infinitely variable speed of rlower rools moves down-up
Digital display for lower rolls
Seperate and moveable control panel
Horizontal working
400 Volt/50-60 Hz
AKYAPAK Service assurance
Production quality certified by CE, ISO9001 – 2008, TSEK and TURQUM.

Optional Fatures

Special rolls for tubes, profiles and angles
Special tooling system for bending H, I, U profiles
Digital display for hydraulic guide rolls
NC Playback Control System
CNC Graphic Control System
Joystickcontrol
Motors in variable voltage and frequency
Different rotation speeds

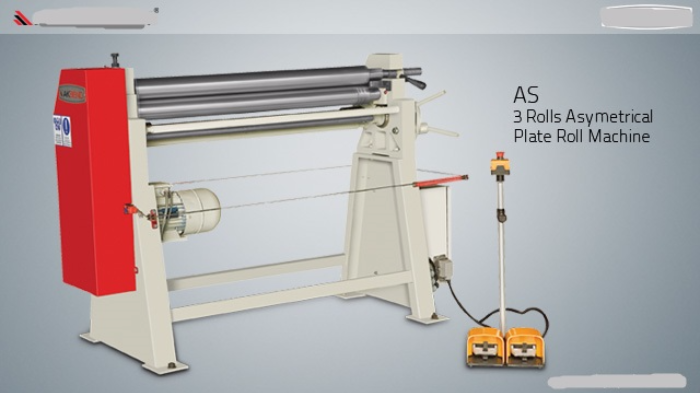

Standard Equipments;
• Body is made of cast iron construction
• Central rollers powered with electric motor and gear drive
• Cone bending device
• Self brake main motor
• Upper roll is opanable by side
• Lower roll and back roll are with hand wheels up & down adjustable.
• Separate eletric control panel with foot pedal
• Emergency stop
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments;
• Induction hardened rolls
• Back roll with motor
• Digital display

Standard Equipments;
• Body is made of cast iron construction
• Central rollers powered with electric motor, gearbox and gear drive
• Cone bending device
• Self brake main motor
• Upper roll is opanable by side
• Lower roll and back roll are with hand wheels up & down adjustable.
• Seperate eletric control panel with foot pedal
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments;
• Induction hardened rolls.
• Back roll with motor.
• Digital display.

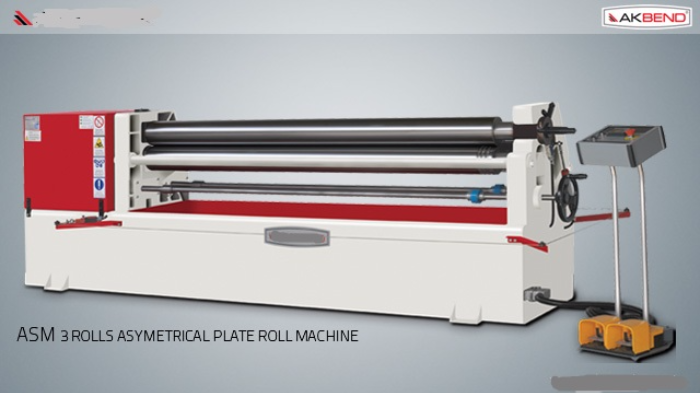

Standard Equipments;
• Induction hardened rolls.
• Backroll with motor.
• Cone bending device.
• Body steel (St-52) construction.
• Rolls are produced by special steel.
• Machine designed in asymetrical working principle.
• Central rollers powered with electric motor + gearbox and gear system.
• Upper roll is opanable by side.
• Seperate control panel.
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments;
• Digital display for backroll
• Lower roll with motor
• Extended rolls.
• Profile rolls.

Standard Equipments

• Cone bending device.
• Induction hardened rolls.
• Digital display for both side rollers.
• Machine body is steel (St-52) construction.
• Separate control panel.
• All rollers mounted in bearing.
• Drop end controlled from control panel in order to release easily bent metal sheet and lifted upper rolls.
• Movement and parallelism adjustment of the rollers controlled from panel.
• All rolls are driven with hydraulic motor and plonetry gear box.
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments

• Side and central supporters for big sheet metal diameters
• Extended rolls
• Profile rolls
• Material feed table
• Changeable top roll with smaller diameters
• Oil cooling system

Standard Equipments;
• Cone Bending device
• Induction hardened rolls
• Digital display for both side rollers
• Machine body is steel (ST-52) construction
• Seperate control panel
• Two speed control
• All rollers mounted in bearing
• Drop end controlled from control panel in order to release easily bent metal sheet and lifted upper rolls
• Cone open and close controlled from panel
• Center rolls are driven with hydraulic motor and planetry gear box
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

Optional Equipments;
• Infinitively variable speed of rotation
• Side and central supports for big sheet metal diameters
• Metarial feed table
• CNC Graffic control system
• NC Playback control system
• Changeable top roll with small diameters
• Oil cooling system
• Calibration
