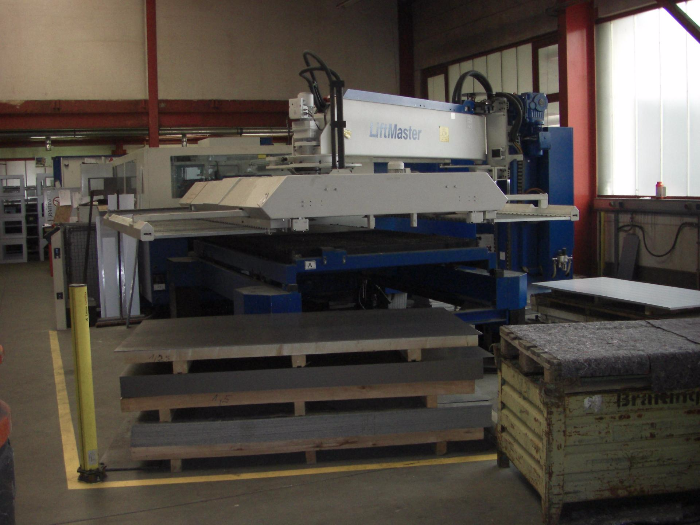

Technical specifications
Manufacturer	Trumpf
Type	LiftMaster 3000x1500
Year	2006

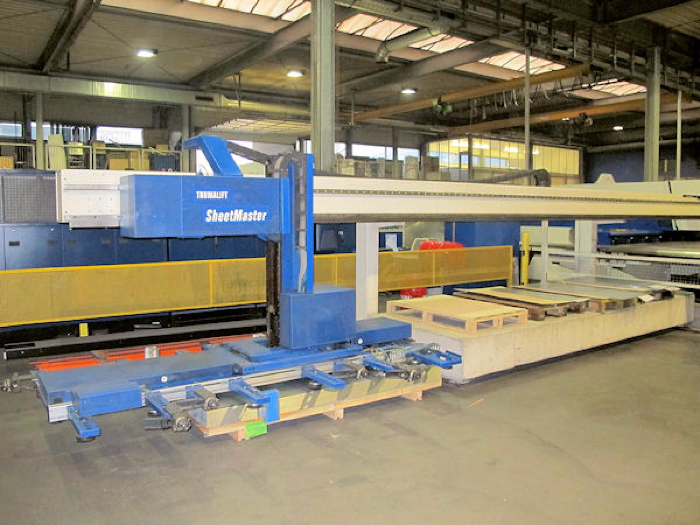

Technical specifications
Manufacturer	Trumpf
Type	SheetMaster 1306
Year	2002

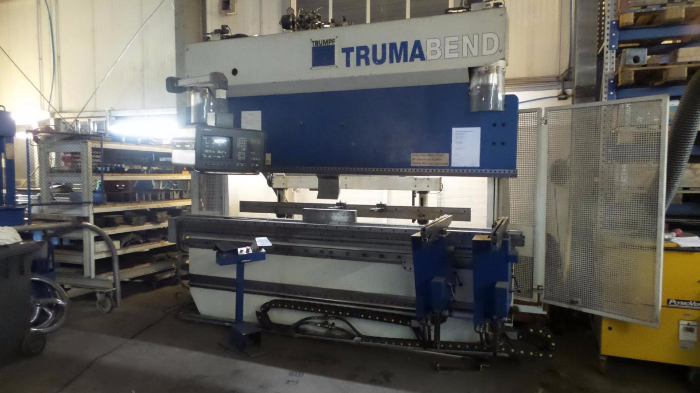

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend 125.3
Year	1991
Bending length	3050 mm
Press force	125 to
Control	Delem DA 24
Operating time	35000 h
Stroke	200 mm
Beam entry	400 mm
Width between columns	2550 mm
Throat depth	300 mm
Approx. speed	130 mm/s
Working speed	1-10 mm/s
Return speed	100 mm/s
Working height	903 mm
Length	3740 mm
Width	1880 mm
Height	2650 mm
Weight	8000 kg

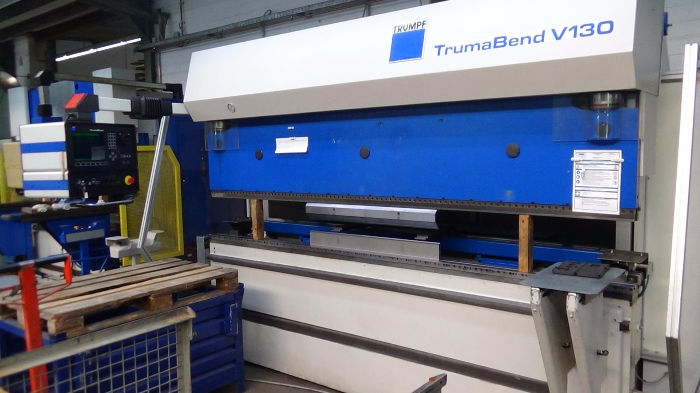

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend V 130
Year	1995
Bending length	3060 mm
Press force	130 to
Control	Delem DA 65
Operating time	56000 h
Stroke	215 mm
Beam entry	385 mm
Width between columns	2690 mm
Throat depth	410 mm
Approx. speed	200 mm/s
Working speed	1-10 mm/s
Return speed	135 mm/s
Working height	1050 mm
Length	3640 mm
Width	2060 mm
Height	2375 mm
Weight	11250 kg

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend V 50
Year	5/2005
Bending length	1275 mm
Press force	50 to
Control	Delem DA 69
Operating time	47000 (09/2016) h
Stroke	215 mm
Beam entry	385 mm
Width between columns	1040 mm
Throat depth	410 mm
Approx. speed	200 mm/s
Working speed	1-10 mm/s
Return speed	135 mm/s
Working height	1050 mm
Length	1930 mm
Width	1880 mm
Height	2375 mm
Weight	4750 kg

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend V 130 X
Year	1998
Bending length	3060 mm
Press force	130 to
Control	Delem DA 65
Operating time	n.a. h
Stroke	365 mm
Beam entry	535 mm
Width between columns	2690 mm
Throat depth	410 mm
Approx. speed	200 mm/s
Working speed	1-10 mm/s
Return speed	135 mm/s
Working height	1050 mm
Length	3640 mm
Width	2060 mm
Height	2885 mm
Weight	12950 kg

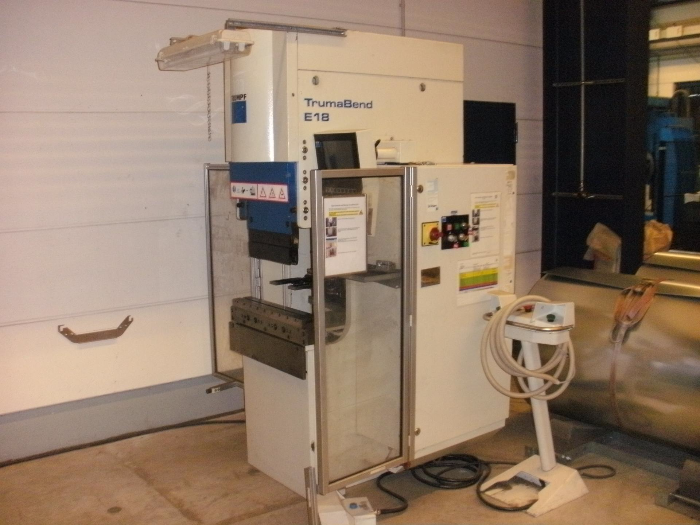

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend E 18
Year	2001
Bending length	500 mm
Press force	18 to
Control	Delem (X,Y)
Operating time	19000 h
Stroke	100 mm
Beam entry	n.a. mm
Width between columns	n.a. mm
Throat depth	n.a. mm
Approx. speed	200 mm/s
Working speed	1-10 mm/s
Return speed	135 mm/s
Working height	1050 mm
Height	2200 mm
Weight	1800 kg

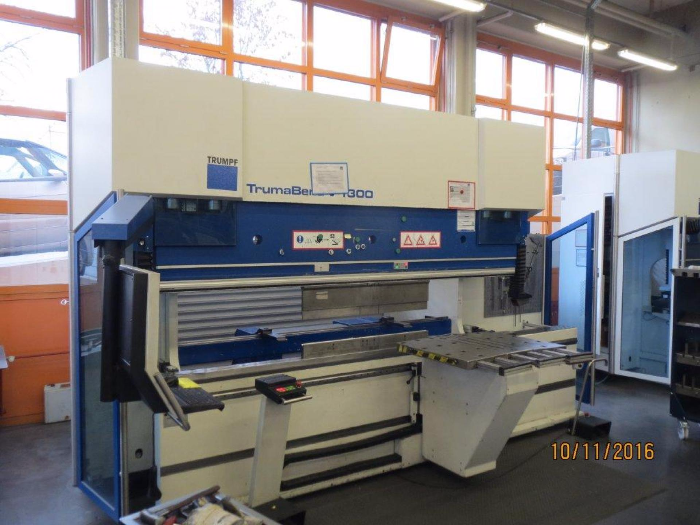

Technical specifications
Manufacturer	Trumpf
Type	TrumaBend V 1300
Year	2006
Bending length	3230 mm
Press force	130 to
Control	TASC 6000
Operating time	32000/22500/13500 h
Stroke	445 mm
Beam entry	615 mm
Width between columns	2690 mm
Throat depth	420 mm
Approx. speed	220 mm/s
Working speed	0.1-10 mm/s
Return speed	220 mm/s
Working height	1050 mm
Length	4060 mm
Width	1740 mm
Height	2840 mm
Weight	10900 kg

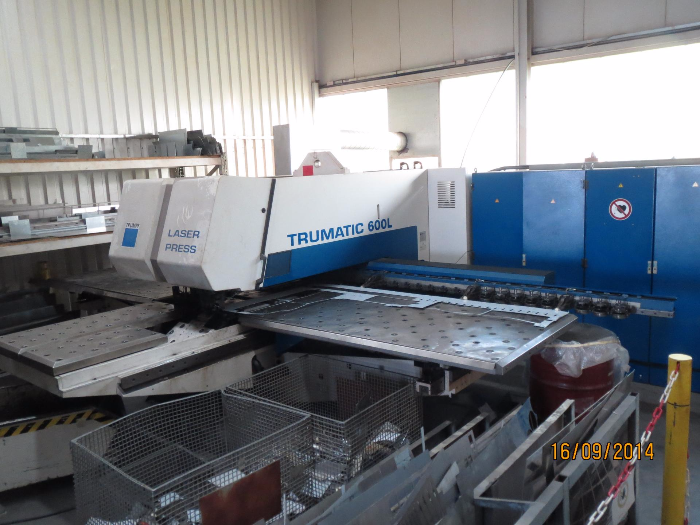

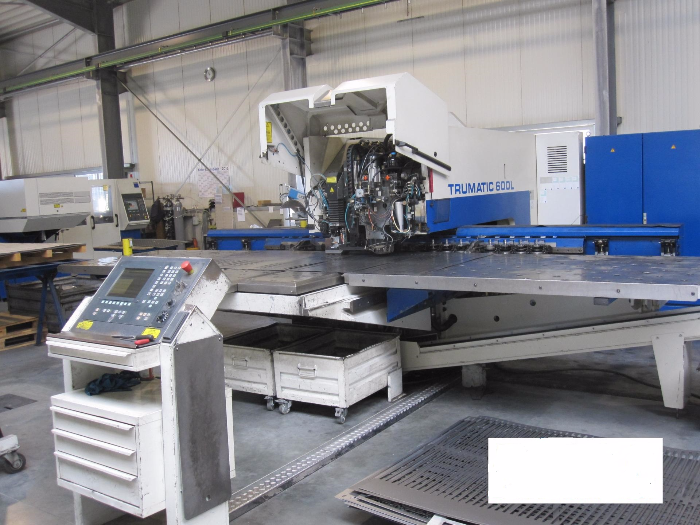

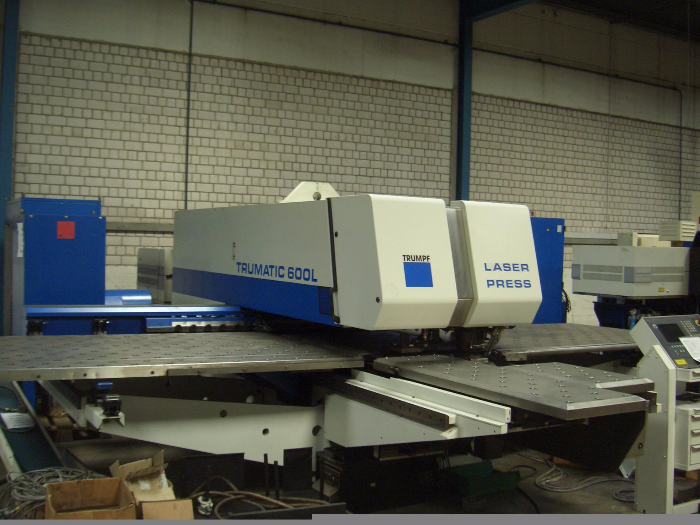

Technical specifications
Manufacturer	Trumpf
Type	TC 600 L - 1300
Year	1998
Working area XxY	3085x1370 mm
Laser rated output	2200 Watt
Control	Siemens Sinumerik 840D
Operating time	34661/28827/7464 h
Punching force	22 to
Working area combined XxY	2585x1280 mm
Working area Laser XxY	3085x1280 mm
Working area Punch XxY	3085x1370 mm
max. Sheet thickness	8 mm
max. Workpart weight	76,2 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7500 mm
Width	7800 mm
Height	2400 mm
Weight	16700 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 600 L - 1300
Year	1999
Working area XxY	3085x1370 mm
Laser rated output	3000 Watt
Control	Siemens Sinumerik 840D
Operating time	37185/34700/8400 h
Punching force	22 to
Working area combined XxY	2585x1280 mm
Working area Laser XxY	3085x1280 mm
Working area Punch XxY	3085x1370 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	200 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7500 mm
Width	7800 mm
Height	2400 mm
Weight	16700 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 600 L - 1300
Year	1996
Working area XxY	3085x1370 mm
Laser rated output	1500 Watt
Control	Siemens Sinumerik 840D
Operating time	52000 h
Punching force	22 to
Working area combined XxY	2585x1280 mm
Working area Laser XxY	3085x1280 mm
Working area Punch XxY	3085x1370 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	200 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7500 mm
Width	7800 mm
Height	2400 mm
Weight	16700 kg

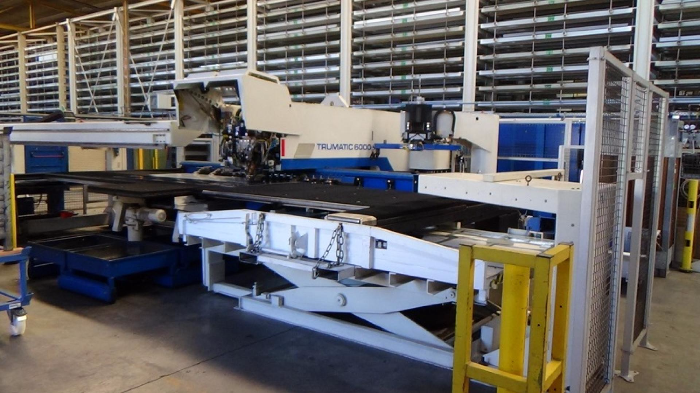

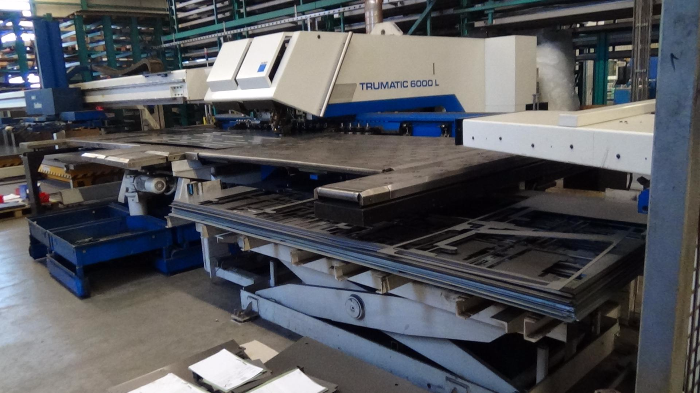

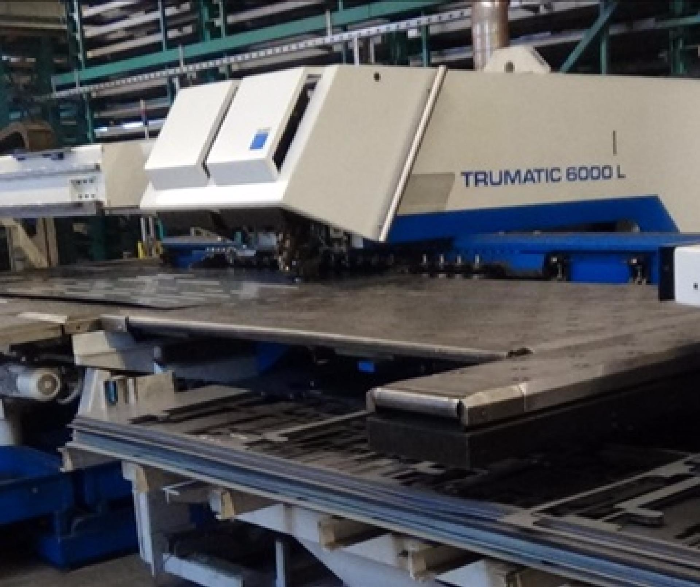

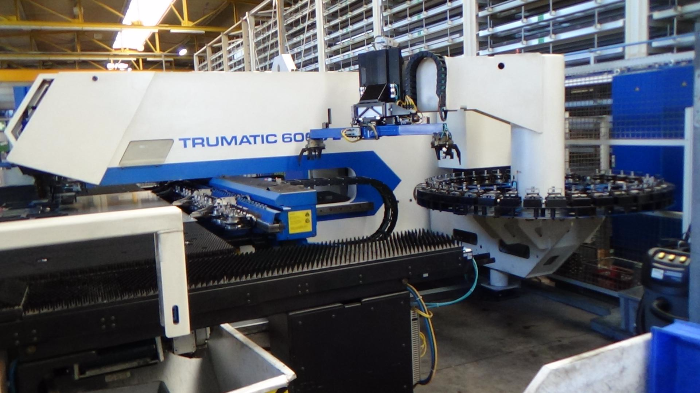

Technical specifications
Manufacturer	Trumpf
Type	TC 6000 L - 1600 FMC
Year	3/2004
Working area XxY	3085x1740 mm
Laser rated output	2700 Watt
Control	Siemens Sinumerik 840D
Operating time	47800/34863/5560 (1/2016) h
Punching force	22 to
Working area combined XxY	2585x1650 mm
Working area Laser XxY	3085x1650 mm
Working area Punch XxY	3085x1740 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	230 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7900 mm
Width	9100 mm
Height	2400 mm
Weight	22500 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 6000 L - 1600 - FMC
Year	2006
Working area XxY	3085x1650 mm
Laser rated output	3200 Watt
Control	Siemens Sinumerik 840D
Operating time	48700/37171/9785 h
Punching force	22 to
Working area combined XxY	2585x1650 mm
Working area Laser XxY	3085x1685 mm
Working area Punch XxY	3085x1740 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	230 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7900 mm
Width	9100 mm
Height	2400 mm
Weight	22500 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 6000 L - 1600 - FMC
Year	2006
Working area XxY	3085x1740 mm
Laser rated output	2700 Watt
Control	Siemens Sinumerik 840D
Operating time	35026/7060 h
Punching force	22 to
Working area combined XxY	2585x1650 mm
Working area Laser XxY	3085x1650 mm
Working area Punch XxY	3085x1650 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	230 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7900 mm
Width	9100 mm
Height	2400 mm
Weight	22500 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 6000 L - 1600
Year	2004
Working area XxY	3085x1650 mm
Laser rated output	2700 Watt
Control	Siemens Sinumerik 840D
Operating time	47800/34863/5560 h
Punching force	22 to
Working area combined XxY	2585x1650 mm
Working area Laser XxY	3085x1650 mm
Working area Punch XxY	3085x1740 mm
max. Sheet thickness	8 mm
max. Punching diameter	76,2 mm
max. Workpart weight	230 kg
Max. speeds	90/60/108 m/min
No. Tool stations	18
No. hold down jacks	3
Length	7900 mm
Width	9100 mm
Height	2400 mm
Weight	22500 kg

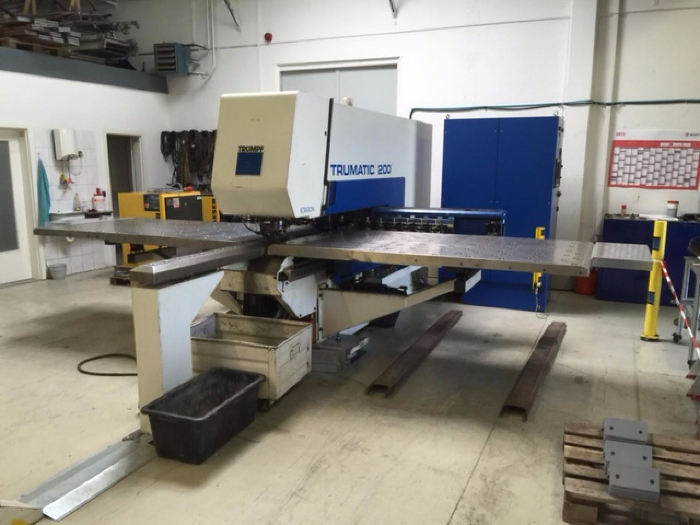

Technical specifications
Manufacturer	Trumpf
Type	TC 200 R
Year	1995
Working area XxY	2070x1280 mm
Press Capacity	16,5 to
Control	Bosch CC 220
Operating time	39000 h
max. Worksheet Thickness	6,4 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	80/55/97 m/min
Max. Workpart weight	150 kg
Tool Storage	15 stations
No. hold down jacks	2
Length	6000 mm
Width	5600 mm
Height	2080 mm
Weight	8000 kg

Technical specifications
Manufacturer	Trumpf
Type	Sheetmaster 1305 V 110 for TC 5000 R 1300
Year	2001
Operating time	72000 h

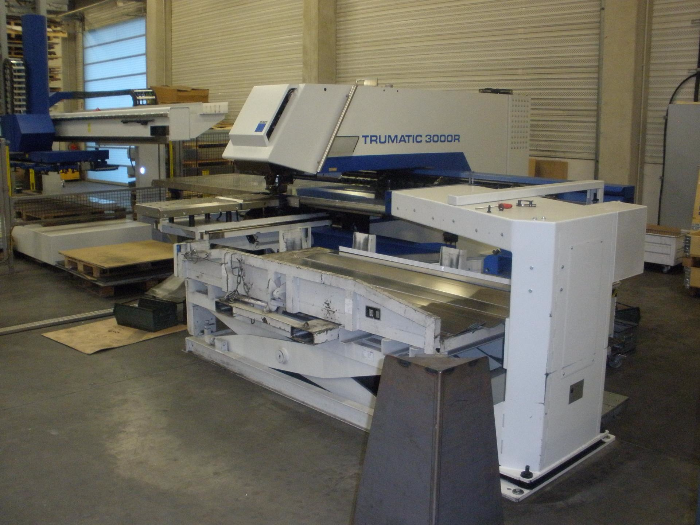

Technical specifications
Manufacturer	Trumpf
Type	Trumatic 3000 R 1300 FMC
Year	2004
Working area XxY	2550x1280 mm
Press Capacity	18 to
Control	Bosch PNC-P
Operating time	48397 (Jan 2016) h
max. Worksheet Thickness	6,4 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	90/60/108 m/min
Max. Workpart weight	150 kg
Tool Storage	19 stations
No. hold down jacks	2
Length	6500 mm
Width	5800 mm
Height	2160 mm
Weight	11500 kg

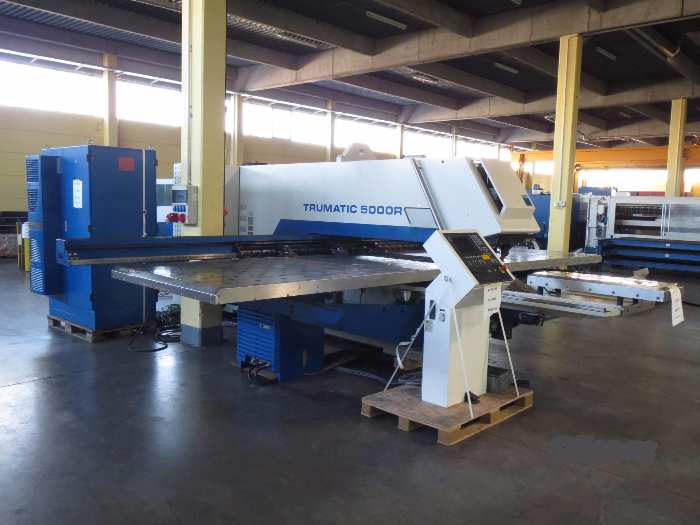

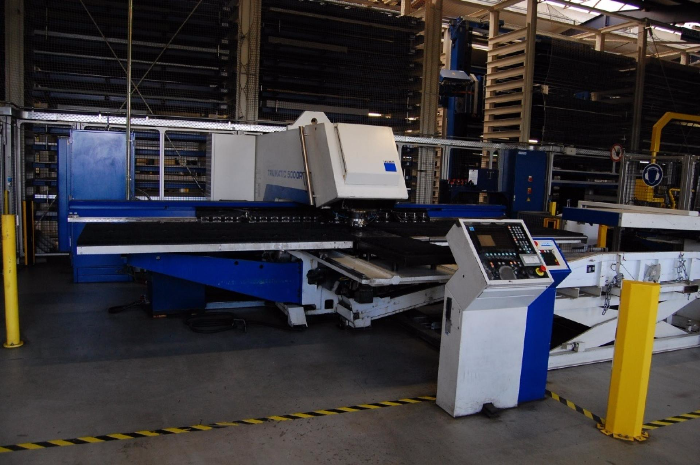

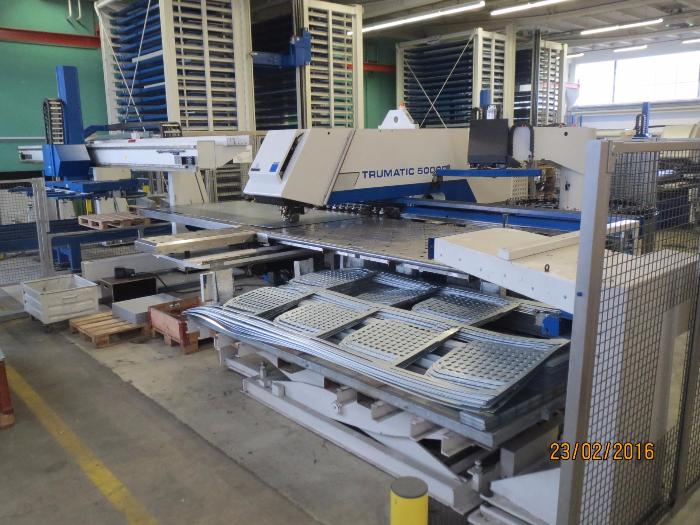

Technical specifications
Manufacturer	Trumpf
Type	TC 5000 R - 1600 FMC
Year	2005
Working area XxY	3000x1650 mm
Press Capacity	22 to
Control	Siemens Sinumerik 840D
Operating time	82000 h
max. Worksheet Thickness	8 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	100/60/116 m/min
Max. Workpart weight	230 kg
Tool Storage	21 stations
No. hold down jacks	4
Length	7600 mm
Width	7000 mm
Height	2500 mm
Weight	17300 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 5000 R - 1600 FMC
Year	2001
Working area XxY	3085(4000)x1650 mm
Press Capacity	22 to
Control	Siemens Sinumerik 840D
Operating time	46376 (2/2016) h
max. Worksheet Thickness	8 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	100/60/116 m/min
Max. Workpart weight	230 kg
Tool Storage	21 stations
No. hold down jacks	4
Length	7600 mm
Width	7000 mm
Height	2500 mm
Weight	17300 kg

Technical specifications
Manufacturer	Trumpf
Type	TC 5000 R - 1600
Year	2001
Working area XxY	3000x1650 mm
Press Capacity	22 to
Control	Siemens Sinumerik 840D
Operating time	49000 (4/2016) h
max. Worksheet Thickness	8 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	100/60/116 m/min
Max. Workpart weight	230 kg
Tool Storage	21 stations
No. hold down jacks	4
Length	7600 mm
Width	7000 mm
Height	2500 mm
Weight	17300 kg

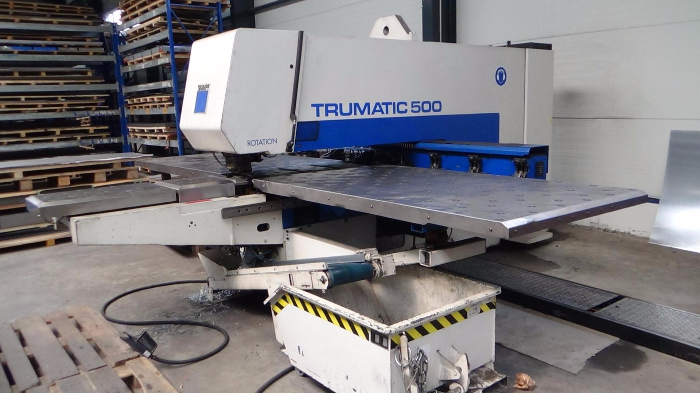

Technical specifications
Manufacturer	Trumpf
Type	TC 500 R -1300
Year	1998
Working area XxY	2500x1300 mm
Press Capacity	22 to
Control	Bosch CC220S
Operating time	60061 (06/2016) h
max. Worksheet Thickness	8 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	90/60/108 m/min
Max. Workpart weight	200 kg
Tool Storage	18 stations
No. hold down jacks	2
Length	6900 mm
Width	5800 mm
Height	2200 mm
Weight	13000 kg

Technical specifications
Manufacturer	Trumpf
Type	Trumpf TC 5000 R - 1300
Year	2006
Working area XxY	2535x1280 mm
Press Capacity	22 to
Control	Siemens Sinumerik 840D
Operating time	64000 h
max. Worksheet Thickness	8 mm
Maximum Tool Diameter	76,2 mm
Max. Feed Speed X/Y	100/60/116 m/min
Max. Workpart weight	200 kg
Tool Storage	15 stations
No. hold down jacks	3
Length	6760 mm
Width	6100 mm
Height	2500 mm
Weight	13700 kg

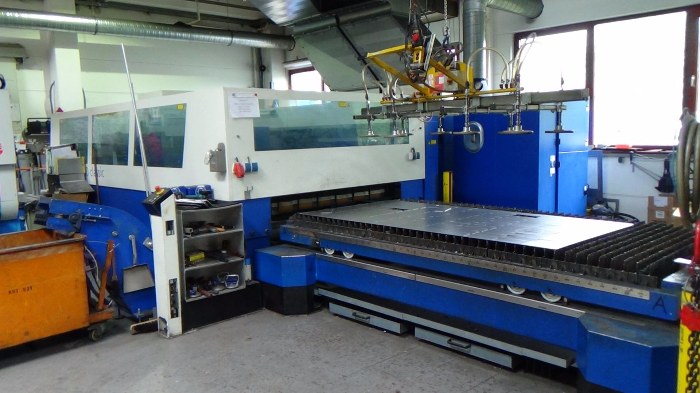

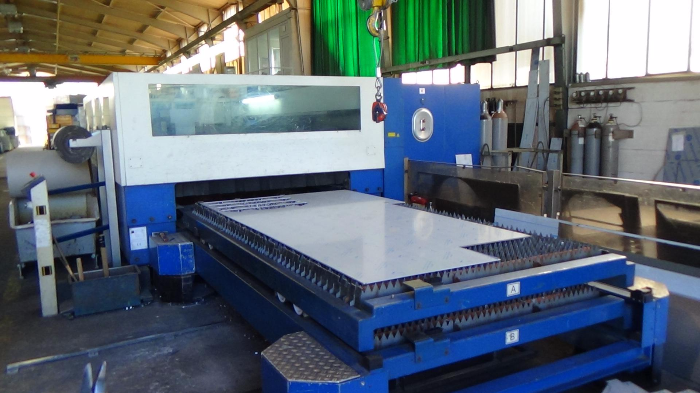

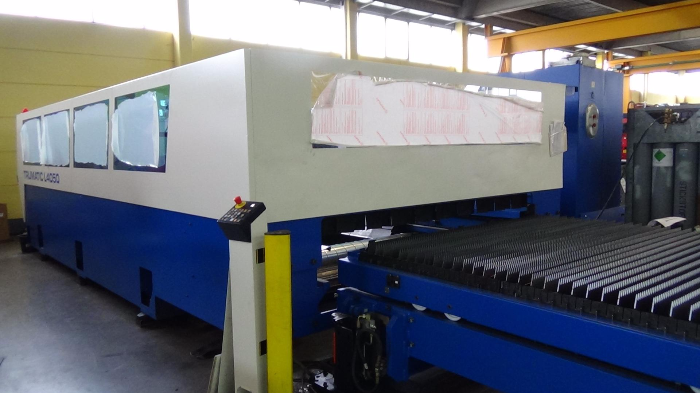

Technical specifications
Manufacturer	Trumpf
Type	L 4050
Year	10/2003/2005
Working area XxYxZ	4000x2000x115 mm
Laser rated output	5000 Watt
Control	Siemens Sinumerik 840D
Operating time	78500/40500 h
Sheet thickness	25/20/12 mm
Workpart weight	1800 kg
Movement speed	200/300 m/min
Length	13000 mm
Width	5400 mm
Height	2400 mm
Weight	14000 kg

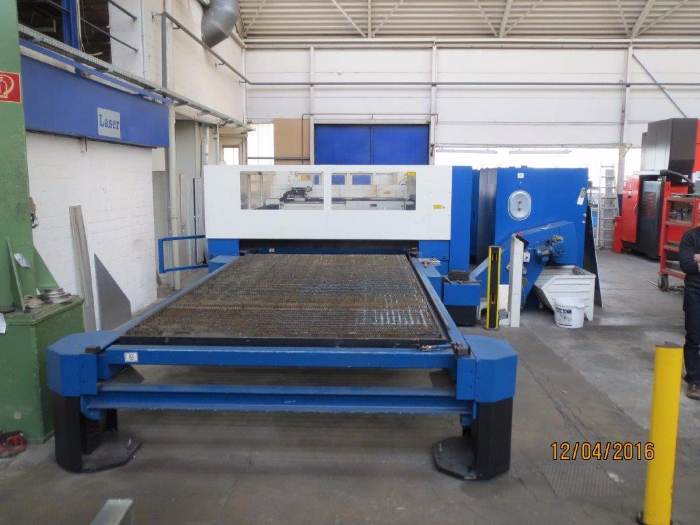

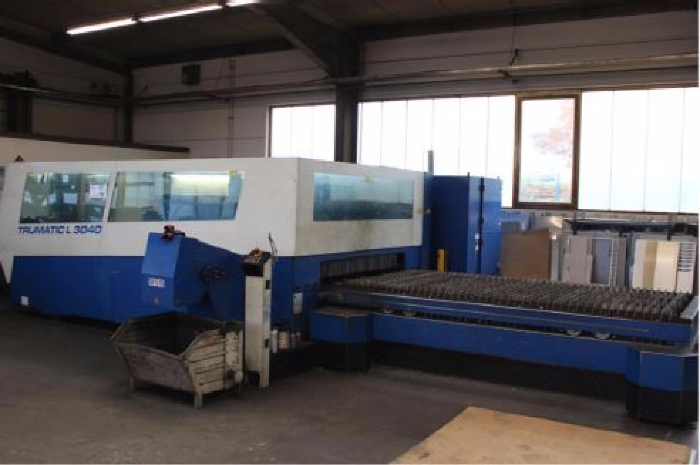

Technical specifications
Manufacturer	Trumpf
Type	L 3040
Year	2006
Working area XxYxZ	3000x1500x115 mm
Laser rated output	4000 Watt
Control	Siemens Sinumerik 840D
Operating time	47759/22704 h
Sheet thickness	20/15/10 mm
Workpart weight	710 kg
Movement speed	60/85 m/min
Length	9300 mm
Width	4600 mm
Height	2000 mm
Weight	11500 kg

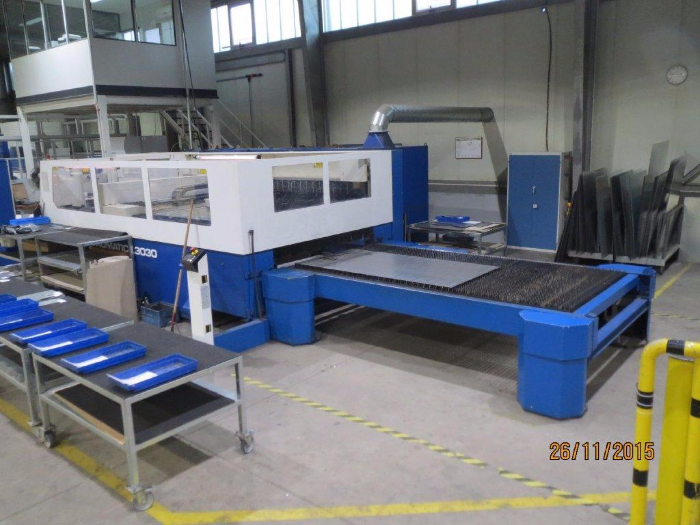

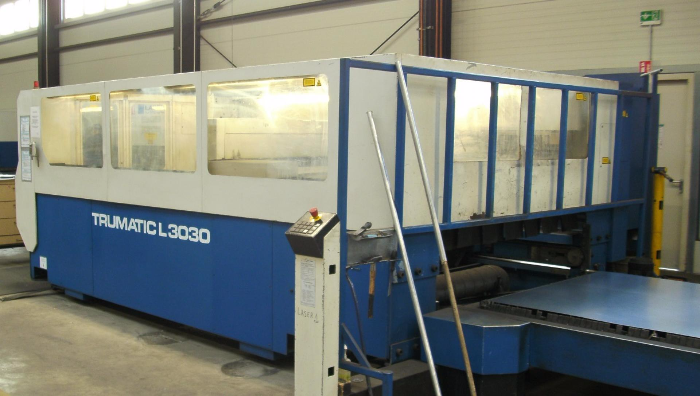

Technical specifications
Manufacturer	Trumpf
Type	L 3030
Year	2001
Working area XxYxZ	3000x1500x115 mm
Laser rated output	4000 Watt
Control	Siemens Sinumerik 840D
Operating time	22000/9500 h
Sheet thickness	20/15/10 mm
Workpart weight	710 kg
Movement speed	60/85 m/min
Length	9300 mm
Width	4600 mm
Height	2000 mm
Weight	11500 kg

Technical specifications
Manufacturer	Trumpf
Type	L 3050
Year	2006
Working area XxYxZ	3000x1500x100 mm
Laser rated output	6000 Watt
Control	Siemens Sinumerik 840D
Operating time	36000/17000 h
Sheet thickness	25/25/15 mm
Workpart weight	900 kg
Movement speed	200/300 m/min
Length	11100 mm
Width	4600 mm
Height	2400 mm
Weight	12000 kg

Technical specifications
Manufacturer	Trumpf
Type	L 4030
Year	2004
Working area XxYxZ	4000x2000x115 mm
Laser rated output	4000 Watt
Control	Siemens Sinumerik 840D
Operating time	45700/21500 h
Sheet thickness	20/12/8 mm
Workpart weight	1250 kg
Movement speed	60/85 m/min
Length	11600 mm
Width	5200 mm
Height	2000 mm
Weight	16000 kg

Technical specifications
Manufacturer	Trumpf
Type	Tubematic
Year	8/2005
Max. raw material length	6000 mm
Max. finished part length	3000 mm
Control	Siemens Sinumerik 840D
Operating time	48000/41000/12000 h
Laser rated output	3200 Watt
Max. outer diameter	150 mm
Max. Sheet thickness	8/5/4 mm
Length	16000 mm
Width	8500 mm
Ширина (мм)	2100
Weight	11000 kg

Technical specifications
Manufacturer	Trumpf
Type	TruLaser 3040
Year	2010
Working area XxYxZ	4000x2000x115 mm
Laser rated output	5000 Watt
Control	Siemens Sinumerik 840D
Operating time	20000 h
Sheet thickness	25/20/12 mm
Workpart weight	1250 kg
Movement speed	100/140 m/min
Length	12000 mm
Width	5300 mm
Height	2200 mm
Weight	13000 kg

Technical specifications
Manufacturer	Trumpf
Type	TruLaser 5030 classic
Year	2007
Working area XxYxZ	3000x1500x100 mm
Laser rated output	5000 Watt
Control	Siemens Sinumerik 840D
Operating time	34674/14548 (07/2016) h
Sheet thickness	25/20/12 mm
Workpart weight	900 kg
Movement speed	200/300 m/min
Length	11100 mm
Width	4600 mm
Height	2400 mm
Weight	12000 kg

Technical specifications
Manufacturer	Trumpf
Type	L 3050
Year	2002
Working area XxYxZ	3000x1500x100 mm
Laser rated output	5000 Watt
Control	Siemens Sinumerik 840D
Operating time	(47848/21925) 13670/6295 h
Sheet thickness	25/20/12 mm
Workpart weight	900 kg
Movement speed	200/300 m/min
Length	11100 mm
Width	4600 mm
Height	2400 mm
Weight	12000 kg

Technical specifications
Manufacturer	Trumpf
Type	L 2530 Plus
Year	6/2006
Working area XxYxZ	2500x1250x115 mm mm
Laser rated output	3200 Watt Watt
Control	Siemens Sinumerik 840D
Operating time	58000/39000 (9/2016) h
Sheet thickness	20/12/8 mm
Workpart weight	500 kg
Movement speed	60/85 m/min
Length	7800 mm
Width	5400 mm
Height	2300 mm
Weight	7900 kg

Technical specifications
Manufacturer	Trumpf
Type	TruLaser 5030 classic
Year	4/2007
Working area XxYxZ	3000x1500x100 mm
Laser rated output	5000 Watt
Control	Siemens Sinumerik 840D
Operating time	39278/13141 (09/2016) h
Sheet thickness	25/20/12 mm
Workpart weight	900 kg
Movement speed	200/300 m/min
Length	11100 mm
Width	4600 mm
Height	2400 mm
Weight	12000 kg

Technical specifications
Manufacturer	Trumpf
Type	TruLaser 3030 (L20)
Year	09/2012
Working area XxYxZ	3000x1500x115 mm
Laser rated output	6000 Watt
Control	Siemens Sinumerik 840D SL
Operating time	19124/9834 (12.10.2016) h
Sheet thickness	25/25/15 mm
Workpart weight	900 kg
Movement speed	200/140 m/min
Length	11100 mm
Width	4600 mm
Height	2400 mm
Weight	12000 kg

Technical specifications
Manufacturer	Trumpf
Type	L 3030
Year	1999
Working area XxYxZ	3000x1500x115 mm
Laser rated output	3800 Watt
Control	Siemens Sinumerik 840D
Operating time	58000 h
Sheet thickness	20/15/10 mm
Workpart weight	710 kg
Movement speed	60/85 m/min
Length	9300 mm
Width	4600 mm
Height	2000 mm
Weight	11500 kg
