The powerLine technology

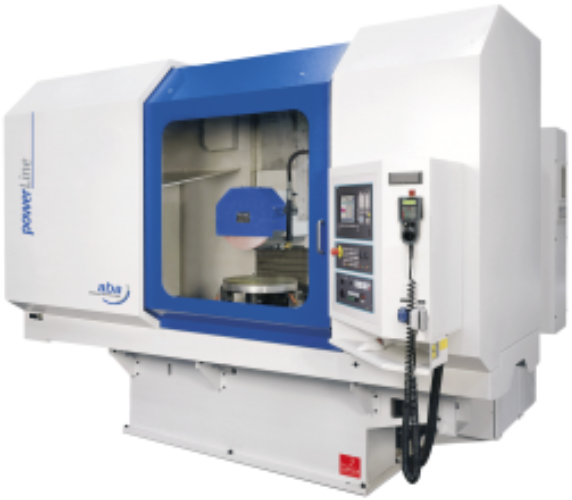

powerLine
1.000
1.500
2.000
3.000
Table Drive
KGT
Grinding Width (mm)
700
Grinding Length (mm)
1,000
1,500
2,000
3,000
Distance Spindle Center to Table (mm)
700 / 900
Spindle Power (kW)
48 / 70 / 90 / 105
Grinding Wheel (mm)
400 x 60 x 127
500 x 100 x 203
Dimensions / Weight
Length A (mm)
4,600
5,600
6,600
8,600
Width B (mm)
4,100
4,100
4,100
4,100
Height C (mm)
3,000 / 3,450
3,000 / 3,450
3,000 / 3,450
3,000 / 3,450
Weight (kg)
11,000
14,000
16,000
24,000
|
16.11.2016
|
|
|
Linear Model surface and profile grinding machines

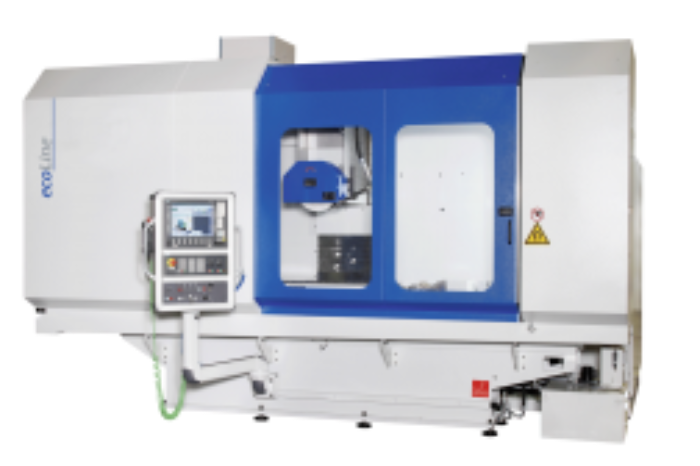

ecoLine
1.000
1.500
2.000
Table Drive
LiMo
LiMo
LiMo
Grinding Width (mm)
700
700
700
Grinding Length (mm)
1,000
1,500
2,000
Distance Spindle Center to Table (mm)
700
700
700
Spindle Power (kW)
11 / 26
11 / 26
11 / 26
Grinding Wheel (mm)
400 x 60 x127
400 x 60 x127
400 x 60 x127
Dimensions / Weight
Length A (mm)
3,800
4,800
5,800
Width B (mm)
2,800
2,800
2,800
Height C (mm)
2,800
2,800
2,800
Weight (kg)
6,600
7,800
9,900
|
16.11.2016
|
|
|
Broach Sharpening
BGS
2000S-T
Feed Rate
Table
Distance between Centers (mm)
2,000
Center Height (mm)
280
Workpiece Diameter (mm)
10 – 150
Table Travel (mm)
1,690
Spindle Power (kW)
20
Grinding Wheel (mm)
200 x 500
Sharpening Angle
-90 / +15°
Tilt Angle
0°
|
16.11.2016
|
|
|

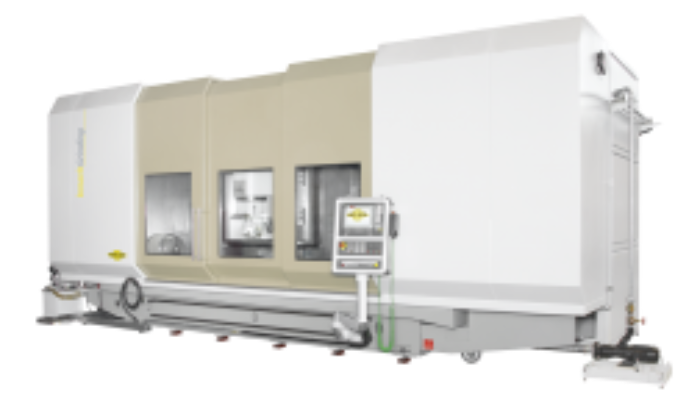

Traveling table / column machine for broaches
Machine Concept
Traveling table design for tools up to Ø 200 mm
Traveling column design for tools up to Ø 600 mm
Both models optional grinding of inner features
Design and software suited for all profile grinding tasks on round and flat work pieces
Very versatile
|
16.11.2016
|
|
|

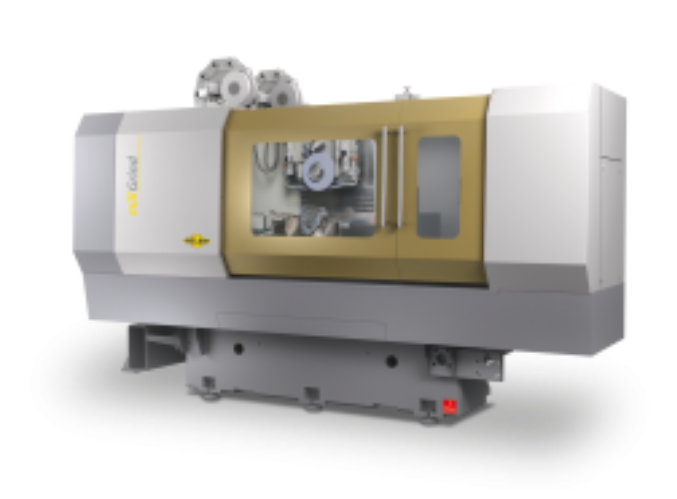

smartLine Kombi millGrind
Multiple Technology Solution in one Set-Up
Automatic Tool and Diamond Roll
Quick Change Over Time < 8 Sec.
High Stock Removal Rate due to Continuous Dressing Capability
Good Cost-Performance Ratio
2- or 3-Axes Rotary Tilt Tables as Option
Automatic Workpiece Changing as Option
|
