Company Last Update: Nov 16, 2016
Name ŽĎAS, A.S.
Responsible Stanislav Hrdina Commercial Manager
Locations Czech Republic
Email zdas@zdas.cz
Phone +420 (566) 642-124
Website
Description Forming machines. Rolled products processing equipment. Metallurgy. Tooling. Manufacture of equipment according to customer-provided documentation.

Machine
Knee-type milling machines
Knee-type milling machines (12 machines in all) - machining of parts with dimensions up to 300 mm x 1,400 mm, 300 mm high
16.11.2016

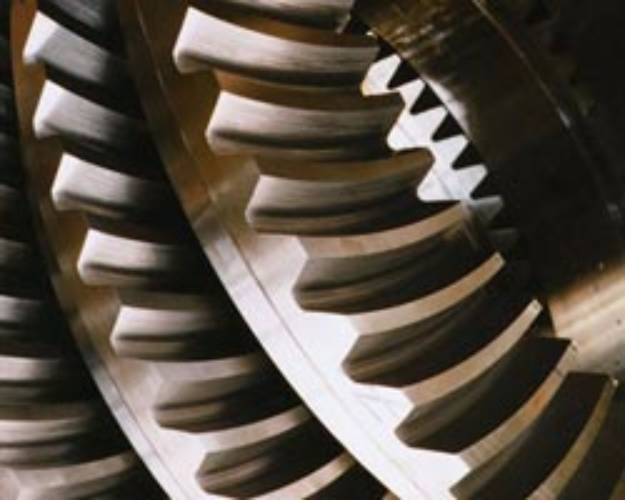

Gearing machines
Gearing (24 machines in all) - spur gearing m 0.6 - 30, gear diameter 10 - 4,000 mm, width 1 - 600 mm; bevel cyclopaloidal gearing m 7 - 20, diameter 100 - 850 mm; straight, angled bevel gearing m 2 - 14, diameter 40 - 800 mm; worm gears m 1.5 - 20, diameter 40 - 1,500 mm; clutch hub (barrel-shaped gearing) m 1.5 - 20, diameter 40 - 1,200 mm; rack m 1 - 12, after milling m 12 - 45, length of 20 - 4,000 mm, width 1 - 400 mm; grinding of spur gearing m 2 - 30, diameter 40 - 2,000 mm, width 1 - 650 mm; toothed shafts m 1.5 - 25, piece length 200 - 7,500 mm, gearing diameter 50 - 800 mm, worms m 1.5 - 20, diameter 20 - 300 mm; internal gearing - straight m 1 - 12, diameter 30 - 1,500 mm, width 1 - 400 mm
16.11.2016
Press tools - tool works
individual press tools
progressive press tools
transfer press tools
tools for pressing lines
notching press tools
special tools and aids
special gauges and measuring aids
die holders, dies
manufacture of parts for precise engineering
manufacture of parts for power engineering
16.11.2016
FRUA 450 machining centre
5-axis machining centre with SINUMERIK 840 D computer numerical control system
workspace under the portal: width of 4 500 mm, length of 14 000 mm, height of 4 200 mm
headstock: output of 88 kW, max. speed of 2 500 r.p.m., max. torque of 7 000 Nm
machining extension change by machine program
automated tool change by robot
max. workpiece mass of 100 tons
16.11.2016
SKD 40/47 D boring and turning centre
5-axis machining centre with SINUMERIK 840 D computer numerical control system
maximum workpiece diameter of 4 700 mm
maximum turned height of 2 500 mm
max. workpiece mass of 60 tons
built-in milling spindle
outer/inner diameter grinding equipment
automated tool holder change
16.11.2016
Rolled product processing
specialized in supplying bloomings, billet mills, section-rolling mills and used to deliver also wire rolling trains.
16.11.2016
Forming machines
Basically, the forming machines made with the ZDAS brand are divided according to the drive system to mechanical and hydraulic presses. However, the use for flat forming from sheet metal and for solid forming from solid metal is respected.
16.11.2016
Metallurgy
Manufacture of metallurgical components and semi-finished products belongs among the basic lines of ZDAS joint-stock company. It means especially the production and supplies of first-quality castings, forgings, ingots, casting patterns and a number of further accompanying services.
16.11.2016
