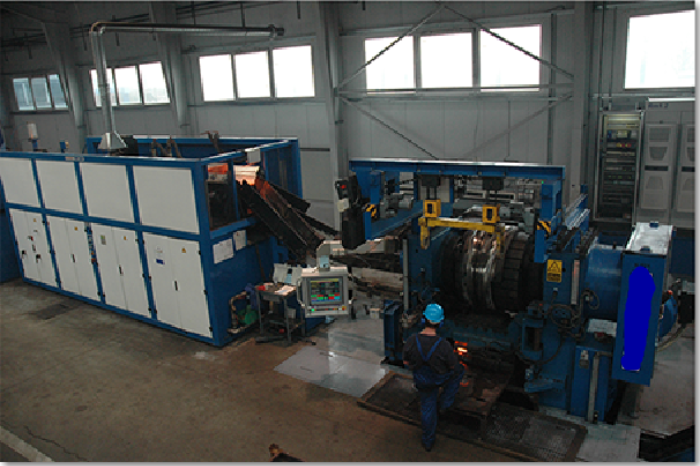

Forming line with
Cross Wedge Rolling Machine ULS 160 RA

Pneumatic-hydraulic drop hammers are used for forging mainly flat and thin forgings in one cavity by several punches (rods, communal tools, etc.), whose energy can be adjusted and programmed by control system, with counter-effect of the frame against the ram, which eliminates dynamic boost to the base. We offer machines with a range of nominal power of 20 - 80 kJ.

The press can be produced in a four-post, welded, eventually welded and anchored design, optionally with a "C" shaped frame. The hydraulic press is designed for the rubber industry, scraping of tools for sheet metal forming, cold drawing operations.

Crank presses are mechanical two-point drawing presses with a nominal forming force of 2.5 MN, with frames of "O" shape (LKT) or "C" shape (LDC) with large tables and rams. Presses can be equipped with pneumatic or hydraulic tensile holding means. They are designed for all operations of forming of metal strips, metal sheets or coils (precision cutting, bending, space drawing - eg. Production of sinks, gas cabinets, stoves, refrigerators, radiators) and also for progressive forming of small parts.

Eccentric presses are presses with adjustable ram stroke, with the "C" shaped frame and are designed for hot trimming of burrs of die forgings and also for punching, bending, or other operations in pressing plants, in particular when processing strips of sheet or metal coil. We offer machines with a range of nominal forming force 1.6 - 2.5 MN.

Toggle stamping presses are robust, rigid and extremely precise presses with a special guidance of the ram, with hydraulic overload protection positioned in the rod or in the press frame and are designed to:
cold calibration operations of die forgings (achieving of accurate dimensions, which can not be assured in forging press)
stamping operations (badges, medals)
precise cold cutting operations from thick sheets.

Trimming presses are designed for both hot and cold trimming of burrs of die forgings, as well as for calibration operations and for cold processing of sheet (cutting operations, punching operation, shallow towing operations using pneumatic bottom gripper). Trimming presses find use in forge shops and in pressing plants. We offer machines with a range of nominal forming forces 2 - 8 MN.

Aluminium forming machine with doubled tool and with special manipulators.
Machine can be used also for steel forming of billets of smaller diameters.

Cross wedge rolling machines with fixed or exchangeable working rolls used for hot production of rollings from cylindrical blocks or rods in the diameter range from 10 to 160 mm:
for subsequent forging (get rid of unwanted supplements, appropriate distribution of material with respect to its use and durability of dies)
as finished rotating components designated for further processing by machining (e.g. shafts for gearboxes of cars)

Horizontal forging presses are designed for hot upsetting operations from rods or blocks (one-sided flange components, special hollow forgings or valves). The presses are equipped with primary and clamping ram under their simultaneous action in a progressive tool is made forging. We offer these machines with the range of nominal forming forces of 2.5 - 12 MN.

Vertical forging presses are used for production of precise die forgings with utilization in the automotive industry, for hot and semi-hot forging with forming forces of 10-65 MN, with high stiffness and extensive diagnostics, including modern, precise and solid fixtures and other comprehensive equipment.
