impact force	 	kg.	50÷2000
working stroke	 	mm.	0÷45
port min and max	mm.	0÷230
distance between centers	mm.	145
work table	 	mm.	130x135
"T" slot	 	mm.	8x16
tool diameter	mm.	10x26
total weight	 	kg.	30

maximum thrust	 	kg.	1:10
micrometric working stroke	mm.	0÷62
port min and max	mm.	10÷245
distance between centers	mm.	145
work table	 	mm.	130x135
"T" slots	 	mm.	8x16
tool diameter	mm.	16x30
total weight	 	 	kg.	30

maximum thrust	 	kg.	240
line pressure	 	bar	2÷6
working thrust for bar	kg.	40
backward stroke for bar	kg.	44
micrometric working stroke	mm.	0÷62
port min and max	mm.	5÷240
distance between centers	 	 	mm.	145
work table	 	mm.	130x135
"T" slots	 	mm.	8x16
tool diameter	 	mm.	16x30
total weight	 	 	kg.	38

riveting capacity R=40 kg/mm²	mm.	Ø1,5÷5
micrometric control stroke	mm.	0÷30
port min and max	 	mm.	35÷185
work table	 	 	mm.	220x185
"T" slot	 	 	mm.	8x16
locating hole	 	mm.	20
tool diameter	 	mm.	10
distance between centers	 	 	 	mm.	120
tool lenght A	 	 	mm.	39
tool lenght B	 	 	mm.	63
tool lenght C
 	 	mm.
54
line voltage	 	 	 	400V-50Hz
line pressure	 	 	bar	3÷6
working pressure	 	 	bar	2,5÷6
total weight	 	 	kg.	71

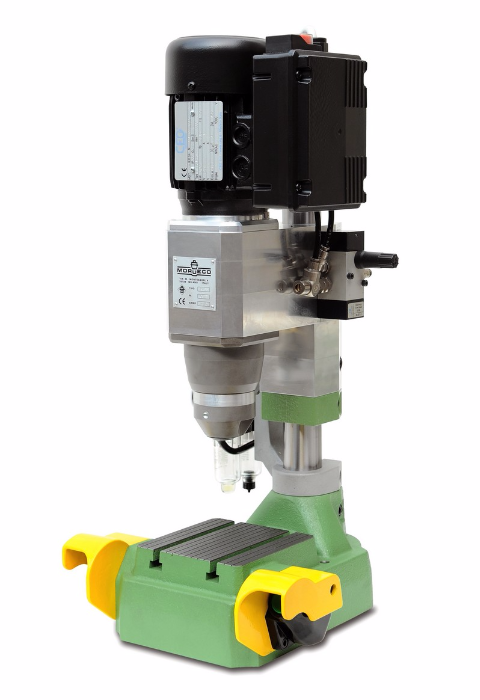

riveting capacity R=40 kg/mm²	mm.	Ø 0,5÷5
micrometric control stroke	mm.	0÷30
port min and max	 	mm.	35÷185
work table	 	 	mm.	220x185
"T" slot	 	 	mm.	8x16
locating hole	 	mm.	20
tool diameter	 	mm.	10
distance between centers	 	 	 	mm.	120
tool lenght A	 	 	mm.	39
tool lenght B	 	 	mm.	63
tool lenght C	 	 	mm.	54
line voltage	 	 	 	400V-50Hz
line pressure	 	 	bar	2÷6
working pressure	 	 	bar	1÷6
total weight	 	 	kg.	83

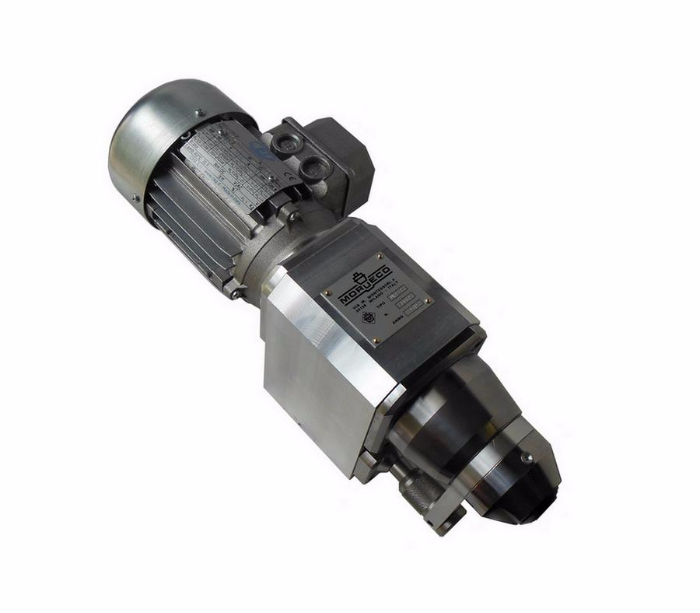

riveting capacity R=40 kg/mm²
mm.
Ø 0,5÷3,5
micrometric control stroke
mm.
5÷30
tool diameter

mm.
8
tool lenght A

mm.
55
tool lenght B

mm.
48
line voltage

400 V - 50 Hz
line pressure

bar
2÷6
working pressure

bar
1÷6
total weight

kg.
11

riveting capacity R=40 kg/mm²	mm.	Ø 1÷3,5
micrometric control stroke
mm.
5÷30
port min and max

mm.
30÷225
work table


mm.
130x135
"T" slot


mm.
8x16
diametro portautensili

mm.
8
distance between centers	 	mm.
140
tool lenght A

mm.
48
tool lenght B

mm.
55
line voltage



230V-50Hz
line pressure


bar
2÷6
working pressure

bar
2÷6
peso totale


kg.
35
