Processing stations with sawing, drilling, threading and milling functions are developed and manufactured very individually to customer’s request. Can be fully integrated in an automation cell with automatic loading and unloading using a robot. Manual operation also possible, depending on customer’s request.

Forces

Press force : 1000 kN, 2000 kN
Tool installation space

Mounting plate dimensions : 1660 mm x 1270 mm
Tool installation space : 1300 mm bis 2000 mm
space between columns : 1660 mm x 860 mm
Further data

Type of construction : 3 oder 4 Säulen

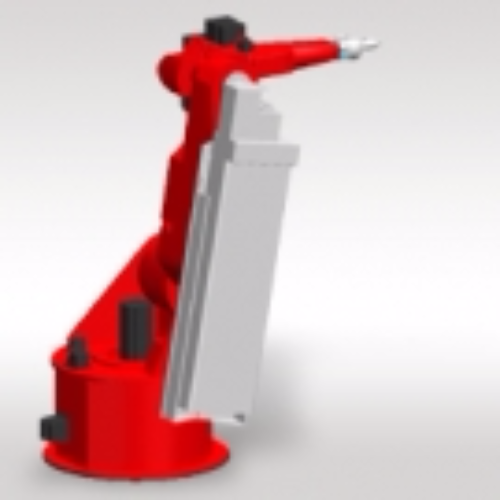

Laserrobot RV16L-FT

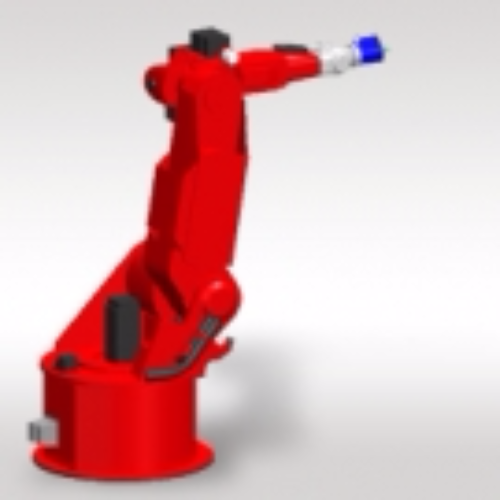

Laserrobot RV6L-CO2

 With the combination of standard modules it is also possible to create gantry systems and 2-axes’ loading and unloading robots.
Bearing load : 16 kg

The main application of these systems comprises the interlinking of operation sequences between injection molding machines, machine tools and further processing machines such as automatic loading and unloading, turning and transfer.
Bearing load : 16 kg
