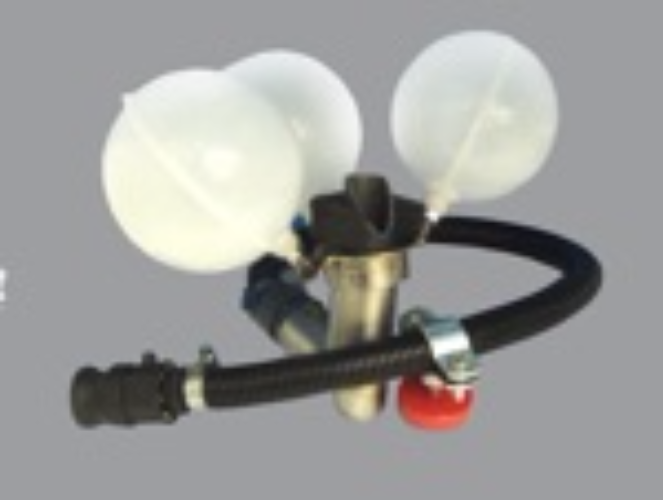

Vertical dip-tube with automatic levelling and dynamic self-balancing of the suction point complete with quick coupling, suitable for tanks with narrow and long max dia. 30 cm overall dimension inlet spaces. max tank fluctuation – 70 cm

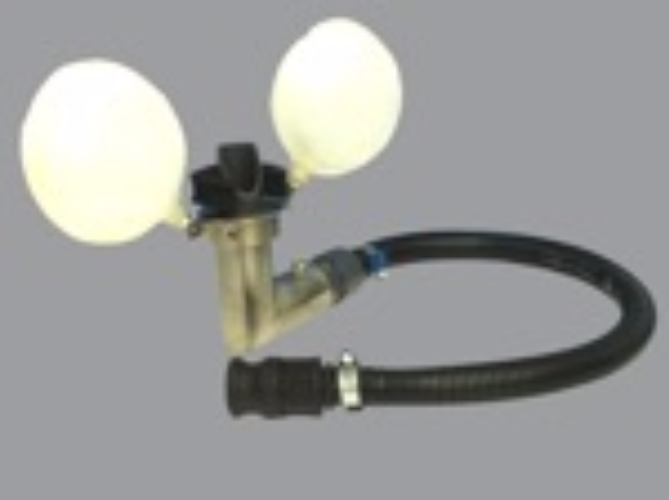

Vertical dip-tube with automatic levelling and dynamic self-balancing of the suction point complete with quick coupling, suitable for tanks with narrow and long max 6 x 12 cm overall dimension inlet spaces. max tank fluctuation – 50 cm

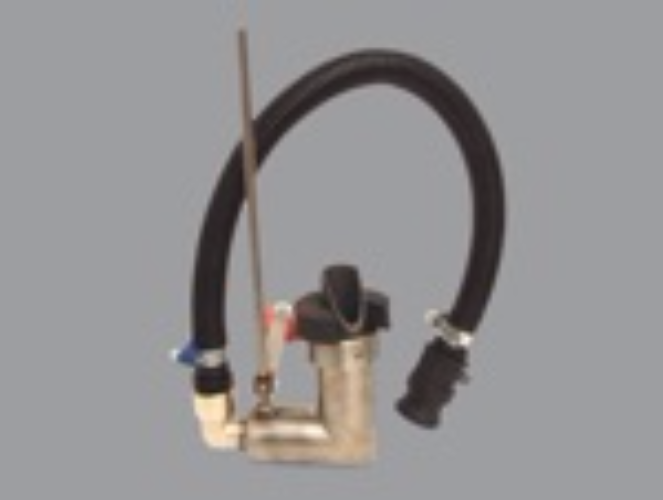

Vertical dip-tube with dynamic self-balancing of the suction point complete with magnetic support and quick coupling, suitable for tanks with very small max 5 x 9 cm overall dimension inlet spaces.

Dip-tube standard supplied with the system.

Adjustable feet.
- Made of aisi 316-L stainless steel
- Cup-shaped pre-filter protecting the pump.
- Labyrinth oil-separation filter with large contact surface
- Max 7-bar compressed-air supply.
-Suction with double-acting diaphragm pump with 150-250-NL/M air consumption.
- Flow rate adjustable from 350 to 850 l/h
-Electrically driven model with oil level sensor, and 220 V.AC. 300 W power supply.
- Standard accessories:
- Venturi effect self-levelling spillway suction.
- Oil storage can.
- Measurements:H605 D400 W400 mm.
- Measurements with carriage:H990 D450 W400 mm

Adjustable feet.
- Made of aisi 316-L stainless steel
- Cup-shaped pre-filter protecting the pump.
- Labyrinth oil-separation filter with large contact surface
- Max 7-bar compressed-air supply.
-Suction with double-acting diaphragm pump with 80-150-NL/M air consumption.
- Flow rate adjustable from100 to 450 l/h
-Electrically driven model with oil level sensor, and 220
  V.AC. 300 W power supply.
- Standard accessories:
- Venturi effect self-levelling spillway suction.
- Oil storage can.
- Measurements:H400 D300 W300 mm.
- Measurements with carriage:H790 D400 W300 mm

Adjustable feet.
- Made of aisi 316-L stainless steel
- Labyrinth oil-separation filter with large contact surface
- Max 7-bar compressed-air supply.
- Flow rate adjustable from150 to 250 l/h
- Measurements:H400 D200 W200 mm.
-(Suction pump can be fastened to the tank with magnets
  integral
- With the dynamic variation suction head)
- Power supply 220 V. AC single-phase
- Input 35W
