IBmachine - C.B.Ferrari S.r.l.

Company Last Update: Nov 5, 2016

Name	C.B.Ferrari S.r.l.
Responsible	Sales Manager, Mr. Gabriele Tebaldi
Locations	Italy
Email	amministrazione@cbferrari.com
Phone	+39 0331 903524
Website	http://www.cbferrari.com/
Description	With more than 4300 machines successfully installed worldwide, supported by a close and prompt sales and service network, C.B.Ferrari ensures its customers the ultimate manufacturing support, achieving state-of-the-art results in terms of accuracy and performances.

Machine

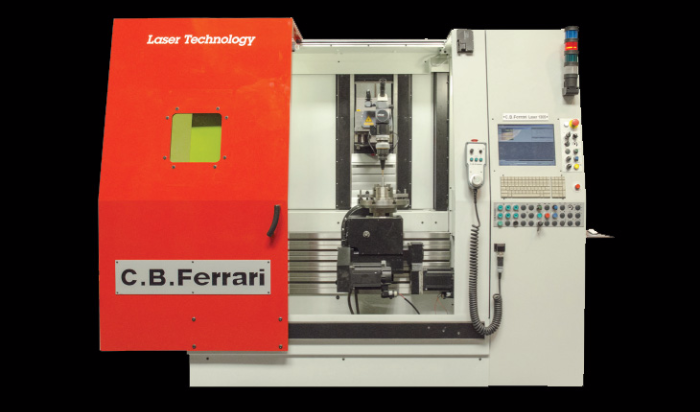

	LASER 1500 STANDARD 3 CNC AXES X Y Z	05.11.2016

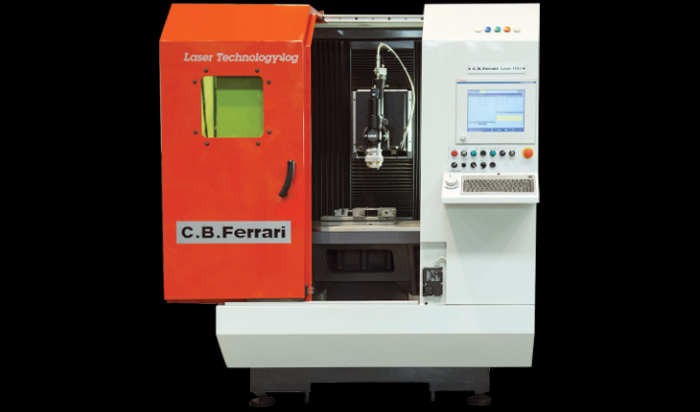

	LASER 1100 STANDARD 3 CNC AXES Z Y X	05.11.2016

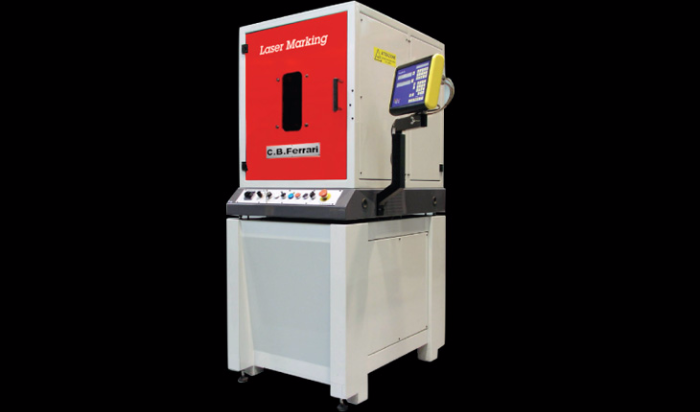

	LASER 513 STANDART 1 CNC AXIS Z	05.11.2016

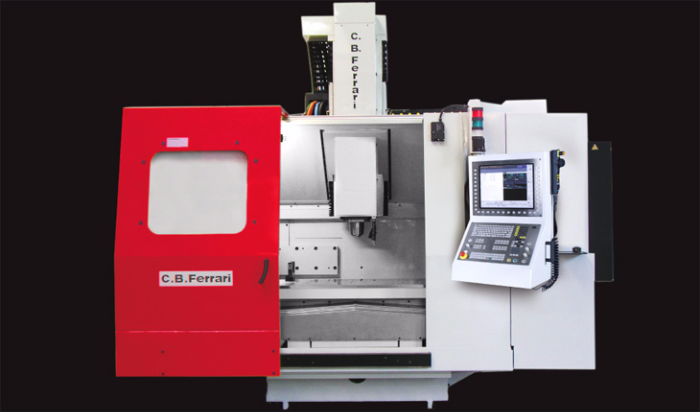

	MILLING GM SERIES SLIDE TRAVELS GM85 Longitudinal X mm 850 Cross Y mm 600 Vertical Z mm 520 AXES GM45 Feed rate m/Min. 40 DIMENSION AND WEIGHT GM45 Weight Kg 7000 (3A) / 7300 (5A)	05.11.2016
	MILLING-B SERIES SLIDE TRAVELS B130 B156 B176 B186 Longitudinal X mm 650 850 1050 1450 Cross Y mm 320 420 520 520 Vertical Z mm 320 420 420 420 TABLE B130 B156 B176 B186 Area mm 1200 x 400 1500 x 500 1920 x 450 2320 x 450 AXES B130 B156 B176 B186 Rates X-Y m/Min. 40 40 40 40 Z m/Min. 30 30 30 30 DIMENSION AND WEIGHT B130 B156 B176 B186 Weight Kg 4.500 6.500 6.800 7.700	05.11.2016
	MILLING-A SERIES SLIDE TRAVELS A152 A156 A176 A196 Longitudinal X mm 850 850 1050 1620 Cross Y mm 420 520 520 520 Vertical Z mm 420 420 420 420 TABLE A152 A156 A176 A196 Area mm - 1720 x 525 1920 x 525 2500 x 525 AXES A152 A156 A176 A196 Rates X-Y m/Min. 40 40 40 40 Z m/Min. 30 30 30 30 On request X-Y-Z m/Min. 45 45 45 45 DIMENSION AND WEIGHT A152 A156 A176 A196 Weight Kg 5.500 6.000 8.000 10.00	05.11.2016
