Company
Last Update: Nov 4, 2016
|
Machine
|

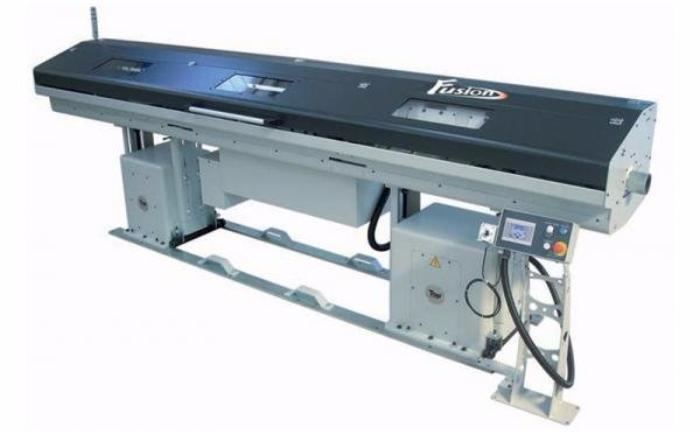

The Fusion bar feeder
BAR DIAMETER RANGE Min. Ø 0,23” Max. Ø 2,04” OPERATING VOLTAGE Three Phase FEEDING SPEED 0 - 19,68”/sec. GUIDE CHANNEL LUBRICANT ISO VG 100 REQUIRED AIR PRESSURE 8 bar WEIGHT 3.306 – 3.968 lb MAXIMUM BAR LENGHT 10.50 ft – 13.45 ft – 20.01 ft |
04.11.2016 |
|

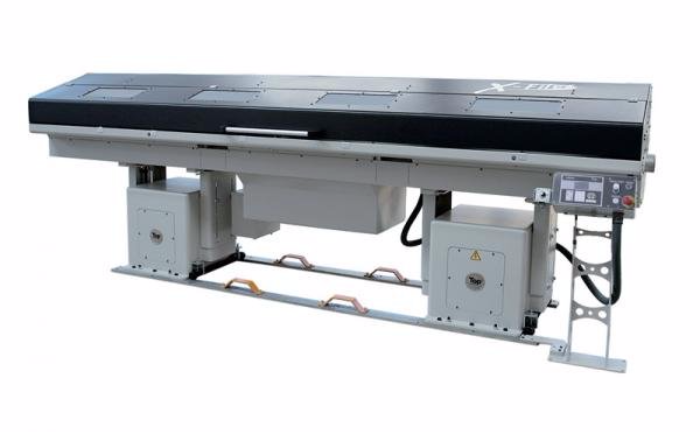

The X-FILES bar feeder
BAR DIAMETER RANGE Min. Ø 0,4” Max. Ø 3,93” OPERATING VOLTAGE Three Phase FEEDING SPEED 0 - 19,68”/sec. GUIDE CHANNEL LUBRICANT ISO VG 100 REQUIRED AIR PRESSURE 8 bar WEIGHT 4850 – 5512 lb MAXIMUM BAR LENGHT 10.50 ft – 13.45 ft – 20.01 ft |
04.11.2016 |
|
The RECORD bar feeder
BAR DIAMETER RANGE Min. Ø 0,23” Max. Ø 1,77” OPERATING VOLTAGE Three Phase FEEDING SPEED 0 - 19,68”/sec. GUIDE CHANNEL LUBRICANT ISO VG 100 REQUIRED AIR PRESSURE 8 bar WEIGHT 3.306 – 3.968 lb MAXIMUM BAR LENGHT 10.50 ft – 13.45 ft – 20.01 ft |
04.11.2016 |
|

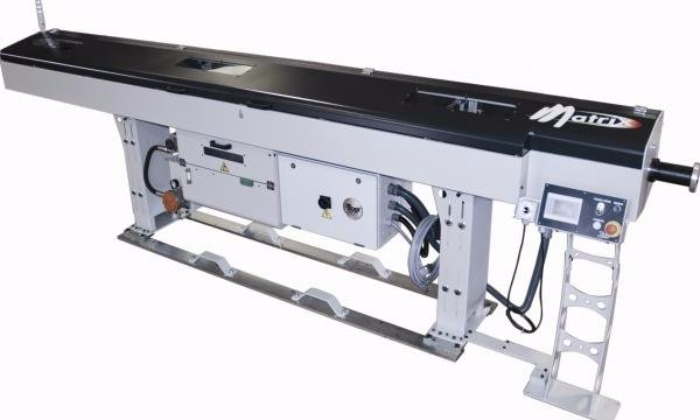

The MATRIX bar feeder
BAR DIAMETER RANGE Min. Ø 0,11” Max. Ø 1,18” OPERATING VOLTAGE Three Phase GUIDE CHANNEL LUBRICANT ISO VG 68 REQUIRED AIR PRESSURE 6 bar WEIGHT 1322 lb MAXIMUM BAR LENGHT 10.50 ft – 13.45 ft |
04.11.2016 |
|

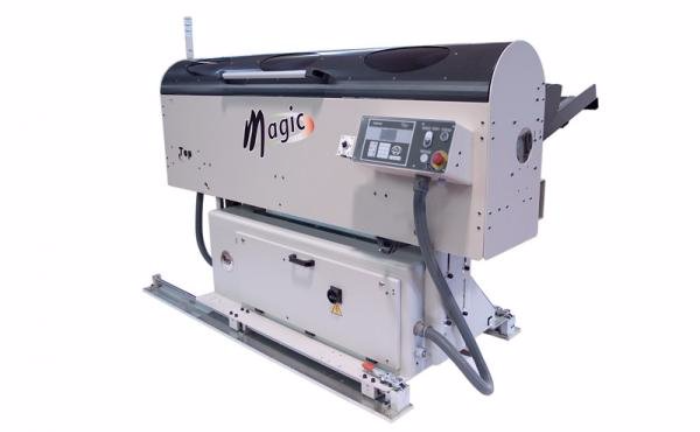

The MAGIC bar feeder
BAR DIAMETER RANGE Min. 0,31” – Max 4,33” OPERATING VOLTAGE Three Phase FEEDING SPEED 0 - 19,68”/sec. REQUIRED AIR PRESSURE 8 bar WEIGHT 1763 lb MAXIMUM BAR LENGHT 7,87” – 62,99” |
04.11.2016 |
|

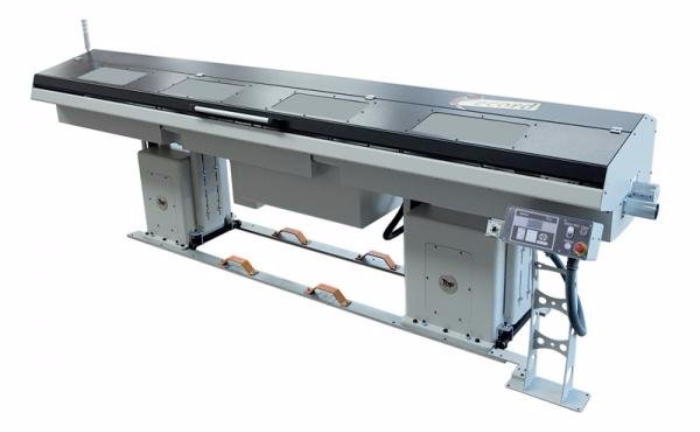

AUTOMATIC BAR FEEDERS FOR LATHES
BAR DIAMETER RANGE Min. Ø 0,4” Max. Ø 3,14” OPERATING VOLTAGE Three Phase GUIDE CHANNEL LUBRICANT ISO VG 100 REQUIRED AIR PRESSURE 8 bar WEIGHT 3.968 lb MAXIMUM BAR LENGHT 10.50 ft – 13.45 ft |
04.11.2016 |
