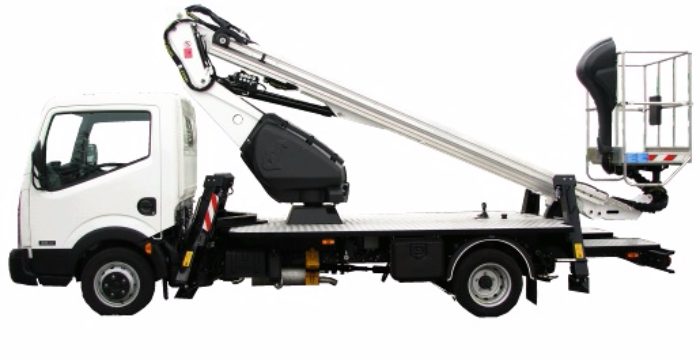

It features a high quality tubular steel and steel sheet base frame, easy to install on the truck chassis. The arm bearing turret is made of high quality steel sheet, integral with the column; the column is made of high strength tubular steel. The one-man operator’s platform is entirely made of fibreglass, with max. bearing capacity 175 kg. It is fitted with a fully hydraulic control and monitoring system.

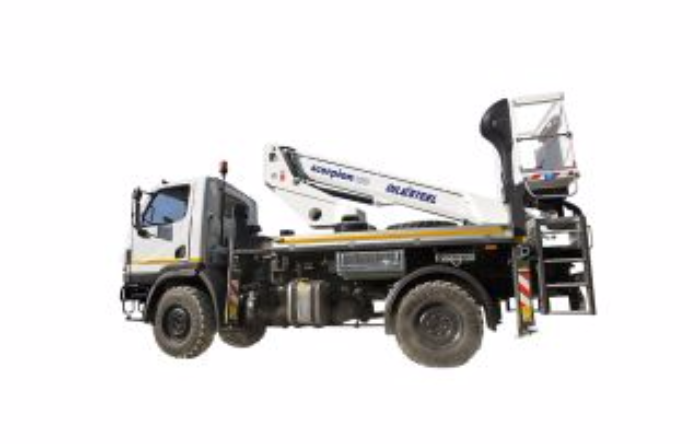

Scorpion is a series of platforms equipped with a telescopic arm which differs from competitor products in that it has reduced dimensions and a unique set up speed.

Multicoloured water-resistant base plates th. 6X60X60cmStailness steel tool box, dim. 700X400Xh500 mm, for underbed housingGlazed cabin for turred control station

60 w lamp on platform powered by truck batteries220 V AC single-phase and 380 V AC three-phase 8 kVA generator with hydraulic coupling and electric distribution panel on the column (with auxiliary engine)Auxiliary soundproofed Hatz-type 3 cylinder engine with variable flow pump

Sign holdersWebasto-type heating in cabinUnderbed water tank with soap dispenser

Custom stickers on boom (customer logo - send.jpg file containing logo)Non-standard paintwork (RAL 9016 white)Paintwork for cold climate (RAL 9016 white)

Non standard paintwork for cold climate (RAL 9016 white)Extra paintwork for truck cab220 V AC single-phase and 380 V AC three-phase 8 kVA generator with hydraulic coupling and electric distribution panel on the column (without auxiliary engine)

Parabike - lateral protection for truck, on Nissan-RenaultPlatform waxing for sea transportFibreglass platform instead of standard version. Dim. 700X1400Xh1100 mm

Fibreglass platform instead of standard version, dim. 700X1400Xh1100 mm with V insulated12V electric pump for emergency lowering60 w lamp on platform powered by truck batteries

Platform waxing for sea transport220/110 V AC 2.2 single-phase auxiliary electric pump comprising electric control panel and mains-powered battery charger60 w spotlight on platform powered by batteries (included) including 12 V outlet

Kit 4 outrigger base platesPneumatic power line to platform with quick couplings12 v DC electric outlet on platform

Yellow rotating lamp with magnetic fixtureCustom stickers on boom (customer logo - send.jpg file containing logo)Heat exchanger

Small diesel tank - instead of standardFixed side panels h 100 mmDrop-leaf side panels on 1 side (RH) h 200 mm


Platform waxing for sea transportPair of white non-marking belts for indoor use - instead of standard60 w spotlight on platform powered by batteries (included) including 12 V outlet

Inclinometer with buzzer activated when max permitted tilt is exceedHydraulic rotating jib, 45° right + 45° left12 v DC electric outlet on platform

Wireless radio transmitter for side shifting, stabilization and track openingWireless radio transfer with automatic stabilizationCustom stickers on boom (customer logo - send.jpg file containing logo)

Automatic stabilization on wired controlChangeable stabilization (multiple working area)Surcharge for Lombardini diesel motor

Non-standard paintwork (RAL 9016 white)


Max working height with 1 operator(m)
17(120 Kg)
Platform floor height with 1 operator (m)
15
Max working outreach with 1 operator(m)
6,8
Load capacity 1 operator(kg)
120
Load capacity 2 operators(kg)
200
Standing engine height(mm)
2050
Standing engine lenght(mm)
4395
Standing engine width (mm)
700
Slewing turret
350°
Platform
1400x700xh1100 -
 Aluminium Removable
Controls
Hydraulic
Engine
single- cylinder noisless/110-220V
Machine weight(Kg)
1980.0
Traction
Tracked 1,5km/h
STabilizers
Lowerable hydraulic descent
Ask for information

Aerial parts: proportional hydraulic controls - stabilisation and translation: electro-hydraulic controls
