Type of mating: 	 cut-in
Types of backshells: 	 straight non-shielded
Number of contacts: 	 7
Mounting style: 	 point-to-point, crimping
Contact plating: 	 nickel
Operating temperatures range: 	 - 60 to +55°C
Operating current per each con: 	 16.0 – 30.0 A
Max operating voltage: 	 SNTs134 - 24 V, SNTs135 - 12 V
Number of nominal types: 	 2
Number of mating-unmating: 	 10000
Shelf life, years: 	 8

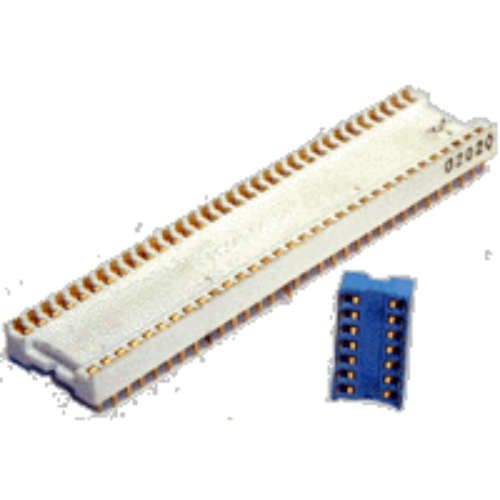

Type of mating: 	 receptacles for ICs
Number of contacts: 	 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 32, 40, 42, 44, 48, 50, 52, 64
Mounting style: 	 for PCB mounting
Contact plating: 	 gold with nickel layer
Operating temperatures range: 	 - 60 to +125°C
Operating current per each con: 	 up to 0.5 A
Max operating voltage: 	 100 V
Number of nominal types: 	 20
Number of mating-unmating: 	 200
Shelf life, years: 	 25

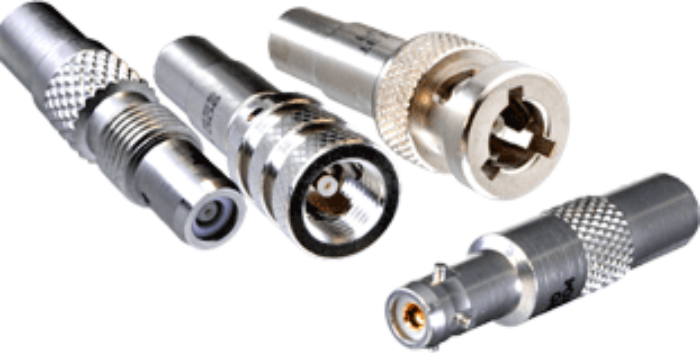

Type of mating: 	 bayonet
Number of contacts: 	 for triax cable
Mounting style: 	 point-to-point, crimping
Contact plating: 	 gold
Number of nominal types: 	 5

Type of mating: 	 cut-in
Types of backshells: 	 straight
Number of contacts: 	 26, 38, 45, 57, 64+3, 30+2, 6
Mounting style: 	 point-to-point, soldering
Contact plating: 	 gold, silver
Operating temperatures range: 	 - 60 to +155°C (gold) and to +100°C (silver)
Operating current per each con: 	 1.0 – 7.0 A
Max operating voltage: 	 60 - 1000 V
Number of nominal types: 	 15
Number of mating-unmating: 	 500
Shelf life, years: 	 20

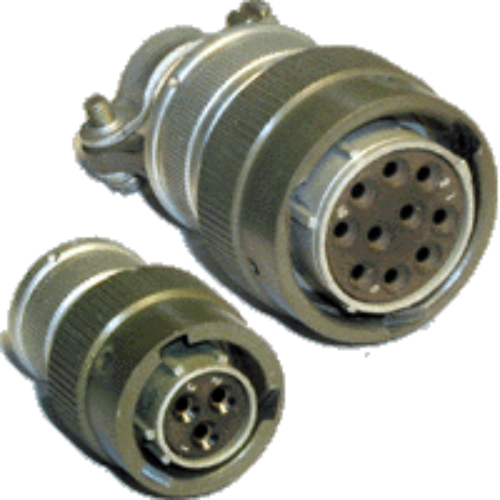

Type of connector: small-size circular sub-miniature connectors2RMT, 2RMDT, destined for use in electric circuits of direct and alternate (frequency up to 3 MHz) current.

Type of connector: cylindrical multi-position plugs of ONts-BG-3 type for PCB mounting, destined for operation in electric circuits of direct, alternate (frequency up to 3 MHz) and pulse currents at voltage up to 700 V (amplitude value).

Receptacles are manufactured without backshells, with straight backshell, with angular backshell, or with backshell for heatshrink sleeving.
Type of coupling: bayonet.

plugs and receptacles may be both equipment and cable parts. Plugs and receptacles are manufactured without backshells, with straight backshell, with angular backshell, or with backshell for heatshrink sleeving.
                Type of coupling: bayonet.
