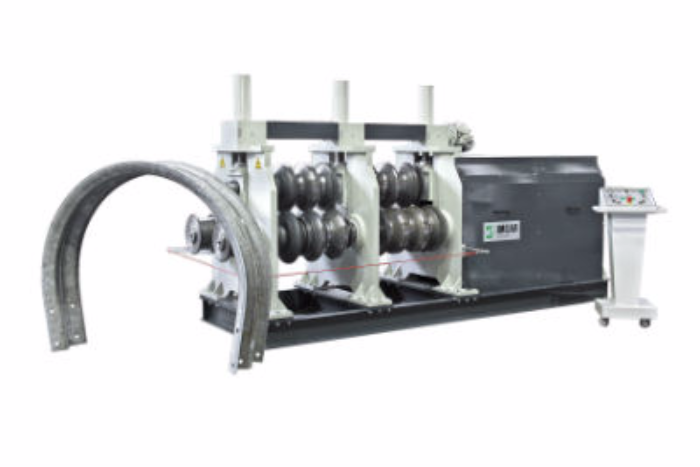

Bending machine for guard rails with hydraulic motors
Possibility to bend both 2 and 3 waves sections, leg-in and leg-out
Equipment for different sections always assembled to keep the machine always ready to be used

Machine fully hydraulic for reduced maintenance and high efficiency
Hydraulic control for inclination of the rolls
Hydraulic motors coupled to epiciclical reducers let high performance
Control of pinching pressure

Welding table for lenght from 1 to 3mt and thickness from 1 to 5mm

 Over the years IMCAR has always been attentive to the needs of its customers and the market, updating its types and models of machines proposing always up to date solutions.
The line consists of multiple machines, among which there are presses with fixed portal up to 1000 tons thrust (on request even machines of higher capacity can be produced).
Thanks to the solid construction, one of the characteristics of these machines is their reliability and ability to withstand hard works.

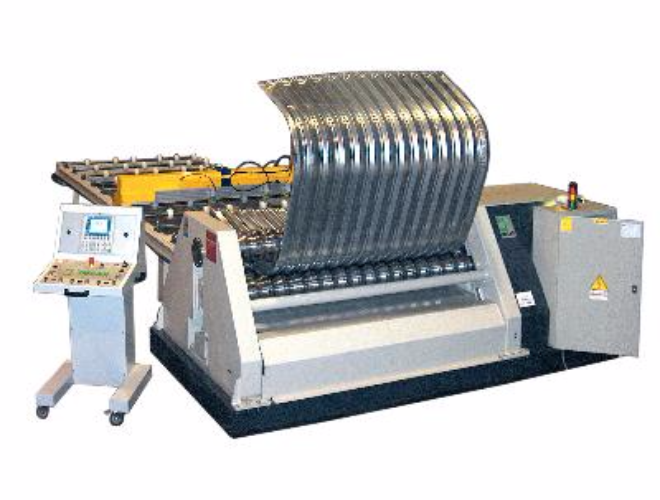

4 Rolls plate bending machine with initial pre-bend - bending - final pre-bend all in one stroke
Machine fully hydraulic for a reduced maintenance and a high efficiency
Hardened and ground rolls

Hydraulic 4 rolls plate bending machine with double pre-bending
Useful lenght from 1000 up to 6000 mm
Thickness from 2 up to 100 mm
Machine fully hydraulic
Frame work with CNC machines
Size of hydraulic system and components, including hydraulic pistons, higher than necessary to reduce the pressure of work and have a longer life

3 rolls asymmetric and hydraulic plate bending machine with pre-bending
Useful lenght from 1000 to 3000 mm.
Thickness from 1 up to 8 mm
Electromechanic and hydraulic machine
Robust frame worked with CNC machines

Hydraulic and symmetric 3 rolls plate bending machine with pre-bending
Useful lenght from2000 up to 4000 mm
Thickness from 6 up to 20 mm
The machine is fully hydraulic
Robust frame worked with CNC machines
