BED TYPE MILLING MACHINES > RT MODELS
Features
Table RT
Working surface mm. 660x660, 1000x1000, 1200x1200 1400x1600
Longitudinal Table mm. 1600-2000-2500- 3.000
Cross traverse Ram mm. 1.000 - 1200 - 1400
Vertical traverse mm. 1.000 - 1500 - 2000
Max. admissible load mm. 2.500 5.000 8.000 12.000
Spindle RT
Spindle taper 50 DIN 69871 A
Variable speed rpm 40-4.000 (Optional 40-6.000)
Speed ranges 3
Spindle motor kW 30
Max. torque at spindle Nm 1460
Feeds RT
Rapid feed mm/min. 25.000
Working feed mm/min. 15.000.
|
14.10.2016
|
|
|

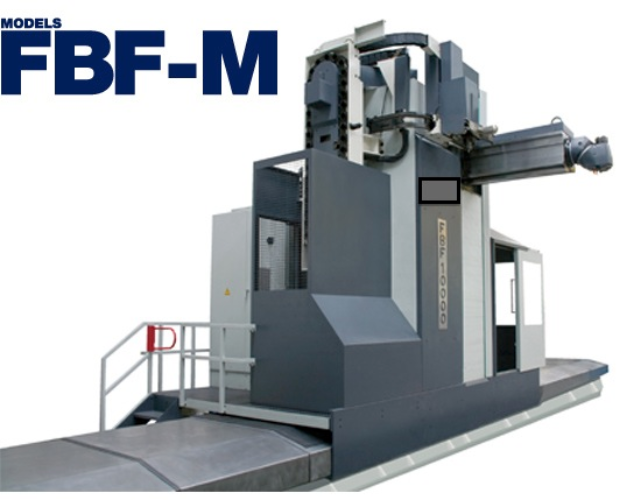

FLOOR TYPE MILLING MACHINES > FBF-M MODELS
Features
Travels FBF-M
6000 FBF-M
8000 FBF-M
10000
Longitudinal mm. 6000 8000 10000
Cross traverse Ram mm.
1.400
Vertical traverse mm.
2000 (2500-3000)
Spindle FBF-M
6000 FBF-M
8000 FBF-M
10000
Spindle taper
50 DIN 69871 A
Variable speed min-1
40-4.000 (40-6.000)
Speed ranges
3
Spindle motor Kw
36
Max. torque at spindle Nm
1750
Feeds FBF-M
6000 FBF-M
8000 FBF-M
10000
Rapid feed mm/min.
25.000
Working feed mm/min.
15.000
Feed motors (X-Y-Z) Nm
2x36-27-36
Ball screws (X-Y-Z) Kw
50x20-63x20
Max. axis pressure (X-Y-Z) Nm
3.960-1.980-2.200
Weight FBF-M
6000 FBF-M
8000 FBF-M
10000
Kg. 36.500 41.000 47.500.
|
14.10.2016
|
|
|

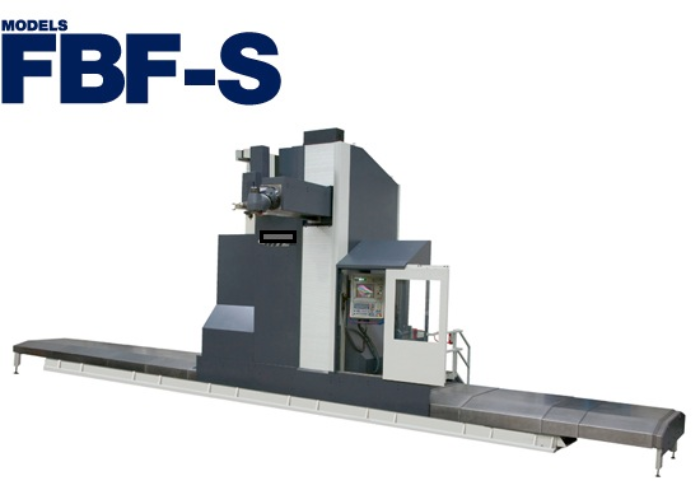

FLOOR TYPE MILLING MACHINES > FBF-S MODELS
Features
Travels FBF-S
3000 FBF-S
4000 FBF-S
6000 FBF-S
8000 FBF-S
10000
Longitudinal mm. 3.000 4.000 6.000 8.000 10.000
Cross traverse Ram mm.
1.000 (1.200)
Vertical traverse mm.
1.000 (1.500 - 2.000)
Spindle FBF-S
3000 FBF-S
4000 FBF-S
6000 FBF-S
8000 FBF-S
10000
Spindle taper
50 DIN 69871 A
Variable speed min-1
40-4.000 (40-6.000)
Speed ranges
3
Spindle motor Kw
30
Max. torque at spindle Nm
1460
Feeds FBF-S
3000 FBF-S
4000 FBF-S
6000 FBF-S
8000 FBF-S
10000
Rapid feed mm/min.
25.000
Working feed mm/min.
15.000.
|
14.10.2016
|
|
|
BED TYPE MILLING MACHINES > KT MODELS
Features
Table KT 32 KT 42
Working surface mm. 3200 x 1200 4200 x 1200
'T' slots, number and size 7-22 7-22
Distance between 'T' slots mm. 160 160
Max. admissible load mm. 10000 14000
Travels KT 32 KT 42
Longitudinal Table mm. 3000 4000
Cross traverse Ram mm. 1400 1400
Vertical traverse mm. 1500 (2000)* 1500 (2000)*
Spindle KT 32 KT 42
Spindle taper 50 DIN 69871 A 50 DIN 69871 A
Variable speed (rpm) / (U/min) 40 - 3.000
(40 - 6.000) 40 - 3.000
(40 - 6.000)
Speed ranges 3 3
Spindle motor Kw 36 36
Max. torque at spindle Nm 1750 1750
Feeds KT 32 KT 42
Rapid feed mm/min. 25 25
Working feed mm/min. 15.000 15.000
Feed motors (X-Y-Z) Nm X = 65
Y = 27
Z = 36 X = 65
Y = 27
Z = 36
Ball screws (X-Y-Z) Kw X = 63x40
Y = 50x20
Z = 63x20 X = 63x40
Y = 50x20
Z = 63x20
Max. axis pressure (X-Y-Z) Nm X = 3960
Y = 1980
Z = 2200 X = 3960
Y = 1980
Z = 2200
Weight KT 32 KT 42
Kg. 20.000 30.000.
|
14.10.2016
|
|
|
BED TYPE MILLING MACHINES > K MODELS
Features
Table K 20 K 25
Working surface mm. 2200 x 850 2700 x 850
'T' slots, number and size 5-22 5-22
Distance between 'T' slots mm. 160 160
Max. admissible load mm. 4500 6000
Travels K 20 K 25
Longitudinal Table mm. 2000 2500
Cross traverse Ram mm. 1000 1000
Vertical traverse mm. 1100 1100
Spindle K 20 K 25
Spindle taper 50 DIN 69871 A 50 DIN 69871 A
Variable speed (rpm) / (U/min) 40 - 3000
(40 - 6000) 40 - 3000
(40 - 6000)
Speed ranges 2 2
Spindle motor Kw 22 22
Max. torque at spindle Nm 700
(350) 700
(350)
Feeds K 20 K 25
Rapid feed mm/min. 15000 15000
Working feed (rpm) / (U/min) 0-12000 0-12000
Feed motors(X-Y-Z) Nm X = 27
Y = 18
Z = 27 X = 27
Y = 18
Z = 27
Ball screws (X-Y-Z) mm. X = 50x10
Y = 40x10
Z = 50x10 X = 50x10
Y = 40x10
Z = 50x10
Max. axis pressure (X-Y-Z) kg. X = 1700
Y = 1150
Z = 1700 X = 1700
Y = 1150
Z = 1700
Weight K 20 K 25
Kg. 11000 12500
|
