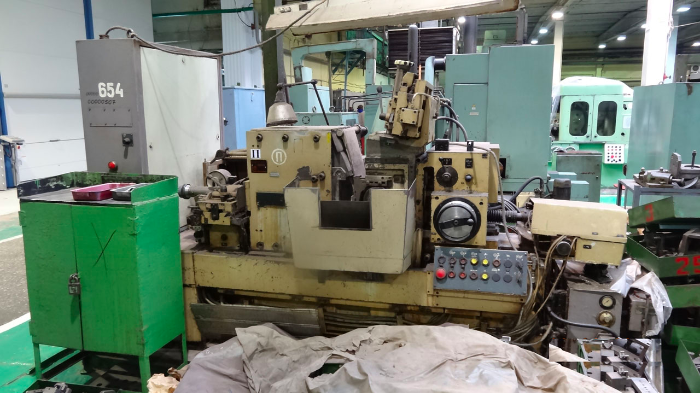

enterless grinding machine MIKROSA SASL 125/1E
Manufacturer: WMW MIKROSA
Made in: Germany

Specification:

Grinding diameter:
 -Max.: 125 mm
 -Min.: 1,5 mm
Disk-type grinding wheel width: 250 mm
Disk-type grinding diameter: 630 mm
Grinding length: 245 mm
Speed: 45 m/sec
Disk-type grinding wheel diameter: 315 mm
Number of grinding wheel turns: 11-140 U/min
Voltage: 380 V
Spindle power: 22/30 kW
Total power: 34 kW
Dimensions: 3180x1620x2300 mm
Machine weight: 8 tons.

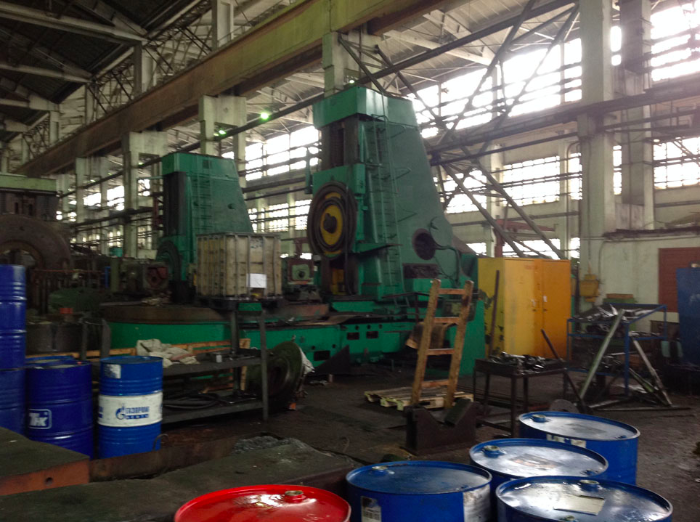

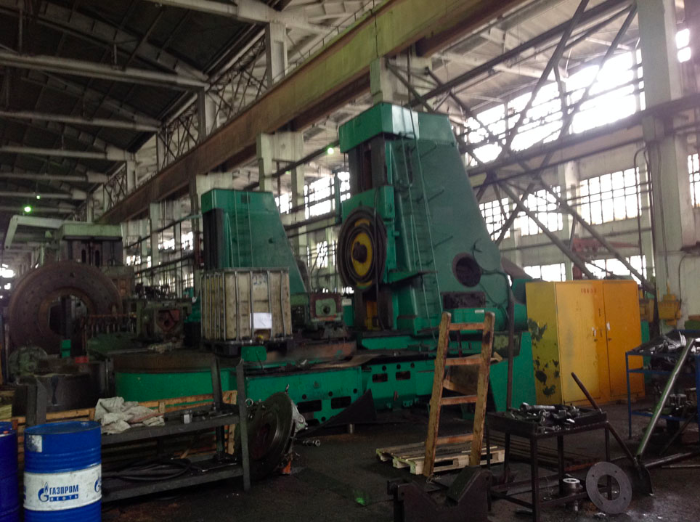

Gear hobbing machine MODUL ZFWZ 5000
Manufacturer: MODUL
Made in: Germany

Specification:

Work-piece diameter:
 -Max.: 5000 mm
 -Min.: 1525 mm
Max. module: 40
Max. gear width: 1000 mm
Max. cutter diameter: 350 mm
Max. cutter length: 400 mm
Machine weight: 140 tons.

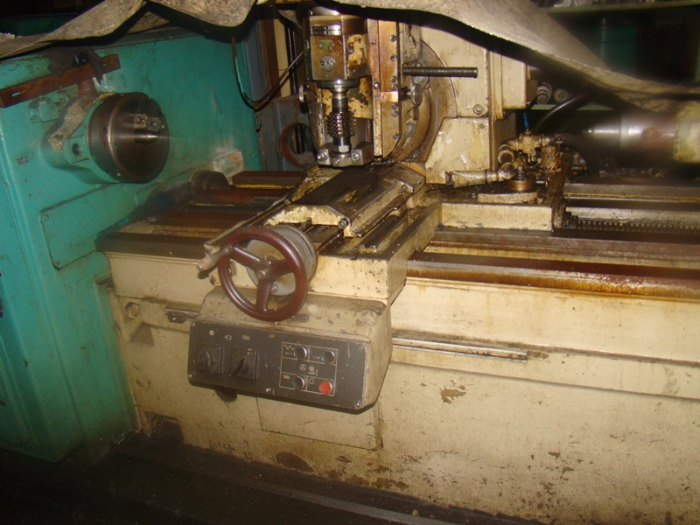

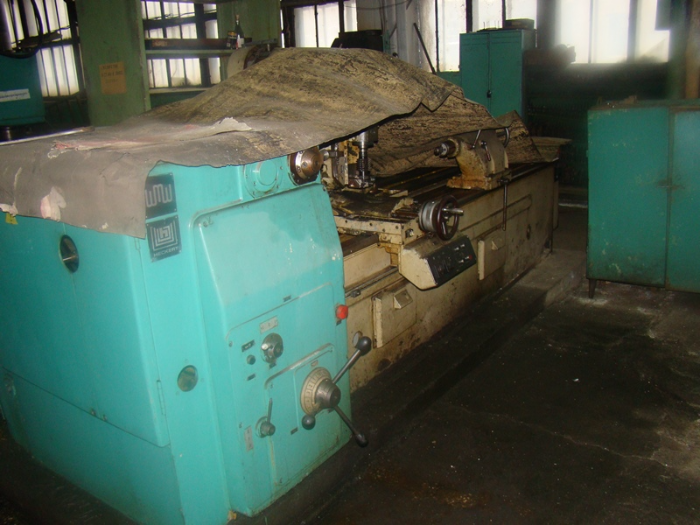

Thread milling machine HECKERT ZFWVG 250x2000
Manufacturer: WMW Heckert
Made in: Germany

Specification:

Work-piece diameter over bed: 500 mm
Milling length: 2000 mm
Max. module: 7
Work-piece diameter over saddle: 250 mm
Center height over bed: 260 mm
Work-piece spindle bore: 102 mm
Tailstock quill adjustment: 100 mm
Number of teeth: 2-50
Revolution per min: 0,0032-2,6
Feeding, longitudinal milling: 0,25-198 mm/min
Main drive: 4 kW
Electrics-voltage/frequency: 380V; 50Hz
Total power requirement: 9,5 kW
Dimensions: 3700x2400x1600 mm
Total weight: 4300 kg.

Deep hole drilling machine RYAZAN RT265111
YOM: 2006
Manufacturer: RYAZAN
Made in: Russia

Specification:

Height of central axis over the bed: 500 mm
Range of external work-piece diameters:
 -In a roller lunette: 80-600 mm
 -In a 4-cam chuck: 80-500 mm
Range of work-piece length: 1000-3000 mm
Range of opening diameters (boring): 50-400 mm
Max. work-piece weight: 4000 kg
Max. stroke length of stem headstock: 4000 mm
Range of spindle rotation frequencies:
 -Of work-piece headstock: 22,4-355 rpm
 -Of stem headstock: without rotation
Range of working feeds of stem headstock: 5-3000 mm/min
Rapid feed of stem headstock: 5000 mm/min
Max. torque of stem headstock: at least 8,8 kN.m
Max. productivity of pumping station SOZH: 1000 l/min
Max. pressure SOZH:
 -At 200 l/min: 4,0 Mpa
 -At 400-600 l/min: 3,0 Mpa
 -At 1000 l/min: 2,0 Mpa
Power of work-piece headstock drive: 55 kW
Gearbox power: 10,5 kW
Total power of all electric motors installed on the machine: 117 kW
Overall machine dimensions:
 -Lenght: 15700 mm
 -Width: 4555 mm
 -Height: 2020 mm
Machine weight (including electric equipment): 34150 kg.

Floor type boring machine SACEM model MST 110
Manufacturer: SACEM
Made in: Spain

Specification:

Control: FAGOR
Spindle diameter: 110 mm
Spindle taper: ISO 50
X-travel: 2000 mm
Y-travel: 1540 mm
Z-travel: 2115 mm
W-axis: 900 mm
Table size: 1400x1260 mm
Table rotation: 360 degrees
Table load capacity: 8000 kg
Spindle turning speed range: 5-1000 U/min
Total power requirement: 22 kW
Dimmensions of the machinery: 6500x5100x5400 mm
Machinery weight: 23 tons.
