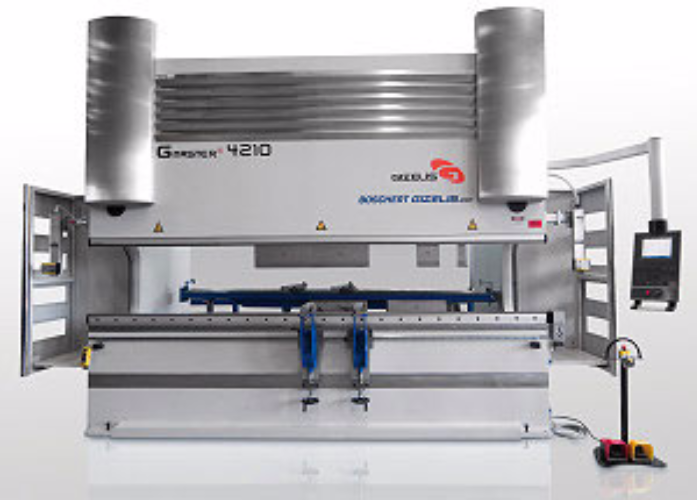

G-MASTER Standard equipment
Stroke 390mm - Daylight 615mm
Industrial control Cybelec ModEva 10S with graphical simulation
Y1, Y2 independent hydraulic cylinders, proportional valve technology
Extra welded frame on the sides
Ram guidance with double roller bearings
Efficient, low noise, high speed, superior accuracy hydraulic system
Central lubrication
5 axis high speed back gauge system X1X2RZ1Z2 with double linearguides as standard
Standard CNC controlled anti deflection system
Standard Heavy duty front gauges on linear guide
Standard hydraulic upper & lower tool clamping-Wila Trumpf toolsrequired
Standard Laser safety Fiessler
German origin, automatic height adjustment, CE certified
Wide selection of extra equipment
G-MASTER, Stroke 390mm - Daylight 615mm, Industrial control Cybelec ModEva 10S with graphical simulation and many more ...

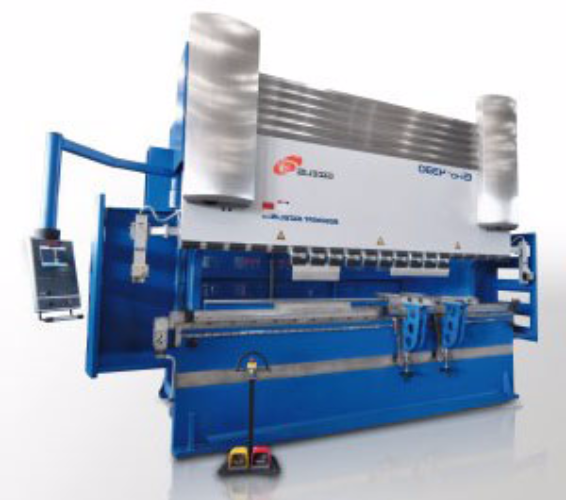

G-HD, Industrial control Cybelec ModEva 10S with graphical simulation. Y1, Y2 independent hydraulic cylinders, proportional valve technology and many more ...		G-HD Standard equipment
Industrial control Cybelec ModEva 10S with graphical simulation
Y1, Y2 independent hydraulic cylinders, proportional valve technology
Extra welded frame on the sides
Ram guidance with heavy duty slides
Efficient, low noise, high speed, superior accuracy hydraulic system
Stroke & Daylight dependent upon the model and customer request
2 axis heavy duty back gauge system X+R with double linear guides
Standard manual anti deflection system
Standard heavy duty front gauges on linear guide
Heavy duty mechanical upper tool clamping system, Promecam- Amada adaptors on demand
Heavy duty mechanical lower tool clamping
Standard Laser safety Fiessler German origin CE certified
Wide selection of tools and accessories.

Trens SN 50 C
SN 50 C is a universal centre lathe intended for piece and small-lot production; however it fits also for maintenance in repair workshops. This is a customer classic with main motor output of 5.5 kW. It is characterised by wide range of operating speed and its unique design guarantees high stability at material machining. Big working range and option of wide selection of accessories and designs represent an advantage of SN 50 C.

Working range:
Swing over bed 500 mm (19,69 inch)
Swing over cross slide 270 mm (10,63 inch)
Swing of the bed gap 700 mm (27,56 inch)
Useful length of the bed gap 230 mm (9,06 inch)
Distance between centres 1000, 1500, 2000 mm (39,37/ 59,06/ 78,74 inch)
Height of centres over bed 250 mm (9,84 inch)
SN 50 C is a universal centre lathe intended for piece and small-lot production; however it fits also for maintenance in repair workshops ...


The unique features predestine this machining centre for engineering production in medium and large series. It has been applicable for precision machining of plastic and metal work pieces ...		Trens SBL 300
The unique features predestine this machining centre for engineering production in medium and large series. It has been applicable for precision machining of plastic and metal work pieces with sophisticated geometric shapes, where the version equipped with the movable counter spindle makes possible complex machining of work pieces to be finished using a single machine tool. The machine tool will be beneficial to productivity growth along with the considerable decrease in capital costs when used either for bearing rings production, batch production of flanges, clutch plates or half-axles for automotive industries. The dimensions and technical standard also make this SBL 300 CNC machining centre ideal for application as a teaching aid for either secondary schools or universities.

Working range:
Max. swing over bed 530 mm (20,86 inch)
Max. turned diameter 260 mm (10,23 inch)
Turning distance between chuck and tailstock 500 mm (20 inch)
Turning distance between chucks 485 mm (19,09 inch)
Max. workpiece dimension between centres 200 kg (440,92 lbs)
Max. workpiece mass clamped in chuck 80 kg (176,36 lbs).

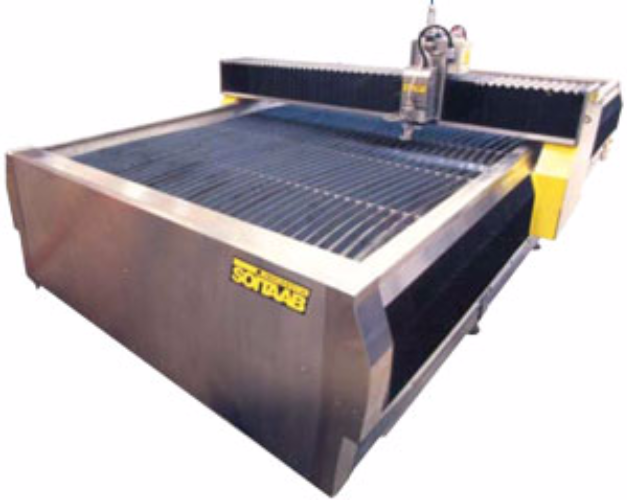

Soitaab Water Jet Cutting System
The waterjet cutting process is achieved by pressurising filtered water to supersonic levels through a tiny nozzle. In the range of 0.3 mm from a doubleacting fluid intensifier.

CNC features
Graphic simulation with tool path simulation in real time
Library of fixed shapes
Availability to network connection (Ethernet)
Integrated Z axis for the automatic height control by means of arc voltage
Selection of cutting technology from the graphic menu
Retrace function
User friendly menu
The waterjet cutting process is achieved by pressurising filtered water to supersonic levels through a tiny nozzle. In the range of 0.3 mm from a doubleacting fluid intensifier...
Special Applications
The best solution to obtain productivity and quality in the cutting technology, designed and produced by Soitaab Impianti is DUALine, two machines in one: plasma and waterjet cutting
The high cutting speed of plasma, combined with the accuracy and versatile of the waterjet cutting, allows you to cut shapes reducing the time of production but with a high quality of the cutted products
Moreover the flexibility of the waterjet is the best solution to cut a wide variety of special too materials (ferrous and not ferrous)
The DUALine is available in many different sizes and with range of accessories in order to obtain the ideal solution for your requirements
Accessories
A range of accessories in order to obtain the ideal solution for your requirements
Software
The interactive programming is supported by a graphical interface making the system very user-friendly to input data such as cut parameters and curve correction criteria.
High Pressure Pumps
A range of Ultra High Pressure (UHP) pumps is available from 22 to 150 KW output power with flow rates as high as 15 litres per minute at pressures up to 4100 bar.

G-MASTER Standard equipment
Stroke 390mm - Daylight 615mm
Industrial control Cybelec ModEva 10S with graphical simulation
Y1, Y2 independent hydraulic cylinders, proportional valve technology
Extra welded frame on the sides
Ram guidance with double roller bearings
Efficient, low noise, high speed, superior accuracy hydraulic system
Central lubrication
5 axis high speed back gauge system X1X2RZ1Z2 with double linearguides as standard
Standard CNC controlled anti deflection system
Standard Heavy duty front gauges on linear guide
Standard hydraulic upper & lower tool clamping-Wila Trumpf toolsrequired
Standard Laser safety Fiessler
German origin, automatic height adjustment, CE certified
Wide selection of extra equipment
G-MASTER, Stroke 390mm - Daylight 615mm, Industrial control Cybelec ModEva 10S with graphical simulation and many more ...


G-HD, Industrial control Cybelec ModEva 10S with graphical simulation. Y1, Y2 independent hydraulic cylinders, proportional valve technology and many more ...		G-HD Standard equipment
Industrial control Cybelec ModEva 10S with graphical simulation
Y1, Y2 independent hydraulic cylinders, proportional valve technology
Extra welded frame on the sides
Ram guidance with heavy duty slides
Efficient, low noise, high speed, superior accuracy hydraulic system
Stroke & Daylight dependent upon the model and customer request
2 axis heavy duty back gauge system X+R with double linear guides
Standard manual anti deflection system
Standard heavy duty front gauges on linear guide
Heavy duty mechanical upper tool clamping system, Promecam- Amada adaptors on demand
Heavy duty mechanical lower tool clamping
Standard Laser safety Fiessler German origin CE certified
Wide selection of tools and accessories.

Advantages of G-CUT NC
Heavy duty frame ensures maximum stability regarding the blade gap and minimum frame deflection. All Boschert - Gizelis shears include extra welded frame on the front, and heavy duty upper blade carrier with closed tube type construction
Back gauge retraction during cut ensures that the material will not jam against the back gauge
Due to the rotational movement of the upper blade the cut out will not be trapped in between the 2 blades
Heavy duty back gauge with T shape structure
NEW PPS proportional pressure system, ensuring high cut quality
G-CUT NC, Heavy duty frame ensures maximum stability regarding the blade gap and minimum frame deflection. It includes extra welded frame on the front, and heavy duty upper blade carrier with closed tube type construction ...
Use the smallest possible shearing angle in order to cut even thick sheet metal pieces at low rake angle producing minimum sheet distortion
Unique 3 position progressive rear sheet support system
Automatic thickness measurement & automatic blade gap adjustment possible on (G CUT CNC SERIES)
Possibility to return the cut out to the front (G CUT CNC SERIES)
Individual parts from well established European manufacturers such as Bosch-Rexroth, telemecanique e.t.c.
Long experience on bending and shearing, tradition & reliability
Standard equipment
Swing beam hydraulic shear
Heavy duty, rigid all welded steel frame
Material Hold-down pressure adjustment proportionally to cutting pressure
More hold downs near the squaring arm for better holding of small parts
Industrial control Elgo with programming options for several cuts
Automatic programmable back gauge
Electrical adjustment of the blade gap with led indication
Cutting blades made for steel and stainless steel (German origin)
Including ball casters on the front side
Front guard with 1 swiveling part
Rear fence equipped with photoelectric guards
2 X front sheet supports 1m with linear scale
1 X squaring angle 1m with linear scale
ELGO Control
Automatic gap adjustment according to the thickness
NC automatic backauge
And many more ...
