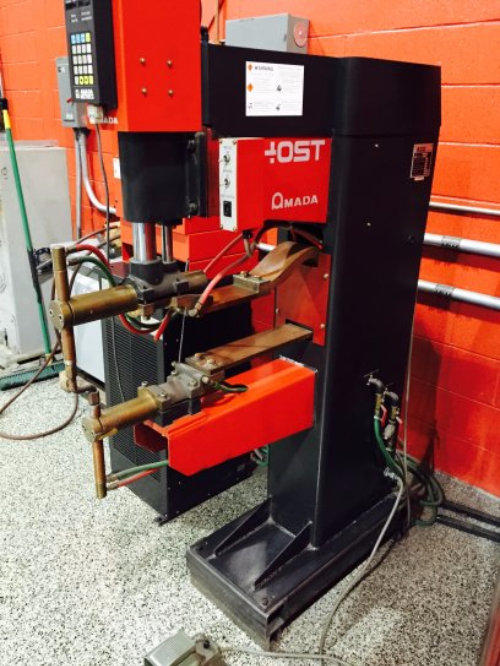

1.1. Welder

kVA Rating

40 kVA
MAX. Welding Current


1,500 lbs
Admissible Duty Cycle


10%
Electrodes

RWMA #5 (taper number)
Throat Depth

32"
Horn Spacing

1.970" x 0.787" (maximum open x working open)
Electrode Holder

1" x 8" (diameter barrel x long)
Holder Arm

2.7" (diameter)
Required Air

71 psi 79.2 gallons/minute.

SEE ATTACHMENT FOR CAPACITIES

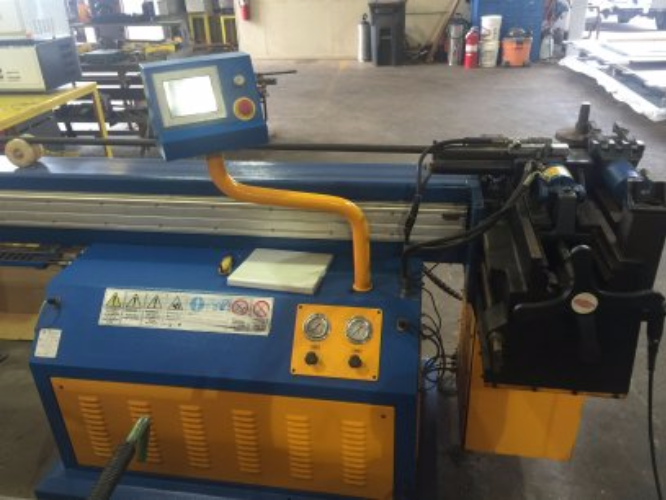

76.2 x 3.2 mm capacity 2
2" Gas inches (5.6 mm) capacity
64 x 64 x 2.5 mm square tube capacity
Maximum bending radius 250 mm
Minimum bending radius 1.5 x O
Control offers easy access to manual and auto operating modes, system
diagnostics and multiple languages
USB for unlimited storage of bend programs, material library and job
information
Interactive touch screen displays absolute (ABS) or incremental (INC)
positioning with inch or metric readout
Programmable C axis with manual Y and B positioning.

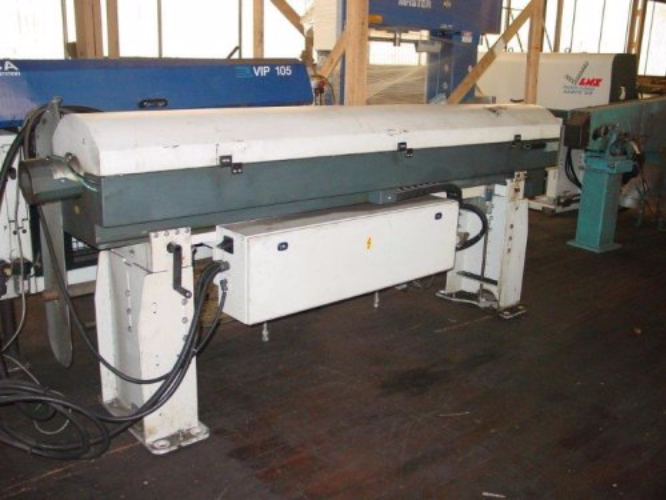

SPECIFICATIONS:

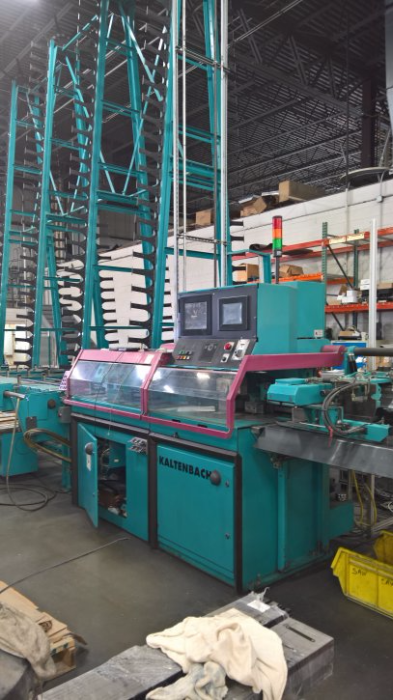

Hand Held Control: LNS PLC / Siemens Step 7 Diameter
capcity: 5/16" - 3-1/8"
Bar Length: 18" - 6'
Loading System: Chain Loading Rack with fingers
Loading Rack Capacity: 8 Barstocks Vertical Elevator Rack
Safety: Light beam barrier
Headstock: Fixed
Z-Axis Retraction: 35" permits spindle access to lathes for
spindle liner changes and maintenance
Total Capacity Set Changeover: Less than 4 min
Motor: Servo
Drive: Notched Belt
Bar Guiding: Blocks.

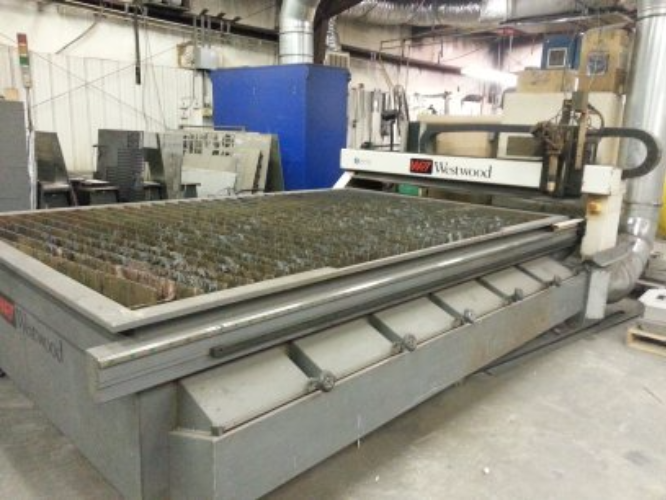

POWER INPUT - 3 PHASE 220/460V 50/60HZ
MAX. CUTTING WIDTH (A) - IN. - 74
MAX. CUTTING LENGTH - IN. - 122 FOR 10FT. MODEL/244 FOR 20FT MODEL
MAX. TRAVEL SPEED - IN./MIN - 787
MAX. CUTTING SPEED - IN./MIN - 472
POSITION ACCURACY - IN. - +/- 0.0020
REPEAT ACCURACY - IN. - +/- 0.0020
MOTOR DRIVEN UNIT - AC SERVO MOTOR
LONGITUDINAL DRIVE - RACK & PINION DRIVE ON DOUBLE SIDE
CROSS DIRECTIONAL DRIVE - RACK & PINION DRIVE

LONGITUDINAL RAIL - DOUBLE LINEAR-WAY
CROSS DIRECTION RAIL - DOUBLE LINEAR-WAY
OVERALL RAIL LENGTH - IN - 157 FOR 10FT. MODEL/283 FOR 20FT. MODEL
OVERALL WIDTH (B) - IN - 100
OVERALL HEIGHT (C) - IN - 63
PARKING SPACE - IN - 32
WEIGHT - LB - 4070.

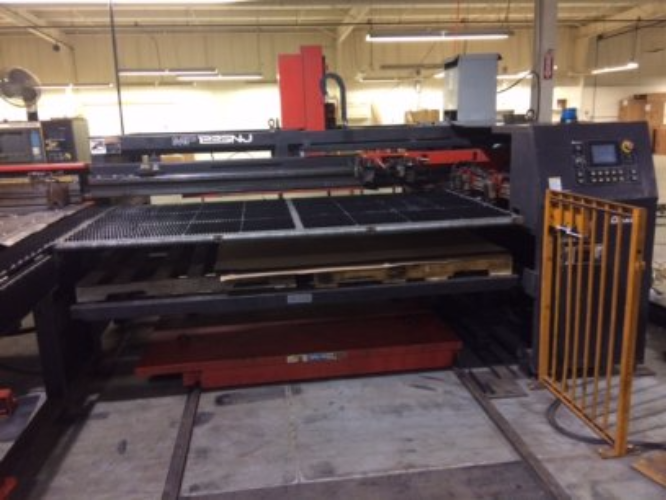

Cycle Time (Load/Unload)..... 25 Seconds

Maximum Sheet Size 4' x 8'

Minimum Sheet Size 27.5" x 11.8"

Material Mild Steel, Stainless Steel, Aluminum

Material Thickness Range 24 gauge - 10 gauge

Loading Height Max. 10.25" including skid height of 4"

Material Cart Weight Capacity 4,400 lbs. Pallet

Material Separation Edge Lifter, Magnetic Separator

Pallet 2 pallets (raw materials & finished parts)

Electrical Requirements 230V/460V - 3 phase (for MP 1225US)200V - 3 phase (for

MP 1225NJ)

Electrical Supply Capacity 10 KVA (not including NCT machine)

Air Requirements 75 PSI., 31.8 CFM

Overall Dimensions (L x W x H) 180" x 140" x 90"

Approximate Weight 11,250 lbs.

Specifications
Capacity: 20 Tons
Overall Length: 49"
Distance Between Housings: 3'11"
Speeds:
Approach: 4.4 IPS
Bend: 0.35 IPS
Return: 3.7 IPS
Equipped With

Prima Power Electro CNC Control
With 17" Touchscreen
2-Axis Backgauge
Manual Clamping
(2) Front Supports.

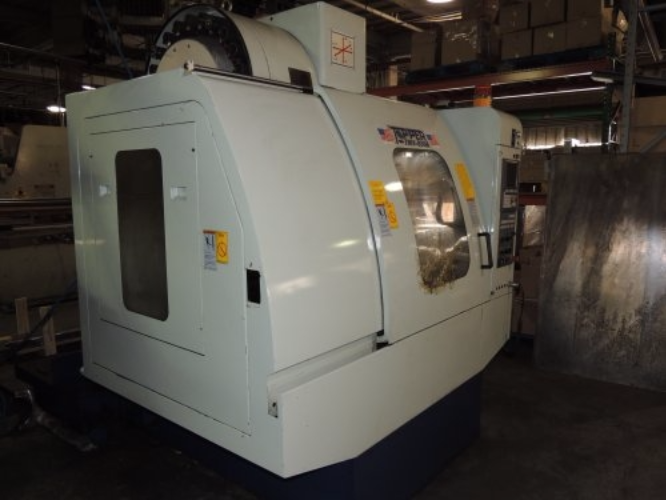

WORK AREA (IN.): 37.4" X 19.7"
LOAD CAPACITY(LBS): 1100
SPINDLE SPEED(RPM): 8000
SPINDLE SPEED OPT: 10000
X AXIS TRAVEL (IN.): 33.5"
Y AXIS TRAVEL (IN.): 19.7"
Z AXIS TRAVEL (IN.): 20.9"
X AXIS RAPID (IPM): 1181
Y AXIS RAPID (IPM): 1181
Z AXIS RAPID (IPM): 945
TOOL CAPACITY: 24
STD. SPINDLE MOTOR (HP): 10
OPT. SPINDLE MOTOR (HP): 15/20
MACHINE WEIGHT (LBS.): 11000
CONTROL: FANUC 0IM.

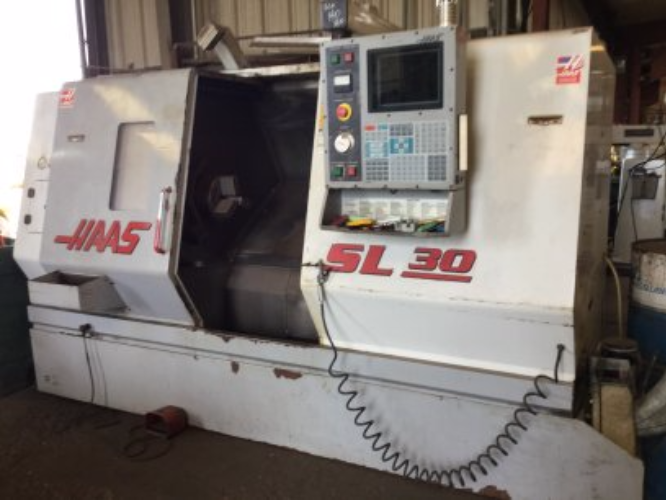

SWING OVER FRONT APRON....................... 30"
SWING OVER CROSS SLIDE....................... 14.5"
CHUCK SIZE................................... 10"
STANDARD BORE / BAR CAPACITY................. 3.5"/ 3"
DISTANCE BETWEEN CENTERS..................... 39"
MAXIMUM CUTTING DIAMETER X LENGTH............ 17" X 34"
SPINDLE MOTOR................................ 20 HP
SPINDLE NOSE................................. A2-6
TURRET....................................... 12 POS
RAPID TRAVERSE............................... 710 IPM
MACHINE WEIGHT............................... 16,000 LBS
APPROX. DIMS W/ CHIP CONVEYOR................ 162"x77"x74".

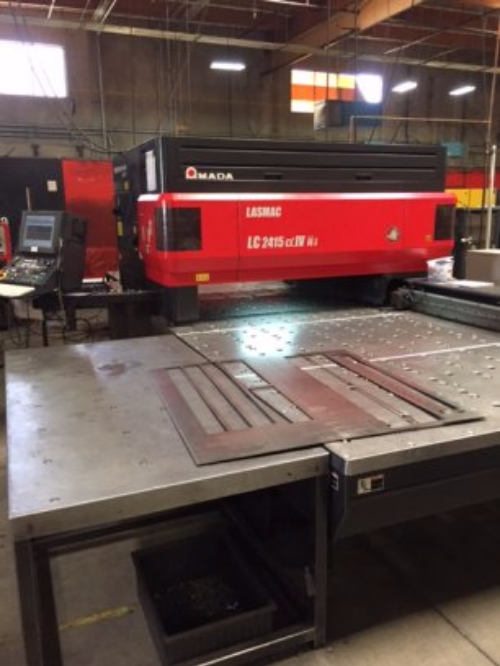

Technical Specifications

Motion Package

Travel Method X axis for work piece movement, Y axis for cutting head

movement
Control Method X, Y & Z simultaneous 3 axis control and B axis
Drive Motors FANUC AC Servo (X, Y, Z, and B)
Maximum Sheet Size 61" (Y) x 198" (X) with one repositioning cycle
Maximum Axis Travel 61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B)
Maximum Cutting Speed 787 IPM
Maximum Table Speed 3,149 IPM per axis (4,454"/min. 45 vector)
Maximum Speed Z-Axis 2,362 IPM
Positioning Accuracy 0.0004"/20"
Repeatability 0.0004"
Maximum Material Weight 727 lbs. (5' x 10' x 3/8" or 4' x 8' x 1/2")
Number of Clamps 3
Work Chute 66" (Y) x 21" (X)
Assist Gas Automatic 4 ports with NC pressure Control
Machine Size 222.0" x 112.0" x 86.5"
Machine Weight 17,000 lbs. including laser resonator
Electrical Requirements 208 VAC, 3 phase, 60 Hz

CNC Controller

Model AMNC-F
Display LCD Color Graphics Display
Control Function X, Y, Z-Axis Simultaneous and Focus Lens B-axis, and Laser

Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3"

Floppy disk
Minimum Command Unit 0.0001" (X, Y, Z)
Minimum Travel Unit 0.0001" (X, Y, Z)
Standard Memory 1 MB
Optional Memory 2 MB
Hard Drive 10 GB
Operating Modes Automatic and Manual
Display Modes Program Contents, Position Information, Program Check,

Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self

Diagnostics
Interlock Displays Cooling Water Status, Gas Pressure Status, Vacuum Status,

Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,

Mirror, Cover Interlock.

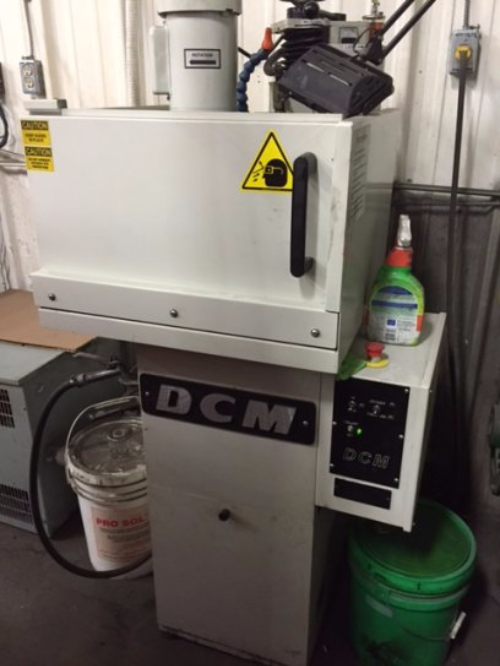

MINI, DCM/WILSON TOOL,MFG: 2013,   Our stock number: 10458.

Recently (in 2015) changed out the adhesive glue system for a brand new

Graco extrusion adhesive system. The machine has an automatic hydraulic brake

at the end of the line to make the 90 degree ben for the ductwork, we are also

offering an automatic pneumatic brake that is interchangeable with the

machine.

Most of these machines can only do 5' wide duct work, we modified it to also

be able to make 4' and 3' wide ductwork for plenums. That are very few

machines capable of make 3' ductwork automatically.

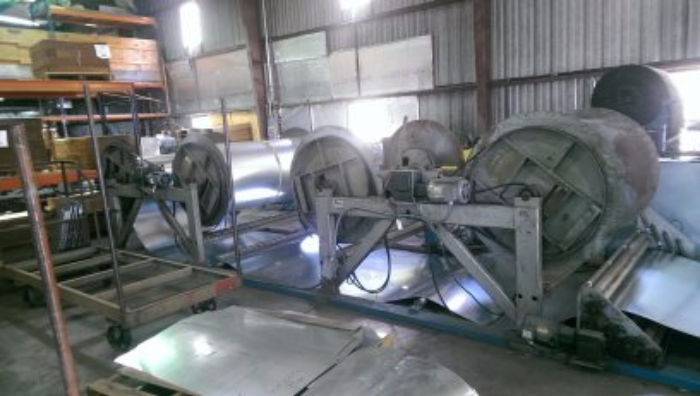

1) Quaid Coil Cradle Uncoiler (Model# D4S60-2) Welty Way

2) Flying Sheer (Model#ESB6018) Welty Way

3) Flying Notcher Former (Model#AN60 ) Welty Way

4) Transfer Table

5) Snaplock & Pittsbrgh roll former (Model 8D-8164) Lockformer

6) Roller Transfer Table Welty Way

7) Cleat Former (Model#CR-A ) Welty Way

8) TDF Rollform Engel

9) Fiberglas sheer & Adhesive Extrusion system

10) DuroDyne Pinspotter (Model#FGMH)

11) Hydraulic Brake (Model# B5L )

12) Pneumatic Brake.

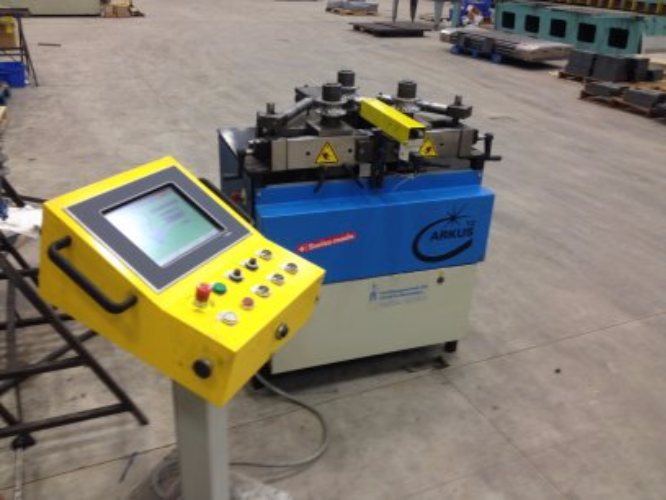

Flat Bar 3/4" x 2" to 7" Dia.
Power X Axis 14 tons
All three rollers driven individually:
Continuous 1-32 rpm
Maximum Torque per roller 369 ft. lbs. (500Nm)
Front Roller Adjustable 10" x 20.39" (256 - 518mm)
Tool Holding Fixture 1.57" (40mm)
Lift Height/Stroke 7.87" (200mm)
Hydraulic Drive 1 HP (0.75 kW)
Roller Driver 0.5 HP (3x 0.37 kW)
Power Supply 208/230/460
Accuracy X Axis : 0.003937" (1/100mm)
Length 32.28" 820mm
Width 37.4" (950mm)
Height 44.25" (1'125mm)
Weight 970 lbs. (440 kgs).

MACHINE SPECIFICATIONS:

NAUTILUS Standard Features
- Heavy duty frame with heavy wall structural steel tubing and one (1) inch

thick plate
- Constant pass line height
- Automatic, self-centering conveyor belt tracking system
- Rough-top SBR rubber conveyor belt
- Electronic variable speed A.C. drive with digital line speed display on

control
panel
- Powered thickness adjustment with four (4) precision jacks guided on 1.5

inch gibs with
digital display
- Individual TEFC abrasive belt motors for each head assembly
- Individual ammeters for each head assembly
- Disc brake assemblies mounted to each motor with pneumatic calipers
- Ultra-sonic, self-centering abrasive belt tracking system, with "off-track"

limit
switches for emergency stop
- Large diameter rubber coated contact drum design utilizes "live shaft"

roller with
heavy-duty ball bearings
- Contact drum rollers are high speed balanced precision operation
- Contact drum rollers are spiral grooved for improved performance
- Two (2) spring loaded infeed and one (1) outfeed hold-down rollers
with additional rollers between heads in multiple head configurations
- Stainless steel catch pan and doors
- Automatic parts dryer with Air SonicT air knife and regenerative blower
- Automatic Paper Bed FilterT with filter media, clean tank, sludge bin and

clean
return pump
- Central lubrication point
- Electric control panel with push button controls mounted on movable pendant
arm
- Infeed conveyor extension with two (2) vinyl covered rollers
- Outfeed conveyor extension
- Infeed end safety bar

- UL/CSA Approved electric components
- Safety interlocks and emergency stop

NAUTILUS Machine Configuration
Electrical Requirement
460 volt/60 cycle/3 phase
NAUTILUS MODELS
Model N 5275 MBB
1st Head: Abrasive brush with fine adjustment
Brush diameter 12 inch (305 mm)
Motor size 25 HP (19 kW)
Note: Does not include brush
2nd Head: Abrasive brush with fine adjustment
Brush diameter 12 inch (305 mm)
Motor size 25 HP (19 kW)
Note: Does not include brush
Note: Does not include abrasive brushes, however if you want to test 3M

Scotch-Brite
we have never been denied free samples from 3M with the disclosure of machine

end
user. Occasionally the diameter of the brush may not be optimized relative to

the
machine specification.
Paper Bed Filter: 66 gpm
- Tank capacity 115 gallons
- Pump size 1 HP
- Paper motor 0.1 HP
- Paper width 39 inches
Air Sonic:
Air knife blower motor 7.5 HP (5.5 kW)

NAUTILUS Technical Data & Specifications
Maximum panel width:
N 5275 51 inches (1295 mm)
Working thickness:
Minimum 0
Maximum 6 inches (152 mm)
Minimum part length
Configurations:
Drum/Drum (Drum) 9.75 inches (248 mm)
Drum/12" Brush 16 inches (406 mm)
Contact drum diameter: 6 inches (152 mm)
Pinch roller diameter 2.25 inch (57 mm)
Conveyor roller diameter 6 inches (152 mm)
Conveyor motor 2 HP (1.75 kW)
Feed speed 5-40 FPM (15-120 MPM)
Thickness adjustment motor 0.5 HP (0.3 kW)
Air requirements TBD
Maximum power consumption TBD

Options - cost when purchased new:
(3) Proximity switches with (3) light indicators and
programming to que operator on feed location of part $1,000.00
(1) viewing window on belt/brush loading side $450.00
Manually adjustable laser guide with angle scale $2,695.00
Smooth top conveyor belt $1,930.00
Oscillating brush head assembly on head #1 $3,450.00
Variable speed control on oscillation head #1 $1,785.00
Oscillating brush head assembly on head #2 $3,450.00
Variable speed control on oscillation head #2 $1,785.00
HMI/PLC controls with color monitor. Includes electronic
thickness control (Required for variable speed control options)$2,850.00
Variable speed control on brush head #1, 220 - 2500 rpm $12,900.00
Variable speed control on brush head #2, 220 - 2500 rpm $12,900.00.

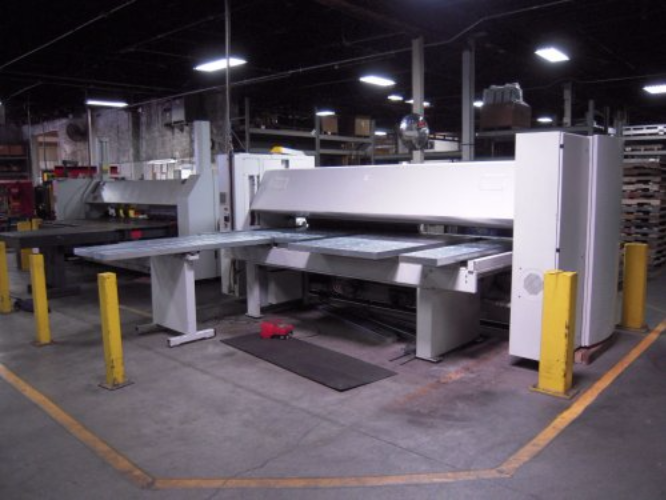

Maximum Sheet Thickness (Mild Steel) = 1/4"
Maximum sheet Thickness (Stainless Steel) = 9 Ga.
Maximum Working Length = 125.9"
Backgauge Depth (Rectangular) = 0.4" - 61"
Backgauge Depth (J Shape) = 0.4" - 120"
Backgauge Accuracy = +/- 0.004"
Upper Beam Open Height = 19.7"
Upper Beam Clamp Press = 130 Ton
Working Height = 37.4"
Maximum Folding Beam Adjustment = 3.15"
Upper Beam Speed = 2.36 IPM
Folding Beam Speed = 80 Degree Per Second
Beam Drive Motor Power (460 V 3 Phase) = 20.6 HP
Programable Axis = 3
Cycle Start = foot pedal
Press Direction = Up
Clamp Style = RAS Automatic Clamping
Safety Feature = Light Curtains
Crowning = Auto and Manual settings are both available
Controller = SYS 6000
Tooling Included = Full bed of 4.5" RAS Goats Foot Tooling.

Flat Bar 3/4" x 2" to 7" Dia.
Power X Axis 14 tons
All three rollers driven individually:
Continuous 1-32 rpm
Maximum Torque per roller 369 ft. lbs. (500Nm)
Front Roller Adjustable 10" x 20.39" (256 - 518mm)
Tool Holding Fixture 1.57" (40mm)
Lift Height/Stroke 7.87" (200mm)
Hydraulic Drive 1 HP (0.75 kW)
Roller Driver 0.5 HP (3x 0.37 kW)
Power Supply 208/230/460
Accuracy X Axis : 0.003937" (1/100mm)
Length 32.28" 820mm
Width 37.4" (950mm)
Height 44.25" (1'125mm)
Weight 970 lbs. (440 kgs).

SPECIFICATIONS:
Hand Held Control: LNS PLC / Siemens Step 7 Diameter
capcity: 5/16" - 3-1/8"
Bar Length: 18" - 6'
Loading System: Chain Loading Rack with fingers
Loading Rack Capacity: 8 Barstocks Vertical Elevator Rack
Safety: Light beam barrier
Headstock: Fixed
Z-Axis Retraction: 35" permits spindle access to lathes for
spindle liner changes and maintenance
Total Capacity Set Changeover: Less than 4 min
Motor: Servo
Drive: Notched Belt
Bar Guiding: Blocks.

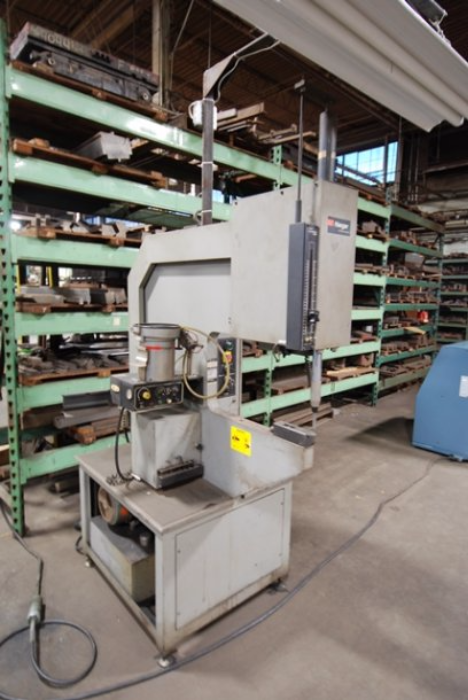

MAX. FORCE 8 TONS
THROAT DEPTH 24"
STROKE LENGTH (ADJUSTABLE) 0" - 8"
VERTICAL UPSTROKE (ADJUSTABLE) 1/2" - 8"
OIL TANK RESERVOIS 18 GALLONS
APPROX. DIMENSIONS 34" x 58" x 88"
APPROX. WEIGHT 1,750 LBS.

Equipped With:

RAM FORCE INDICATOR DIAL
PRESSURE ADJUST DIAL.

1.1. Welder

kVA Rating

40 kVA
MAX. Welding Current


1,500 lbs
Admissible Duty Cycle


10%
Electrodes

RWMA #5 (taper number)
Throat Depth

32"
Horn Spacing

1.970" x 0.787" (maximum open x working open)
Electrode Holder

1" x 8" (diameter barrel x long)
Holder Arm

2.7" (diameter)
Required Air

71 psi 79.2 gallons/minute.

KKS 401 NA
Circular Sawing Machine

Process Sawing
Sawblade 0 mm 450
Drive Performance KW 4,0 resp. 5,5
Cutting Speed m/min 7-43, resp. 15-75
Feedrate mm/min 0-1.000
Rapid advance/return movement mm/min 3.500
Machine Weight kg 4.000
Workspace max. mm 150
Working Range Square mm 140
Working Range Flatmaterial mm 240x80
Working Range Profile mm 140 x 140
Mitre Range 30 - 90 - 30
Tools HSS-Tools
Degree of Automation automatic infeed
automatic outfeed
automatic sorting of
trim and remnant cuts

Full-Automatic







Materialclass Stainless Steel
Steel
Process Profiles
Single Stroke Length mm 1.000
Multiple Stroke Length mm 9.999


Please click on link to view video under power:
https://youtu.be/qrb883mqw1I

Optional Equipment Included with Package:

Programming of saw blade feed rate and cutting speed via

hydraulic proportional feed valve. Automatic calculation of

cutting speed and feed in conjunction with Item 1451a.

Stronger drive motor with toothed belt drive and frequency

inverter for infinitely variable regulation of the cutting speed:
-5.4 HP for cutting speeds between 23 and 141 SFM

CNC Pre-Selection of the cutting angle
Proficut material database module
Proficut import/export module
Proficut part database module
Proficut order management module
Coolant atomizer system (compressed air necessary) in addition
to flood coolant system
Output gripper/Sorting unit ABG
Automatic Flat Magazine FM.
