New05656

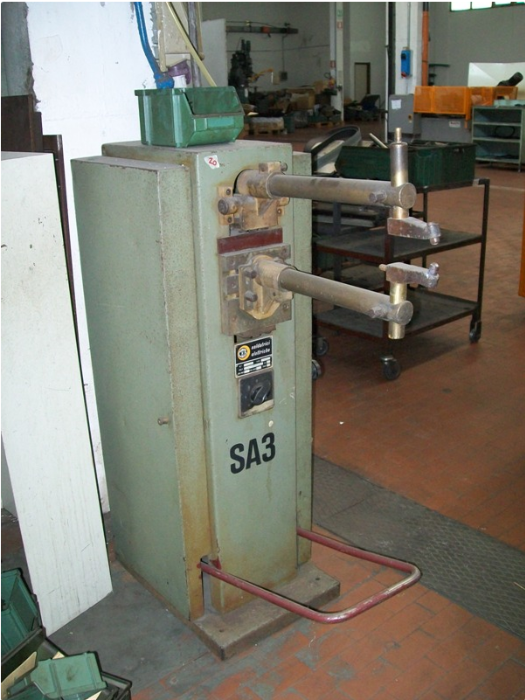

HZ 50
KVA MAX 20.

07028

USED MACHINE.

Axis X mm 700
Axis Y mm 700
Equiped with:
Rotary table
Double guide chuck diam. mm 300.

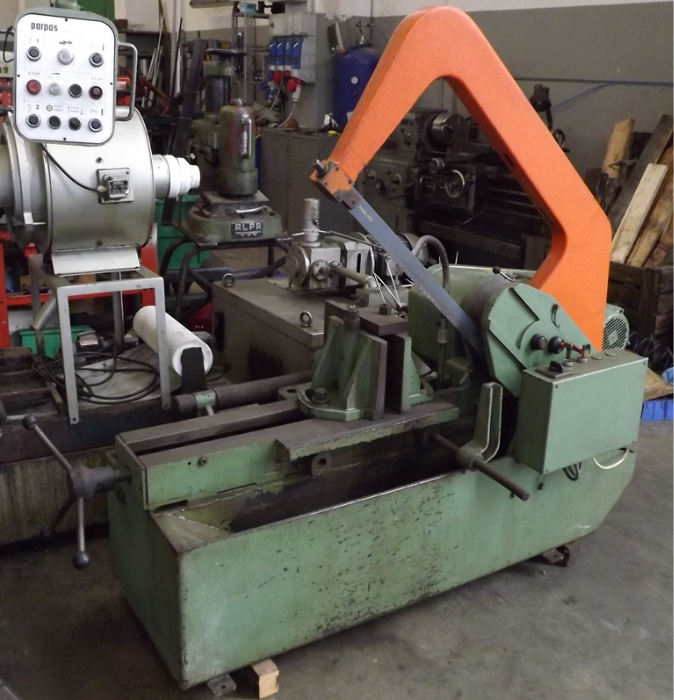

Blade lenght mm 700
Cutting diameter mm 420.

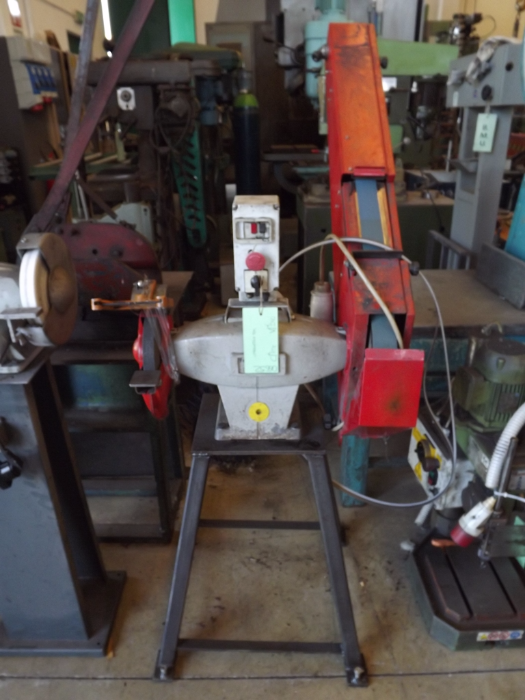

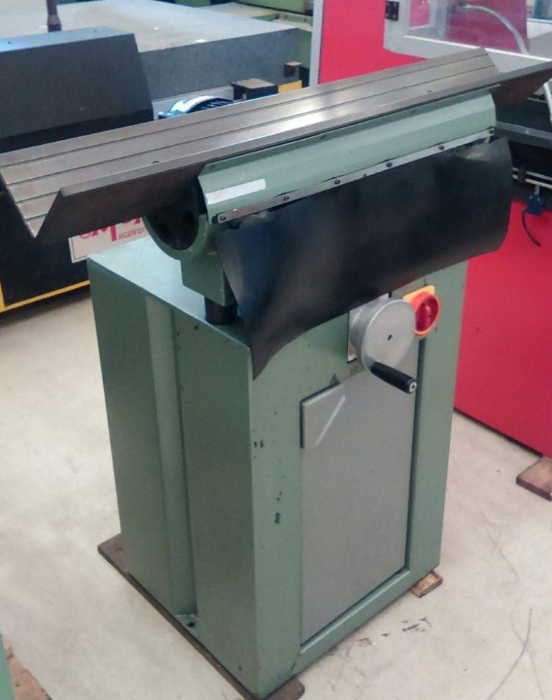

With sanding machine
Speed 2800 rpm
Power Hp 1,5.

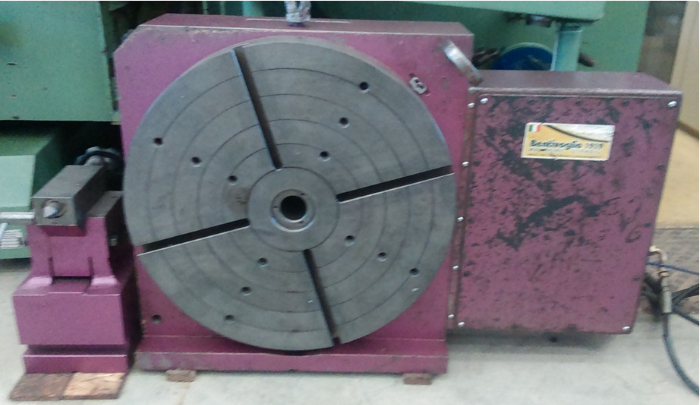

Diameter table mm 600
Maximum rpm 20
Wormscrew-ring gear ratio 1/120
Motor/table faceplate ratio 1/120
Drive motor-nominal torque Nm 7/12
Angular positioning precision with screw mounted encoder 15''
Repeatability of positioning accuracy 4''
Hydraulic pressure for locking table bar 180/250
Hydraulic clamping force Nm 3000
Slot width mm 16
Runout of table bore-tir mm 0,01
Flatness of the base to the table faceplate mm 0,015
Squareness table to base in vertical attitude mm 0,03
Max work weight without tailstock N 6000
Max work weight with tailstock N 10000
Max work weight N 16000
Inertia Kg x cm x sec2 208
Maximum torque on wormwheel Nm 3500
Maximum tilting torque Nm 1400-2830
Maximum torque Nm 1000
Radial static load N 20000
Axial static load N 60000
Table weight N 5000
Overall dimensions mm.1000x660 H 235
EQUIPPED WITH:
Tailstock.

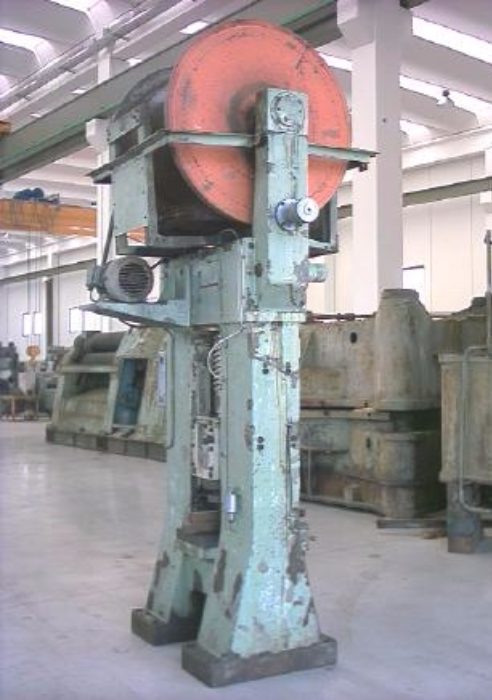

BIL.FRZ.OO45

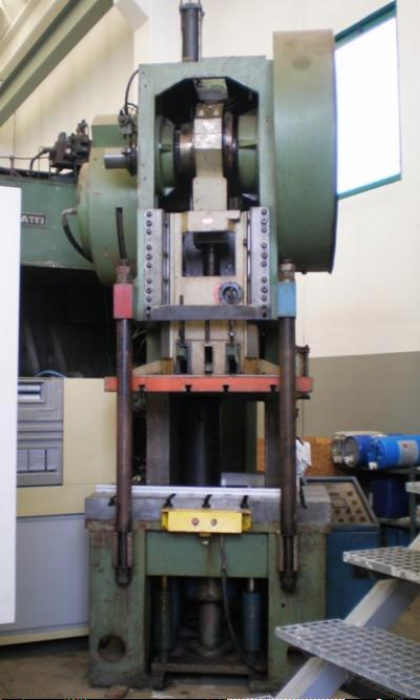

MOD. CENISIO
DIAM.MM.140
MAX POWER 140 TON.
GIRI ALBERO MAX 24O.

C- TYPE
-table size mm.1300x750
-size sledge hammer mm.1110x660
-day light / sledge hammer mm.600
-Nr.06 Guides
-regulating stroke from mm. 0 to 320
-strokes per minute 46
EQUIPPED WITH
-HYDRAULIC DIE CUSHION.

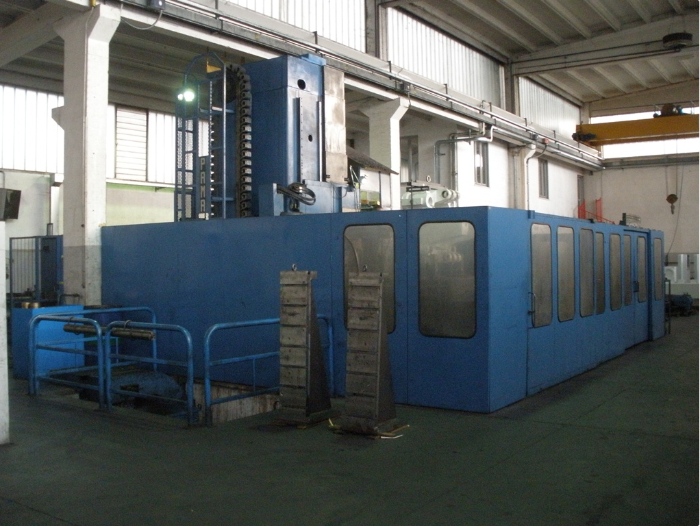

5 AXIS
COLUMN FOUR LINEAR AXIS
ROTARY TABLE AND INDEXING HEAD
CNC HEIDENHAIN iTNC 530 M
STROKES:
Axis X (longitudinal) mm. 3.000
Axis Y (head cross) mm. 1.000
Axis Z (vertical) mm. 2.000
Axis W (upright cross) mm. 1.000
Axis C (rotary table) 360 gradi
ROTARY TABLE:
Lenght mm. 1.500
Width mm. 1.800
T-slot N.8
T-slot widht mm.22 H 8
Distance between T-slots mm. 160
Load Kg. 10.000
MOTOR AND FEEDRATE:
Axis X motor Nm 48
Axis Y motor Nm 28
Axis Z motor Nm 28
Axis W motor Nm 48
Axis C motor Nm 3600
Working speed mm/min. 10.000
Rapid speed m/min 15.000
SPINDLE:
Spindle nose (DIN 69871) ISO 50
Power spindle motor (S1) with mechanical gear change Kw 25 (S1) / Kw 29 (S6)
Automatic speed N.2
Max torque Nm 1500
Continuos variation of rotation speed at constant power rpm 300/3.000 (4.000 - 50% duty cycle)
APPROX. WEIGHT:
Kg. 35.000
EQUIPPED WITH:
-Universal head birotative ISO 50 with automatic rotation of bpth the joints (indexed) with automatica positioning every 2.30° from CNC, automatic tool clamping.
-Tool changer with rotary magazine with shuttle ring, ISO 50, 40 tools.
-Tilt tool changer for changing the horizontal and vertical
-Hydostatic support system for rotary table
-Table rotation with torque motor
-Chip conveyor, lenght 4000 mm, basement chain with inverter, micro overload, band width 200 mm, CNC management, unload right side
-External coolant with low pressure nozzles
-Adduction liquid lubricating and coolant through the spindle vertical
-Tank for coolant 600 lt
-Pump high pressure flow rate l/min 25 to 50 bars of pressure, electrical connection and operation CNC (replacing the pump 32 liters at 20 bar pressure)
-Gear change mechanical FZ
-Coolant unit for cabinet
-Coolant unit for head and change
-Coolant unit torque motor
-Automatic axis clamping
-Rigid tapping with encoder
-Handwheel remote Heidenhain HR 410
-Heidhenain CC424 for dynamic TCPM
-TCPM function CNC Heidenhain
-Network connection to CNC Ethernet RJ-45
-The machine is covered with fixed panels and access sliding doors interlocked with safety microswitch CE standards (complete enclosure steel and polycarbonate)
-User and manteinance manuals, lamp, pull studs anchored to the foundation, service keys.
-Machine color RAL 7035 GREY / BLUE RAL 5024.

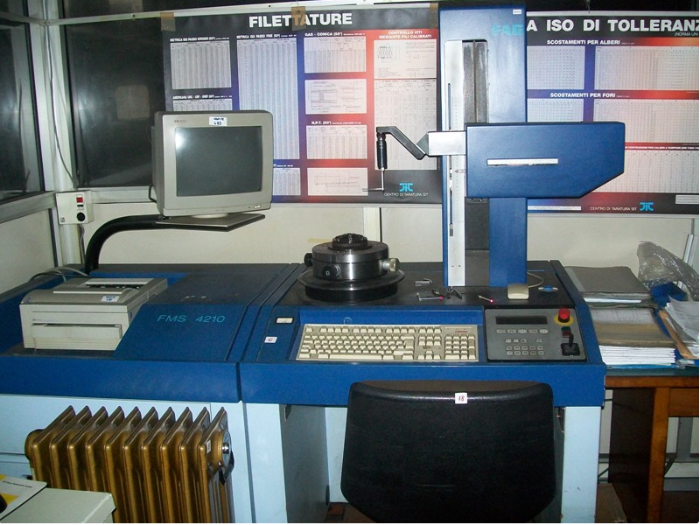

ROTATION AXIS "C AXIS":
-Diameter of rotary table 200 mm
-Max load capacity 500 N
-Max control diameter 300 mm, se il tastatore è posizionato al di sopra del pezzo
-Max passage diameter 420 mm
-Air bearing
-Roundness deviation (sensing direction axisl, measured acc. to ISO 1101) 0.08 ųm at the centre + 0.0008 ųm per mm measuring height
-Roundness deviation (sensing direction axial measured acc. to ISO 1101) 0.08 ųm at the centre + 0.0008 ųm per mm radius
-Drive: position controlled direct-current motor
-Resolution angle measuring system 0.045°
-Measuring speed 1.5/3/6/12 min¯¹, variable
-Centering range +/- 2.5 mm
-Levelling range +/- 30'
-Tilting point 30 mm above table surface
VERTICAL AXIS "AXIS Z":
-Measuring distance 350 mm
-Straightness deviation (acc. to ISO 1101) 0.25 ųm/100 mm - 0.8 ųm/350 mm
-Air bearing
-Position controlled direct-current motor
-Resolution distance measuring system 1 ųm
-Measuring speed 15,60,300 mm/min, variable, optimal
-Moving speed 18 mm/s continuously adjustable by hand lever
-Rectangularity relative to C axis:
0.5 ųm/350 mm in sensing direction
2.5 ųm/350 mm at an angle of 90° off the sensing direction
HORIZONTAL AXIS "R AXIS":
-Measuring distance 150 mm
-Straightness deviation (measured acc. to ISO 1101) 1.0 ųm/150 mm
-Slide bearing
-position controlled direct-current motor
-Distance measuring system 1 ųm resolution
-Measuring speed variable
-Moving speed 25 mm/s continuously adjustable by hand lever
-Rectangularity relative to C axis''
SENSING SYSTEM ST200:
-Inductive sensing system
-Sensing direction bidirectional (no manual switching required)
-Measuring range +/- 500 ųm for the 74 mm sensing stylus
-Measuring force applied for the 74 mm sensing stylus
-Deviation in linearity 1% of the measuring range maximum
COMPUTING SYSTEM:
-Evaluation computer: freely programmable computer system with colour graphics
-Screen 14'' colour
-Hard disk 20 MByte
-Floppy disck drive 3,5''
-Output unit: dot-matrix printer (laser printer optional)
DIMENSIONS:
-Height 1720 mm
-Width 1760 mm
-Front-to-back size 815 mm
-Weight 380 kg.

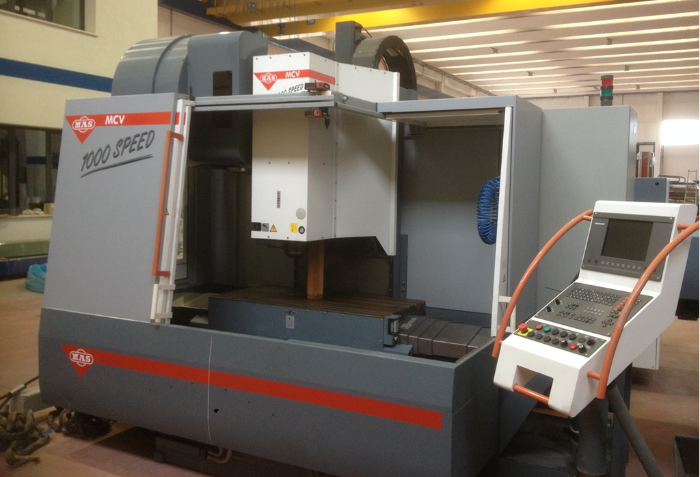

CNC HEIDENHIAN TNC 530
-High speed cooled electrospindle MAS
-Ho le spindle with high pressure coolant throgh spindle system (20 bar)
-Cast iron body rigid and strong suitably ribbed
-Pneumatic headstock balancing
-Axis movement with linear guideways with preloaded high precision rolling bearings at low maintenance
-Digital drives and motors Siemens
-Ballscrews diam. 50 pitch 20 mm
-linear scales Heidenhain
-Preparation 4th axis with direct connection on table
-Rotary tool change by mechanic arm 30 position
-Movable control panel
-Complete enclosure of working space for operator protection
-N.3 Independent doors for easy and quick table loading
MAIN TECHNICAL DETAILS:
-Table dimensions mm 1300x670
-Longitudinal X stroke mm 1016
-Cross Y stroke mm 610
-Vertical Z stroke mm 720
-Feed (X,Y,Z) mm/min 1-15000
-Rapid feed (X,Y,Z) mt/min 40
-Spindle taper (DIN 69871 A) ISO 40
-Distance table/spindle mm 150/870
-Distanza spindle/upright mm 625
-Tool change time sec. 4
-Max table load Kg 1200
-Spindle motor power kW 21
-Spindle speed rpm 20-12.000
-Three-phase motors V 380/50 Hz
-Net weight machine Kg 10.000
EQUIPPED WITH:
-CNC HEIDENHAIN TNC 530 digitale
-Linear scales HEIDENHAIN resolution 0,001
-Digital drives and motors SIEMENS
-External tool cooling
-Rigid tapping
-Magazine 30 tools
-Machine lighting
-Chip conveyor
-Tool clamping driven by push botton
-No. 3 tool shanks clamping
-Remote handwheel
-Complete enclosure with 3 independent doors.

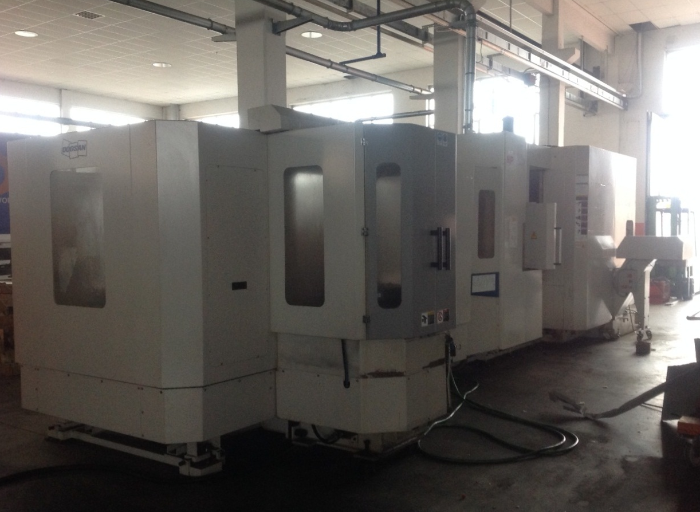

HORIZONTAL 7 PALLET
CNC FANUC 18i-MB
Axis X mm 850
Axis Y mm 700
Axis Z mm 750
Pallet dimensions mm 500x500
Distance spindle nose - pallet center mm 150-900
Distance spindle axis - pallet surface mm 50-750
Indexing table 1 degree
Tool change 120 positions
Rapid feed axis X m/min 60
Rapid feed axis Y m/min 60
Rapid feed axis Z m/min 60
Working feed mm/min 1:30000
Spindle speed rpm 14000
Spindle motor power (cont/15') kW 22/18.5
Spindle taper ISO 40.

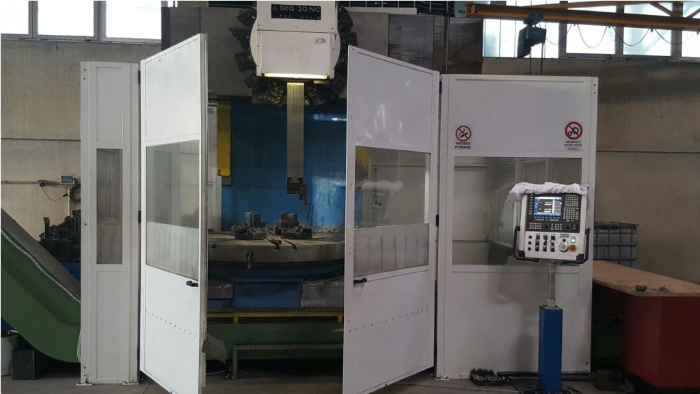

mod. SKQ 20 NC
CNC Fagor 8055
With live tools
Maximum turning diameter external mm 2100
Maximum turning diameter over head mm 2200
Maximum distanca between spindle and ram mm 1960
Ram travel mm 1000
Maximum height of workpiece mm 1710
Maximum weight og workpiece kg 20.000
Crossrail travel mm 1250
Platform diameter mm 2000
Spindle speed (2 range) 2,5-250 Rpm
Maximum motor torque Nm 27.000
Spindle motor power Kw 63
Spindle positioning 0,001 degrees
Automatic tool change 15 position.

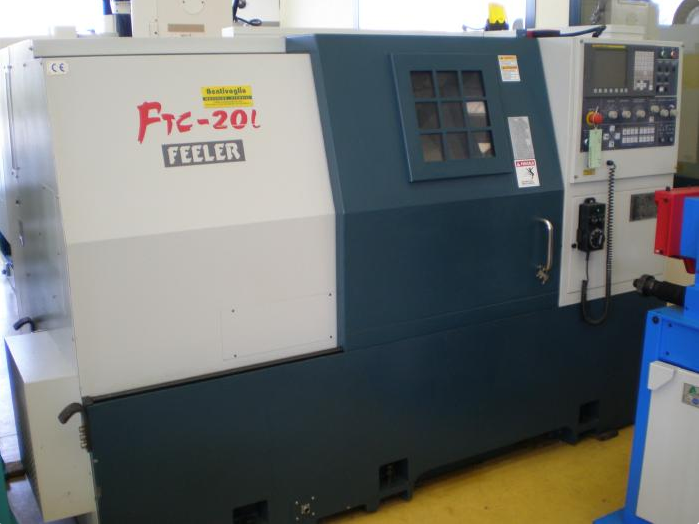

CNC FANUC OiTC
Max swing diameter mm.560
Turning diameter mm.350
Max turning lenght mm.613
Slant of bed 45.
Axis X mm.190
Axis Z mm.650
Servo motor FANUC for axis X and Z KW.1
Rapid feedrates axis X and Z 24 M/min.
Spindle front bearing diameter mm.100
spindle bore/ bar passaging diameter mm.62/52
spindle nose ASA a2-6
spindle cone 1:20
Main motor power Kw.15/18,5
Spindle rotation rpm 4500
Chuck size 8""
Quill diameter mm.65
Fixed type
Quill taper CM4
Quill stroke mm.90
Turret with 8 tools
Tool size mm.25
Coolant motor power HP 1/4
Chip conveyor motor power HP 1/4
Overall size at floor mm.2630x1535
Machine net weight Kg. 5000
ACCESSORIES:
Turret 8 positions
Tailstock
Oil lubrication system
Coolant motor
Coolant tank
Chip conveyor
3 jaw selfcentering chuch Strong 8
Working light
Transformer 220/380 volt.

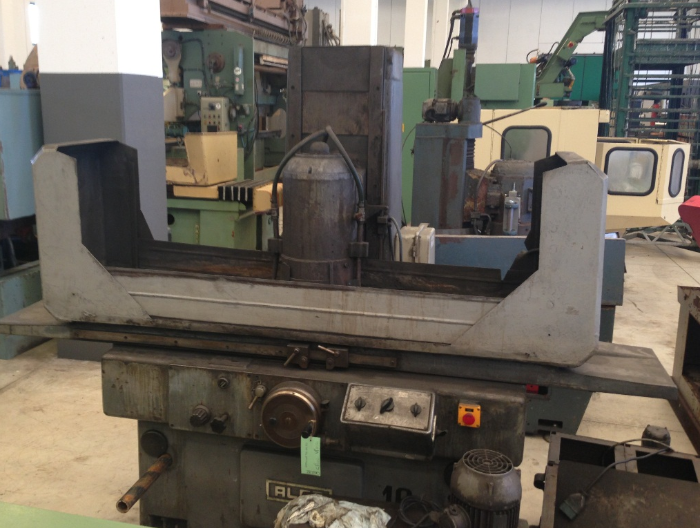

Stokes mm 800x280
Sector wheel
Wheel diameter mm 280
Equipped with:
Electromagnetic table mm 800x280.

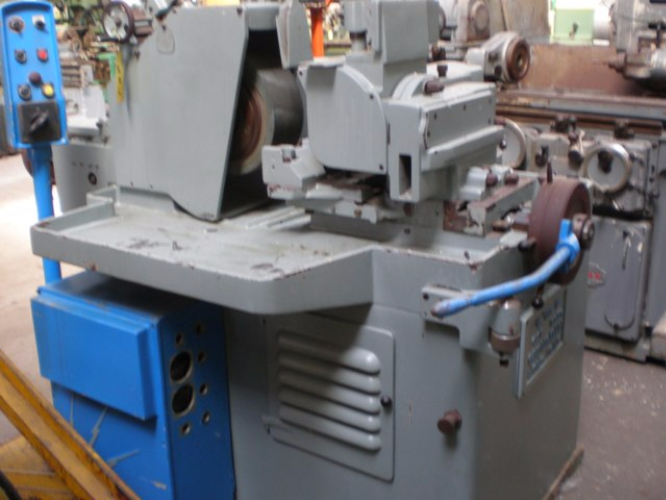

RTF.SCE.O2O7
WITH GRINDING WHEEL MM. 125.

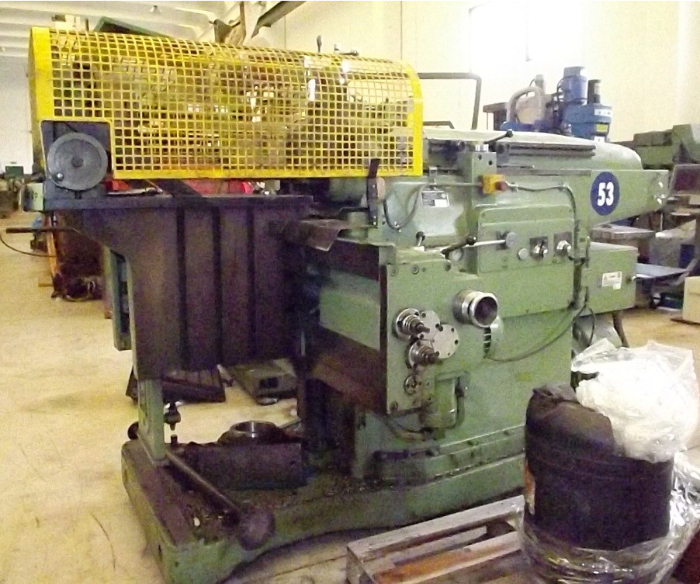

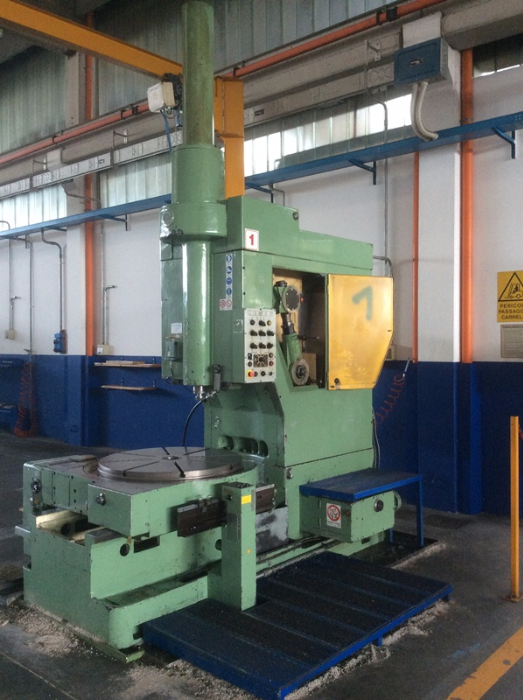

Module from1 to 12
Table mm 1000
Stroke mm 300
Quill mm 100
Max gear teeth diameter mm 1250
Min gear teeth diameter mm 160
Weight Kg 11.000
EQUIPPED WITH:
Standard gears.

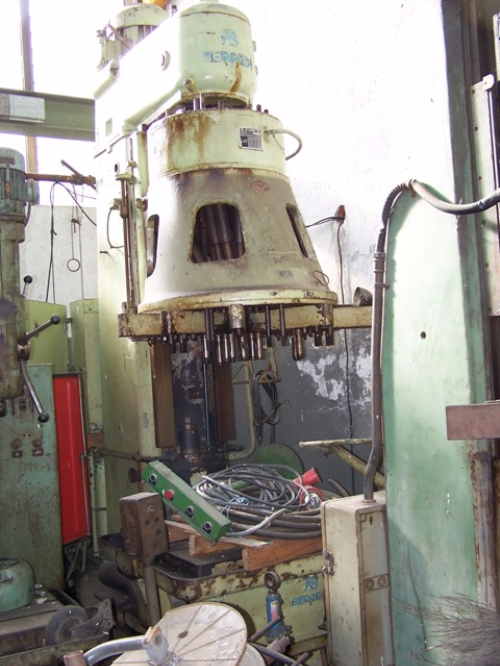

TRP.MTE.OO18
HOLE CAPACITY MAX MM.28
SPINDLE TAPER CM 3
MAX INTERAXIS MM.700.

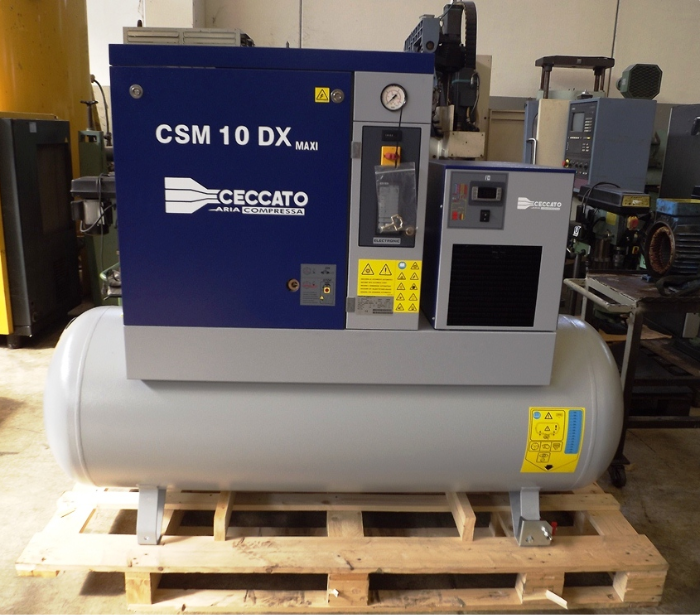

NEW05151
HP/kW 10/7,5
L/MIN 920
APPROX. WEIGHT KG 326
EQUIPPED WITH:
-TANK 500 LT.
-DRYER AND FILTRES.

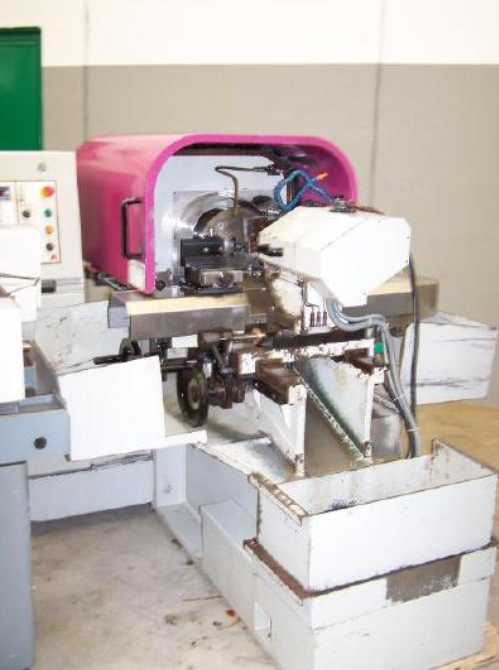

New04921
CNC FANUC -POWER MATE
SPINDLE DIAM. 300 MM
LENGHT MAX 300 MM
SPINDLE HOLE 50 MM
WEIGHT 3000 KG.

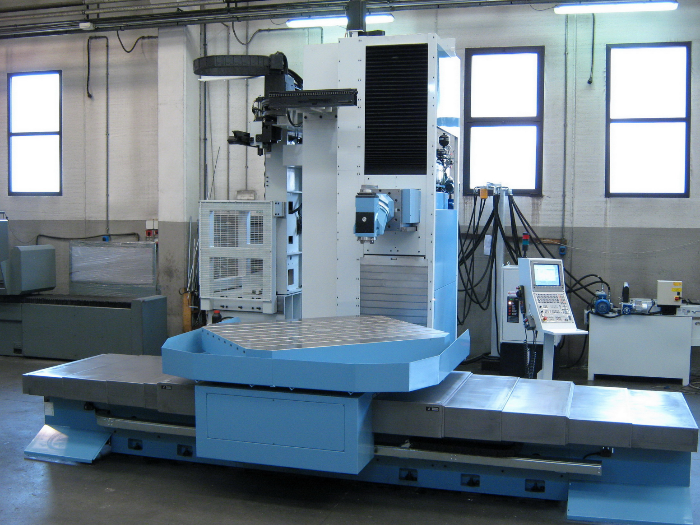

HYDROSTATIC
CNC SIEMENS 850C
Axis X mm 4100
Axis Y mm 2400
Axis Zc + Zm mm 1500 (spindle holder stroke Zc mm 800 - spindle stroke Zm mm 700)
Rotary moving table dimensions mm 2600x2600 (in continuous)
Table load ton 30
Quill diameter mm 150
Chain type tool magazine no. 50 positions
Spindle speed no. 2 ranges - 6:1600 g/1'
Spindle power 40/65 kW - ISO 50
Automatic Bi-rotary head:
- rotation (back part) 360 positions
- spindle inclination (front part) +/- 90° vertical/ horizontal
- power 30 HP
- speed 1000 rpm/1'
- taper ISO 50
Chip conveyor.
