Manufacturer	MORI SEIKI
Model	NZ1500 T2Y2
Year	10 / 2008
CNC	MSX-701 III
Capacity
Swing over bed	800 mm.
Max distance between spindle nose surfaces	1.130 mm.
Max. turning diameter	320 mm.
Max. workpiece diameter for transferring	300 mm.
Max. turning length	810 mm.
Bar work capacity	52 mm.
Axis
X1 Axis Travel	210 mm.
X2 Axis Travel	210 mm.
Y1 Axis Travel	+65 / -45
Y2 Axis Travel	-65 / +45
Z1 Axis Travel	810 mm.
Z2 Axis Travel	810 mm.
Spindle 2 B-Axis Travel	900 mm.
C Axis in Main Spindle	INCLUIDO
Feeds
Rapid Feed X1/X2 Axis	30.000 mm./min.
Rapid Feed Z1/Z2 Axis	50.000 m./min.
Work feed	0-5000 mm/min.
Main Spindle
Speed	60-6.000 rpm
Speed ranges	2
Power	22//18 kW
Quill diameter	61 mm.
Nose	JIS A2-5
Min Spindle indexing range	0.001º
Spindle 2
Speed	60-6.000 rpm
Power	22//18 kW
Quill diameter	61 mm.
Nose	JIS A2-5
Min Spindle indexing range	0.001º
Revolver turret
Turret type	16 estaciones x 2
Turret positions	16 x 2 = 32
Driven Tools Speed	6.000 rpm
Max Power Driven Tools	7.5 / 5.5 kW
Equipment
Chip Conveyor	INCLUDED
Parts unloader	INCLUDED
Parts conveyor	INCLUDED
Bar Feeder	LNS Hydrobar SPRINT 552
4 axal driven tool holders	INCLUDED
6 radial driven tool holders	INCLUDED
17 standard tool holders	INCLUDED
Main Spindle / Second Spindle	INCLUDED
Turret 1 – Automatic tool messer	INCLUDED
Turret2 – Automatic tool messer	INCLUDED
Machine Hours
Power On	21.779 h.
Cutting Time ( Spindle 1 )	12.841 h.
Machine size and weight
Machine Weight	8.300 kg
Machine Dimensions (LxWxH)	3.930 x 2.718 x 2.320 mm

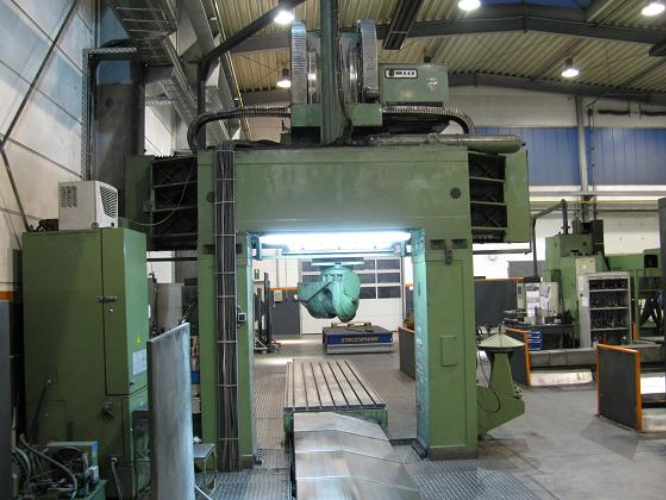

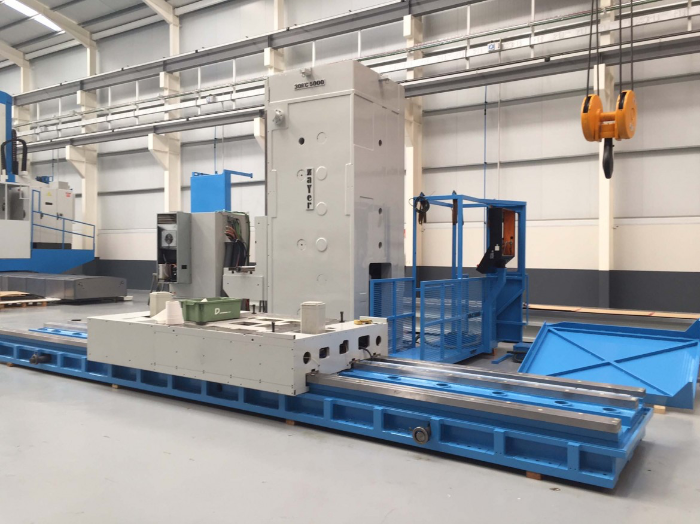

Year	:1997
CNC	:HEIDENHAIN 426 CA
Rotary Table MG-12	: INCLUDED
Table Surface	:1.600 x 1.600 mm.
Max Weight Allowed on Table MG 12	:12.000 kg.
Table Rotation (B Axis) 	:Continuous (0.001º)
Quill Diameter	:125 mm.
Table Longitudinal Travel ( X Axis)	:3.000 mm.
Vertical Travel ( Y Axis)	:2.000 mm.
Columna Longitudinal Travel(Z Axis)	:800 mm.
Main Axis Axial Travel ( W Axis)	:1.600 mm.
5 Controlled Axis	:X, Y, Z, W, B

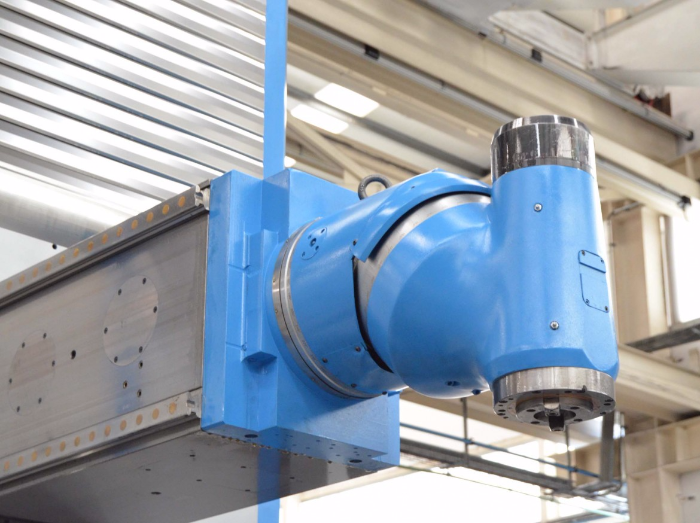

Juarist Birrotative Universal Head	: INCLUDED
Head Power	:22 kW
Rapid Traverse	:10.000 mm/min
Head Internal Taper	:ISO 50
Extended Head	: INCLUDED
Speed Ranges	:2
Turning Speeds	:0-2.500 rpm
Portable Handwheel	:HEIDENHAIN HR 410
Machine Weight	:35.000 kg.

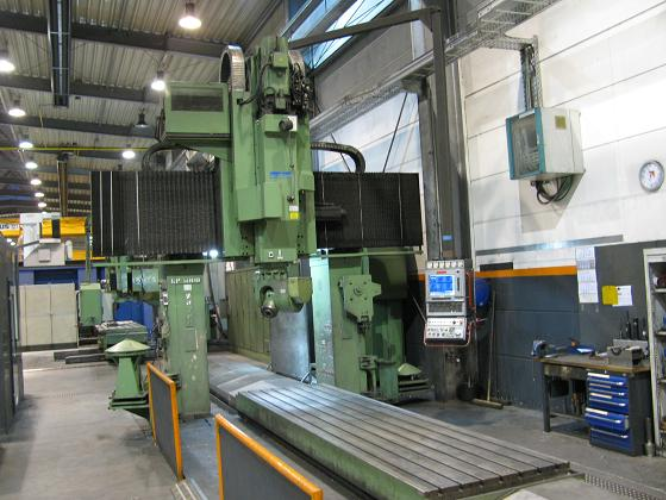

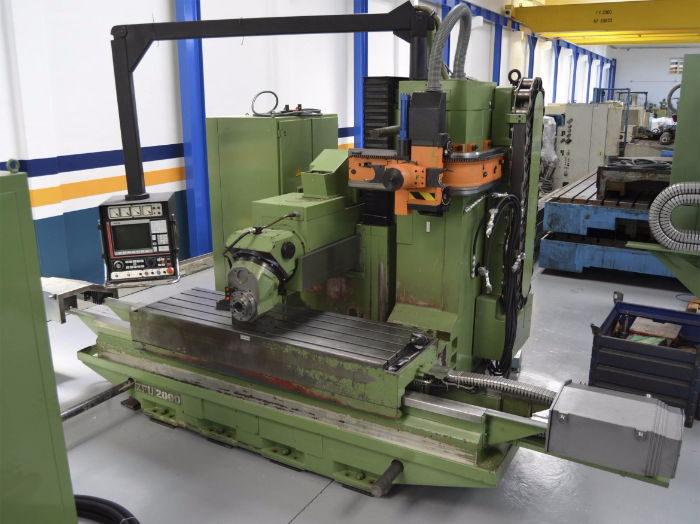

Year:1999
CNC:FAGOR 8050
Table Surface:2.000X1.000 mm
 T Slots / T Slot Weight	:5 / 22 mm.
Distance between T Slots	:180 mm.
Max Weight Allowed on Table	:4750 kg
Longitudinal Traverse (X Axis)	:1.830 mm.
Cross Traverse (Y Axis):1.000 mm
Vertical Traverse (Z Axis:1.000 mm.
Rapid Feeds	:8.000 mm/min
Working Feed:3.000 mm./min
Carrying Load Table	:4.750 kg.
Taper:ISO-50
Speed Ranges:2
Turning Speeds:40-3.000 rpm.
Main Motor Power:22 kW.
Machine Weight	:10.000 kg.
Machine Dimensions	:5.000 x 2.800 x 2.800 mm.

Year	2008
CNC	FAGOR 8050 TC

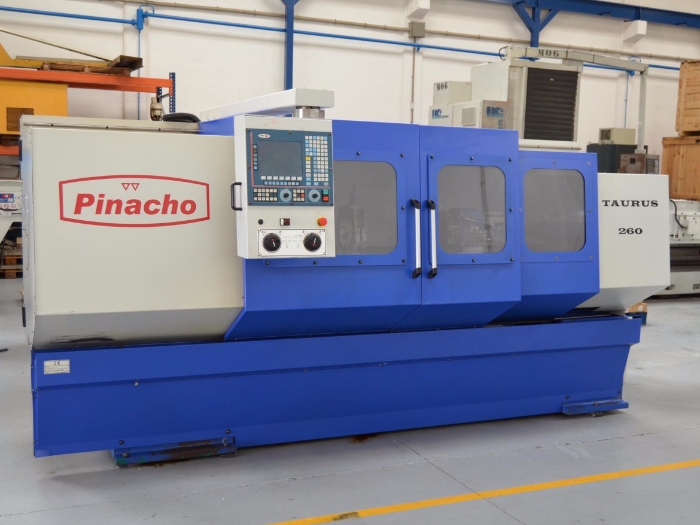

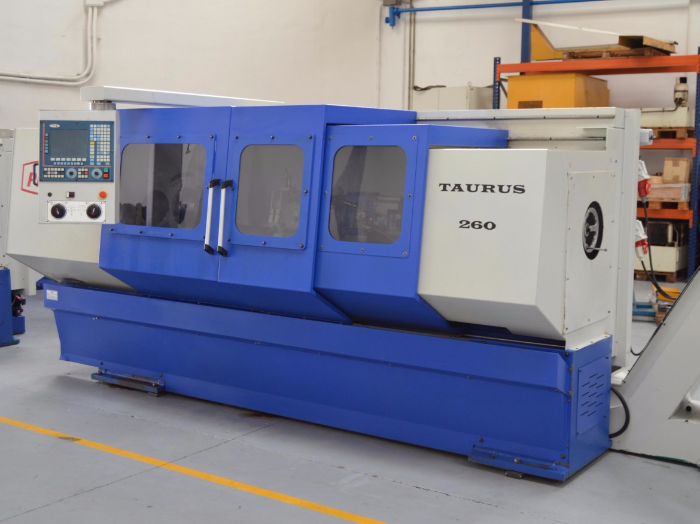

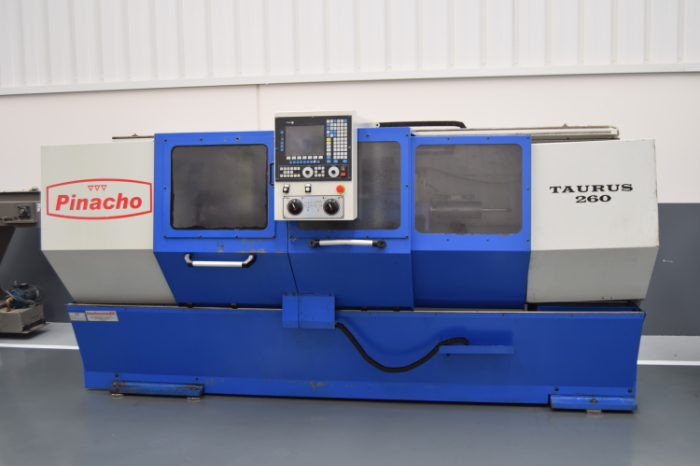

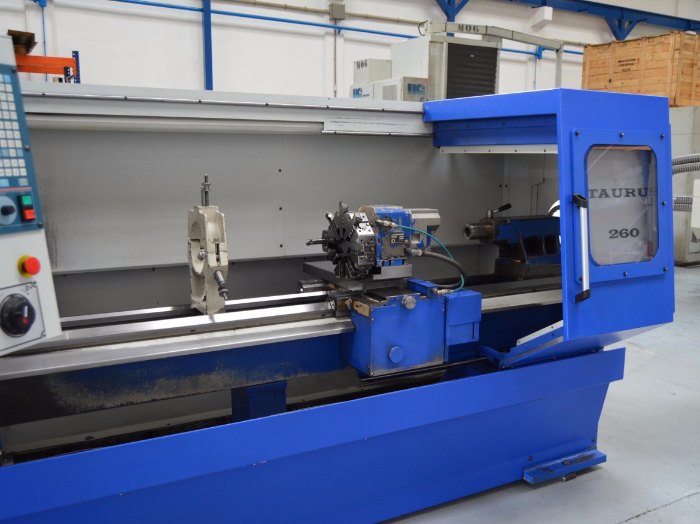

Manufacturer	PINACHO
Model	TAURUS SK 260 X 2000
 Max. Over Bed	530 mm.
 Max. Longitudinal Carriage	475 mm.
 Max. Transversal Carriage	315 mm.
Centres Height	260 mm
Distance Between Centres	1.500 mm.
Bed Width	350 mm.
Main Spindle Bore Ø	80 mm.
Rapid Traverse X Axis 	10.000 mm/min
Rapid Traverse Z Axis	10.000 mm/min
Head Turning Speeds	0-2.500 rpm
Head Automatic Range	1 Ranges
Main Motor Power	11 Kw.
Spindle Nose	ASA B5,9
Tailstock Quill  Ø	82 mm
Hydraulic Tailstock Quill Travel	235 mm
Tailstock Morse Taper	Morse 5
Turret Automatic Change Duplomatic 8 Pos.	INCLUDED
Universal Chuck – 3 Jaws  Ø 250	INCLUDED
Complete Rear Protection	INCLUDED.
2 Handwheels at Control Pad	INCLUDED.
Machine Dimensions	5.435 x 1.985 mm
Machine Weight	3.500 Kg.
Total Power Required	20 Kw.

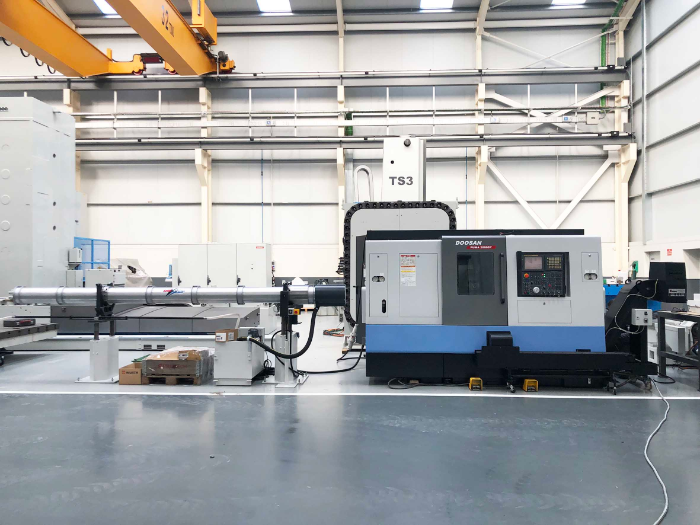

Year	2007
CNC	FANUC 18i - TB

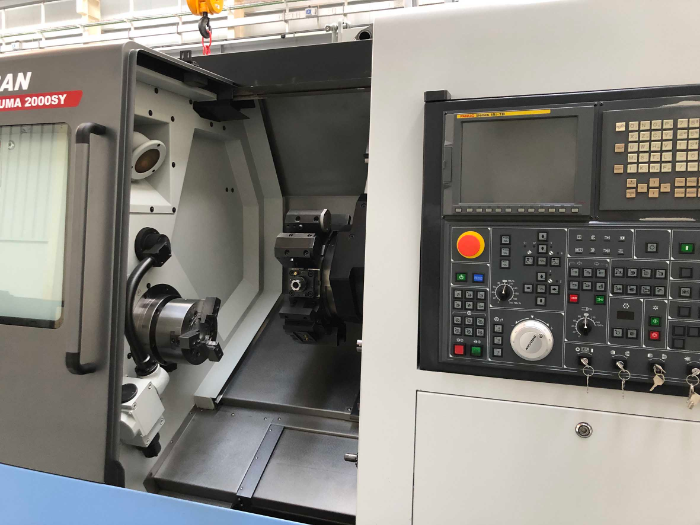

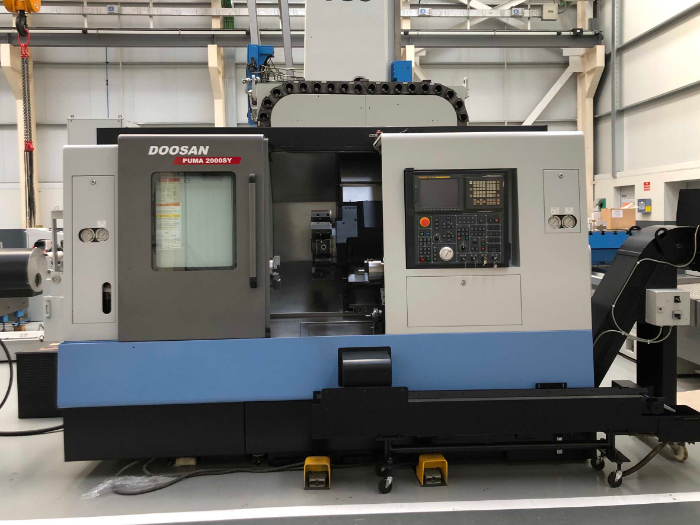

Manufacturer	DOOSAN
Model	PUMA 2000 SY
Max. Ø Swing Over Bed	600 mm.
Max. Ø Swing Over Saddle	550 mm.
Max. Turning Diameter	330 mm.
Max. Turning Length	510 mm.
X Axis Traverse	250 mm.
Z Axis Traverse	580 mm.
Y Axis Traverse	100 (±50) mm.
B Axis Traverse	580 mm.
Rapid feed X Axis 	20 m/min.
Rapid feed Z axis	24 m/min.
Rapid Traverse Y	7,5 m/min
Rapid Traverse B	20 m/min.
Main Spindle through hole Ø	76 mm
Sub Spindle through hole Ø	45 mm
Main Spindle Speed Ranges	4.500 rpm.
Sub Spindle Speed Ranges	6.000 rpm
Main Spindle motor power	15 kW
Sub Spindle motor power	7.5 kW
Rotary tool spindle motor power	5.5 kW
Nº of Station 	12
Tool Size	25 mm
Turret Indexing Time	0.1 s
Living Tool Speed	5.000 rpm.
C Axis in main Spindle	 INCLUDED
C Axis in sub Spindle INCLUDED
C Axis index	0.001 Grados/ Degrees
Spindle Chuck Ø	Ø 210 mm
Sub Spindle Chuck Ø	Ø 160 mm
2  Axial Live Tool Holder	 INCLUDED
2  Radial Live Tool Holder	 INCLUDED
Automatic Bar Feeder    INCLUDED
Tool pre-setter	INCLUIDO/ INCLUDED
Cutting Oil Pump high pressure (7Bar) INCLUDED
Automatic Parts Catcher  INCLUDED
External Parts Conveyor	  INCLUDED
Chip Conveyor INCLUDED
Machine Dimension	2.060x3.185x1775 mm.
Machine Weight	4.850 kg.
Total Power	58 Kva.

Year	2008
CNC	FANUC 32i Model A

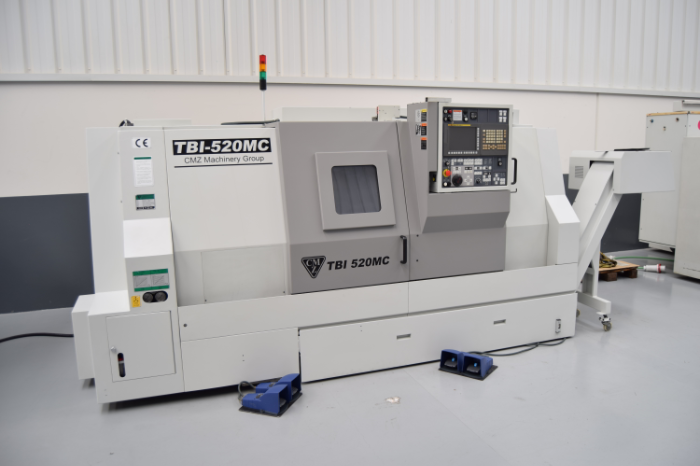

Manufacturer	CMZ
Model	TBI 520 MC
Distance Between Centres	1.100 mm.
Ø Swing over Bed 	520 mm.
Ø Max. Turning	420mm.
X / Z  Travel	296 / 1090 mm.
Rapid Feeds (X, Z Axis)	18 m/min
Rapid Feed (Y Axis)	24 m/min,
Max Speed of the Head	3.000 rpm
Ø Spindle Bar Diameter	82 mm.
Chuck Bore Ø	95 mm.
Spindle Max. Power	22 kW
Number of positions	12 (VDI-50)
Number of positions of Driven tools	12
Driven Tools Speed	4.000 rpm
Max Power Driven Tools	8.5 Kw
C Axis and Driven Tools  INCLUDED
Hydraulic Steady Rest SMW Autoblock 	 INCLUDED
Tool Presetter INCLUDED
2 Axial Driven Tool Holders INCLUDED
2 Radial Driven Tool Holders INCLUDED
Installed Power	50 KVA
Machine Weight	6.500 Kg.
Machine Dimensions	3750x1740x1920 mm

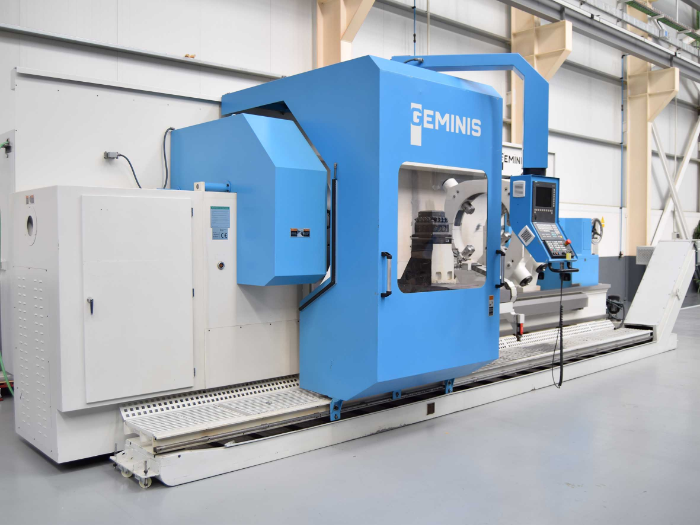

Year	2.001
CNC	FAGOR 8055 TC

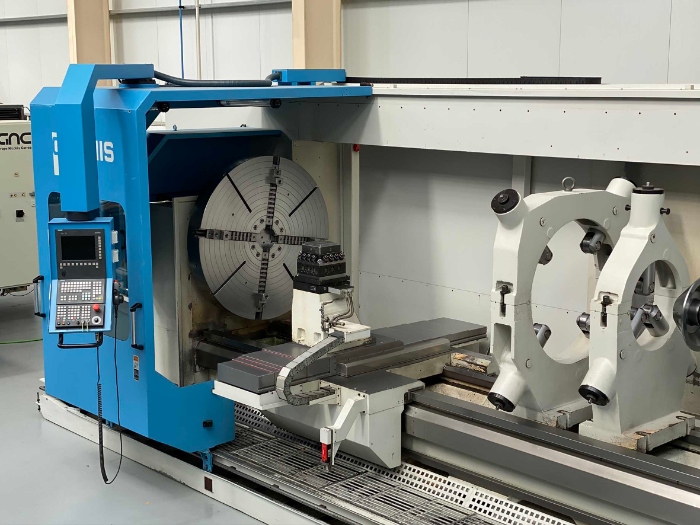

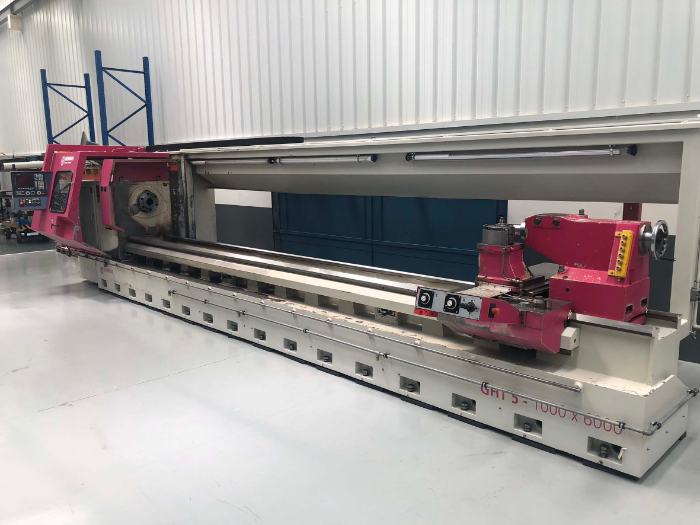

Manufacturer / Model	GEMINIS / GHT-5 G2 - 6000
Max. Swing Over Bed Ø	1.000 mm.
Max. Swing Ø	1.000 mm.
Max Swing Over Cross Slide Ø	680 mm.
Distance Between Centres	6.000 mm.
Rapid Feed X, Z Axis	8 m/min
Turning Speeds	0-1400 rpm
Spindle Automatic Ranges 	2 Gamas/ Ranges
Main Spindle Motor Power	37 Kw.
Spindle Nose	DIN-55026-B11
Turret Type	MANUAL
Chuck with 4 Indep. Hard Jaws Ø800 mm.  INCLUDED
Chuck with 3 Jaws Universal INCLUDED
1 Steady Rest 3 Supports   Ø 430 mm INCLUDED
Chuck Protection	  INCLUDED
Complete Rear Protection INCLUDED
Quill Travel	104 mm.
Ø Tailstock Quill	140 mm
Tailstock  Quill Traverse	300 mm
Max.Weight Between Centres (1 Steady)	6.200 Kg.
Piece Max. Weight Between Centres	4.800 Kg.
Machine Weight	14 Tn.
Total Power Required	45 Kw.

Year	2012

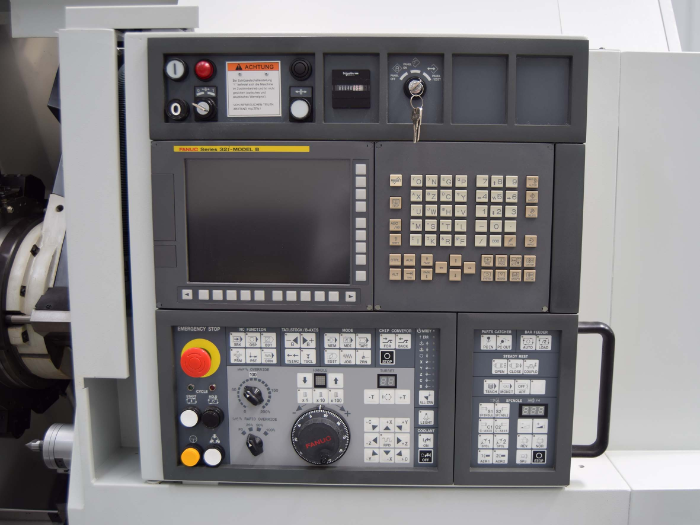

CNC	FANUC 32i MODEL B

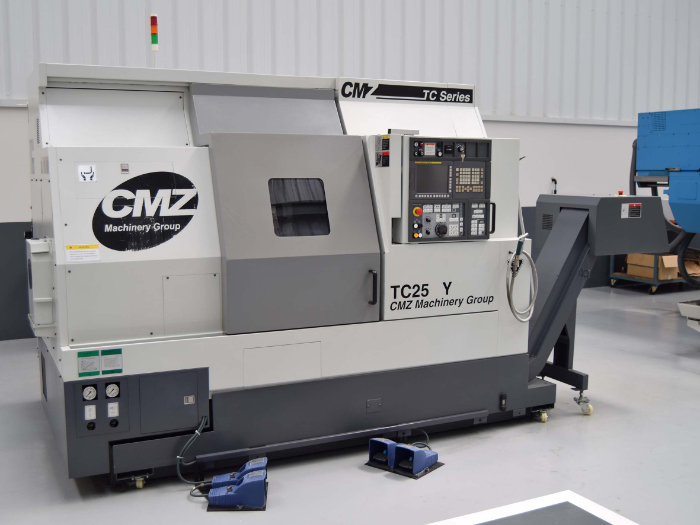

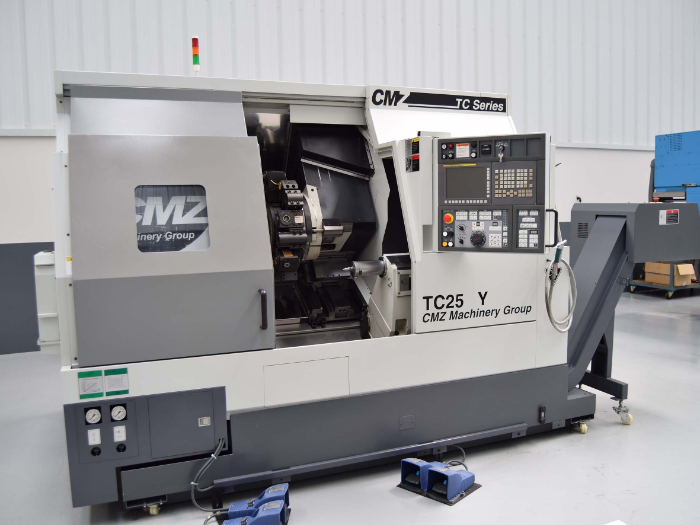

Manufacturer	CMZ
Model	TC25Y-800
C Axis and Driven Tools 	INCLUDED
Y Axis	INCLUDED
Distance between chuck and tailstock	898 mm.
Ø Swing over Bed 	920 mm.
Ø Max.Turning over Carriage	745 mm
X Travel	315 mm.
Z Travel	800 mm.
Y Travel	+80 -60
Rapid Feeds (X, Z Axis)	30 m/min
Rapid Feed (Y Axis)	15 m/min,
Axis Acceleration	1g
Max Speed of the Head	4.000 rpm
Ø Spindle Bar Diameter	66 mm.
Chuck Bore Ø	66 mm.
Spindle Max. Power	35 kW
Number of positions of Driven tools	16
Driven Tools Speed	4.000 rpm
Max Power Driven Tools	16 kW
Max Torque Dirven Tools	75 Nm
Chuck SHUNK 260-81	INCLUDED
Rapid Change of Jaws in Hydraulic Chuck	INCLUDED
2nd High Pressure Coolant Pump (15 Bar, 55 l/min)	INCLUDED
2 Axial Diven Tool Holder	INCLUDED
2 Radial Driven Tool Holder	INCLUDED
Tool Presetter	INCLUDED
Coolant Tank Capacity	300 l.
Installed Power	45 KVA
Machine Weight	7.200 Kg.
Machine Dimensions	2.803x2.020x2.236 mm,.

Year	2010
CNC	FANUC 31i Model A

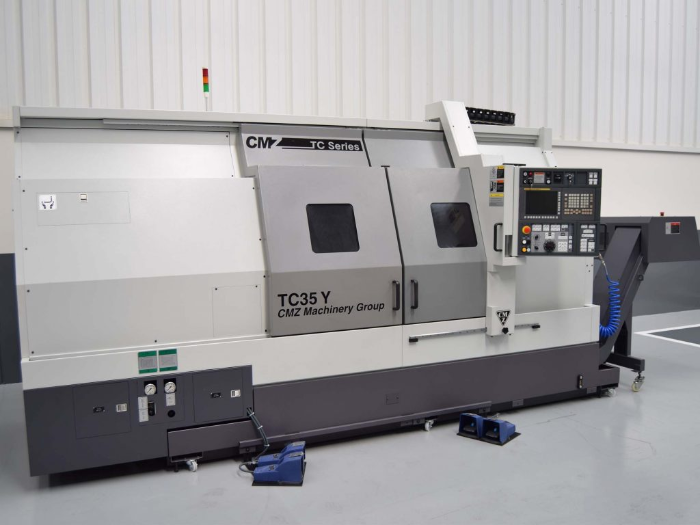

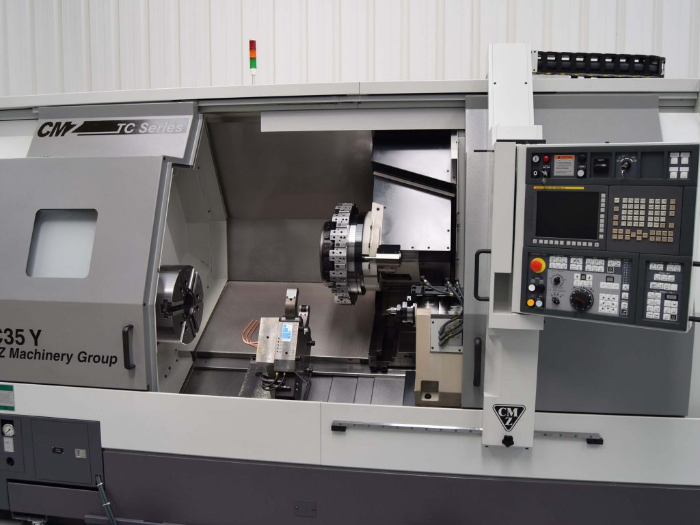

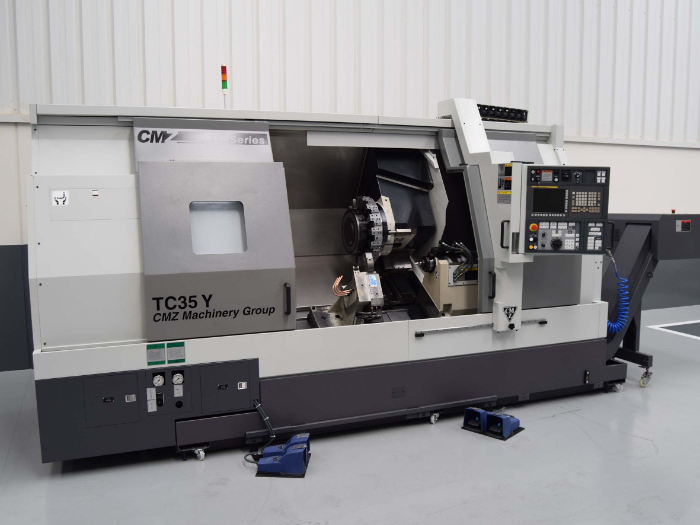

Manufacturer	CMZ
Model	TC35Y-1350
C Axis and Driven Tools  INCLUDED
Y Axis	 INCLUDED
Distance Between Centres	1.416 mm.
Ø Swing over Bed 	920 mm.
Ø Max. Turning	550mm.
Ø Max.Turning over Carriage	745 mm
X Travel	315 mm.
Z Travel	1.350 mm.
Y Travel	+80 -60
Rapid Feeds (X, Z Axis)	30 m/min
Rapid Feed (Y Axis)	15 m/min,
Max Speed of the Head	3.000 rpm
Ø Spindle Bar Diameter	95 mm.
Chuck Ø	400 mm.
Chuck Bore Ø	95 mm.
Spindle Max. Power	48 kW
Tailstock Quill Ø	110 mm.
Tailstock Morse Taper	CM4
Tailstock Travel	150 mm.
Number of positions	12
Number of positions of Driven tools	12
Driven Tools Speed	4.000 rpm
Max Power Driven Tools	16 Kw
Hydraulic Steady Rest SMW Autoblock SLU X3.2 + Support
Coolant Steady Rest	 INCLUDED
Automatic Greasing System Steady	 INCLUDED
Presurización Neumática Luneta INCLUDED
Chuck Autoblock 400 BH INCLUDED
2nd High Pressure Coolant Pump (15 Bar, 55 l/min)
2 Porta Herramientas motorizados Axiales INCLUDED
2 Porta Herramientas motorizados Radiales INCLUDED
Tool Presetter	 INCLUDED
Coolant Tank Capacity	350 l.
Hydraulic Oil Tank Capacity	10 l.
Lubrication Oil Tank Capacity	2 l.
Installed Power	65 KVA
Machine Weight	9.000 Kg.
Machine Dimensions	4.088x2.020x2236

Year	:2.013
CNC	:SIEMENS 840 D-PL
Max. Swing Over Bed Ø	:1.600 mm.
Max. Swing Ø	:1.600 mm.
Max Swing Over Cross Slide Ø	:1.200 mm.
Cross Travel ( X Axis)	:830 mm.
Distance Between Centres	:4.000 mm.
Rapid Feed X, Z Axis	:10 m/min
Turning Speeds	:0-800 rpm
Spindle Ranges 	:4
Main Spindle Power	:68 Kw.
Spindle Nose	:55026-15
Turret Positions	:4
Turret Type 	: SAUTER 300 X 300
Chuck with 4 Independent Hard Jaws Ø1400 mm. 	: INCLUDED
Steady Rest 4 Supports   Ø 900 mm	: INCLUDED
Steady Rest 3 Supports   Ø 500 mm	: INCLUDED
Driven Travel of Tailstock	: INCLUDED
Portable Handwheel	: INCLUDED
10 Toolholders	: INCLUDED
Back support for boring tool	: INCLUDED
Air conditioning in electrical cabinet	: INCLUDED
Encoder in X Axis	: INCLUDED
Chuck Protection	: INCLUDED
Complete Rear Protection	: INCLUDED
Longitudinal Chip Conveyor	: INCLUDED
Quill Travel	:162 mm.
Ø Tailstock Quill	:235 mm
Tailstock Quill Traverse	:300 mm
Weight of the bed	:910 mm.
Machine Condition	: SEMI - NEW
Machine Weight	:26 Tn.
Total Power Required	:90 KW.

Year	:2011
CNC	:FANUC 32i Model A
Swing over Bed	:685 mm.
Swing over Carriage	:510 mm.
Máximum Turning Diameter	:400mm.
Distance Between Plate and point	:692 mm.
X Travel	:240 mm.
Z Travel	:640 mm.
Rapid Feed X	:18.000 mm/min
Rapid Feed Z
:24.000 mm/min.
Spindle Speed	:4.000 rpm
Ø Maximum Bar Size	:66 mm.
Inside diameter of spindle	:73 mm.
Chuck Diameter	:210 mm.
Chuck bar size	:66 mm.
Spindle Power	:22 kW
Tailstock Quill Diameter	:90 mm.
Taper	:CM5
Postions Turret	:12
Change Time Turret	:30º 0.2s; 180º 0.5s
C Axis	:INCLUIDO / INCLUDED
Driven Tools	:INCLUIDO/ INCLUDED
Nr of Postions Driven Tools	:12
Speeds of Driven Tools	:4.000 rpm
Power Driven Tools	:12 KW
2 Axial Driven Toolholders	:INCLUIDO / INCLUDED
2 Radial Driven Toolholders	:INCLUIDO / INCLUDED
Chip Conveyor	:INCLUIDO / INCLUDED
Automatic Tool Measure	:INCLUIDO / INCLUDED
Automatic parts conveyor	:INCLUIDO / INCLUDED
Capacity of coolant tank	:240 l.
Capacity of hydraulic oil tank	:9 l.
Capacity of lubricantion oil tank	:2 l.
Fully Installed Power	:40 KVA
Machine Weight	:5.100 Kg.
Machine Dimensions	:2322x1603x1800 mm

Year	06.2001
CNC	HEIDENHAIN TNC 426 PB

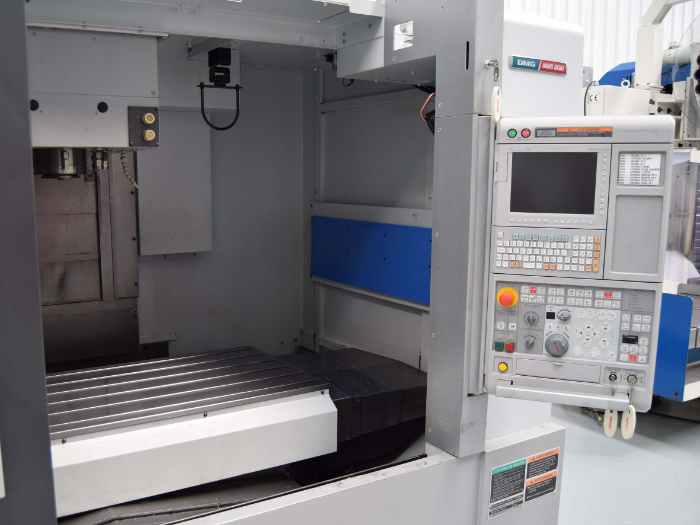

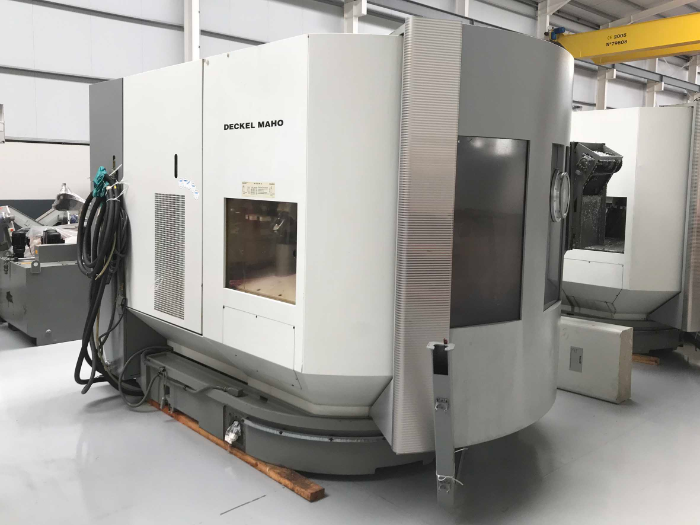

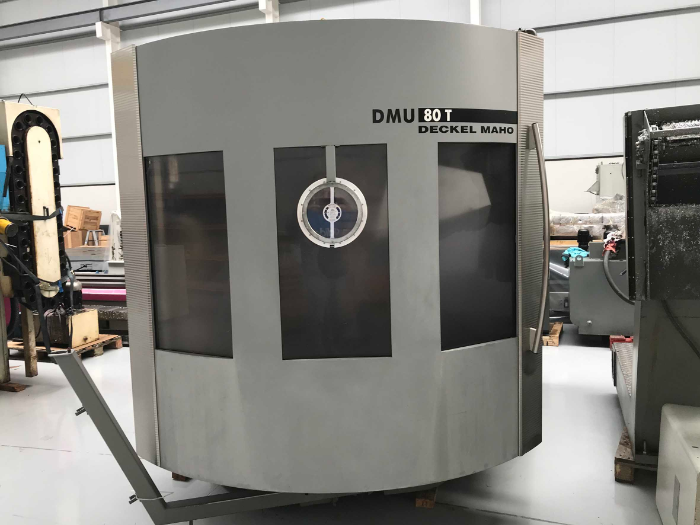

Manufacturer	DMG - DECKEL MAHO
Model	DMU 80 T (5 EJES)
Table Dimension	1.250 x 700 mm.
Travels (X/Y/Z)	880/630/630 mm.
C Axis in Table	 CONTINUOUS
B Axis Turning Head	-91º / +12º (  CONTINUOUS)
Ø 700 mm.
Rapid Traverse	30.000 mm/min
Max. Working Feed	30.000 mm/min.
Taper	SK-40 DIN 69871
Turning Speeds	20-12000 rpm
Main Motor Power	19  Kw.
ATC	  INCLUDED
Tools at Tool Charger	32 Herr/Tools
Table Max. Carrying Load 	800 Kg.
Internal Coolant 40 Bar  INCLUDED
HEIDENHAIN Optical Rules  INCLUDED
Chip Conveyor	  INCLUDED
Portable Handwheel	HEIDENHAIN HR-410
3D quickSET*	I NCLUDED
Hours On	42.771
Spindle On	19.127
Net Weight	9.500 Kg.

Month / Year	6 / 2013
CNC	M750 BM

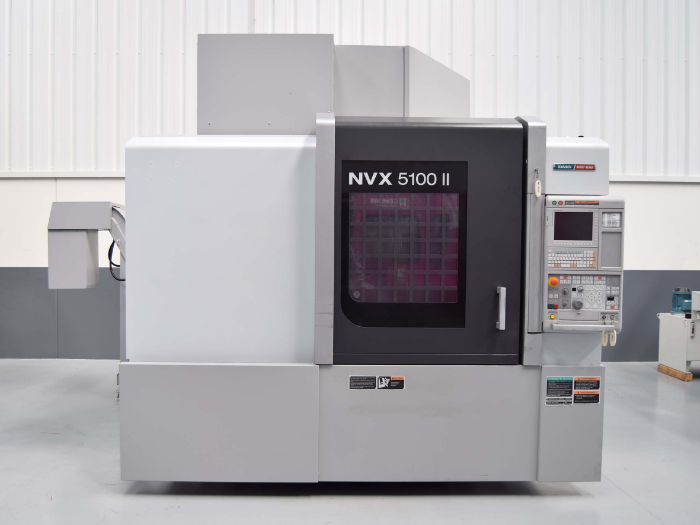

Manufacturer	MORI SEIKI
Model	NVX 5100 II / 40
Table Surface	1.350 x 600 mm
Max Weight Allowed on Table	1.200 kg.
Min-Max distance from the spindle of the table	150-660 mm.
Longitudinal Traverse (X Axis)	1.050 mm
Cross Traverse (Y Axis	530 mm
Vertical Traverse (Z Axis)	510 mm
Rapid Traverse (X, Y, Z Axis)	30.000 mm/min
Max. Working Feed	30.000 mm/min
Taper	BT 40
Spindle Speeds	15.000 rpm.
Engine Power	30 kW
Tool Charger	30 Herr / Tools
Max Tool Length	350mm.
Max Tool Diameter	160 mm.
Tool Change Time	1,3 Seg.
Rotary Table ( 4th / 5th Axis)	5AX-DDRT 200
Rotary Table Surface 4th – 5th Axis	Ø 200 mm.
Synchronised Tapping  INCLUDED
High pressure coolant through spindle 20 Bar  INCLUDED
Chip conveyor INCLUDED
High Smoothing Control  INCLUDED
Automatic Tool Length Measure  INCLUDED
Machine Dimenssion	3.018x2971x2601 mm
Machine Weight	7.500 kg.

Year	2006
CNC	HEIDENHAIN iTNC-530

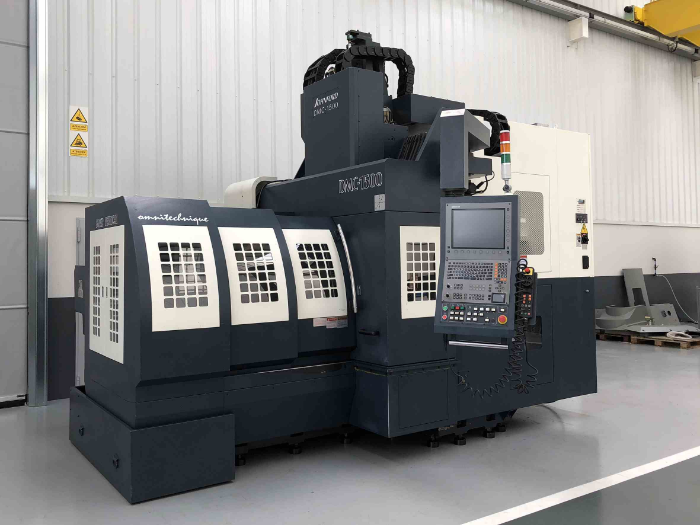

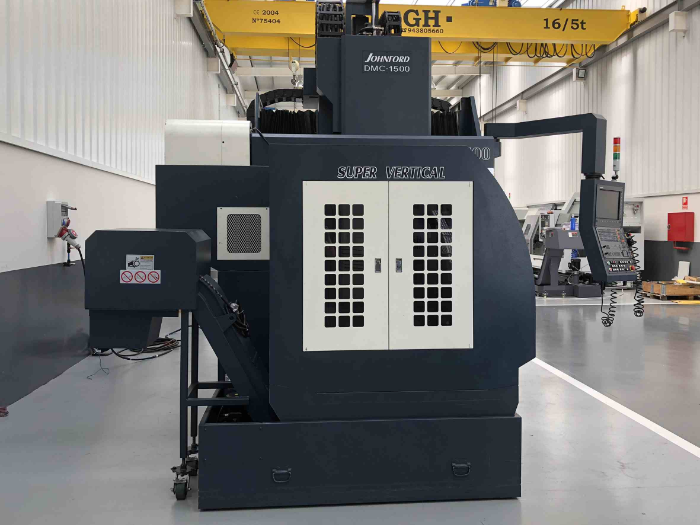

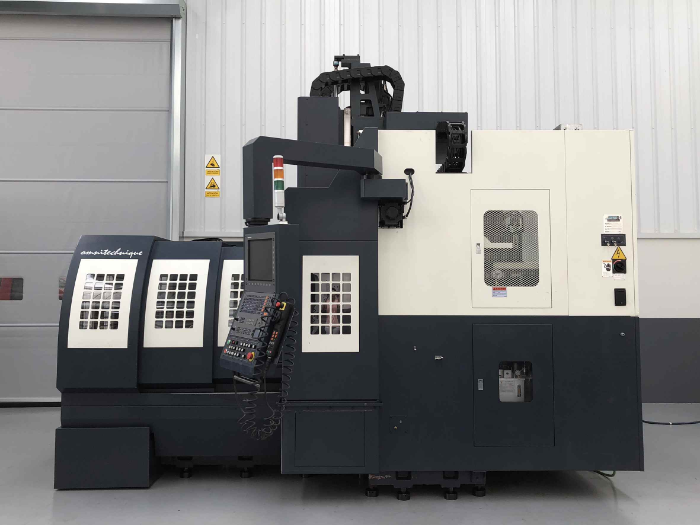

Manufacturer	JOHNFORD
Model	DMC 1500
Table Surface	1.600 x 850 mm.
Longitudinal Traverse (X Axis)	1.500 mm
Cross Traverse (Y Axis	900 mm
Vertical Traverse (Z Axis)	762 mm
Distance Between Columns	1060 mm.
Rapid Feed Axis (X,Y)	24 m/min
Rapid Feed Z Axis	12 m/min
Working Feeds	10 m/min
Spindle Speed	8.000 mm/min
Taper	ISO-40
Spindle Power	15 Kw
2 Gamas (Caja ZF)
Tool Charger 	 INCLUDED
ATC Positions	24
Tool Touch Probe	 INCLUDED
Portable handwheel	Heidenhain HR-410
Chip conveyor	 INCLUDED
Internal Coolant 20 Bar	 INCLUDED
Washing Gun and Air Gun	 INCLUDED
Carrying Load Table	4.600 Kg.
Machine Weight	15.000 Kg.
Total Power Required	55 Kw.
Machine Dimensions ( LxWxH)	4980x3000x3780 mm.

Year	2003
CNC	Fanuc 18i MB

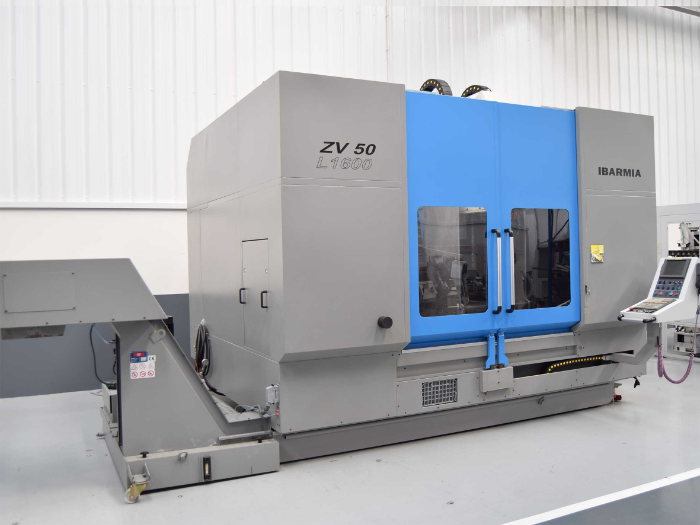

Manufacturer	IBARMIA
Model	ZV 50/1600
Table Surface	2.000 x 650 mm.
Longitudinal Traverse (X Axis)	1.600 mm
Cross Traverse (Y Axis	600 mm
Vertical Traverse (Z Axis)	800 mm
Max. Working Feed Axis (X,Y,Z)	30 m/min
Turning Speeds	6.000 rpm
Taper	ISO 50
Main Motor Power	22 KW
Tool Charger RANDOM	INCLUDED
ATC Positions	30
Axis Measuring System	Reglas Ópticas Heidenhain. / Heidenhain Optical Scales
Portable Handwheel	FANUC
Chip Conveyor	INCLUDED
Internal Coolant 20 Bar	INCLUDED
Carrying Load Table	2.000 Kg.
Machine Weight	12.300 Kg
Total Power Required	50 KW.

Year	1.999
CNC	MAZATROL FUSIÓN 640 M

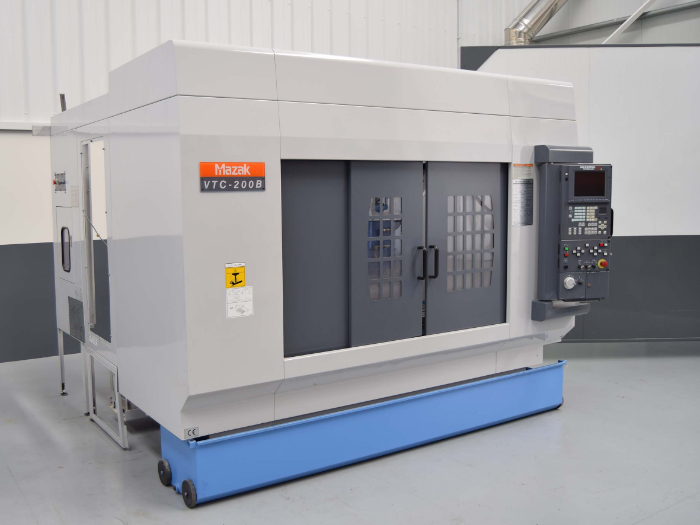

Manufacturer	Mazak
Model	VTC 200 B
Table Surface	1.460 X 460 mm
Max Weight Allowed on Table	800 Kg.
Longitudinal Travel (X- Axis)	1.120 mm.
Transversal Travel (Y-Axis)	510 mm
Vertical Travel (Z- Axis)	510 mm.
Min-Max. Distance Table to Nose Head	180 - 690 mm.
Rapid Traverse (X,Y,Z Axis)	36.000 mm/min
Max. Working Feed	20.000 mm/min
Taper	CAT-40
Spindle Speeds	10.000 rpm.
Engine Power	15 Kw.
Tool Charger	24 Herr./ Tools
Rigid Tapping	  INCLUDED
Length Tool Measure	  INCLUDED
Red Connection	  INCLUDED
Hours On	18.200 h.
Machine Weight	6.000 Kg.
Machine Condition	SEMI-NUEVA/

Year	2013
CNC	MAZATROL MATRIX NEXUS 2

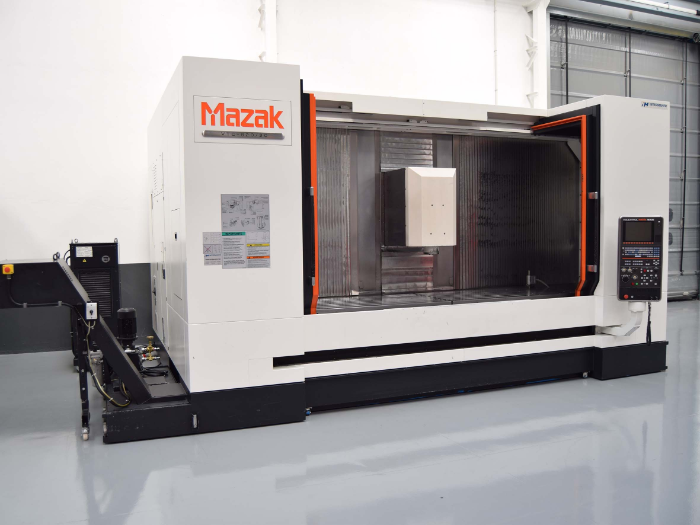

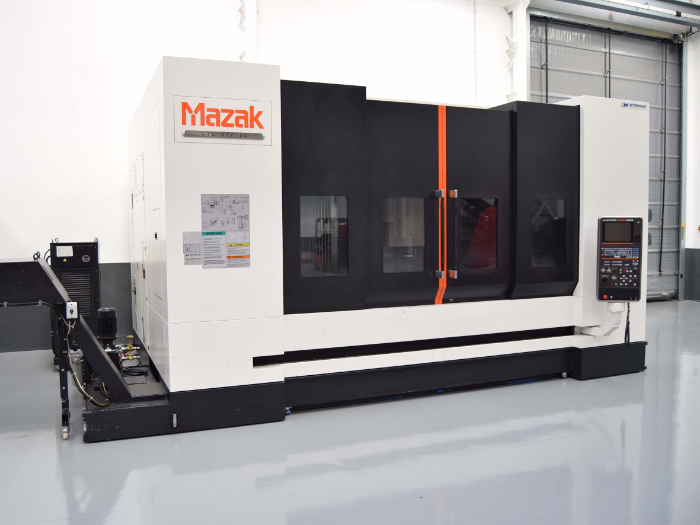

Manufacturer	MAZAK
Model	VTC 820/30
Table Surface	3.500 x 820 mm
Max Weight Allowed on Table	2.500 kg.
Min-Max distance from the spindle nose to the top of the table	140-860 mm.
Travels ( X/Y/Z)	3.000/820/720  mm.
Rapid Traverse (X, Y, Z Axis)	50.000 mm/min
Max. Working Feed
Includes high speed software package
(Standard speed 8.000 mm/min)	50.000 mm/min
Max. Working Feed	50.000 mm/min
Taper	CAT-40 DIN 69872
Spindle Speeds	35 to 18.000 rpm.
Engine Power	35 kW
Tool Charger	30 Herr / Tools
Synchronised Tapping	 INCLUDED
Chip conveyor 	  INCLUDED
High pressure coolant through spindle 15 Bar INCLUDED
Mazacc 3D high speed software package INCLUDED
High Smoothing Control  INCLUDED
3d coordinate conversion	 INCLUDED
Maximum program size	8 MB
Portable handwheel	 INCLUDED
Machine Weight	16.100 kg.

Year of Manufacture	1998
CNC	HEIDENHAIN TNC 426 CB

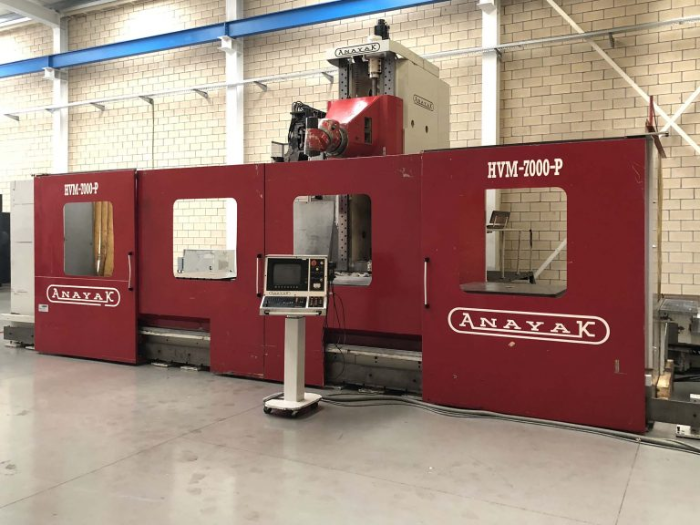

Manufacturer	ANAYAK
Model	HVM-7000 P
Table Surface:	7.000 X 1.200 mm
Longitudinal Traverse (X Axis):	6.300 mm
Transversal Traverse (Y Axis):	1.500 mm
Vertical Traverse (Z Axis)	2.000 mm
Rapid Traverse	20.000 mm/min
Max. Working Feed	10.000 mm/min
Taper:	ISO-50 (69871-B)
Turning Speeds:	20 - 3.000 r.p.m.
Speed Ranges	2 Gamas/ 2 Ranges
Auto Indexing Head	BIRRA 2 ; 2,5º - 2,5º
Main Motor Power	37/53 Kw.
ATC	  INCLUDED
Positions at ATC	120
Internal Coolant 20 Bar  INCLUDED
Chip Conveyor	  INCLUDED
1 Rotary Table Spirsin	1200x1200 mm; 360.000 posiciones
Max. Weight Allowed on Spirsin Rotary Table	5.000 Kg.
Paper Filter- additional tank	  INCLUDED
Double Operator Control Panel	 INCLUDED
Frontside Operator platform	 INCLUDED
Backside Operator platform	  INCLUDED
Max. Carrying Load Table:	20.000 Kg.
Machine Weight:	44.000 Kg.

Year	1999 / 2019
CNC	HEIDENHAIN TNC-430

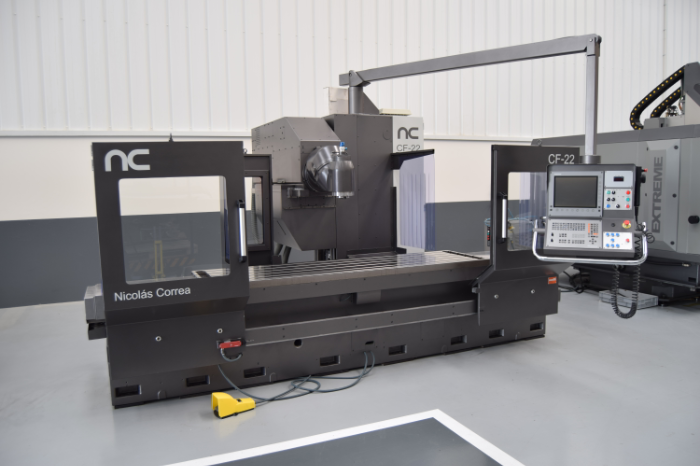

Manufacturer	NICOLAS CORREA
Model	CF 22/ 25 PLUS
Table Surface	2500 X 700 mm.
Longitudinal Traverse (X Axis)	2500 mm.
Transversal Traverse (Y Axis)	800 mm.
Vertical Traverse (Z Axis)	800 mm.
Working Feeds (X/Y/Z)	5.000 mm/min
Rapid Traverse	12.000 mm/min
Taper	ISO 50
Turning Speeds	4000 rpm
Head Power	22 Kw
Carrying Load Table	4.000 kg.
Machine Weight	10.000  kg.
Auto Indexing Head	2,5° / 2,5°
Ready for 4th Axis  INCLUDED
Hydraulic Tool Clamping System  INCLUDED
Machine Dimension	6450X2700X2830 mm

Year	:1996
CNC	: HEIDENHAIN TNC 407 PB
Table Surface	:3.500 X 1.000 mm.
Longitudinal Traverse (X Axis)	:3.000 mm.
Cross Traverse (Y Axis)	:1.200 mm.
Vertical Traverse (Z Axis)	:1.000 mm.
Rapid Traverse Feed	:12.000 mm/min
Taper	:ISO 50
Turning Speeds	:20 – 3000 rpm
Head Power 	:30 kW
Automatic Head	:2. 5º/2. 5º
Carrying Load Table	:7.000 kg.
Machine Weight	:19.000 kg.
Hydraulic Tool Clamping	: INCLUDED

Year	1996
CNC	FIDIA M20
Manufacturer	ZAYER
Model	KP-5000
Table Surface	5.000 X 1200 mm
Longitudinal Travel (X Axis)	4.710 mm
Cross Travel (Y Axis)	2.560 mm
Vertical Travel (Z Axis)	1.100 mm
Distance Between Columns	1.800 mm
Number of Heads	3 Head
Type of Heads
 Direct Output Head
           Auto Indexing Head 4º -5º Axis
           Extended Head
6.000 rpm
6.000 rpm.
6.000 rpm
Automatic Head Change	INCLUDED
Maximum Height  Between Nose and Table with Spherical Head in Vertical Position	1.000 mm.
Maximum Height  Between Nose and Table with Extended Head	1.350 mm.
Maximum Height  Between Nose and Table with Extended Head	1.705 mm
Rapid Traverse  Axes (X ,Y ,Z)	15.000 mm/min
Maximum Working Feed	5.000 mm/min
Taper	ISO-50
Main Motor Power	37 Kw.
Speeds Ranges	2 Ranges
Spherical Auto Indexing Head
Rotation A Axes
Rotation B Axes
360 X 1º
÷110º X 1º..
Coolant Head and Gearbox	INCLUDED
Soluble Oil Lubricant Tank With Filter Paper + Magnetic Separator	INCLUDED
Axis Head Orientation	INCLUDED
Positioning Accuracy	0.010 mm.
Repetitive Accuracy	0.005 mm.
Carrying Load Table	10.000 Kg.
Machine Weight	34.000 Kg.
Portable Handwheel	INCLUDED
Total Power Installed	63 Kva.
Machine Condition	GOOD

Year	1997
CNC	TNC 426 PB
Manufacturer	NICOLAS CORREA
Model	FP 40/30 UDG
Table Surface	3.000 X 1.250 mm
Longitudinal Traverse (X Axis)	2.500 mm
Cross Traverse (Y Axis	2.500 mm
Vertical Traverse (Z Axis)	1.000 mm
Distance Between Columns	2.000 mm.
Rapid Traverse (X Axis )	15 m/min.
Rapid Traverse  (Y ,Z Axis)	12 m/min.
Max. Working Feed	5 m/min.
Head Type	 ORTOGONAL UDG-40
Orthogonal Milling Head indexing every
C Axis Indexing	2.5º
B Axis Indexing	2.5º
Taper	ISO-50 / DIN 69871 A
Spindle Speed	50- 2.000 r.p.m.
Range Speeds	2 Ranges
ATC	INCLUDED
Nº Positions ATC	10 TOOLS
Coolant Through Tools 15 BAR	INCLUDED
Spindle Motor 	30 KW.
Total Power Requirement	44 kW
Carrying Load Table	10.000 Kg.
Machine Weight	24.000 Kg.
Portable Handwheel	HEIDENHAIN HR 410

Year	2003
CNC	HEIDENHAIN TNC-530

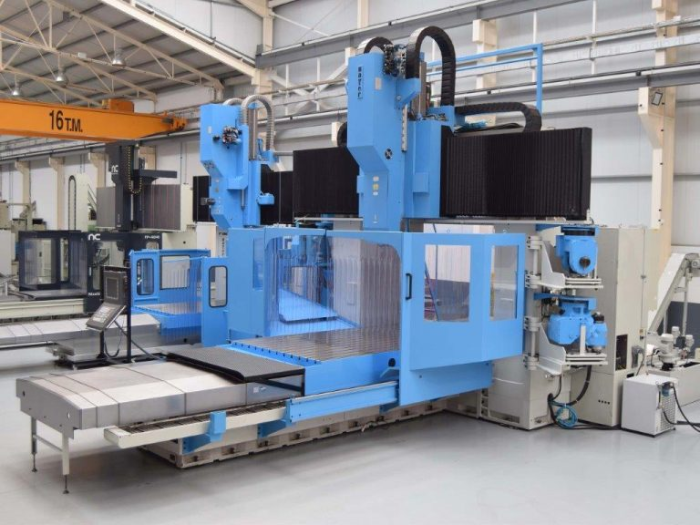

Manufacturer /Model	ZAYER KPCU-6000 AR
Table Surface	6.000 X 2.000 mm
Longitudinal Traverse (X Axis)	6.000 mm
Transversal Traverse (Y Axis)	3.550 + 873 mm
Vertical Traverse (Z Axis)	1.100 mm
Distance Between Columns	2.800 mm
Rapid Traverse Axis (X ,Y ,Z)	25.000 mm/min
Maximum Working Feed	15.000 mm/min
Taper	MAS 403 BT 50
Speed of Direct Output Head	4.500 r.p.m.
Speed of Twist Head	4.500 r.p.m.
Main Motor Power	37 Kw.
Speed Ranges	 2
Spherical Auto Indexing Head
Rotation A Axes( Continuous)
Rotation B Axes (Continuous)
360.000 pos
360.000 pos..
Heads Manual  Taken/Pick up	  INCLUDED
Head Coolant and Gearbox  INCLUDED
Tool Charger of 60 tools  INCLUDED
Soluble Oil Lubricant Tank With Filter Paper + Magnetic Separator INCLUDED
External Coolant 5 Bar INCLUDED
Internal Coolant 20 Bar  INCLUDED
Manual support in the right side for the Direct Output Head	INCLUDED
Manual support in the right side for the Universal Head 45º	  INCLUDED
Double chip  conveyor at both sides of the table INCLUDED
Cross Chip Conveyor	INCLUDED
Guarding Doors + handrail  INCLUDED
Positioning Accuracy	0.010 mm.
Repetitive Accuracy	0.005 mm.
Machine Colour	RAL 7038 / RAL 5012
Portable Handwheel	HEIDENHAIN HR-410
Ethernet Connection	INCLUIDO/ 20.000 Kg.
Machine Weight	65.000 Kg.
Machine Condition	 EXCELLENT

Year	12/1999
CNC	FIDIA M2/MQG-B

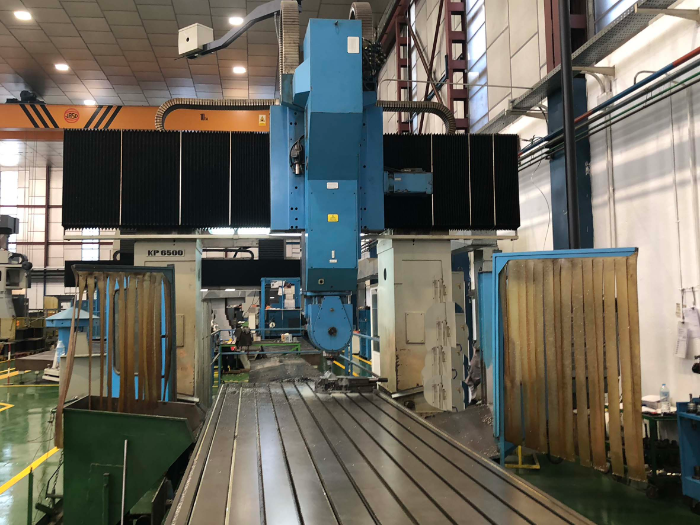

Manufacturer	ZAYER
Model	KP-6500 AR
Table Surface	6.500 X 1800 mm
Longitudinal Travel (X Axis)	6.200 mm
Cross Travel (Y Axis)	3.050 mm
Vertical Travel (Z Axis)	1.100 mm
Distance Between Columns	2.300 mm
Maximum Height  Between Nose and Table with Direct Output	1.200 mm.
Maximum Height  Between Nose and Table with TwistHead in Vertical Position	1.030 mm.
Rapid Traverse Axis (X ,Y ,Z)	25.000 mm/min
Max. Working Feed	15.000 mm/min
X,Y,Z Axis Acceleration	0,8 m/seg2
Direct Output Head Taper	ISO-50 - DIN 2080
Automatic Head Twist Taper	ISO-50 - DIN 2080
Direct Output Head Speed	6.000 r.p.m.
Automatic Head 45º Speed	6.000 r.p.m.
Main Motor Power	  37 Kw.
Speed Ranges	 2 Gamas/ Ranges
Ethernet Connection  INCLUDED
Positioning Accuracy	0.010 mm.
Repetitive Accuracy	0.005 mm.
Machine Colour	RAL 7038 / RAL 5012
Portable Handwheel	FIDIA HPX 10/03
Carrying Load Table	20.000 Kg.
Machine Weight	42.000 Kg.
Axis and Head Engines Brand	SIEMENS DIGITALES
Machine Condition	EXCELENTE

Year	2000
CNC	HEIDENHAIN TNC-426

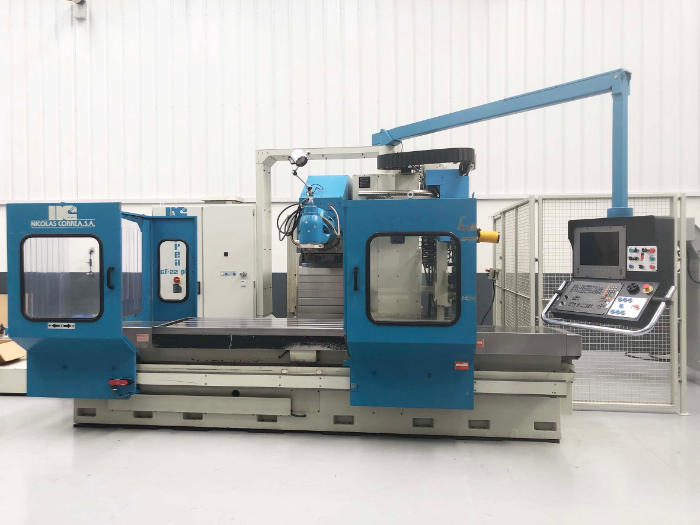

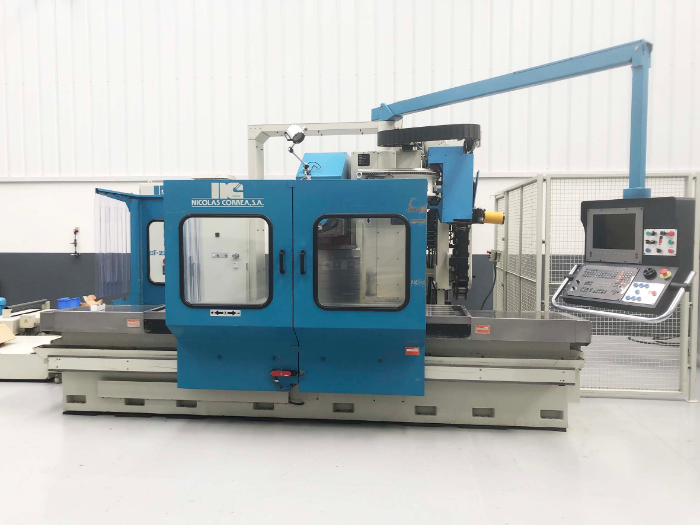

Manufacturer	NICOLAS CORREA
Model	CF22/25 PLUS ATC
Table Surface	2500 X 700 mm.
Number of T Slots	5
T Slots Dimensions	22 mm.
Longitudinal Traverse (X Axis)	2500 mm.
Transversal Traverse (Y Axis)	800 mm.
Vertical Traverse (Z Axis)	800 mm.
Working Feeds (X/Y/Z)	5-5.000 mm/min
Rapid Traverse	12.000 mm/min
Head Type	Universal
Taper	ISO 50
Turning Speeds	20-4000 rpm
Head Power	22 Kw
ATC	INCLUDED
Positions in ATC	30 Pos.
Hydraulic Tool Clamping System	INCLUDED
EC Guarding	INCLUDED
Internal Coolant 20 BAR	INCLUDED
Carrying Load Table	4.000 kg.
Machine Weight	9500 kg.
Machine Dimension	6.605x3.315x2.730 mm

Year of Manufacture	:1998
CNC	:HEIDENHAIN TNC 426

Table Surface:	:7.100 X 1.200 mm
Longitudinal Traverse (X Axis)	:7.000 mm
Transversal Traverse (Y Axis)	:1.100 mm
Vertical Traverse (Z Axis)	:1.800 mm
 Rapid Traverse	:20.000 mm/min
       Max. Working Feed	:10.000 mm/min
 Automatic Head 2.5º / 2,5º	:INCLUDED
Taper:	:SK-50
Turning Speeds:	:20 - 3.000 r.p.m.
Speed Ranges	: 2
Main Motor Power	:50 Kw
ATC	:INCLUDED
Positions at ATC	:40
Internal Coolant 	:INCLUDED
Chip Conveyor	:INCLUDED
2  Rotary Table 	:1200x1200 mm
Portable Handwheel	:INCLUDED
Touchprobe	:INCLUDED
Paper Filter- additional tank	:INCLUDED
Double Operator Control Panel	:INCLUDED
Operator platform	:INCLUDED
4 Sliding Door Portections	:INCLUDED
Max. Carrying Load Table:	:30.000 Kg.
Max. Weight Allowed on Spirsin Rotary Table	:5.000 Kg.
Machine Weight:	:45.000 Kg.

CNC	Heidenhain TNC 430
Year	2003
Table Surface	5.000 X 2.000 mm
Longitudinal Traverse (X Axis)	5.000 mm
Cross Traverse (Y Axis)	1.250 mm
Vertical Traverse (Z Axis)	2.000 mm
Rapid Traverse X,Y,Z Axis	15.000 mm/min
Max. Working Feed	5.000 mm/min.
Taper	ISO-50
Speed Range	2 Ranges
Main Motor Power	37 Kw.
Turning Speeds Head 45º	20 – 6.000 r.p.m.
Turning Speeds Direct Output Head	20 – 6.000 r.p.m.
Automatic Head Head 45º
Head	0,001º
Elbow	0,001º
Direct Output Head	INCLUDED
Pick-up Station for head Changing 	 INCLUDED
Coolant Through Tool 20 Bar	 INCLUDED
Double Rack Pinion System 	 INCLUDED
Longitudinal Chip Conveyor 	 INCLUDED
Lateral Platform for Operator	 INCLUDED
Machine Weight	 42.000 Kg.
Portable Handwheel	 HEIDENHAIN HR-410
Paint Colour	  RAL 7038 – RAL 5012

CNC	Heidenhain TNC 426
New in	1998
Totally Overhauled in	2017
Table Surface	2.000 X 700 mm.
X Travel	2.000 mm.
Y Travel	800 mm.
Z  Travel	800 mm.
Rapid Feed 	12.000 mm/min¡
Taper	l ISO 50
Speed Ranges	20 – 4000 rpm
Power Head	22 Kw
Allowed Weight on Table	4.000 kg.
Machine Weight 	10.000 kg.
Hydraulic Tool Clamping 	INCLUIDO
Machine Conditions	As New

Year	2003
CNC	Heidenhain TNC 530
Table Surface	2.600 x 850 mm.
Longitudinal Traverse (X Axis)	2.200 mm
Cross Traverse (Y Axis)	800 mm
Vertical Traverse (Z Axis)	860 mm
CNC Auto Indexing Head	± 105º
Max. Working Feed Axis (X,Y,Z)	30 m/min
Turning Speeds	8.000 mm/min
Taper	HSK A-100
Main Motor Power	25 KW
Tool Charger RANDOM	INCLUDED
ATC Positions	 40 Tools
Heidenhain Optical Scale	INCLUDED
Portable SteeringWheel Heidenhain HR-410 	INCLUDED
Chip Conveyor	INCLUDED
Carrying Load Table	2.000 Kg.
Machine Weight	16 Tn.
Total Power Required	55 Kw.
Machine Colour	RAL 5012 / RAL 7037

Year	2006
Table Dimension	Ø 1.250 X 1.000 mm.
Longitudinal Traverse (X Axis)	1.250 mm.
CNC	 HEIDENHAIN TNC-426
Cross Traverse (Y Axis)	880 mm
Vertical Traverse (Z Axis)	800 mm.
Table Rotation (C Axis)	0,001 º (Continuous)
Horizontal / Vertical Auto Indexing Head (A Axis )	0,001 º (Continuous)
Rapid Traverse	30.000 mm/min
Taper	SK-40 DIN 69871
Turning Speeds	20-18.000 rpm
Engine Power	37 Kw.
Tools at Tool Charger	30 Tools
Max. Carrying Load Table	2.000 Kg.
Internal Coolant through Screw 40 bar	INCLUDED
Touch Piece Measuring	INCLUDED
HEIDENHAIN Optical Scale	 INCLUDED
Chip Conveyor	INCLUDED
Net Weight	13.000 Kg.
Portable Handwheel	HEIDENHAIN HR-410

Technical features
Icon Print	 Icon PDF
Table Surface	3.500 X 1.000 mm.
Longitudinal Traverse (X Axis	) 3.000 mm.
Cross Traverse (Y Axis)	1.200 mm.
Vertical Traverse (Z Axis)	1.000 mm.
Rapid Traverse Feed	12.000 mm/min
Taper	ISO 50
Turning Speeds	20 – 2500 rpm
Head Power	22 Kw
Automatic Head	2.5º/2.5º
Tilting Table 4 Axe Ø 400 mm	 INCLUDED
Carrying Load Table	7.000 kg.
Machine Weight	19.000 kg.
Hydraulic Tool Clamping	INCLUDED
Machine Condition	GOOD
Manufacturing Year	1992
CNC	Heidnehain TNC 415
Details

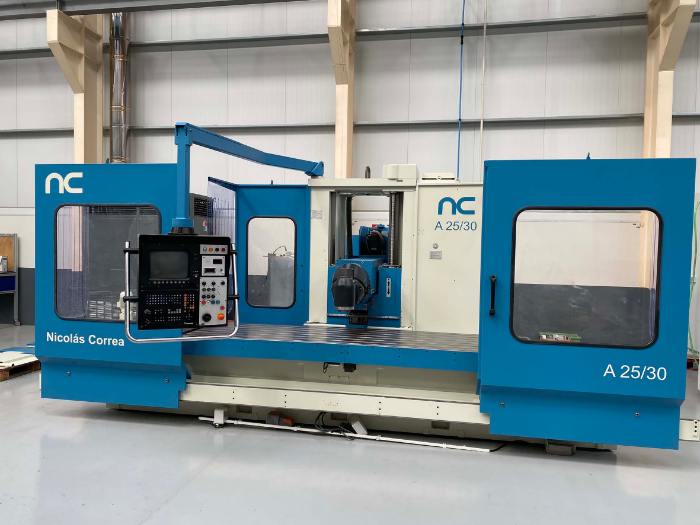

Maquinaria Colás offers this used Nicolas  Correa A 25/30 Bed Milling Machine. It has been checked by our mechanical team and it  is ready to be delivered. This used Nicolas  Correa A 25/30 Bed Milling Machine includes automatic head of 2.5 degrees (head and elbow) and also divisor  / 4th axis -400 mm diametre.

If you are thinking  of buying an used  Nicolas Correa Milling do not hesitate and contact us. We have hundred of machines in stock at our  machine-tool warehouse. We will be pleased to either submit an offer or assist you with finding suitable machine. Please feel free to contact us directly in the telephoe number +34976500624 or send a mail to sales@maquinariacolas.com.

Technical features
Icon Print	 Icon PDF
Table Surface	5.000 X 1.100 mm.
Longitudinal Traverse(X Axis)	5.000 mm.
Transversal Traverse(Y Axis)	1.200 mm.
Vertical Traverse (Z Axis)	1.500 mm.
Rapid Traverse	15.000 mm/min
Taper	ISO 50
Turning Speeds	20 – 3000 rpm
Head Power	29,6 Kw
Auto Indexing Head	2,5 º / 2,5º
Max. Allowed Weight	8.000 kg.
Machine Weight	30.000 kg.
Tool Clamping System	INCLUDED
CNC	HEIDENHAIN TNC-426 D.
Machine Condition	GOOD
Year of manufacture	1998
Details
Used Bed Type Milling Machine Correa with HEIDENHAIN TNC-426 D can be inspected up and running at the used metalworking machinery warehouse that Maquinaria Colás owns in Zaragoza.

Includes automatic head, HEIDENHAIN TNC-426 D and hydraulic tool clamping system.

Technical features
Icon Print	 Icon PDF
Table Surface	6.500 X 1500 mm
X- Axis	6.200 mm
Y- Axis	3.050 mm
Z-Axis	1.100 mm
Distance Between Columns	2.300 mm
Rapid Traverse X Axis	 22.500 mm/min
Rapid Traverse Y, Z Axis	 25.000 mm/min
Maximum Working Feed X,Y,Z	15.000 mm/min
Axis Acceleration X,Y,Z	0,8 m/seg.
Special Columns additional 400 mm height	INCLUDED
Min.-Max Height from table Surface to Nose Head Direct Output	500-1600 mm
Min.-Max Height from table Surface to Nose TWIST Head	330-1430 mm
Min.-Max Height from table Surface to Nose TWIST Head in Horizontal Position	622-1.722 mm
Twist Head (5 AXIS)	 INCLUDED
Direct Output Head	 INCLUDED
Speed Twist Head	6.000 r.p.m.
Speed Direct Output Head	6.000 r.p.m.
Taper Direct Output Head	ISO-50
Taper TWIST Head	ISO-50
Main Motor Power	37 Kw.
Speed Ranges	2  Ranges
Auto Indexing Twist Head	INCLUDED
Rotation A Axis ( continuous)	 360.000 pos
Rotation B Axis ( continuous)	 360.000 pos
Head Manual Taken/Pick up	 INCLUDED
Head Coolant and Speed Box	 INCLUDED
Automatic Tool Charger 30 Tools	INCLUDED
Soluble Oil Lubricant Tank With Filter Paper + Magnetic Separator	 INCLUDED
External Soluble oil Pressure 10 Bar	 INCLUDED
Retractable Manual Support in the Right Side for Twist Head	 INCLUDED
Retractable Manual Support in the Bottom Right Side for Direct Output Head	 INCLUDED
Double Chip Conveyor (One at each side of the machine)	  INCLUDED
Guarding Door at both sides	INCLUDED
Positioning Accuracy	0.010 mm.
Repetitive Accuracy	0.005 mm.
Machine Colour	RAL 6011
Portable Handwheel	INCLUDED
Motor and Regulator Axis and Head	DIGITALES
Ethernet Connection	INCLUDED
Carrying Load Table	15.000 Kg.
Machine Weight	52.000 Kg.
Control	FAGOR 8070
Manufacturing Year	 2.000
Machine Condition	 GOOD

Technical features
Icon Print
Table Surface	4.500 X 1250 mm
Longitudinal Traverse (X Axis)	4.000 mm
Cross Traverse (Y Axis)	3.000 mm
Vertical Traverse (Z Axis)	1.000 mm
Distance Between Columns	2.300 mm
Rapid Feed (X Axis)	15.000 mm/min
Rapid Feed (Y ,Z Axis)	12.000 mm/min
Max. Working Feed	7.000 mm/min
Head Type	Ortogonal UAGA
Orthogonal Milling Head indexing every	2.5º / 2.5º
Taper	ISO-50 / DIN 69871 A
Spindlespeed	3.000 r.p.m.
Main Motor Power	30 KW.
Range Speeds	 2 Ranges
Carrying Load Table	10.000 Kg.
Machine Weight	33.000 Kg.
Tool Setting Probe	 INCLUDED
Portable Handwheel	HEIDENHAIN HR 410
ATC	INCLUDED
Nº Positions ATC	 60 TOOLS
NIKKEN Tilting table CNC 320 VF	INCLUDED
Control	HEIDENHAIN TNC 426 PA
Manufacturing Year	1997

Technical features
Icon Print	 Icon PDF
CNC	Heidenhain TNC 430 PA
New in	2000
Table Surface	10.500 X 2.500 mm
Longitudinal Travel (X Axis)	11.005 mm
Cross Travel (Y Axis)	3.946 mm
Vertical Travel (Z Axis)	1.112 mm
Distance Between Columns	3.100 mm
Maximum Height Between Nose and Table with Direct Output	1.313 mm.
Maximum Height Between Nose and Table with Head at 45°	1.300 mm.
Maximum Height From Table to Axis Head in Horizontal Position	266 – 1366 mm
Rapid Traverse Axis (X,Y,Z)	10.000 mm/min
Max. Working Feed	5.000 mm/min
Direct Output Head Taper	ISO-50 – DIN 69871
Automatic Head 45º Taper	ISO-50 – DIN 69871
Direct Output Head Speed	6.000 r.p.m.
Automatic Head 45º Speed	6.000 r.p.m.
Main Motor Power	37 Kw.
Speed Ranges	2 Ranges
Ethernet Connection	INCLUDED
Positioning Accuracy	0.010 mm.
Repetitive Accuracy	0.005 mm.
Machine Colour	RAL 7038 / RAL 5012
Portable Handwheel	HEIDENHAIN HR-410
Carrying Load Table	20.000 Kg.
Machine Weight	98.000 Kg.
Axis and Head Engines 	SIEMENS DIGITALES
Machine Condition	EXCELLENT
ADDITIONAL EQUIPMENT
Direct Output Head	INCLUDED
Automatic Rotation Head 45°	INCLUDED
A Axis Rotation	0,001º
B Axis Rotation	0,001º
Automatic Head Change 	INCLUDED
Automatic Divisible Table in 2 areas	INCLUDED
Retractable Manual Support in the Right Side For Spherical Head	INCLUDED
Retractable Manual Support in the Right Side For Direct Output Head 	INCLUDED
Double Chip Conveyor	One at each side of the machine 	INCLUDED
Transversal Chip conveyor to collect the 2 longitudinal 	INCLUDED
Complete Side Guarding 	INCLUDED
RENISHAW MP 14Measure Piece Probe 	INCLUDED
1000l Solube Oil Tank With Filter Paper + Magnetic Separator 	INCLUDED
Cooling Through Tool 20 bar 	INCLUDED
External Tool Cooling 10 bar 	INCLUDED
Automatic Charger 80 Herr. ISO 50 	INCLUDED
Tool Control System 	INCLUDED
CNC 3D ROT Function	INCLUDED

Technical features
Icon Print	 Icon PDF
Table Surface	8.000 X 2.000 mm
Longitudinal Traverse (X Axis)	7.300 mm
Transversal Traverse (Y Axis)	1.500 mm
Vertical Traverse (Z Axis)	2.500 mm
Rapid Traverse	8.000 mm/min
Max. Working Feed	6.000 mm/min
Taper	ISO-50 (69871-B)
Turning Speeds	20 – 3.000 r.p.m.
Auto Indexing Head	2,5º – 2,5º
Tool Chargers	INCLUDED
Nº Tools Charger	40 Tools.
Internal Coolant	INCLUDED
Longitudinal Chip Conveyor	INCLUDED
2 Clamping Angle Plates	INCLUDED
Several Tools	INCLUDED
Main Motor Power	30 Kw.
Nº Ranges	2 Ranges
Max. Carrying Load Table	20.000 Kg.
Machine Weight	65.000 Kg.
Control	SIEMENS 840
Year Manufacture	2002
Machine Condition	EXCELLENT
Details
This Used Travelling Column Milling Machine Anayak HVM 8000 with numeric control SIEMENS 840 was built in 2002 and it’s in an excellet status in the used machine tools warehouse of Maquinaria Colás in Zaragoza.
It has semi automatic head ( 2.5º in head and nose), 40 positions automatic tool charger, internal coolant and longitudinal chip conveyor.

Technical features
Icon Print	 Icon PDF
Table Surface	N/A – TBC
Longitudinal Traverse (X Axis)	12.000 mm
Transversal Traverse (Y Axis)	1.200 mm
Vertical Traverse (Z Axis)	4.000 mm
Quill (Z Axis)	700 mm.
Quill Diameter (W Axis)	150 mm.
1.000 + 700 mm.
Max. Working Feed X-Y-Z		4.000 mm/min.
Rapid Traverse	30.000 mm/min.
Automatic Tool Charger	INCLUDED
Positions in ATC	120 Tools
Taper at Orthogonal Head	ISO-50
Taper Spindle Quill	ISO-50
Turning Speeds Orthogonal Head	20 – 4.000 r.p.m.
Turning Speeds Spindle Quill	20 – 2.000 r.p.m.
Auto Indexing Orthogonal Head
A Body	1º
B Body	1º
Main Motor Power	35 Kw.
Speed Ranges (ZF Box)	2 Gamas/ 2 Ranges
Longitudinal Chip Conveyor	INCLUDED
Twin Screws – Motor (Z Axis)	INCLUDED
Double Motor (X A xis)	INCLUDED
Control Panel with elevator at
column side	INCLUDED
Coolant through tool 20 BAR	INCLUDED
Total Power Required	85 Kva.
Machine Weight	82.000 Kg.
Portable Handwheel	HEIDENHAIN HR-410
Machine Condition	EXCELLENT
Details

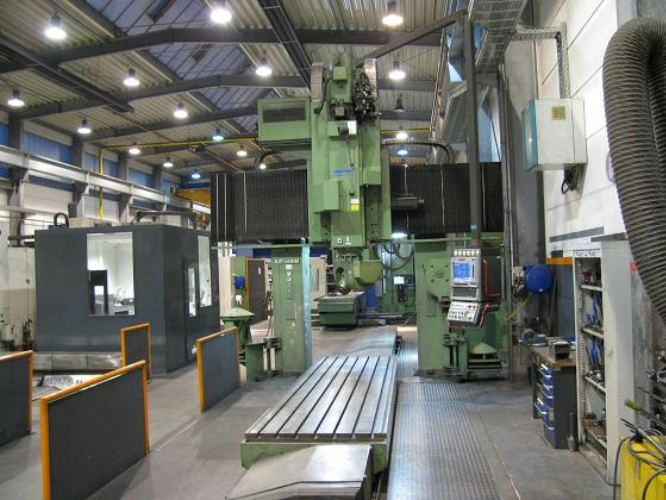

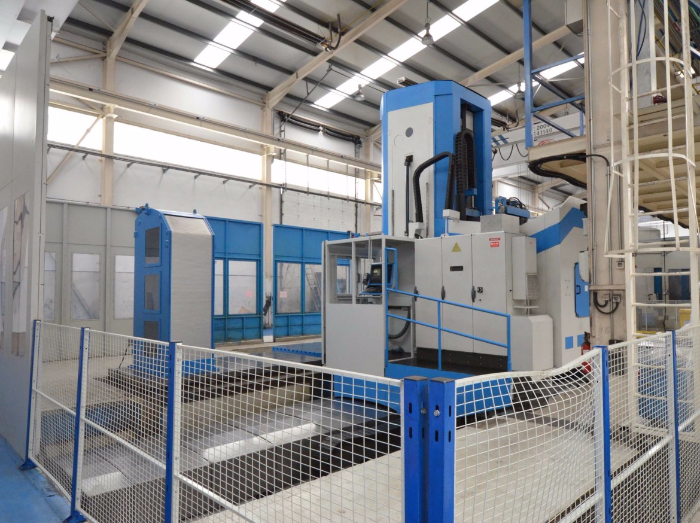

Travelling Column Milling Machine CME MQ-12000 with Heidenhain TNC 530. Manufactured in 2011 but never used. Great opportunity.

MQ travelling column milling machines with CNC control allow to manufacture great precision and high productivity pieces. These machines are built with great versatility as a product with high structural rigidity product to assure a suitable rating in hard working conditions, in rigidity and precision
The structural main pieces (bed, table, column, vertical carriage, longitudinal carriage and ram) are pearlitic cast-iron GG30, stabilized and strongly veined.
The guidance of the machine is done on prismatic rectified guides,designed to support heavy charges, obtaining a high rigidity and a big precision.
The transmission of the longitudinal axis depends on X course of the machine, it can be done through ballscrews for courses inferior to 10.000 mm. or double pinion – rack system, for courses upper to 10.000 mm. The transmission of Z and Y axes are realized through the ballscrews

If your want to buy a Travelling Column Milling Machine CME MQ-12000 please contact us. You can call us to our customer service number +34 976500624 or use the contact form appearing at the end of the page.

Technical features
Icon Print	 Icon PDF
Table Surface	12.240 X 1.000 mm
Longitudinal Traverse (X Axis)	10.450 mm
Transversal Traverse (Y Axis)	1.200 mm
Vertical Traverse (Z Axis)	2.000 mm
Rapid Traverse	12.000 mm/min
Max. Working Feed	5.000 mm/min
Taper	ISO-50
Turning Speeds	20 – 3.000 r.p.m.
Auto Indexing Head	2,5º – 2,5º
CNC HEIDENHAIN TCN 426
Tool Charger	 INCLUDED
Longitudinal Chip Conveyor	 INCLUDED
Nº Tools at Tool Charger	 30 Tools
Coolant through Tool	/ INCLUDED
Main Motor Power	30 Kw.
Speed Ranges	2 Ranges
Carrying Load Table	40.000 Kg.
Machine Weight	45.000 Kg.
Year 1998
Year of Rebuitl 2015
Machine Condition	NEW

Technical features
Icon Print	 Icon PDF	 Icon Youtube
TECHNICAL SPECIFICATIONS
Year	2004
CNC	SIEMENS 840 Digital
Table Longitudinal Traverse (X Axis)	10.000 mm.
Vertical Traverse (Y Axis)	4.000 mm.
Ram Transversal Traverse (Z Axis)	1.500 mm.
Tool Type	ISO 50 DIN 69871
Max. Head Turning Speeds	4.000 rpm.
Ranges	2
Low Range	1 – 1.092 r.p.m.
High Range	1.092 – 4.000 r.p.m.
Constant Torque Turning Speeds	5- 273 rpm
Turning Speed at Constant Power	273 – 4000 rpm
Max. Power	37 Kw.
Max. Torque	1.300 Nm,
RAM Dimension	460 X 520 mm
Speed of the Axis	20.000 mm/min.
Stoller Plate Dimensions( 2 Units)	4000 x 2000 X 300 mm
Portable Handwheel	SIMENES B-MPI.
Controlled Axis	X,Y,Z,W,A,B,C
Axis Measurement System with Pressurization	HEIDENHAIN
Colour	GRIS RAL 7035 BLUE RAL 5015
Total Power Installed	100 Kva.
Total Power ON 30.830	Hours
Machine Condition	EXCELLENT
 ADDITIONAL EQUIPMENT
Longitudinal Chip Conveyor  	INCLUDED
Coolant through Tool 20 Bar  	INCLUDED
External Coolant – 5 BAR  	INCLUDED
Integral Guarding  	INCLUDED
Spindle Orientation  	INCLUDED
Birotating Auto Indexing Head r.p.m 	INCLUDED
Extended Head like L 620 mm Boring Milling Type  	INCLUDED
Automatic Tool Charger  	INCLUDED
ATC Positions  	60
AITEK Automatic Tool Changer for 3 Heads 	INCLUDED
Vertical and Transversal Movement of the Operation Panel  	INCLUDED
Rotary Table Juaristi MGX-20	INCLUDED
8th Axis Spirsin 81850 D100 HV	INCLUDED
ROTARY TABLE JUARISTI MGX-20
Table Longitudinal Traverse (W)	1.500 mm.
Table Rotation (B)	0,001 º
Table Surface	2.500 x 2.000 mm.
Number T Slots	13 Slots
Max. Carrying Load Table	20.000 Kg.
Manufacturing Year	2004
 SPIRSIN REF. 8150 / D1000 HV (8th AXIS)
Chuck Size	Ø 1.000 mm.
Centre High	600 mm.
Work Position	Horizontal / Vertical.
Lock System	HYDARULIC
Table Rotation	0,001º
Divisor Weight	2.300 Kg.
Tailstock for Vertical Working Position	 INCLUDED
Manufacturing Year	2004

Technical features
Icon Print
Table Surface	 1.525 X 325 mm
X Travel	1.000 mm.
Y Travel	450 mm
Z Travel	540 mm.
W Quill Travel	150 mm.
Rapid Feed (X,Y,Z)	5.000 mm/min
Maximum Feed	4.000 mm/min.
Taper	ISO-40
Head Speedl	60 – 4.000 rpm.
Max Weight Allowed on table	 400 Kg.
Main Engine Power	7,5 KW.
Total Installed Power	 13 KW
Tool Clamper	INCLUDED
4th Axis MECA Ø 250 mm	INCLUDED
CNC	FAGOR 8055 MC
Total Weight	4.450 Kg.
New in 	2001
Machine Dimensions	2.670x3275x2117 mm
Details

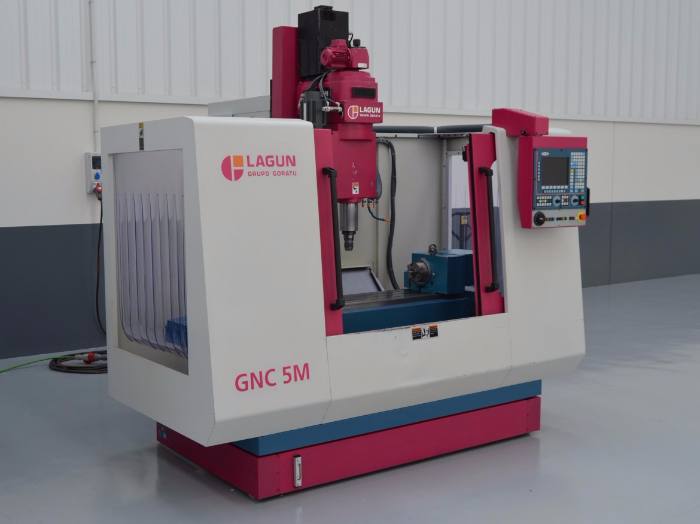

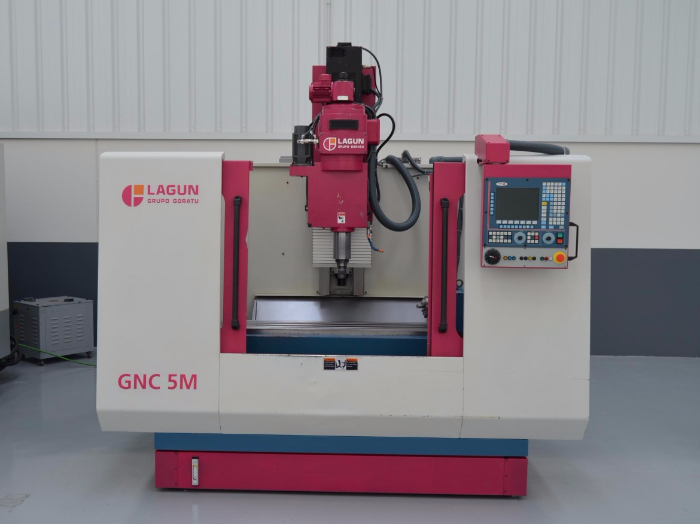

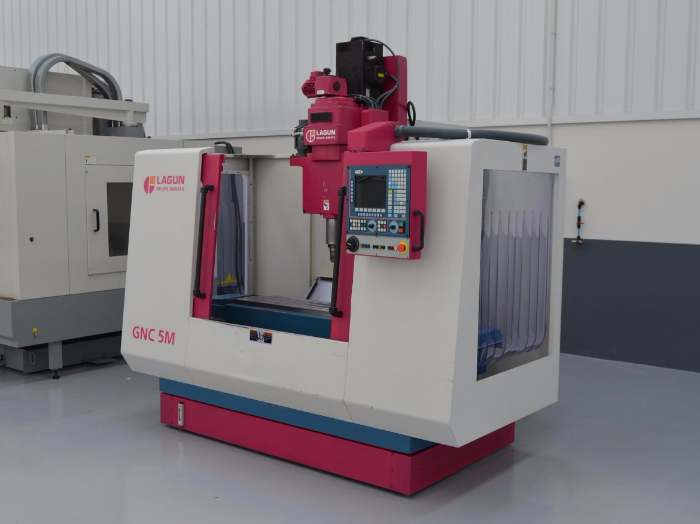

This Used Lagun GNC 5M manufactured in 2001 with CNC Fagor 8055 MC, can be found in excellent conditions at our used machinery warehouse in Zaragoza. It can be inspected under power.

If you are interested in buying this used VMC Lagun GNC 5M call us for more information and price. You can contact us via the email address sales@maquinariacolas.com, filling the contact form at the end of the page or calling us to our customer service phone +34976500624 where we will be happy to help you.

Technical features
Icon Print	 Icon PDF
Table Dimension	Ø 400 mm.
Longitudinal Traverse (X Axis)	600 mm.
Transversal Traverse (Y Axis)	428 mm
Vertical Traverse (Z Axis)	410 mm.
A Axis Stroke	+120º- 120º / min.0,001º
C Axis Stroke	360º/min. 0,001º
Max. Working Feed	60.000 mm/min
Taper	ISO-40
Turning Speeds	15.000 rpm
Main Motor Power	35 /125 Kw.
Tools in Tool Charger	24 Tool
Maximum Length of the Tool	300 mm.
Cooling through tool 24 BAR	INCLUDED
Optical Rules	INCLUDED
Chip Conveyor	INCLUDED
Net Weight	7.500 Kg.
Control	HEIDENHAIN iTNC-530
Square Metres	12m2
Year Manufacture	2002
Machine Condition	VERY GOOD
Details

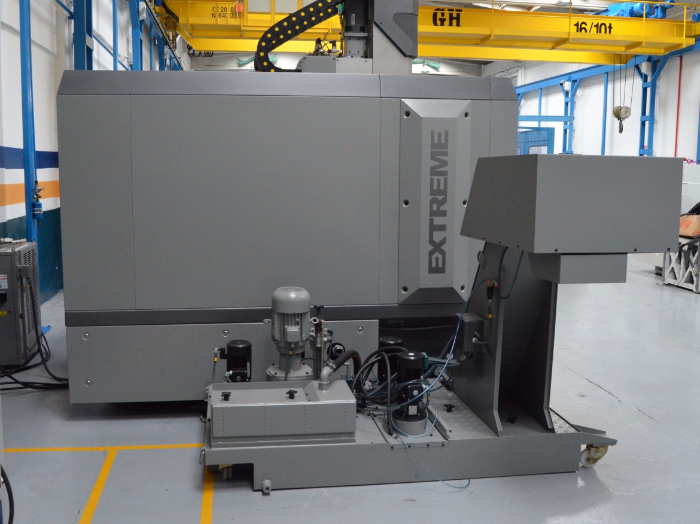

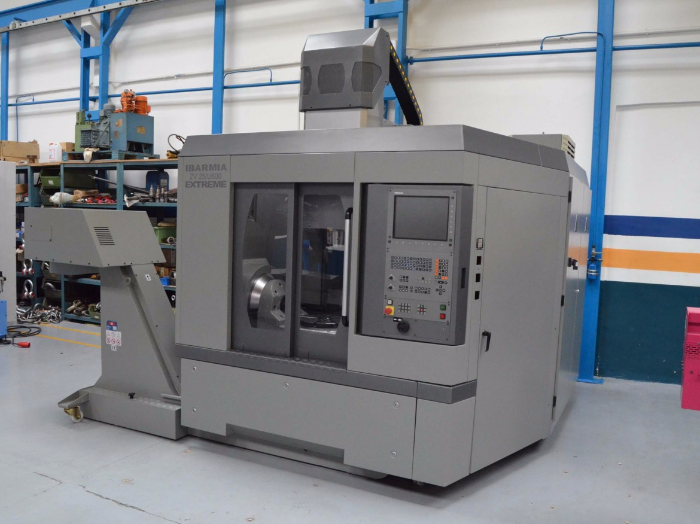

The Used Machining Centre Ibarmia ZV 25 U600 can be found in excellet status at the used metalworking machinery warehouse that Maquinaria Colás owns in Zaragoza (Spain). The used vertical machining centre has been totally retrofitted by our experienced team in the retrofitting and reconstruction of used machine tools.  It’s a second use vertical machining centre with Heidenhain i TCN 530, perfectly equiped with ATC 30 positions, internal cooling, optics rules and chip conveyor.  The vertical machining centre is ready to be inspected and delivered inmediately. diata.

Technical features
Icon Print	 Icon PDF
Table Surface	 1.050 X 550 mm
Longitudinal Traverse	 X Axis 900 mm.
Cross Traverse Y Axis	550 mm
Vertical Traverse Z Axis	430 mm.
Max. Distance From Table to Head Nose	160-590 mm.
Max. Dimensions of Piece	1050 x 720 x 450 mm.
Max. Carrying Load Table	800 Kg.
Rapid Traverse X, Y, Z Axis	20.000 mm/min
Max. Working Feed	20.000 mm/min
Position Accuracy	0,0001 mm.
Taper	HSK-A63
Head Turning Speeds	20.000 rpm.
Main Motor Power	18,5 Kw.
Tools at Tool Charger	25 tools.
Max. Tools Size Ø	120 x 300 mm.
Rigid Tapping	INCLUDED
Blowing Through Tooling	INCLUDED
Cooling Through Tool 20 BAR	INCLUDED
Soluble Oil Tank Coolant	INCLUDED
Soluble Oil Tank System Curtain Type	INCLUDED
Chip Conveyor	INCLUDED
Laser Tool Measuring BLOM	INCLUDED
Touch Piece Measuring BLOM	INCLUDED
Optional High Speed Motors and Regulators	INCLUDED
Machining Mirror Option	INCLUDED
Additional Memory in CNC	INCLUDED
Portable Handwheel	INCLUDED
Machine Dimensions	3.500 x 2800 x 2800 mm.
Plenty of Accessories	INCLUDED
Machine Weight	11.000 Kg.
Machine Condition	AS NEW

Technical features
Icon Print	 Icon PDF
CNC	Fanuc 21i
Year 2003
Maximum Diameter Over Bed	720 mm.
Maximum Diameter Carriage	505 mm.
Distance between Centres	2.500 mm.
Longitudinal Slide Traverse ( Z Axis) 2.644 mm
Cross Slide Traverse (X- Axis)		308 mm.
Height Floor over Floor	1.100 mm
Axis Feedrate Max. Speed	20.000 mm/min.
Slant Bed	60º
Spindle Cross	91 mm
Spindle Speed	20-3.000 rpm
Nose Type of Main Axis	A2 8”
Main Motor Power	30/37 Kw
Speed Range	2 Ranges
Turret Stations	12
Tool Holder	VDI-50
Autocentering Hydraulic Steady rests	INCLUDED
Total Power Required	45 Kw.
Longitudinal Chip Conveyor	INCLUIDO/ INCLUDED
Machine Weight	12.500 Kg.
Machine Condition	SEMI NEW
Details

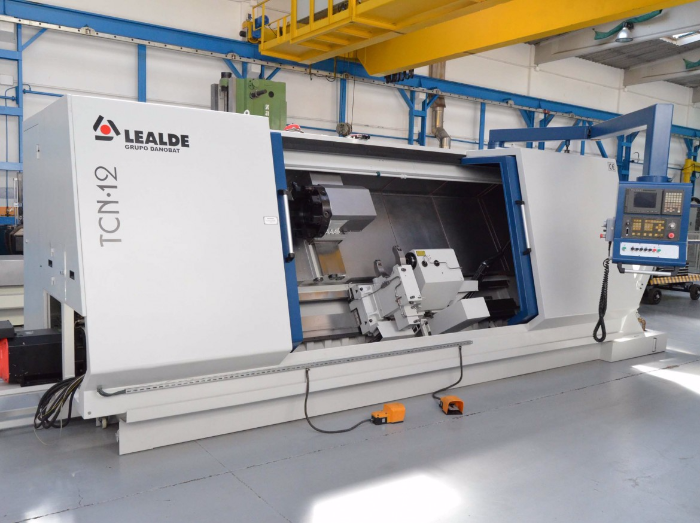

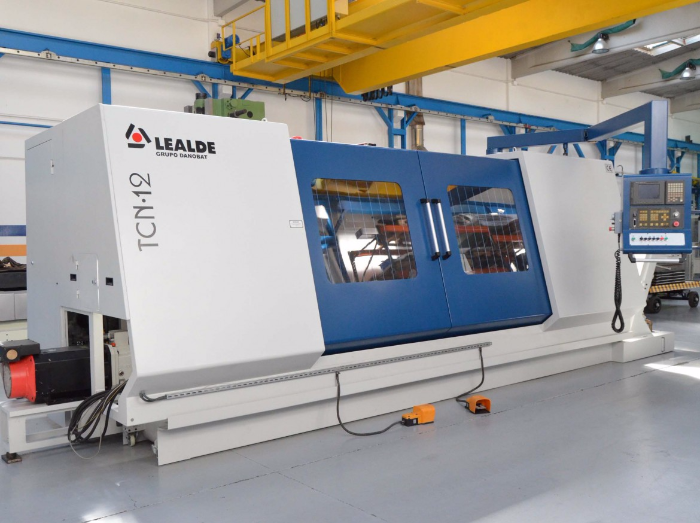

This CNC Lathe Lealde TCN 12×2500 with CNC Fanuc and year of manufacture 2003 can be found in excellent status at our used machine tools showroom in Spain. We own a 6000 sq. meter warehouse with a permanet selection of used metalworking machinery.

If you need more information about this CNC Latne you only have to contact us. You can do it using the contact form appearing at the end of the page our using our customer service telephone +34 976500624. We will be glad to provide you the information you may need.



Technical features
Icon Print	 Icon PDF
Max. Swing Over Bed Max. Ø	620 mm.
Max. Swing Ø	620 mm.
Max Swing Over Cross Slide Ø	370 mm.
Distance between Centres	3.000 mm.
Rapid Traverse X Axis	8 m/min
Rapid Traverse Z Axis	8 m/min
Turning Speed	0-1600
Spindle Automatic Ranges	2  Ranges
Main Motor Power	20,5 Kw.
Spindle Nose	DIN-55027-11
Turret Stations	4 Pos-Automátic.
Automatic Square Turret Type	SAUTER 240 x 240
Quill Travel	104 mm.
Ø Tailstock Quill	100 mm
Tailstock Quill Traverse	200 mm
Tailstock Quill Morse	6
Year	2007
CNC	Fanuc 21i TB
FANUC Portable Handwheel	 INCLUDED
Back Protection	 INCLUDED
Hydraulic Chuck Ø 300 mm	INCLUDED
Internal Coolant Through Tool	INCLUDED
High Pressure Pump 15 Bar	INCLUDED
Longitudinal Chip Conveyor	INCLUDED
Fix SteadyRest 50/220	INCLUDED
Full Equipped with Tools	INCLUDED
Machine Dimensions	5.600 x 2.300 mm
Machine Weight	6.500 Kg.
Total Power Required	28 Kw.
Machine Condition	 GOOD
Details

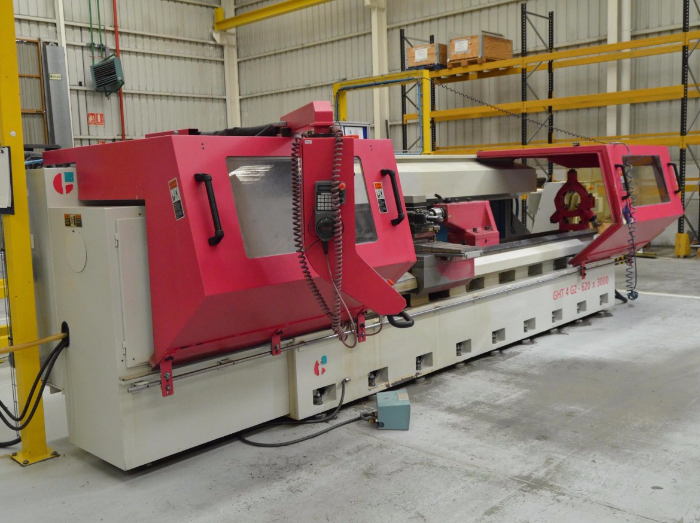

This Geminis GTH4 620×3000 Used CNC Lathe was new in 2007 and can be found in excellent status at Maquinaria Colás in Zaragoza (Spain)  Includes: CNC Fanuc 21i TB  FANUC portable Handwheel,  back protection,  hydraulic chuck Ø 300 mm,  internal coolant through tool, high pressure pump 15 Bar,  longitudinal chip conveyor, fix steady rest 50/220. The Geminis GTH4 620×3000 Used CNC Lathe  is Equipped with Tools and Accessories

If you are looking for an used CNC lathe don’t hesitate and contact us. We have a wide selection of used industrial machinery reviewed and ready to be sold. You can get more info of this or any other machine calling us at our customer service telephone +34976500624 or via the contact form appearing at the end of the page. We will be glad to assist you.



Technical features
Icon Print	 Icon PDF
Ø Max. Over Bed	530 mm.
Ø Max. Longitudinal Carriage	475 mm.
Ø Max. Transversal Carriage	315 mm.
Centres Height	260 mm
Distance Between Centres	2.000 mm.
Bed Width	350 mm.
Main Spindle Bore	Ø 80 mm.
Rapid Traverse X Axis	10 m/min
Rapid Traverse Z Axis	10 m/min
Head Turning Speeds	0-2.500 rpm
Head Automatic Range	1 Range
Main Motor Power	17 Kw.
Spindle Nose	ASA B5,9
Tailstock Quill Ø	82 mm
Hydraulic Tailstock Quill Travel	235 mm
Tailstock Morse Taper	Morse 5
Turret Automatic Change Duplomatic 8 Po	INCLUDED
Universal Chuck – 3 Jaws Ø 250	INCLUDED
Longitudinal Chip Conveyor	 INCLUDED
Complete Rear Protection	INCLUDED
2 Handwheels at Control Pad	INCLUDED
Fixed Steady Rest Ø 200 mm	 INCLUDED
CNC FAGOR	8050 TC
Machine Dimensions	5.435 x 1.985 mm
Machine Weight	3.500 Kg.
Total Power Required	20 Kw.
Manufacturing Year	2006
Serial Number	51976
Machine Condition	EXCELLENT
Details
This Used Pinacho Tarus Lathe manufactured in 2006 with Fagor 8050TC  Control  has been revised by  our mechanical department. It is in stock at our warehouse in Zaragoza.

We can highlight the following  additional equipment:

Turret Automatic Change Duplomatic 8 Pos.
Universal Chuck – 3 Jaws Ø 250
Longitudinal Chip Conveyor
Complete Rear Protection
2 Handwheels at Control Pad
Fixed Steady Rest Ø 200 mm
If you are looking for an used Pinacho Taurus Lathe please feel free to contact us. Several ways to contact us:  using our online form, sending an mail to sale@maquinariacolas.com or calling to our telephone number +34976500624. We will be  happy to assist you!

With more than 6000 square meter warehouse we stock a huge selection of used  metal machinery that can be inspected under power. In  case you are interested in  visitng us please call us to make an appointment.

Technical features
Icon Print	 Icon PDF
Table Surface	2000 X 630 mm.
Longitudinal Traverse (X Axis)	1800 mm.
Transversal Traverse (Y Axis)	800 mm.
Vertical Traverse (Z Axis)	800 mm.
Rapid Traverse	15.000 mm/min
Taper	BT -50
Turning Speeds	 20 – 3000 rpm
Head Power	25 CV
Carrying Load Table	6.000 kg.
Machine Weight	14.000 kg.
Tool Charger 30	Tools
Chip Conveyor	 INCLUDED
Auto Indexing HEAD	 0- 180 º
Year	1992
CNC FAGOR	8050 M
Details

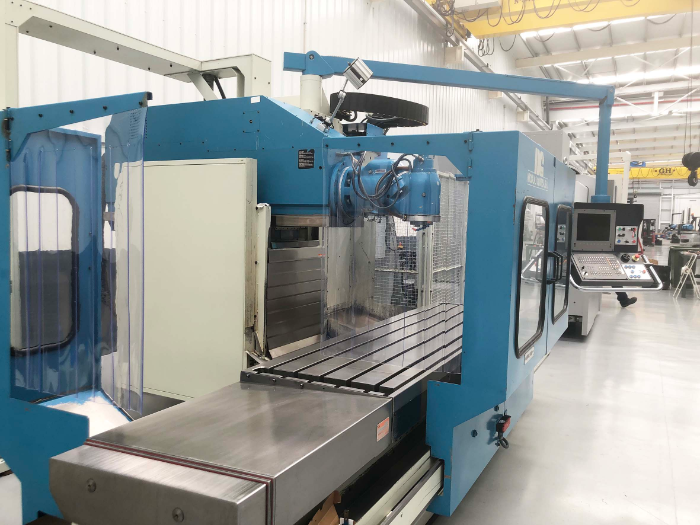

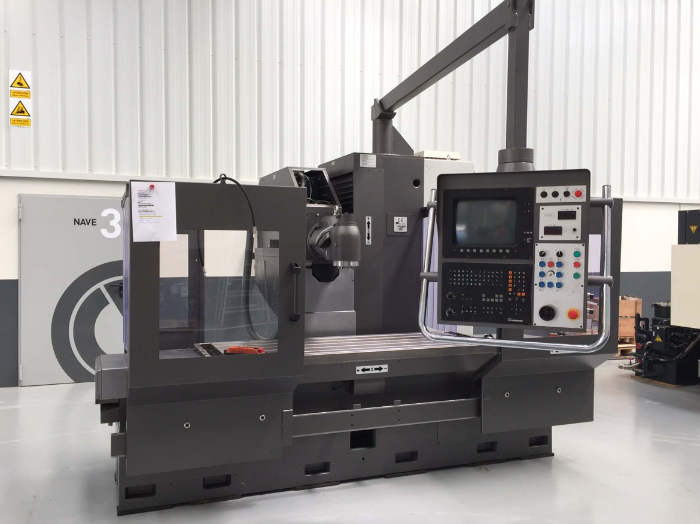

The milling machine presented above is a used Bed Type Milling Machine Zayer ZFU 2000  with CNC Fagor 8050 M is available in stock at the used metalworking machinery shop that Maquinaria Colás owns in Zaragoza.  It’s ready for inspection and inmmediate shipping to customer site.

This used miling machine Zayer has automatic head with 2 positions of 180º, automatic tool charger with 30 positions and chip conveyor.

Call us for more information and pricing about this second use milling machine and take advantage of the opportunity we offer to have the best equipment at the best price.
